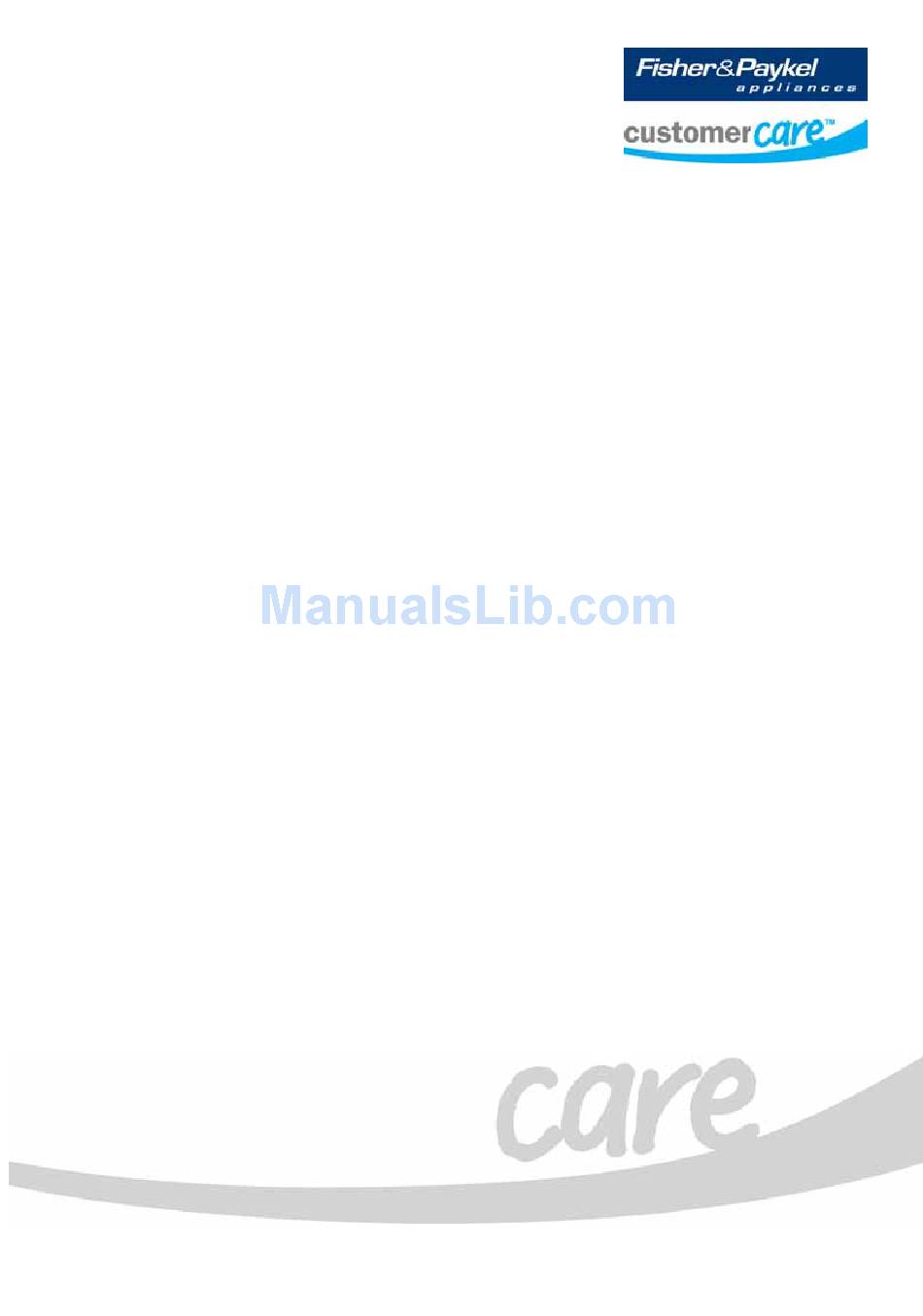

- Page 1 Parts Manual Clothes Dryer Model: DE60F60EW 1 FP AU Product Code: 98712 98712...
- Page 2 98712...
- Page 3 REPRINT - JUNE 2009 PRODUCT Brand Fisher & Paykel Voltage 220-240V 50Hz Model DE60F60EW 1 FP AU Product Code 98712 Fisher & Paykel Customer Services Pty Ltd PO Box 798, Cleveland, QLD 4163 A.C.N. 003 3335 171 19 Enterprise Street...
- Page 4 98712...
- Page 5 98712 CONTENTS TOP DECK ............................6 CABINET............................8 DRUM.............................. 10 MOTOR & ELECTRICS ........................12 GUIDE TO USING THIS MANUAL The model covered by this manual is listed on the front cover. The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions.
-
Page 6: Top Deck
98712 TOP DECK... - Page 7 98712 TOP DECK PART DESCRIPTION 790811 TOP DECK DE60F60 791746 TRIM TOP UNDERBENCH 790836 SCREW 4.2x9.5 791401 MANUAL USE & CARE DE60F60EW1 791382 SCREW 3.5x8 790839 SWITCH SELECTOR 790844 SCREW 4x10 791294 COVER PCB HOLDER 790841 SCREW 3.5x9.5 791406 MODULE PCB DE60F60EW1 791279 HOLDER MAIN BOARD 791357...
-
Page 8: Cabinet
98712 CABINET... - Page 9 98712 CABINET PART DESCRIPTION 791386 SCREW 791416 STRIP FOAM SELF ADHESIVE 791408 COVER HEATER ASSY 791417 STRIP FOAM SELF ADHESIVE 790836 SCREW 4.2x9.5 791400 SCREW 4.2x13 791415 HOSE FLEXIBLE 791414 ADAPTOR HOSE 791430 ADAPTOR HOSE INTERNAL 791371 COVER SERVICE 790846 SCREW B4.2x9.5 791419 PANEL REAR ASSY...
-
Page 10: Drum
98712 DRUM... - Page 11 98712 DRUM PART DESCRIPTION 790819 BELT POLY-V 791402 DRUM ASSY DE60F60EW1 790843 WING DRUM 791418 SCREW 5x20 791343 CABLE ASSY 791283 HOLDER CABLE 791384 SCREW 4.5x16 791290 SEAL FELT FRONT 791366 SPRING SWITCH 791344 SCREW PT 4x6 791329 SCREW PLASTIC 3x20 791296 MICROSWITCH 791393...
-
Page 12: Motor & Electrics
98712 MOTOR & ELECTRICS... - Page 13 98712 MOTOR & ELECTRICS PART DESCRIPTION 791404 HEATER ASSY DE60F60EW1 790816 CLAMP PLASTIC 791405 HARNESS MAIN DE60F60EW1 790825 FLEX MAINS DE60F60 791397 CABLE MAIN 790842 HOLDER CABLE SELF LOCKING 790841 SCREW 3.5x9.5 790836 SCREW 4.2x9.5 791362 HOUSING TERMINAL 790823 FILTER INTERFERENCE 790848 SCREW 791423...
