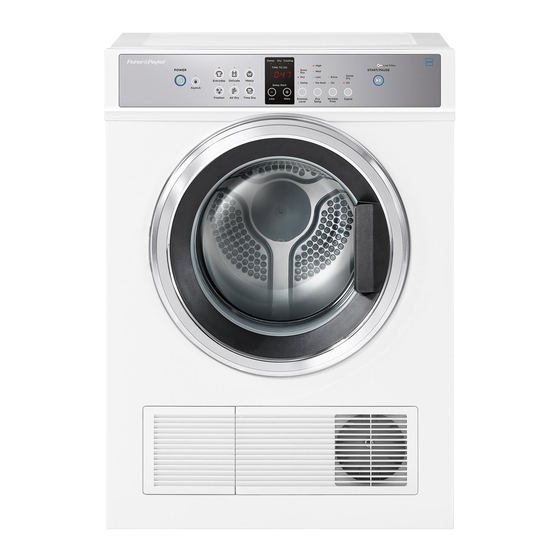

Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by
electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or
products dealt with in this service information by anyone else could result in serious injury or death
SERVICE MANUAL
Electronic Clothes Dryer
Model No.
WARNING
Issue
Rev.
TL1503S001V1.1
Order No.
DE6060P1
DE6060G1
DE5060G1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DE6060P1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fisher & Paykel DE6060P1

  • Page 1 Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 SERVICE MANUAL TL1503S001V1.1 Order No. Electronic Clothes Dryer DE6060P1 Model No. DE6060G1 DE5060G1 WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
  • Page 2: Table Of Contents

    Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 Contents 1.Important safety instructions ..................1 ......................2 Technical data 3.Dimensional drawing....................2 4.Names of parts......................3 5.Usage of the operation knobs..................3 6.Installation........................4 UNPACKING YOUR DRYER ..................4 FREE STANDING ......................5 INVERTED WALL MOUNTING ..
  • Page 3: Important Safety Instructions

    Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 1.Important safety instructions Warning - To reduce the risk of fire, electric shock, or personal injuries, the following basic precautions should be followed: Read all instructions before using this dryer. 2 The interior of the dryer should be cleaned periodically by qualified service personnel.
  • Page 4: Technical Data

    Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 19 Do not install or store this dryer where it will be exposed to water and /or the weather. Keep surrounding areas free from the accumulation of lint, dust and dirt. 20 To prevent shock hazard and assure stability during operation, the dryer must be installed and electrically grounded by a qualified service person in accordance with local codes.
  • Page 5: Names Of Parts

    Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 4.Name of parts Control panel Top panel Program selector Door switch Door airproof strip Door latch Door Air intake grill Lint filter Exhaust grill Model number and Serial number Power supply cord Back plate Outlet cover Read all instructions before using this dryer.
  • Page 6: Installation

    Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 Power button Press this button to turn the tumble dryer on and off. Start/Pause button Press this button to start the tumble dryer. Press this button again during the operation of the tumble dryer.The indicator light and display screen will...
  • Page 7: Free Standing

    Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 FREE STANDING The dryer stands on the floor and can easily be moved into position. Ensure that it is placed on a level floor. Also ensure there is at least 50 mm air clearance between the back of the dryer and the wall to allow fresh air flow for efficient operation even using the fronting venting option.
  • Page 8 Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 Warning: Ensure that the screw and nut of the Wall Hanging Brackets are tightened during installation, if required. Regularly check all the screws and nuts and tighten, if required. Do not overtighten. 3. Keep the exhaust grill at front of the dryer, Install the hooks to the dryer in the inverted position.
  • Page 9: Stacking Installation

    Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 STACKING INSTALLATION You can use a stacking kit (included as an accessory) if you want to mount your dryer on the top of a front load washing machine, ensure the washer is the same width as the dryer.
  • Page 10: Change The Venting Mode

    Issue Service Manual Rev. Model No. SDRY60 CHANGE THE VENTING MODE There are three venting options: Front venting You can select front venting by use the exhaust grill. Note: If the dryer is mounted on the wall advise you use the front venting option. Rear venting If you want to choose the rear venting mode, the exhaust grill at the front of the dryer needs to be replaced with the outlet cover from the back panel of the dryer.
  • Page 11: Operating Instructions

    Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 Install the flexible hose(optional flexible hose) Connect the narrow end of connector to the dryer duct pipe Flexible connector mouth, and then connect the flexible Outdoor hose to the wide end of the connector.
  • Page 12 Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 Load to dry Laundry type Cotton fabric Synthetic fabric Maximum load 6 kg 3 kg Warning : 1. Avoid drying wool, silk and other delicate fabrics, they maybe damaged. 2. Do not exceed the recommended load limit.
  • Page 13 Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 Extra Dry 1-2% 65 ºC Easy Iron High Dry Extra Dry 2-3% Medium 3-4% Damp Dry 4-7% Damp 7-10% Bulky Extra Dry 0.5-1.5% Medium 65 ºC Dry Extra Dry 1-3% 3-5% Damp Dry...
  • Page 14: Cleaning And Maintenance

    Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 8. Cleaning and maintenance WARNING! Unplug the power cord prior to any cleaning Cleaning the surface ipe off any dust or dirt. Note: Do not use excessive water,a damp cloth is fine. Do not use solvent.
  • Page 15 Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 Cleaning the door airproof strip Remove the lint with a soft brush or a wet cloth. Be careful not to damage the airproof strip. Remove any remaining lint from the lint screen on the door at the same time.
  • Page 16: Circuit Diagram

    Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 9.Circuit diagram DE6060P1 DE6060G1/DE5060G1 Power Power Encoder switch switch Door switch Door switch NTC1 NTC2 NTC1 NTC2 Display Display panel panel Temperature Temperature Temperature Temperature limiter limiter limiter limiter Capacitor Capacitor Heater1 Heater2...
  • Page 17 Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 Cause Problem Explanation / Suggestion A programme not suitable for the Select a suitable programme after Laundry has shrunk, type of laundry may have been used checking the care label on your machine...
  • Page 18 Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 1.The dryer dose not start The power supply plug Insert the power plug into an not inserted correctly appropriate receptacle to turn on the power The local circuit is out Wait for the local circuit on...
  • Page 19 Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 2.The laundry has not been dried thoroughly Are the exhaust vent, air intake grill and the lint filter Clean the exhaust vent, air clogged intake grill and the lint filter Is there too much laundry in...
  • Page 20 Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 Check if the heater is OK The resistance of the heater Replace the heater, then check is about Ω) if it is heating Check if the thermostat, terminals or NTC is OK( Replace the thermostat, terminals...
  • Page 21 Service Manual Issue Rev. Model No: DE6060P1/DE6060G1/DE5060G1 4.Big drying sound It is normal to notice that there will be wind sound and rubbing noise during the drying process. If metal collision sound is found or the resonates, please: Check if the floor...
