SOYO SY-P4I875P DRAGON 2 User Manual
  1. Manuals
  2. Brands
  3. SOYO Manuals
  4. Motherboard
  5. SY-P4I875P DRAGON 2 V1.0
  6. User manual

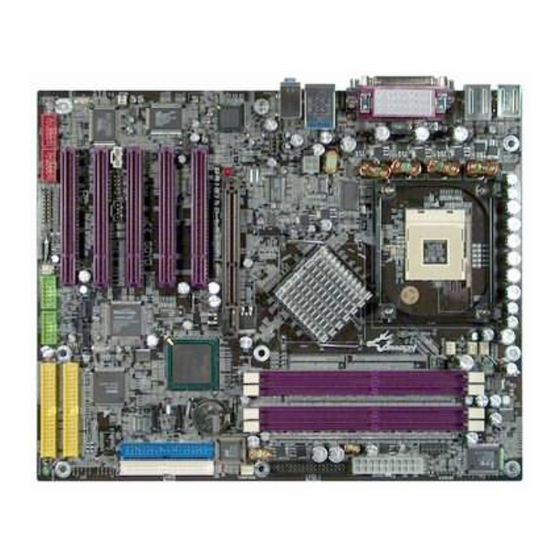

SOYO SY-P4I875P DRAGON 2 User Manual

Mpga socket 478 processor supported intel 875p agp/pci 533/800 mhz front side bus supported atx form factor
Hide thumbs Also See for SY-P4I875P DRAGON 2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
1. Please read the users guide before proceeding with your
installations. Serious damage may occur if the
procedure is not followed properly.
2. This motherboard does not support CPUs with a Vcore
higher than 1.6 volts. Please make sure the CPU you are
using 1.6 volts or is below. Check the CPU specification
before you insert it in the CPU socket.
3. AGP cards running at 3.3v are not supported. Only AGP
cards running at 1.5v (most 4x or 8x AGP cards) are
supported on this motherboard.
4. Please make sure that your memory modules are inserted
correctly. They can go in only one way, and should fit
completely in the socket without sticking out. Failure to do
so will damage your motherboard and memory module.
5. An ATX12V power supply (Power supply for Pentium 4
system) is required for the system to operate normally.
(Preferably 350 watts for minimal loading or 400 watts for
fully loaded system).
6. If you have any problem getting your system to work,
please follow the troubleshooting tips in your user manual.
7. On some motherboards, the actual chipset cooler may differ
from the chipset cooler as shown on the picture or on the
box. However, the chipset fan on the motherboard is of the
same quality and will work just as well as the one shown in
the picture. (The chipset cooler is as sufficient as the chipset
fan based on a different design.)
8. For answers to Technical questions, please visit SOYO tech
support link at
http://www.soyousa.com/kb.
http://www.soyousa.com/support
and
