Table of Contents
Related Manuals for Tenda G1005D
Summary of Contents for Tenda G1005D
-

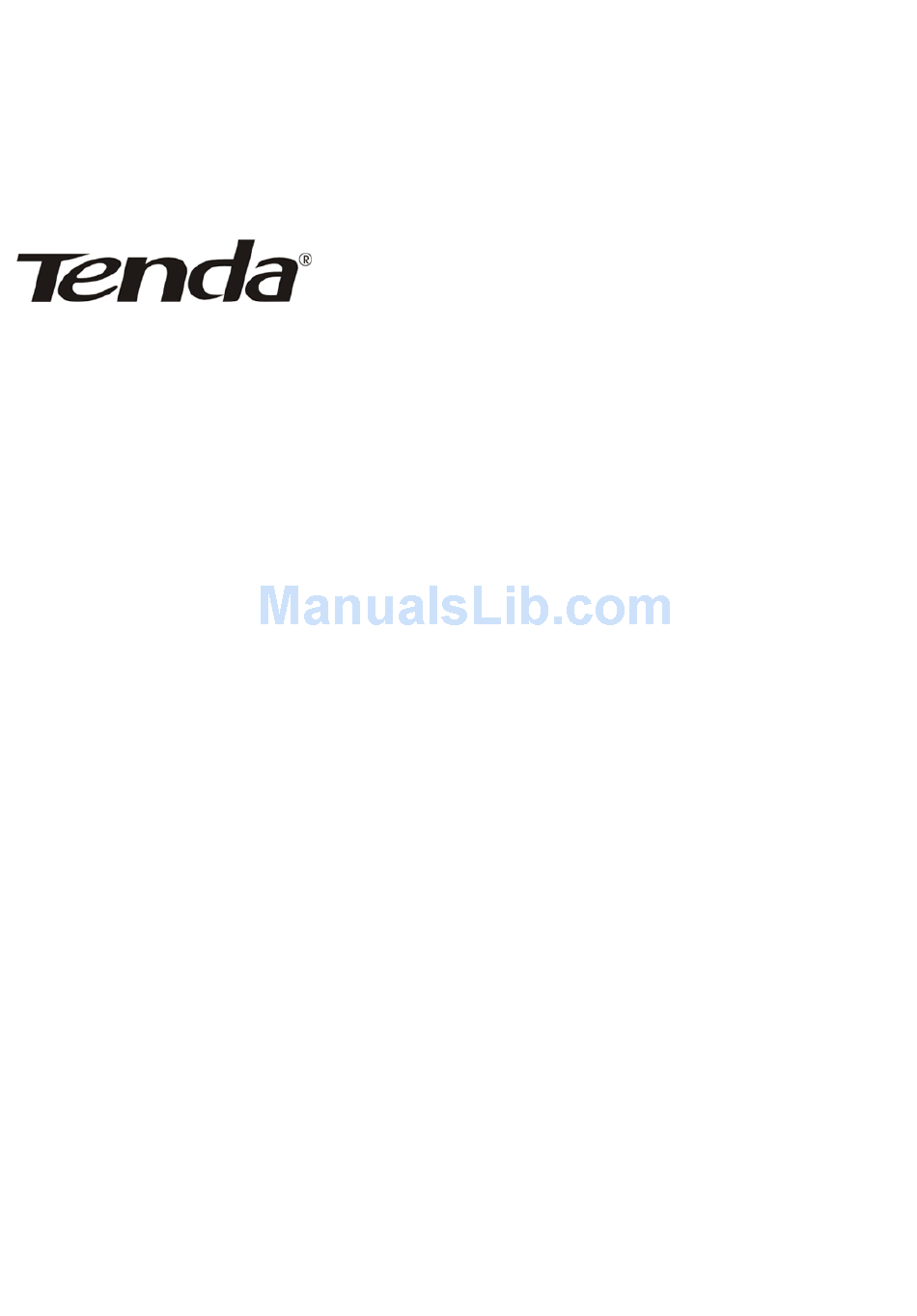

Page 1: Copyright Statement
As the upgrade of software and hardware, there will be changes. And if there are changes, Tenda is not responsible for informing in advance. If you want to know more about our product information, please visit our... -
Page 2: Table Of Contents
Content 1. Introduction ------------------------------------------------1 1.1 Switch Features --------------------------------------------1 1.2 Package Contents -----------------------------------------2 1.3 Front Panel and Side Panel Specifications --------------2 1.4 LED Indicator Specifications------------------------------3 2. Installation -------------------------------------------------5 2.1 Before Connecting to the Network ----------------------5 2.2 Connecting to End Nodes--------------------------------5 2.3 Switch to Router or Switch --------------------------------6 3. -
Page 3: Introduction
Uplink ports connected to other networking devices. You can replace the 10/100Mbps switch with the G1005D/G1008D to resolve the bottleneck issues of server terminal connectivity, because the speed at each port can be up to 2000Mbps in full-duplex mode. It’s the best choice for you to upgrade from the normal 10/100Mbps to 1000Mbps. -
Page 4: Package Contents
Supports IEEE802.3x flow control for full-duplex and Backpressure flow control for half-duplex Provides up to 10/16Gbps backplane bandwidth and non-blocking line speed forwarding Supports store-and-forward switching method Provides MAC address self-learning/auto-aging and 8K MAC address entries Desktop and mini plastic shell design 1.2 Package Contents Please check the articles carefully after you open the packing as below:... -

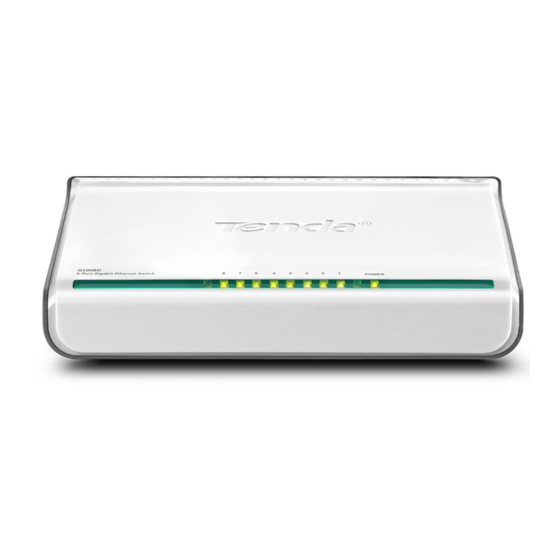

Page 5: Led Indicator Specifications
refer to the detailed description of these indicators in LED Indicator Specifications. The front panel of the Switch The Rear Panel of the Switch includes 5/8 10/100/1000Mbps RJ-45 ports and one AC power port used for AC power input. The rear panel of the Switch Notice: Please use the delivery-attached power adapter. - Page 6 Color Status Description This indicator lights Green when the Switch turns If this indicator is not lighting, please check Power the AC power connector — to ensure proper connectivity of the power cable and the Switch. Indicates the Switch is connected on 1000Mbps.
-
Page 7: Installation
2. Installation 2.1 Before Connecting to the Network Before connecting the G1005D/G1008D to the network, please pay attention to the following instructions: Don’t put heavy articles on the Switch. Power sockets and equipments should be within 1.5 meters of the Switch. -
Page 8: Switch To Router Or Switch
Please refer to the LED Indicator Specifications. The Link/Act LEDs for each port are turned on when the link is available. 2.3 Switch to Router or Switch Connecting to another router or switch Please refer to the LED Indicator Specifications. The Link/Act LEDs for each port are turned on when the link is available. -
Page 9: Product Specification
3. Product Specification IEEE802.3 10Base-T Ethernet IEEE802.3u 100 Base-TX Fast Standards Ethernet IEEE802.3ab Gigabit Ethernet Protocol CSMA/CD Topology Star 10 Base-T: Cat.3 UTP or above 100 Base-TX: Cat.5 UTP /STP Network Cables 1000Base-T: Cat.5, Cat.5e or Cat.6 UTP/STP Speed 10/100/1000Mbps Transmission Method store-and-forward MAC Address Table...
