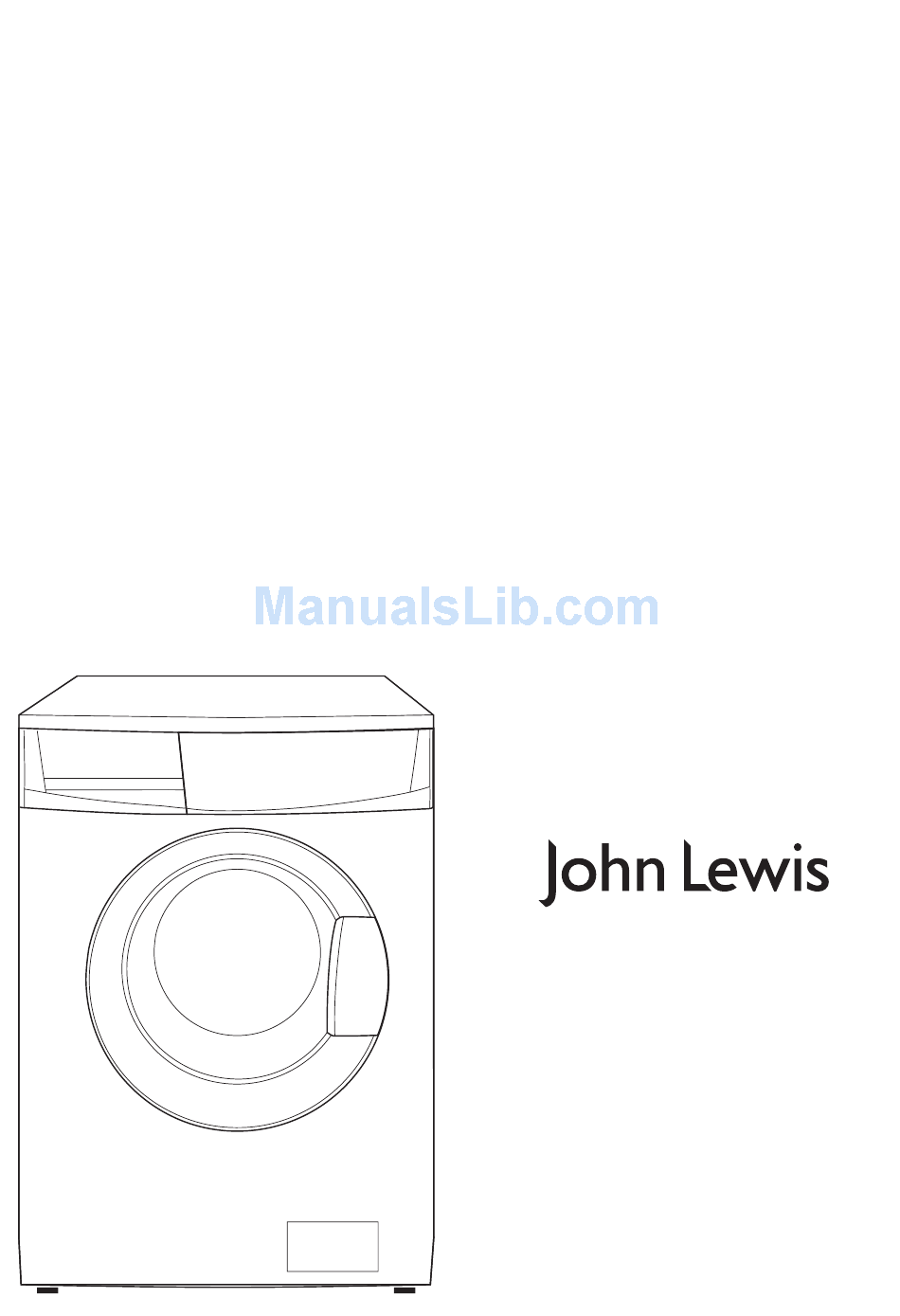

- Page 1 JLWM 1200 1200 spin washing machine Instruction manual...
-
Page 2: Safety Information
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance. -
Page 3: Installation
• Do not use your washing machine to wash articles with whalebones, material without hems or torn material. • Always unplug the appliance and turn off the water supply after use and during cleaning and maintenance. • Under no circumstances should you attempt to repair the machine yourself. -
Page 4: Child Safety
• Plastic detergent dispensers should not remain in the drum during the drying cycle, as the plastic used is not designed to withstand the heat. If you wish to wash- through-to-dry you should use the conventional detergent dispenser drawer. • Never pull the power supply cable to remove the plug from the socket;... -
Page 5: Table Of Contents
Contents Operating instructions Safety information General safety Installation Child safety Product description Detergent dispenser drawer Control panel First use Daily use Load the laundry Measure out the detergent Select the required programme by turning the programme selector dial Select the spin speed or Rinse Hold option by pressing button 3 Select the available options by pressing button Start the programme by pressing button 5 11... -
Page 6: Product Description
Product description Detergent dispenser drawer Control panel Door opening handle Rating plate Drain pump Adjustable feet... -
Page 7: Detergent Dispenser Drawer
Detergent dispenser drawer Compartment for detergent used for prewash and soak phase or for stain remover used during the stain action phase (if available). The prewash and soak detergent is added at the beginning of the wash programme. The stain remover is added during the stain action phase. -
Page 8: Available Options
Detergent dispenser drawer Programme selector dial SPIN reduction button PREWASH and QUICK options button Programme Selector Dial It allows you to switch the appliance on/off and/or to select a programme. Available options: Spin By pressing this button you can change the spin speed of the selected programme or to select Rinse Hold option. -
Page 9: First Use
The light End illuminates at the end of the washing cycle. First use • Ensure that the electrical and water connections comply with the installation instructions. • Remove the polystyrene block and any material from the drum. • Pour 2 litres of water into the main wash compartment detergent drawer in order to activate the ECO valve. -
Page 10: Measure Out The Detergent
Measure out the detergent Measure out the detergent and the fabric softener Pull out the dispenser drawer until it stops. Measure out the amount of detergent required, pour it into the main wash compartment or in the appropriate compartment if it is required by the selected programme or option (see more details in «Detergent dispenser drawer»... -
Page 11: Select The Spin Speed Or Rinse Hold Option By Pressing Button
Select the spin speed or Rinse Hold option by pressing button 3 The relevant light will light up. When selecting a programme, the light corresponding to the maximum speed allowed for that programme will illuminate. Select the available options by pressing button 4 Depending on the programme, different functions can be combined. -
Page 12: Interrupting A Programme
Before you make any change, you must PAUSE the appliance by pressing the button Changing a running programme is possible only by resetting it. Turn the programme selector dial to Off and then to the new programme position. Start the new programme by pressing the button 5 again. -
Page 13: Helpful Hints And Tips
Helpful hints and tips Sorting out the laundry Follow the wash code symbols on each garment label and the manufacturer’s washing instructions. Sort the laundry as follows: whites, coloureds, synthetics, delicates, woollens. Before loading the laundry Never wash whites and coloureds together. Whites may lose their «whiteness»... -
Page 14: Quantity Of Detergent To Be Used
Although biodegradable, detergents contain substances which, in large quantities, can upset the delicate balance of nature. The choice of detergent will depend on the type of fabric (delicates, woollens, cottons, etc.), the colour, washing temperature and degree of soiling. All commonly available washing machine detergents may be used in this appliance: •... -
Page 15: Washing Programmes
Washing Programmes Programme - Maximum and Minimum Temperature - Cycle Description - Maximum Spin Speed - Maximum Fabrics Load - Type of Laundry COTTONS 90° - 60° Main wash - Rinses Maximum spin speed at 1200 rpm Max. load 5,5 kg - Reduced load 2,5 kg White cotton (heavily or normally soiled items). - Page 16 Programme - Maximum and Minimum Temperature - Cycle Description - Maximum Spin Speed - Maximum Fabrics Load - Type of Laundry WOOL 40°- 30° Main wash - Rinses Maximum spin speed at 600 rpm Max. load 2 kg Washing programme for machine washable wool as well as for hand washable woollens and delicate fabrics.
-
Page 17: Technical Data
Technical data Dimensions Electrical connection Voltage - Overall power - Fuse Water supply pressure Maximum Load Spin Speed Consumption values Programme White Cottons 90° Cottons 60° Cotton ECO 60° Cottons 40° Synthetics 40° Delicates 40° Wool/ Handwash 30° 1) «Cottons Eco» at 60°C with a load of 5,5 kg is the reference programme for the data entered in the energy label, in compliance with EEC 92/75 standards. -
Page 18: Care And Cleaning
Care and cleaning Warning! You must DISCONNECT the appliance from the electricity supply, before you can carry out any cleaning or maintenance work. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. -
Page 19: Cleaning The Pump
Cleaning the drawer recess Having removed the drawer, use a small brush to clean the recess, ensuring that all washing powder residue is removed from the upper and lower part of the recess. Replace the drawer and run the rinse programme without any clothes in the drum. -
Page 20: Cleaning The Water Inlet Filters
• Remove any objects from the pump impeller by rotating it. • Put the cap back on the emergency emptying hose and place it back in its seat. • Screw the pump cover fully in. • Close the pump door. Caution! When the appliance is in use and depending on the programme selected there can be hot water in the... -
Page 21: Emergency Emptying Out
Frost precaution If the machine is exposed to temperatures below 0°C, certain precautions should be taken. • Turn off the water tap. • Unscrew the inlet hose. • Place the end of the emergency emptying hose and that of the inlet hose in a bowl placed on the floor and let water drain out. -
Page 22: Installation
Installation Unpacking All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again. 1. After removing all the packaging, carefully lay machine on it’s back to remove the polystyrene base from the bottom. -
Page 23: Positioning And Levelling
6. Fill the smaller upper hole and the two large ones with the corresponding plastic plug caps supplied in the bag containing the instruction booklet. Positioning and levelling Install the machine on a flat hard floor. Make sure that air circulation around the machine is not impeded by carpets, rugs etc. -
Page 24: Water Inlet
Water inlet Warning! This appliance must be connected to a cold water supply. The inlet hose is screwed to the back of the appliance. 1. Set the hose correctly by loosening the ring nut. After positioning the inlet hose, be sure to tighten the ring nut again to prevent leaks. - Page 25 Firstly form a hook in the end of the drain hose using the “U” piece” supplied. Place the drain hose into your standpipe, which should have an internal diameter of approximately 38 mm thus ensuring there is an air break between the drain hose and standpipe.
-
Page 26: Special Conditions
Important! Before connecting up the machine to new pipework or to pipework that has not been used for some time, run off a reasonable amount of water to flush out any debris that may have collected in the pipes. Special conditions If the floor is carpeted or covered with crumbly or soft material, insert a rigid support base under the feet to prevent noise, vibration... -
Page 27: Electrical Connection
RAINWATER ‘RUN-OFF’ SURFACE WATER DRAINS & SEWERS UNTREATED DISCHARGE Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. SHOWER SINK BATH WASHING MACHINE DISHWASHER RIVER TOILET BIDET FOUL DRAIN FOUL SEWERS SEWAGE TREATMENT... -
Page 28: Permanent Connection
Important! Information on the electrical connection is given on the rating plate on the inner edge of the appliance door. The appliance is supplied with a 13 amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS1363/A) fuse must be used. - Page 29 Important! if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. During machine operation it is possible that the red pilot light of button 5 blinks to indicate that the machine is not working.
- Page 30 Problem The machine fills than empties out immediately: There is water on the floor: Unsatisfactory washing results: The door will not open: The machine vibrates / The machine is noisy: Possible cause/Solution The end of drain hose is too low. The end of drain hose is submerged in water.
-
Page 31: Repairs - After Sales Service
Problem Spinning starts late or the machine does not spin: The machine makes an unusual noise: No water is visible in the drum: Repairs - After Sales Service Repairs - After Sales Service Your appliance comes with a three year warranty. -
Page 32: Environment Concerns
Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local John Lewis Branch. >PP<=polypropylene This means that they can be recycled by disposing of them properly in appropriate collection containers. - Page 33 • Measure out detergent according to the water hardness, the degree of soiling and the quantity of laundry being washed.
- Page 36 John Lewis Partnership 171 Victoria Street London SW1E 5NN www. johnlewis.com 192994591-00-302009...
