John Lewis JLWM1202 Instruction Manual

John Lewis JLWM1202 Instruction Manual

1200 spin; 1400 spin

Advertisement

JLWM1202
1200 spin washing machine
JLWM1403
1400 spin washing machine
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JLWM1202 and is the answer not in the manual?

Questions and answers

Summary of Contents for John Lewis JLWM1202

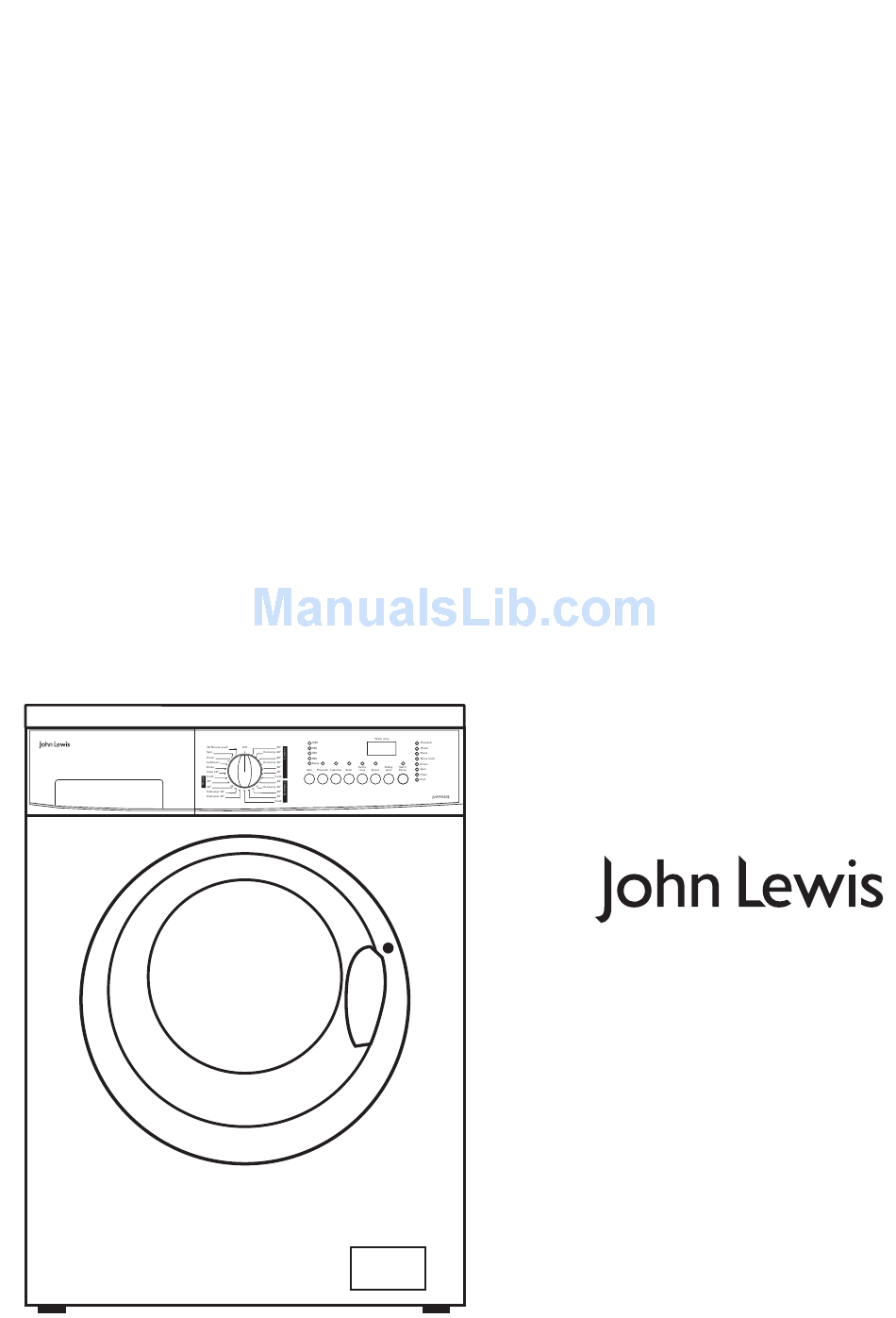

  • Page 1 JLWM1202 1200 spin washing machine JLWM1403 1400 spin washing machine Instruction manual...
  • Page 2: Important Safety Information

    These warnings have been provided in the interest of safety. You MUST read them carefully before use or installation by a qualified person. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance. Installation ●...
  • Page 3: Ecological Hints

    Maintenance and Cleaning ● For information on maintenance and cleaning your washing machine see pages 23 - 24 of this instruction manual. Service ● This product should only be repaired or serviced by anauthorised Service Engineer and only genuine approvedspare parts should be used. Ecological hints To save water and energy and help protect the environment, we recommend that you follow these...
  • Page 4: Table Of Contents

    Contents For the User Important Safety Information Installation Child safety feature Description of the Appliance Door locked light Detergent dispenser drawer The Control Panel Programme information Using the washing machine Load the laundry Measure out the detergent Measure out the fabric softener Switch the machine on Select the desired programme/temperature Select the spin speed or the “None”...
  • Page 5: Description Of The Appliance

    Description of the Appliance 1 Detergent dispenser drawer 2 Control panel 3 Door locked light 4 Door opening handle 5 Drain pump 6 Adjustable feet Door locked light It stays on during the whole programme indicating that the door is locked. When the light goes out, the door can be opened.
  • Page 6: Installation

    Installation It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
  • Page 7: Unpacking

    Unpacking All transit bolts and packing must be removed before using the appliance. Keep all packaging away from children. You are advised to keep all the transit bolts for re-use in case the machine is to be transported again. Using a spanner unscrew and remove the two rear bottom screws.
  • Page 8: Water Inlet

    The appliance has an inlet hose, with female 3/4” BSP thread connector. If this connection is not compatible with the plumbing of the existing installation, a variety of connectors are available from good hardware stores and plumbers merchants to suit most domestic plumbing.
  • Page 9: Levelling

    2. Onto a sink outlet spigot. If the outlet spigot has not been used before, remove any blanking plug that may be in place. Push the drain hose onto the spigot and secure with a clip if required, ensure a loop is formed in the drain hose (see diagram) to prevent waste from the sink entering the washing machine.
  • Page 10: Electrical Connection

    It is essential that these appliances are not connected to the surface water drainage system as this water is discharged directly into a river or stream and may cause pollution. If you require any further advice please contact your local water authority. Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or...
  • Page 11: Programme Selector Dial

    The Control Panel 1 Detergent dispenser drawer 2 Programme selector dial The programme selector dial is divided into the following sections: • Cottons, • Synthetics, • Delicates • Wool Hand washing • Special programmes from “Soak 30°” to “30 Minute wash” •...
  • Page 12: Delay Start Button

    • “Prewash”: select this option if you wish your laundry to be prewashed before the main wash (not available for Wool and “30 Minute wash”). The prewash ends with a short spin at 650 rpm in programmes for cotton and synthetic fabrics, whereas in the programme for delicate fabrics the water is only drained.
  • Page 13: Start/Pause Button

    6 Start/Pause button This button has two functions: • Start: after you have selected the desired programme and options, press this button to start the washing machine. The light above the button will stop flashing and remain lit. If you have selected a delay time, the countdown will begin and will be shown on the display.
  • Page 14 • An alarm code indicates a fault in the machine operation (see the relevant chapter). 8 Programme phase indicator lights When you select a programme, the lights relevant to the phases that form the programme light up. After you have started the programme, only the light relevant to the phase that is currently being carried out will remain lit.
  • Page 15: Programme Information

    Programme information Soak 30° This is a special programme for heavily soiled laundry. The machine performs a soak of about 30 minutes at 30°C. At the end of the soak time the machine will stop automatically with water left in the tub. The display will show a flashing zero.
  • Page 16: Using The Washing Machine

    Using the washing machine Before the first wash, we recommend that you pour 2 litres of water into the main wash compartment detergent drawer in order to activate the ECO valve. Then run a cotton cycle at 95°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub.
  • Page 17: Select The Spin Speed Or The "None" Option

    6. Select the spin speed or the “None” option Press the “Spin” button repeatedly button if order to select the desired spin speed or the “None” (no spin) option. The relevant light will light up. JLWM 1202 JLWM 1403 7. Select the desired options If your laundry is very dirty, it may be advisable to select the “Prewash”...
  • Page 18: How To Interrupt A Programme

    12.How to interrupt a programme Depress the “Start/Pause” button to interrupt a programme which is running, the corresponding light starts to flash. Depress the button again to restart the programme. 13. How to open the door during the cycle of a programme You can open the door, after having set the washing machine to Pause, provided the following conditions...
  • Page 19: Hints & Tips On Washing

    Hints & Tips on Washing Do NOT overload the machine. Weigh the laundry the first few times you use the appliance. The average weights of the most common items are listed below as a guide: 1000g = 1 kg Sheet Pillow case Tablecloth Serviette...
  • Page 20: Wash Care Symbols

    Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine.
  • Page 21: Washing Programmes

    Washing programmes Programme/ Fabrics Type of laundry temperature Sheets, household 90° White linen, towels, cotton Cottons tablecloths 90° Sheets, household Cottons White linen, towels, cotton INTENSIVE tablecloths option selected Economy Sheets, household White 60° linen, towels, cotton tablecloths Cottons Fast coloured and 60°...
  • Page 22 Programme Programme description Soak for 30 minutes Soak 30° at 30°C 3 rinses Rinse Long spin at max. speed 1 rinse with liquid additive Softeners Long spin at max. speed Drain For emptying out the last rinse of the programmes Water draining with option “Quiet”...
  • Page 23: Maintenance And Cleaning

    Maintenance and Cleaning You must DISCONNECT the appliance from the electricity supply, before you can carry out any cleaning or maintenance work. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine.
  • Page 24: Cleaning The Water Inlet Filter

    • When no more water comes out, unscrew the pump cover and remove it. Always keep a rag nearby to dry up spillage of water when removing the cover. Remove any objects from the pump impeller by • rotating it. •...
  • Page 25: Something Not Working

    Something Not Working Please carry out the following checks before contacting your local Service Force agent. IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. During machine operation it is possible that the “End”...
  • Page 26: Something Not Working

    Symptom The machine vibrates when spinning The door will not open Spinning starts late or the machine does not spin The machine makes an unusual noise No water is visible in the drum Repairs - After Sales Service In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact our extended warranty administrators by telephoning: 0870 01 07887...
  • Page 27 John Lewis Partnership 171 Victoria Street London SW1E 5NN 132 982 380 www.johnlewis.com 03/06...
