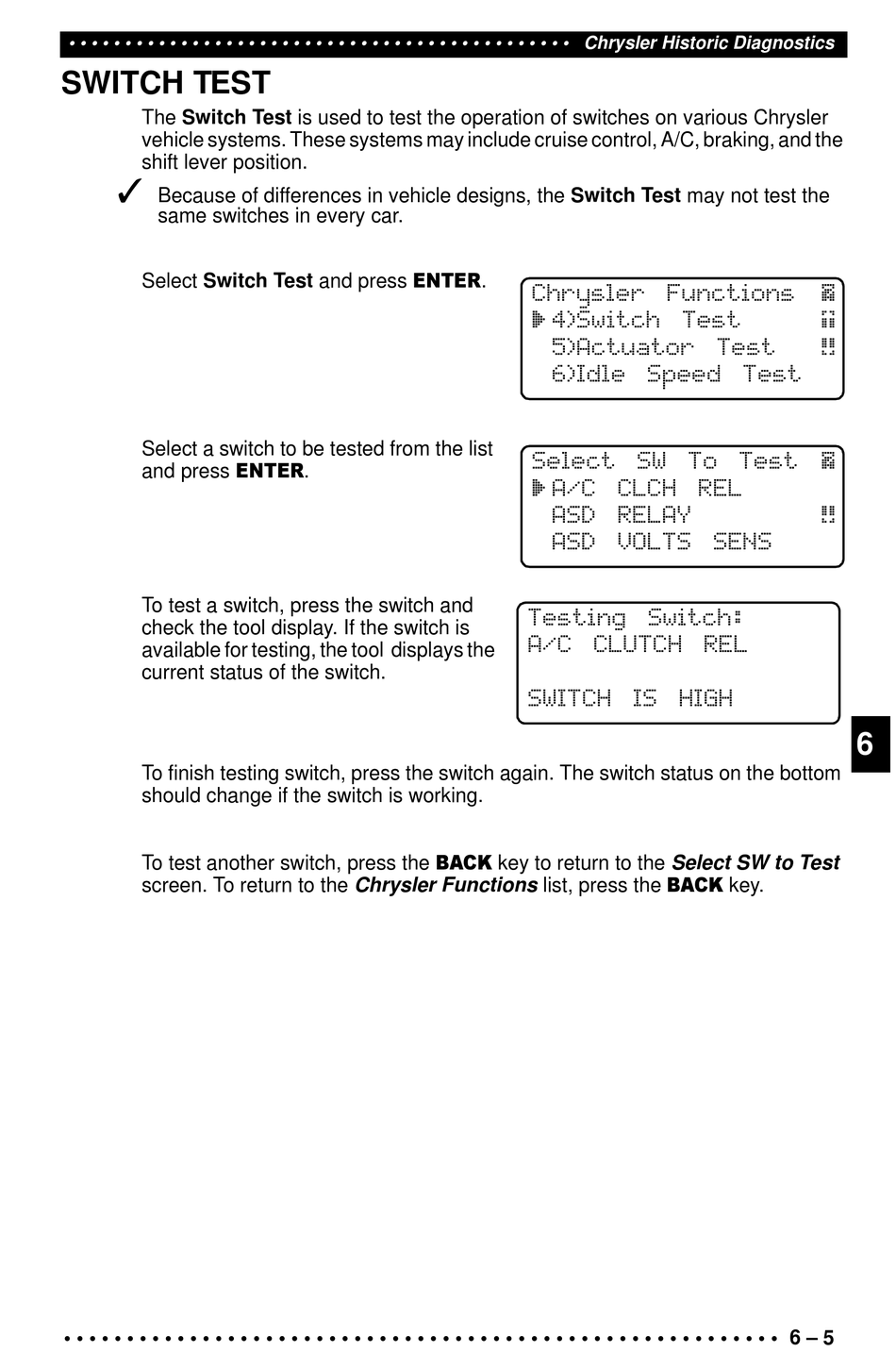

SWITCH TEST

The Switch Test is used to test the operation of switches on various Chrysler
vehicle systems. These systems may include cruise control, A/C, braking, and the
shift lever position.
Because of differences in vehicle designs, the Switch Test may not test the
same switches in every car.
Select Switch Test and press (17(5.
Select a switch to be tested from the list
and press (17(5.
To test a switch, press the switch and
check the tool display. If the switch is
available for testing, the tool displays the
current status of the switch.
To finish testing switch, press the switch again. The switch status on the bottom
should change if the switch is working.
To test another switch, press the %$&. key to return to the Select SW to Test
screen. To return to the Chrysler Functions list, press the %$&. key.
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 6 – 5
