CAUTION
Follow all instructions on the display.
1) Turn Ign Key Off.
2) Remove Negative (–) Battery Cable.
3) Hold Down Break Pedal for 10 Seconds.
4) Reattach Negative (–) Battery Cable.
All continuous memory codes should be erased. Press %$&. to return to the
Ford Function List.

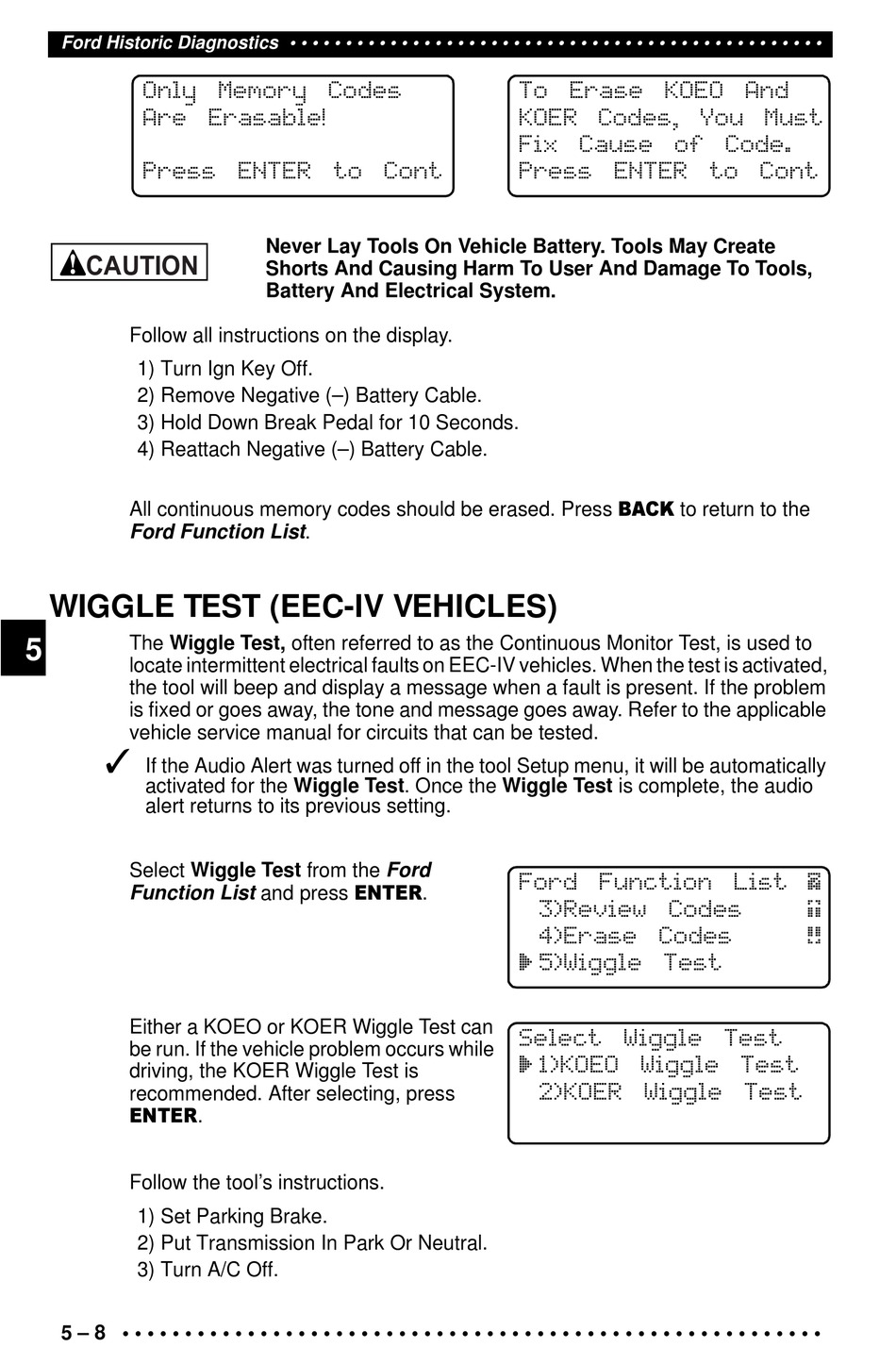

WIGGLE TEST (EEC-IV VEHICLES)

The Wiggle Test, often referred to as the Continuous Monitor Test, is used to
5
locate intermittent electrical faults on EEC-IV vehicles. When the test is activated,
the tool will beep and display a message when a fault is present. If the problem
is fixed or goes away, the tone and message goes away. Refer to the applicable
vehicle service manual for circuits that can be tested.
If the Audio Alert was turned off in the tool Setup menu, it will be automatically
activated for the Wiggle Test. Once the Wiggle Test is complete, the audio
alert returns to its previous setting.
Select Wiggle Test from the Ford
Function List and press (17(5.
Either a KOEO or KOER Wiggle Test can
be run. If the vehicle problem occurs while
driving, the KOER Wiggle Test is
recommended. After selecting, press
(17(5.
Follow the tool's instructions.
1) Set Parking Brake.
2) Put Transmission In Park Or Neutral.
3) Turn A/C Off.
