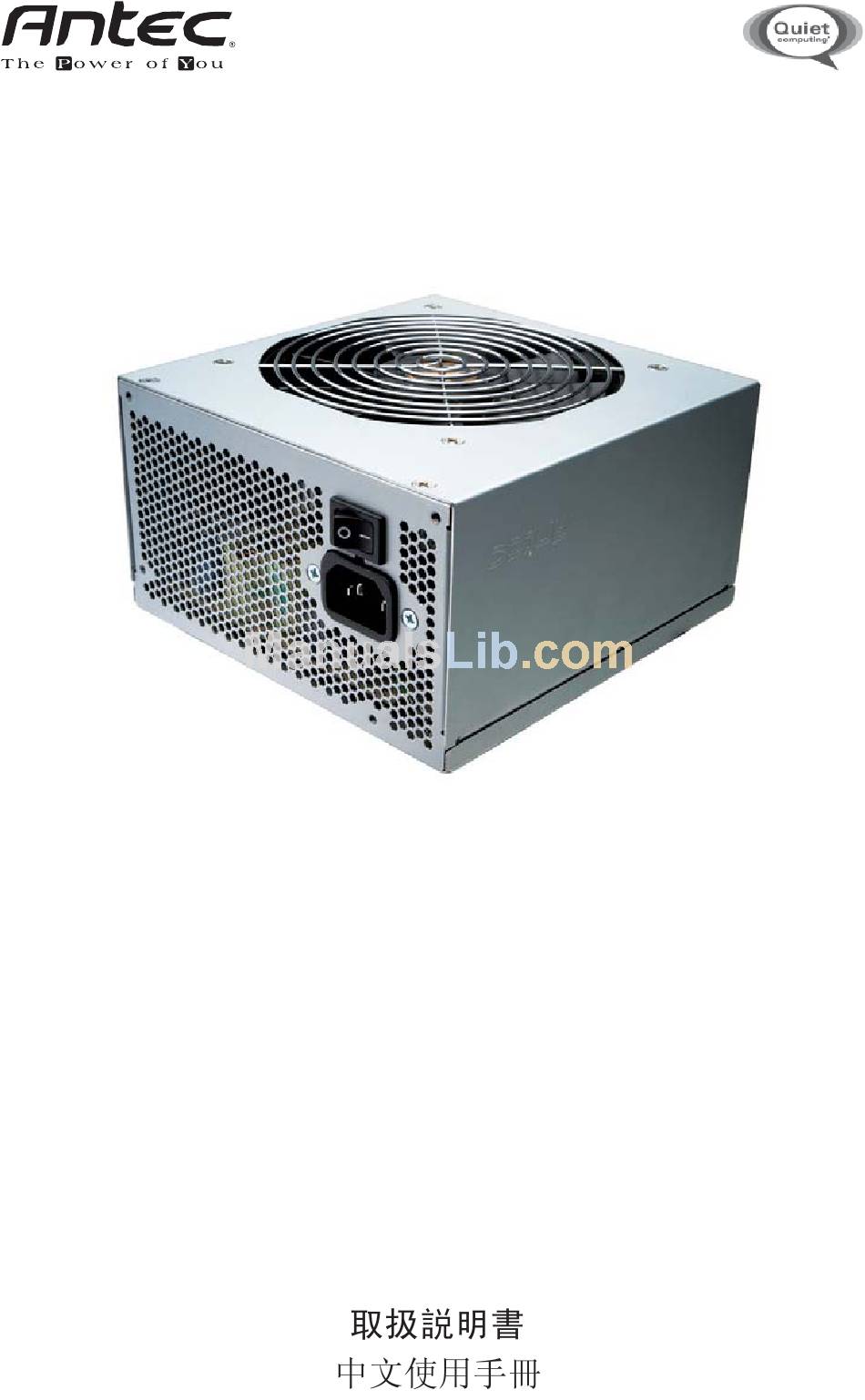

- Page 1 Basiq BP550 PLUS User’s Manual Manuel de l’utilisateur Anwenderhandbuch Manuale per l’operatore Manual del usuario...

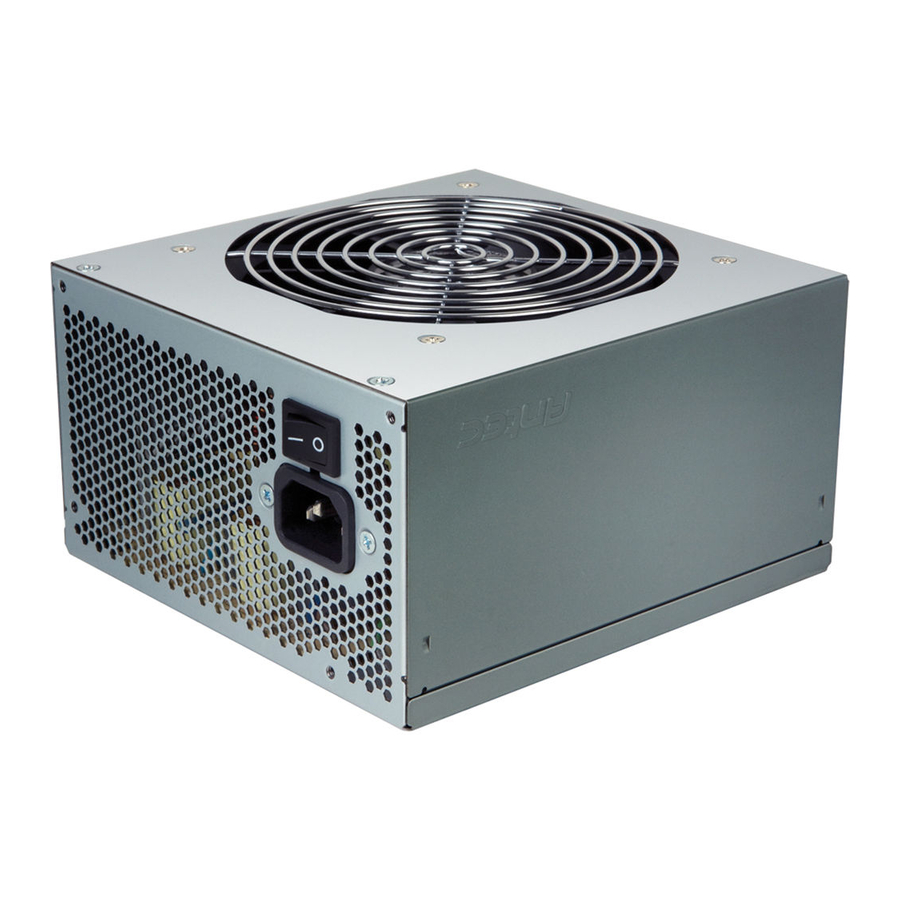

- Page 2 ATX12V version 2.2 power supply Model BP550 PLUS Antec Basiq series power supplies are built to be compatible with the ATX12V version 2.2 specification. They include triple 12V output circuitry that delivers safer and more reliable output to your system’s components, as well as higher energy efficiency, which reduces power consumption by up to 25%, saving you money on your electricity bill.
- Page 3 Turn the hard switch on the Antec power supply to the OFF (O) position and connect the AC power cord to the power supply. Connect the 24-pin Main Power Connector. (Illustration 2) If the motherboard uses a 20-pin connector, detach the 4-pin attachment on the 24-pin power connector (see pictures 1 and 2).
- Page 4 14. Close your computer case. Advanced cable management system The Basiq BP550 Plus PSU features Antec’s advanced cable management system, which allows you to use only the power cables that you need, thereby reducing clutter and improving airflow inside your case. Cables and connectors are...
- Page 5 Table 1 Cable Power Quantity Connectors Part Name Power supply Drives and Accesso cable SATA cable Secondary PCI-E Description 24-pin (with 4 detachable pins) motherboard connector, 8-pin +12V connector, 4-pin +12V connector, 8-pin (with 2 detachable pins) PCI-E connector Includes three Molex connectors and one floppy connector Includes three...
-
Page 6: Customer Support
1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2007 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China.
