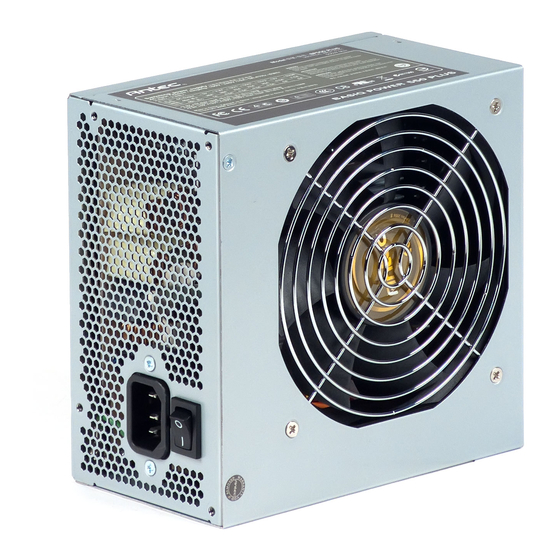

- Page 1 BP550 PLUS POWER SUPPLY USER’S MANUAL...
- Page 2 Active Power Factor Correction (PFC) that saves money on corporate power bills. And it comes with all the assurance of Antec’s AQ3 Antec Quality 3-year limited warranty. All the features, none of the waste: for builders that are strictly business, the BP550 PLUS is strictly power.
- Page 3 < 100 mV MODULAR CABLE JACKS There are four 6-pin black jacks and one 6-pin red jacks on the back of your BP550 PLUS PSU. These jacks are for the optional cables that come with your power supply. Caution: Please connect only cables provided with this BP550 PLUS. Other cables may not be...
- Page 4 TABLE 2 Cable Quantity Connectors Description Socket 24(20+4)-pin Motherboard Fixed cable 8(4+4)-pin ATX12V/EPS12V Fixed cable 8(6+2)-pin PCI-E Fixed cable 6-pin PCI-E 6-pin red Molex 6-pin black Molex 6-pin black SATA 6-pin black...
- Page 5 INSTALLATION Install the PSU into either the top or bottom of your case with the four screws provided. Refer to your case manual if you are unsure where the power supply should be installed. Connect the 24-pin main power connector to your motherboard. Connect the 8-pin or 4+4-pin connector for the CPU.
- Page 6 Connect the AC power cord to the power supply AC inlet. Be sure to use the heavy-duty cord supplied with your PSU. PCI-E graphics cards use different amounts of power. For some, a single 6-pin connector is sufficient, making the hardwired connector the preferred choice. More powerful cards use multiple connectors, including the advanced 8-pin PCI-E connector.
-
Page 7: Technical Support
Tel: 510-770-1200 - Fax: 510-770-1288 www.antec.com © 2011-2012 Antec, Inc. All rights reserved. Specifications are subject to change without prior notice. Actual product(s) and accessories may differ from illustrations. Omissions and printing errors excepted. Content of delivery might differ in different countries or areas. Some trademarks may be claimed as the property of others.
