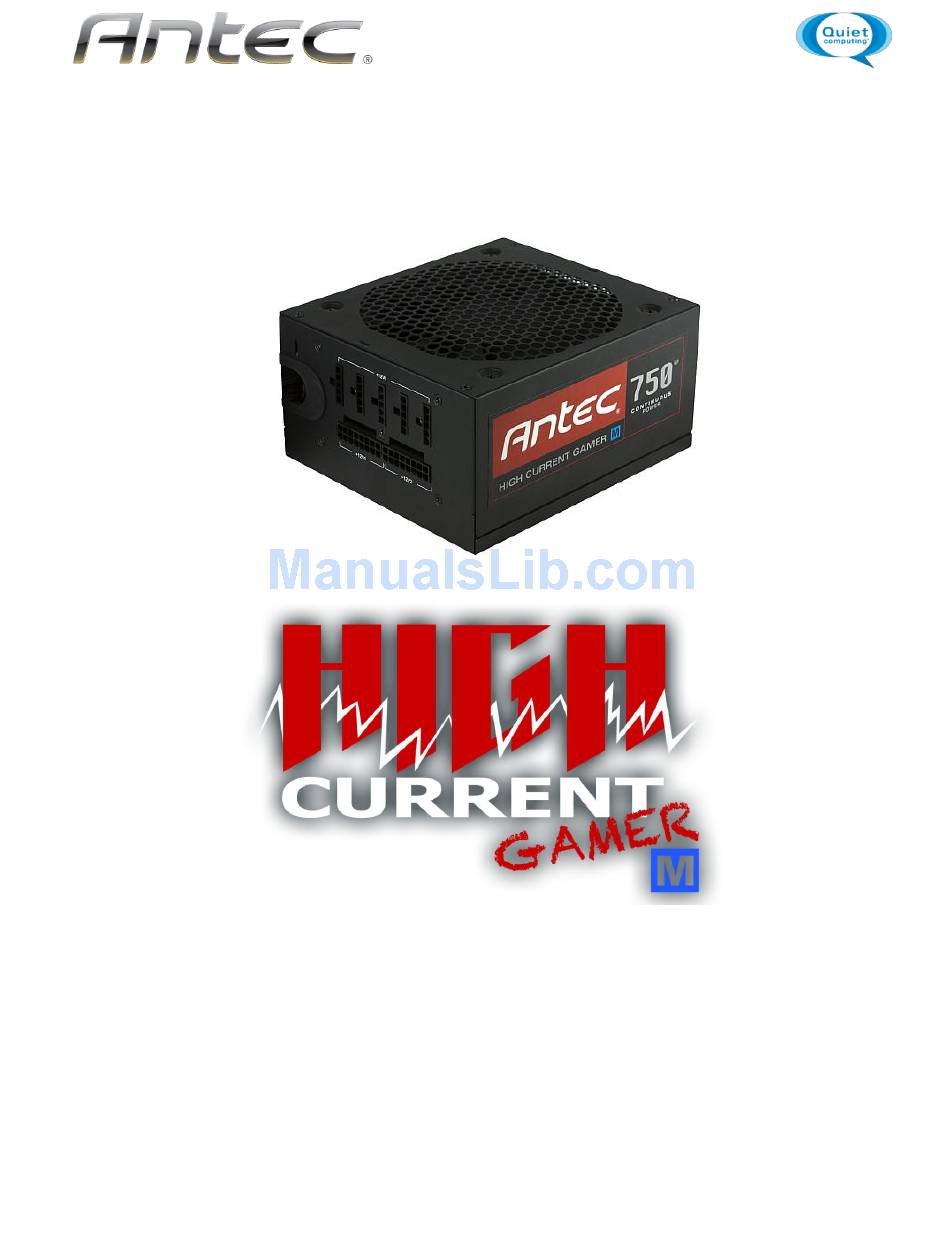

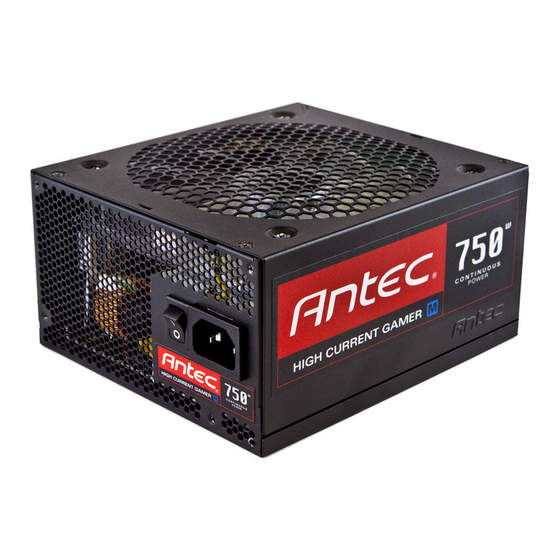

  • Page 1 HCG-750M POWER SUPPLY USER’S MANUAL...
  • Page 2 HCG-750M Antec’s HCG M power supplies are the perfect combination of power and efficiency. The HCG M features special heavy-duty High Current connectors and cabling that supply extreme levels of power, and superb efficiency thanks to 80 PLUS® BRONZE certification and Active PFC. HCG M’s innovative 16- pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors and even future connectors of 10, 12, 14 or 16-pins.
  • Page 3 An 80 PLUS® certified power supply uses less energy and generates less heat to stay cooler, run quieter and last longer. The HCG-750M has been 80 PLUS® BRONZE certified to be at least 82% efficient at a wide range of operating loads; this will lower your operating costs and help protect the environment.
  • Page 4 SATA + Molex MODULAR CABLE JACKS There are five 5-pin black jacks and two 16-pin black jack on the back of your HCG-750M PSU. These jacks are for the optional cables that come with your power supply. Caution: Please connect only cables provided with this HCG-750M. Other cables may not be...
  • Page 5 INSTALLATION Install the PSU into either the top or bottom of your case with the four screws provided. Refer to your case manual if you are unsure where the power supply should be installed. Connect the 24-pin main power connector to your motherboard. Connect the 8-pin or 4+4-pin connector for the CPU.
  • Page 6 Connect the AC power cord to the power supply AC inlet. Be sure to use the heavy-duty cord supplied with your PSU. PCI-E graphics cards use different amounts of power. For some, a single 6-pin connector is sufficient, making the hardwired connector the preferred choice. More powerful cards use multiple connectors, including the advanced 8-pin PCI-E connector.
  • Page 7: Technical Support

    Tel: 510-770-1200 - Fax: 510-770-1288 www.antec.com ©2012 Antec, Inc. All rights reserved. Specifications are subject to change without prior notice. Actual product(s) and accessories may differ from illustrations. Omissions and printing errors excepted. Content of delivery might differ in different countries or areas. Some trademarks may be claimed as the property of others.
