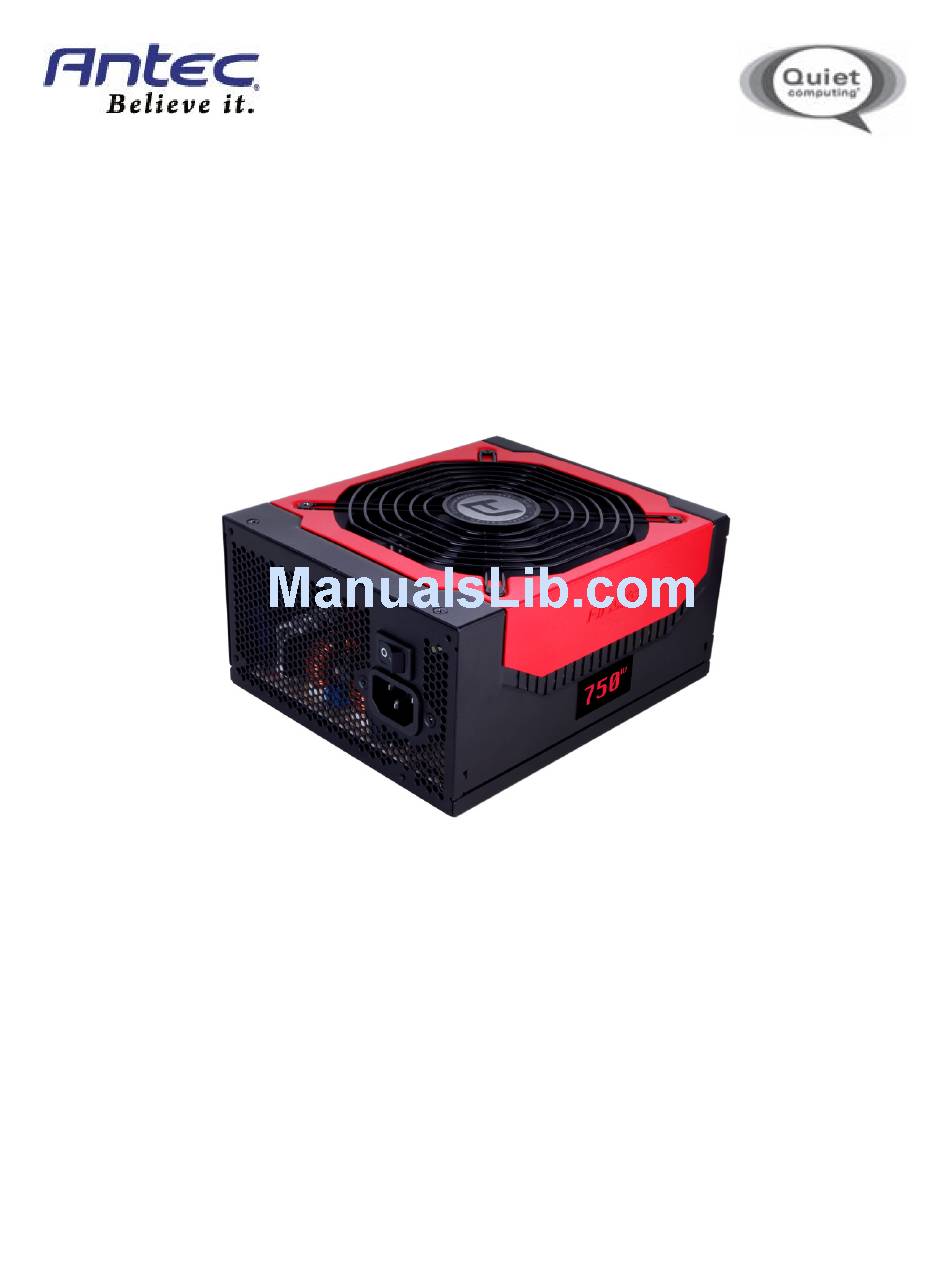

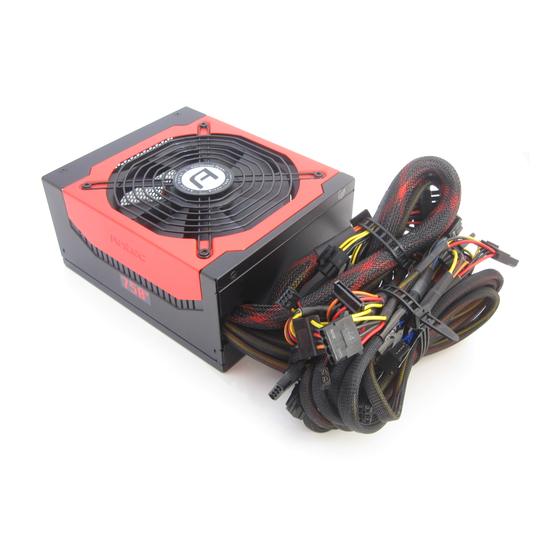

  • Page 1 HCG-750 P OWER UPPLY ’ ANUAL...
  • Page 2 TANDARDS AND EATURES The connectors and power specifications of the HCG-750 PSU are all compatible with ATX12V v2.3 and EPS12V v2.91 specifications. The HCG-750 features Universal Input, which automatically senses when you connect the power supply to any AC power source between 100~240V without setting a voltage switch. This power supply also features Active Power Factor Correction (Active PFC), which improves the power factor value of the power supply by altering the input current wave shape, helping to power transmission across the grid.
  • Page 3 ONNECTORS The HCG-750 power supply distributes power on separate rails. Some rails require a minimum load in order to run. To see the output capacity and regulation for each different voltage, see Table 1. A list of all available power connectors can be found in Table 2.
  • Page 4 NSTALLATION Install the HCG-750 PSU into either the top or bottom of your case with the four screws provided. Refer to your case manual if you are unsure where the power supply should be installed. 2. Connect the 24(20 + 4)-pin main power connector to your motherboard. If your motherboard uses a 20-pin connector, detach the 4-pin attachment on the 24-pin connector.
  • Page 5 8. Turn the switch on the PSU to the “|” position.
  • Page 6 US & Canada 1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2010 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited.
