Antec Basiq 550 Plus Specification Sheet

Antec Basiq 550 Plus Specification Sheet

Antec power supply specification sheet

Advertisement

Quick Links

P O W E R
S U P P L I E S
Quality Power. Incredible Value.
The ideal choice in high-quality value-priced power supplies, now with advanced cable management!
The Basiq 550 Plus is the perfect power supply for the entry-level user, providing stable power,
quiet cooling, and advanced cable management for improved airflow and ease-of-use.
SPECIFICATION:
• Advanced cable management for improved airflow
and ease of use
• ATX12V version 2.2
• 120mm low noise cooling fan
• Heavy duty protection circuitry prevents damage
resulting from short circuits, over currents, over
voltages, and other dangers
• Universal input with active PFC
• SATA connectors for Serial ATA drive
• MTBF: 100,000 hours
• Safety approval: UL, CE, TÜV, CB, FCC, CCC,
C-TICK
• Net Weight: 4.35 lbs (1.97 kg)
• Dimensions: 3.4" (H) x 5.9" (W) x 6.1" (D)
8.6cm (H) x 15cm (W) x 15.5cm (D)
Antec—the leader in power supply technology since 1986.
www.antec.com
1-800-22ANTEC (US) / +31 (0) 10 462-2060 (EU)

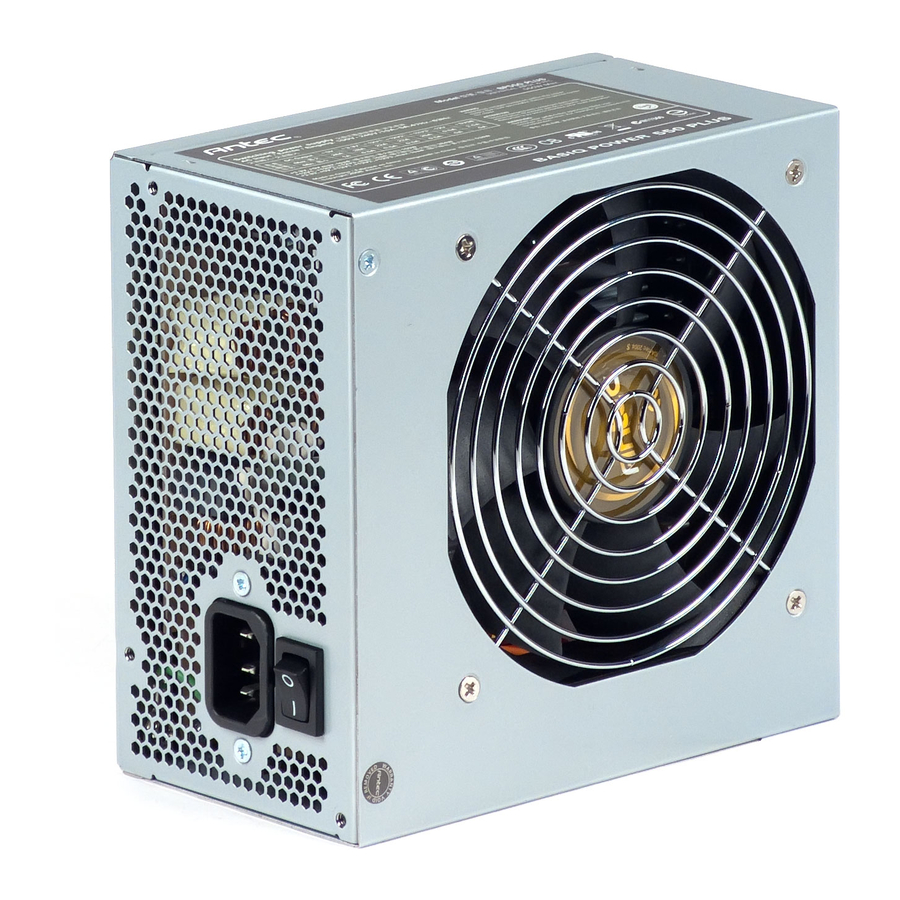

Basiq 550 Plus
Safety Protection
Input:
Input Voltage
Input frequency Range
Efficiency
Environmental:
Operating Temperature
Net Weight
Safety Approvals
Size
UCC13# 0761345-23502-0
US
UCC13# 0761345-06550-4
EC
UCC13# 0761345-06551-1
GB
Over Voltage Protection (OVP)
Short Circuit Protection (SCP)
Over Current Protection (OCP)
100~240VAC ± 10%
47Hz ~ 63Hz
Up to 85%
10°C to 50°C
4.35 lbs
UL, CE, TÜV, CB, FCC, CCC, C-TICK
3.4" (H) x 5.9" (W) x 6.1" (D)
