Summary of Contents for Antec EA-380D GREEN

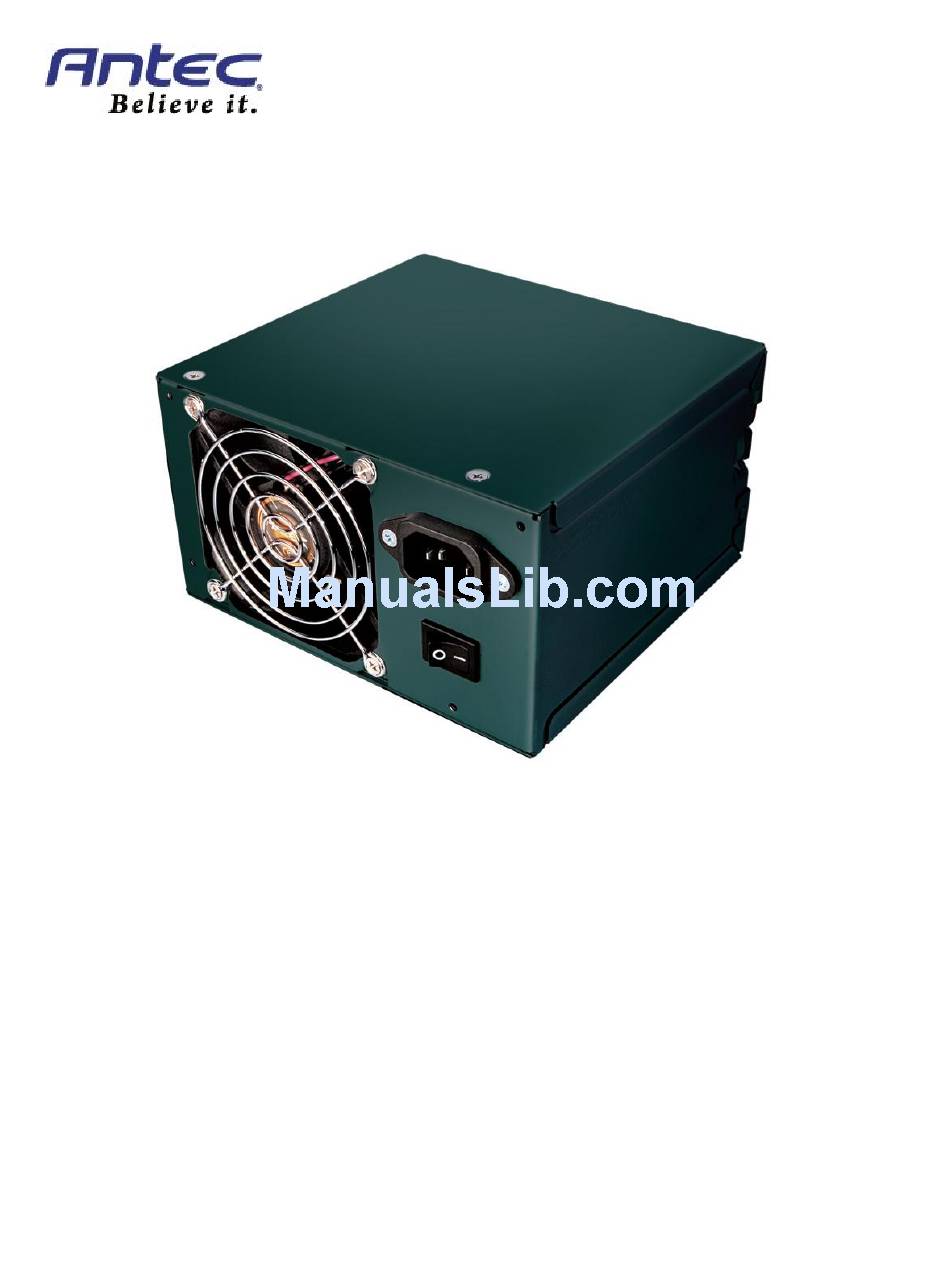

  • Page 1 EA-380D G REEN OWER UPPLY ’ ANUAL...
  • Page 2 NERGY FFICIENT Get the power you need and the low electric bill you want with Antec’s EA-380D Green! One of the most environmentally friendly power supplies on the planet, the EA-380D Green delivers 380 watts of reliable, continuous power while meeting the Bronze level of performance from 80® PLUS, the most widely recognized independent standard in power supply efficiency.
  • Page 3 Source: 80 PLUS Verification and Testing Report +12 V ISTRIBUTION The EA-380D Green PSU uses dual +12 volt power rails. Different connectors are hooked up to separate circuits to aid in the balanced distribution of power between devices in your computer. The engineers have allocated the rails to different connectors, as shown in Table 2, to prevent voltage sags in one device due to sudden demands for power by another device.
  • Page 4 OWER UTPUT The EA-380D Green PSU distributes a varying maximum number of amps on each rail. To see the output capacity and regulation for each different voltage, see Table 3. 3: O ABLE UTPUT APACITY AND EGULATION Output Load Max. Regulation Ripple &...
  • Page 5 3. Connect the 8-pin or 4-pin ATX12V connector for the CPU to the appropriate connector on your motherboard. If your motherboard has an 8-pin socket with a cover on some of the openings, we recommend that you remove the cover and use the 8-pin connector. Note: Please also refer to your motherboard user’s manual for any special instructions.
  • Page 6 US & Canada 1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2009 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited.
