Summary of Contents for John Lewis JLBIDW 901

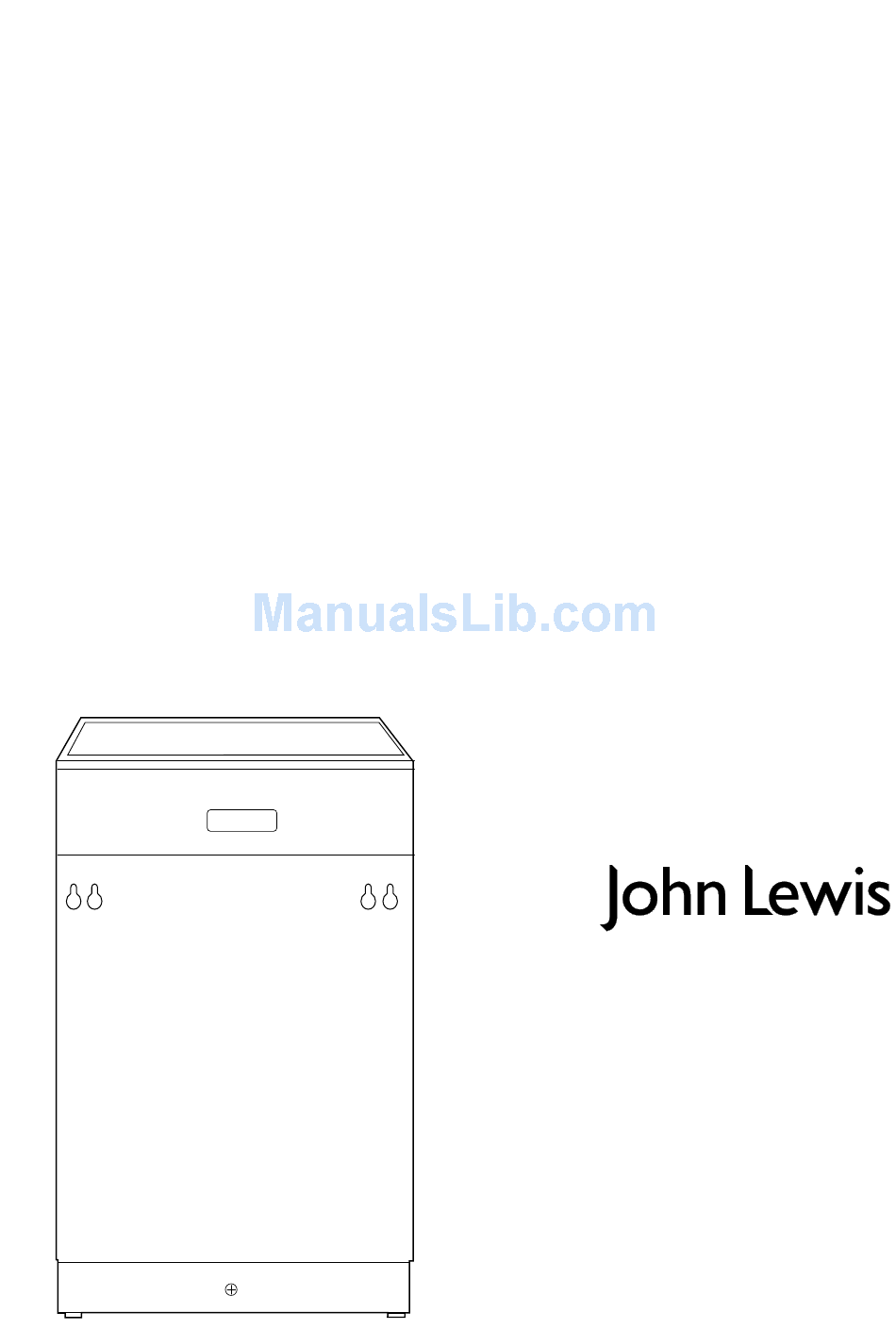

- Page 1 JLBIDW 901 compact dishwasher Instruction manual...
-
Page 2: Important Safety Information
These warnings have been provided in the interest of your safety.You MUST read them carefully before installing or using the appliance. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance Installation This appliance is heavy. -
Page 3: Ecological Information
Cardboard packaging is manufactured from recycled paper and should be deposited in the waste paper collection for recycling. As and when you cease to use your dishwasher and withdraw it from service, your should render it unserviceable before having it disposed of. -
Page 4: Table Of Contents
Environmental hints Contents Description of the Appliance The Control Panel Multi-tab function Audible signals When the Dishwasher is first installed The water softener Dishwasher salt and replenishment Rinse aid and replenishment Using the dishwasher Loading cutlery and dishes The lower basket... -
Page 5: Description Of The Appliance
Description of the Appliance 1. Upper basket stop 2. Water hardness dial 3. Salt container 4. Detergent dispenser 5. Control panel 6. Rating plate 7. Rinse aid dispenser 8. Filters 9. Lower spray arm 10. Upper spray arm 11. Upper basket IN155... -
Page 6: Technical Specifications
Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance’s rating plate.The rating plate is located on the side of the dishwasher’s door. The plug moulded onto the lead incorporates a 13amp BSI362 fuse. -
Page 7: Permanent Connection
The water inlet hose must not be kinked, crushed, or entangled when it is being connected up. The dishwasher features fill and drain hoses which can be turned either to the left or the right to suit the installation by means of the locknut. -
Page 8: Water Outlet Hose Connection
If the spigot of your sink has a "no return valve" incorporated this can prevent the correct draining of your dishwasher. We therefore advise you to remove it. Building-in This dishwasher is designed to be fitted under a kitchen counter or worksurface. Important! Carefully follow the instructions on the enclosed template for building in the dishwasher and fitting the furniture panel. -
Page 9: The Control Panel
- if the audible signals are activated/deactivated, - the approximate remaining time of the running programme, - the end of the programme (a zero will appear in the digital display), - the countdown of the delay start, - fault codes concerning malfunction of the dishwasher. -
Page 10: Multi-Tab Function
4. To change the setting, press function button 2 again, the digital display indicates the new setting. 5. To memorise the operation, switch off the dishwasher by pressing the On/Off button. ” function indicator Rinse aid dispenser deactivated... -
Page 11: Audible Signals
Audible signals deactivated Audible signals activated (factory set) 4. To change the current setting, press again function button 3, the digital display will indicate the new setting. 5. To memorise the operation, switch off the dishwasher by pressing the On/Off button. -
Page 12: When The Dishwasher Is First Installed
"Different kinds of detergents". The water softener The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance. -
Page 13: Dishwasher Salt And Replenishment
6 is selected. if the current level is 10, by pressing function button 1 once, level 1 is selected. 5. To memorise the operation, switch off the dishwasher by pressing the On/Off button. Filling with dishwasher salt Only use salt specifically designed for use in dishwashers. -
Page 14: Rinse Aid And Replenishment
Only use branded rinse aid for dishwashers, available also from your local John Lewis store. Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent).This would damage the appliance. -
Page 15: Using The Dishwasher
- Only wash stoneware in the dishwasher if it is specifically marked as being dishwasher-safe by the manufacturer. - Glazed patterns may fade if machine washed frequently - Silver and aluminium parts have a tendency to discolour during washing. -
Page 16: The Lower Basket
Open the door and slide out the baskets to load the dishes. The lower basket The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc. Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the spray arms can turn freely. -
Page 17: The Upper Basket
The upper basket The upper basket is designed for plates (dessert plates, saucers, dinner plates of up to 24 cm in diameter), salad bowls, cups and glasses. Arrange items on and underneath the cup racks so that water can reach all surfaces. -
Page 18: Use Of Detergent
Use of detergent Only use detergents specifically designed for use in dishwashers. Please observe the manufacturer’s dosing and storage recommendations as stated on the detergent packaging. Using no more than the correct amount of detergent contributes to reducing pollution. Fill with detergent 1. -
Page 19: Different Kinds Of Detergent
Different kinds of detergent Concentrated detergent Modern detergents for dishwashers are almost exclusively low- alkaline concentrated detergents with natural enzymes in tablet form. Using 50°C washing programmes in conjunction with these concentrated detergents reduces pollution and is good for your dishes, as these washing programmes are specially matched to the dirt-dissolving properties of the enzymes in concentrated detergents. -
Page 20: Washing Programmes
Programme Degree of soil type of load Any. Partial load (to be completed later in the Rinse and hold day or when the dishwasher is full). Heavy soil. Intensive Crockery, cutlery, 70°C pots and pans Normal soil. Crockery and Automatic cutlery Light soil. -
Page 21: Starting A Washing Programme
In the digital display will appear, flashing, the running time of the programme that has been set (in minutes). Close the dishwasher’s door, the programme will start automatically. Setting and starting the programme with the delay start... -
Page 22: End Of The Washing Programme
If the On/Off button is pressed or the door is opened during these 20 minutes, the device will be automatically cancelled. Open the dishwasher’s door, leave it ajar and wait a few minutes before removing the dishes; in this way they will be cooler and the drying will be improved. -
Page 23: Maintenance And Cleaning
1. Open the door, remove the lower basket. 2. The dishwasher filter system comprises a coarse filter (A), a microfilter (B) and a flat filter (C). Unlock the filter system using the handle on the microfilter, and remove. -
Page 24: Something Not Working
The dishwasher will not start or stops during operation and a sequence of intermittent audible signals are heard. The point-shaped optical signal on the floor beneath the dishwasher’s door is flashing (not visible if the appliance has been installed higher up with a furniture door mounted flush). -
Page 25: There Are Problems When Operating The Dishwasher
The detergent may be the cause. Contact the detergent manufacturer’s consumer care line. Possible cause The dishwasher door has not been properly closed. The main plug is not plugged in. The fuse has blown in the household fuse box. Delay start has been selected. -
Page 26: Repairs - After Sales Service
S.N. : ..........Your dishwasher is covered by a 3 year parts and labour guarantee (see separate details given at point of sale). - Page 28 John Lewis Partnership 171 Victoria Street London SW1E 5NN www.johnlewis.com 117994 08/0 07/06...
