Summary of Contents for John Lewis JLBIDW 1200

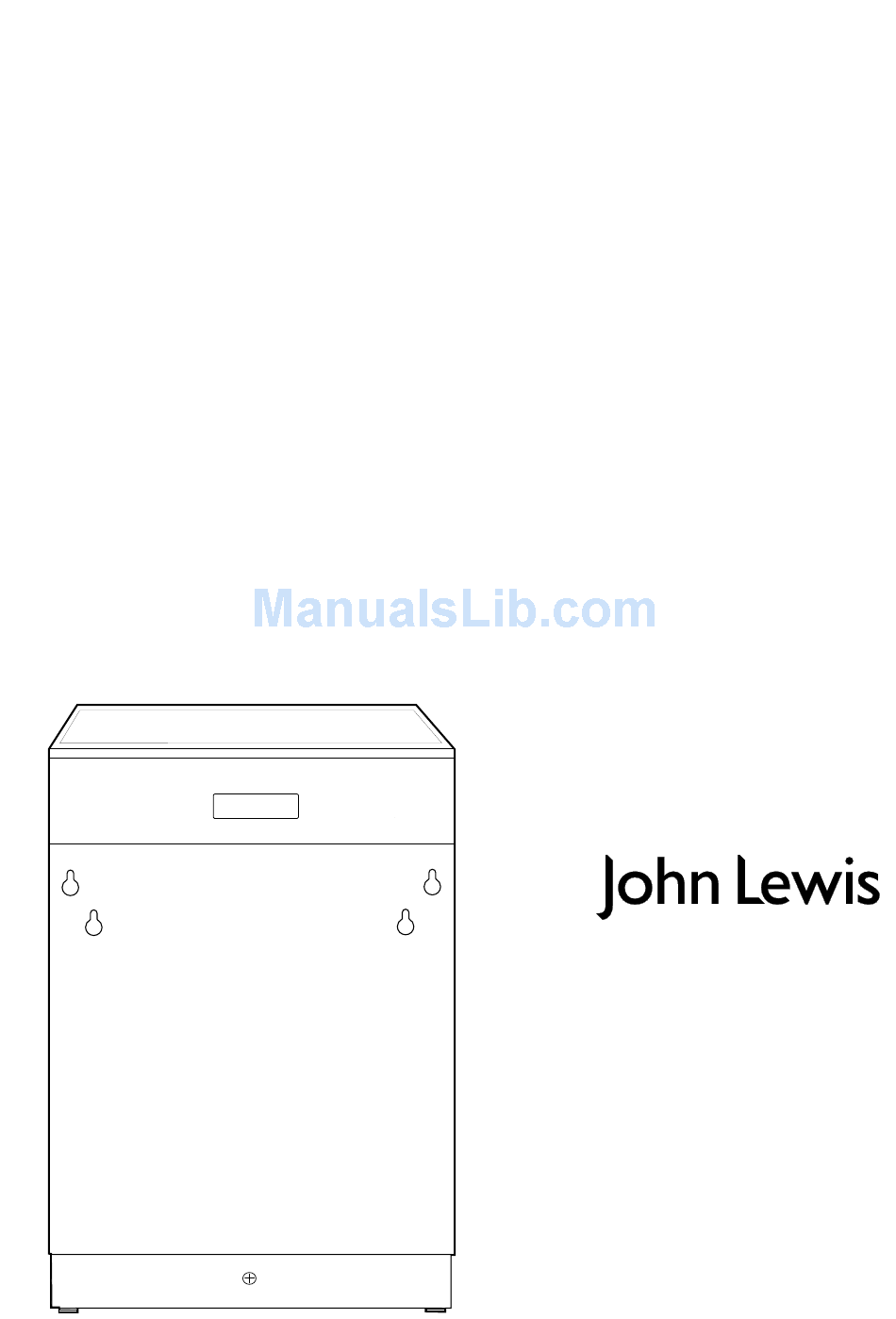

- Page 1 JLBIDW 1200 Dishwasher Instruction manual COP04 152953 25/0...
-
Page 2: Important Safety Information
These warnings have been provided in the interest of your safety.You MUST read them carefully before installing or using the appliance. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance Installation This appliance is heavy. -
Page 3: Environmental Information
Cardboard packaging is manufactured from recycled paper and should be deposited in the waste paper collection for recycling. As and when you cease to use your dishwasher and withdraw it from service, your should render it unserviceable before having it disposed of. -
Page 4: Table Of Contents
Description of the appliance The control panel Multi-tab function Audible signals When the dishawasher is first installed The water softener Filling with dishwasher salt Rinse aid Using the dishwasher Loading cutlery and dishes The lower basket The cutlery basket The upper basket... -
Page 5: Description Of The Appliance
Description of the appliance 1. Upper basket stop 2. Water hardness dial 3. Salt container 4. Detergent dispenser 5. Control panel 6. Rating plate 7. Rinse aid dispenser 8. Filters 9. Lower spray arm 10. Upper spray arm 11. Upper basket... -
Page 6: Installation
Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance’s rating plate.The rating plate is located on the side of the dishwasher’s door. The plug moulded onto the lead incorporates a 13amp BSI362 fuse. -
Page 7: Water Supply Connections
The water inlet hose must not be kinked, crushed, or entangled when it is being connected up. The dishwasher features fill and drain hoses which can be turned either to the left or the right to suit the installation by means of the locknut. -
Page 8: Building-In
If the spigot of your sink has a "no return valve" incorporated this can prevent the correct draining of your dishwasher. We therefore advise you to remove it. Building-in This dishwasher is designed to be fitted under a kitchen counter or worksurface. Important! Carefully follow the instructions on the enclosed template for building in the dishwasher and fitting the furniture panel. -
Page 9: The Control Panel
- the end of the programme (a zero will appear in the digital display), - the countdown of the delay start, - fault codes concerning malfunction of the dishwasher. Function buttons In addition to the selection of the washing programme and the... -
Page 10: Multi-Tab Function
3 in1 function active 3 in 1 function not active indicator light off 5. To memorise the operation, switch off the dishwasher by pressing the On/Off button or wait about 60 seconds after which the dishwasher will automatically return to setting mode. -
Page 11: Audible Signals
4. To change the current setting, press again function button 3, the digital display will indicate the new setting. 5. To memorise the operation, switch off the dishwasher by pressing the On/Off button or wait about 60 seconds after which the dishwasher will automatically return to setting... -
Page 12: When The Dishawasher Is First Installed
"Different kinds of detergents". The water softener The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance. -
Page 13: Filling With Dishwasher Salt
10, by pressing function button 1 once, level 1 is selected. 5. To memorise the operation, switch off the dishwasher by pressing the On/Off button or wait about 60 seconds after which the dishwasher will automatically return to setting mode. -
Page 14: Rinse Aid
Only use branded rinse aid for dishwashers. Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent).This would damage the appliance. Adjusting the dose According to the finish and drying results obtained, adjust the dose of rinse aid by means of the 6 position selector (position 1 minimum dosage, position 6 maximum dosage). -
Page 15: Using The Dishwasher
- Only wash stoneware in the dishwasher if it is specifically marked as being dishwasher-safe by the manufacturer. - Glazed patterns may fade if machine washed frequently - Silver and aluminium parts have a tendency to discolour during washing. -
Page 16: The Lower Basket
Open the door and slide out the baskets to load the dishes. The lower basket The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc. Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the spray arms can turn freely. -
Page 17: The Upper Basket
The upper basket The upper basket is designed for plates (dessert plates, saucers, dinner plates of up to 24 cm in diameter), salad bowls, cups and glasses. Arrange items on and underneath the cup racks so that water can reach all surfaces. -
Page 18: Use Of Detergent
Use of detergent Only use detergents specifically designed for use in dishwashers. Please observe the manufacturer’s dosing and storage recommendations as stated on the detergent packaging. Using no more than the correct amount of detergent contributes to reducing pollution. Fill with detergent 1. -
Page 19: Different Kinds Of Detergent
Different kinds of detergent Detergent tablets Detergent tablets from different manufactures dissolve at different rates. For this reason, some detergent tablets do not attain their full cleaning power during short washing programmes. Therefore please use long washing programmes when using detergent tablets, to ensure the complete removal of detergent residuals. -
Page 20: Washing Programmes
Washing programmes Programme Degree of soil type of load Any. Partial load (to be Rinse and hold completed later in the day). Heavy soil. Intensive Crockery, cutlery, 70°C pots and pans Normal soil. Crockery and Automatic cutlery Fresh soil. Crockery and Quick wash cutlery Normal soil. -
Page 21: Starting A Washing Programme
Open the dishwasher door only when this optical signal turns off. Open the dishwasher’s door, leave it ajar and wait a few minutes before removing the dishes; in this way they will be cooler and the drying will be improved. -
Page 22: Unloading The Dishwasher
Water may appear on the sides and the door of the dishwasher as the stainless steel will eventually become cooler than the dishes. When the washing programme has finished, it is recommended that the dishwasher is unplugged and the water tap turned off. -
Page 23: Maintenance And Cleaning
1. Open the door, remove the lower basket. 2. The dishwasher filter system comprises a coarse filter (A), a microfilter (B) and a flat filter (C). Unlock the filter system using the handle on the microfilter, and remove. -
Page 24: Something Not Working
The dishwasher will not start or stops during operation and a sequence of intermittent audible signals are heard. The point-shaped optical signal on the floor beneath the dishwasher’s door is flashing (not visible if the appliance has been installed higher up with a furniture door mounted flush). -
Page 25: Repairs - After Sales Service
When contacting Service Force, please quote the model (Mod.) and serial number (S.N.), both of which are shown on the rating plate located on the side of the dishwasher door (see picture). So that you always have these numbers at hand, we recommend that you make a note of them here: Mod. - Page 28 John Lewis Partnership 171 Victoria Street London SW1E 5NN www.johnlewis.com 08/05...
