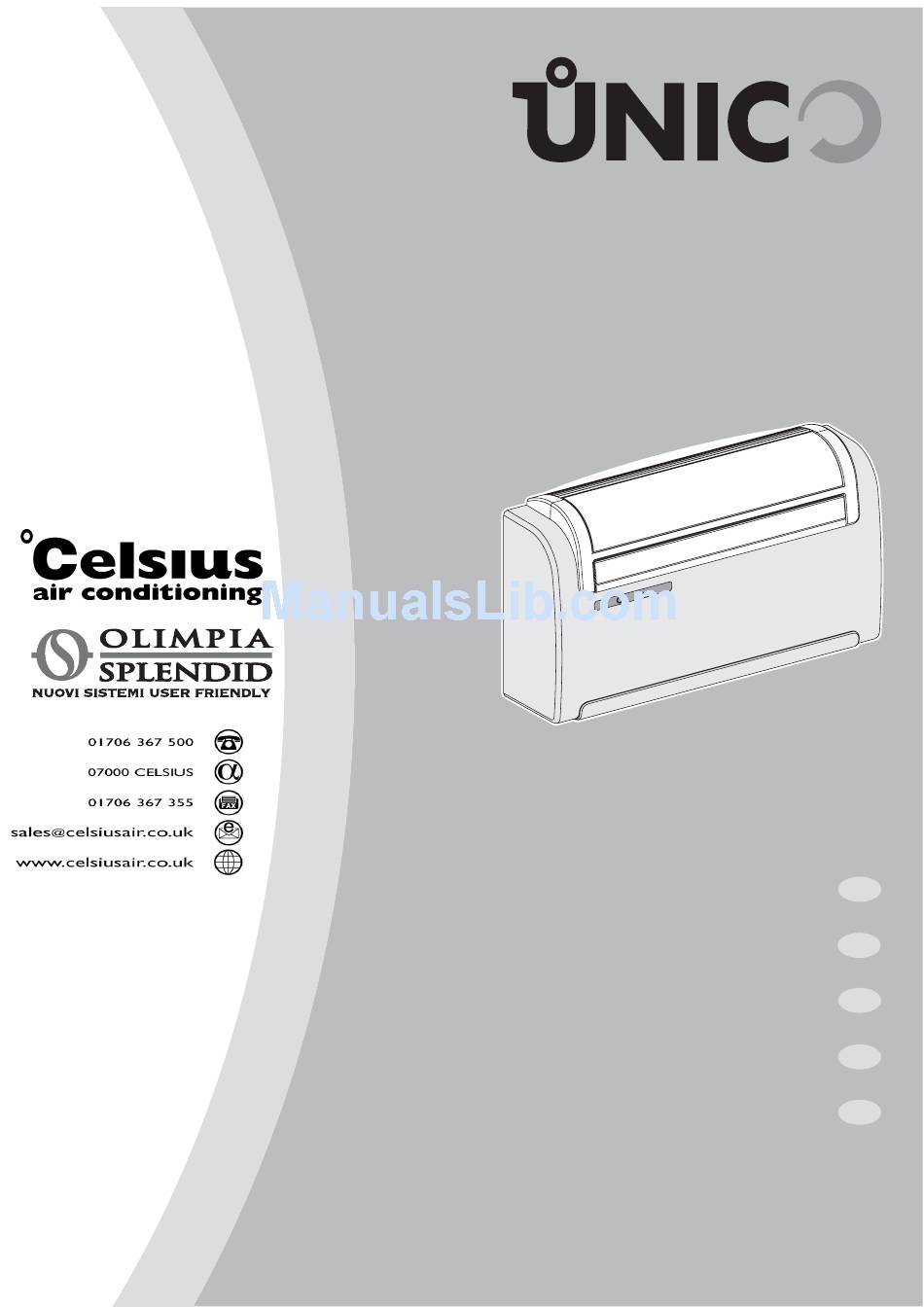

- Page 1 INVERTER ISTRUZIONI PER INSTA L L A ZIONE, USO E MA NUTENZIONE INSTRUCTIONS FOR INSTA L L ATION, USE A ND MA INTENA NCE INSTRUCTIONS POUR L 'INSTA L L ATION, L 'EMPL OI ET L 'ENTRETIEN HA NDB UCH FÜR INSTA L L ATION, GEB RA UCH UND WA RTUNG INSTRUCCIONES PA RA L A INSTA L A CIÓN, USO Y MA NTENIMIENTO...
- Page 2 9 11 6 0 m 6 0 m m...
- Page 3 UNICO - INVERTER...
- Page 5 UNICO - INVERTER...
- Page 6 LED D LED C LED B LED A...
- Page 7 UNICO - INVERTER...
- Page 8 AUTO AUTO...
- Page 9 3.5.3 Dati tecnici Per i dati tecnici sotto elencati consultare la targa dati caratteristica applicata sul prodotto. - Tensione di alimentazione - Potenza assorbita massima - Corrente assorbita massima - Potenza refrigerante - Gas refrigerante - Grado di protezione degli involucri - Max pressione di esercizio Dimensioni (largh.
-
Page 10: Table Of Contents
3.3.18 Managing the unit if the remote control is not available -------------------------------------------------------------- 38 ENERGY SAVING ADVICE ------------------------------------------------------------------------------------------------- 38 TROUBLESHOOTING -------------------------------------------------------------------------------------------------------- 38 3.5.1 Functional aspects not to be interpreted as problems ---------------------------------------------------------------- 38 3.5.2 Troubleshooting ---------------------------------------------------------------------------------------------------------------- 39 3.5.3 Specifications ------------------------------------------------------------------------------------------------------------------ 40 UNICO INVERTER... -
Page 11: Editorial Pictograms
GENERAL SYMBOLS The pictograms shown in the next chapter provide the information necessary for correct use of the appliance in a rapid and unmistakable way. 1.1.1 Editorial pictograms Service Refers to situations in which you should inform the SERVICE department in the company: CUSTOMER TECHNICAL SERVICE. -
Page 12: List Of Supplied Components
D - Sheet for wall pipes E - Kit of screws and anchor bolts F - Wall anchoring bracket G - Use and maintenance booklets + warranty H - Remote control I - Paper template to make holes UNICO INVERTER... -
Page 13: Receipt And Unpacking
1.4.1 Storage Store the packages in a closed room, protected from atmospheric agents and resting on pallets or beams to isolate from the ground. DO NOT OVERTURN THE PACKAGE. 1.4.2 Receipt and unpacking The products are packaged by expert personnel using suitable packaging material. The units are delivered complete and in perfect condition, however we suggest that you perform the following controls of the quality of the shipping service: on receiving the goods, check if the package is damaged. -
Page 14: Installation Modes
The UNICO INVERTER unit may be installed in lieu of a UNICO SKY or UNICO STAR unit without changing the position of the existing holes, with the exception of the small hole for condensate drainage. In this case, in order not to penalize performance, remove the insulating material from the air outlet pipe. -
Page 15: Preparing The Condensate Discharge
To prevent the creation of large amounts of dust and rubble due to drilling, the core borer can be fitted with a vacuum system applied by means of suction cups to the drilling zone. Our Service Department can give you all necessary information to enable you to find these devices. -
Page 16: Preparing The Holes On The Machine
(fig. 19 ref. C) block the cable with the clamp (fig. 19 ref. B) UNICO INVERTER... -
Page 17: Top/Bottom Installation Configuration
close the protection of the board (fig. 19 ref. A) refit the front cover of the machine with the six screws refit the two wedged-in covers (upper and lower). CAUTION: these operations should be performed with the machine already positioned on the bracket. Read the instructions carefully before completely the electric connection. -
Page 18: Evacuating Condensate Water During An Emergency
WARNING: after having cleaned the filters, the air suction flap might stop in a wrong position on turning on the unit again. In this case: turn off the unit manually move the suction flap to closed position cut off power supply (disconnect the power cable) wait about 30 seconds plug in the power cable turn on the unit. UNICO INVERTER... -
Page 19: Use And Maintenance (User Part)
USE AND MAINTENANCE (user part) WARNINGS The installation and electrical connection of the air conditioner should be carried out by specialized personnel who possess the requisites set forth by law. The installation instructions are provided in the specific manual. No structural object (furniture, curtains, plants, leaves, blinds, etc.) should ever obstruct the normal flow of air from either the internal or external gratings. -
Page 20: Description Of The Remote Control
In case of prolonged stop of the machine, it must be deactivated turning the main switch off or unplugging the machine from the mains. 3.3.4 ECO key (button T2) The energy saving function is activated through this button (T2) and the switching on of the ECO icon remote control on the display, which automatically optimizes machine running. UNICO INVERTER... -
Page 21: Dehumidification Only
3.3.5 Cooling When used in this mode, the air conditioner dehumidifies and cools the room. Activate this mode by pressing button (T4) Run mode selector until the snowflake symbol (D3) is displayed. In this run mode, the required temperature and fan speed can be set. After having activated this run mode, the compressor will start running after 3 minutes at the most and the unit begins emitting cold air. -
Page 22: Checking Fan Speed
30 minutes. To return to the routine operating mode just press the button (T6) as many times as necessary to clear the relevant indications from the display. UNICO INVERTER... -
Page 23: Starting And Stopping The Operating Programs
3.3.16 Starting and stopping the operating programs After having made the settings for the operating programs, they can be used or not, as needed. Either or both of the programs can be used. In particular, each time you press the button (T11) Program activation, the situation changes as follows: Use of Program no. -
Page 24: Troubleshooting
• Remove anything that might clog the air flows. • The heating/cooling load has increased (for example a door or a window was left open or equipment that dissipates a large amount of heat was installed in the same room). UNICO INVERTER... - Page 25 3.5.3 Specifications For the technical data listed below, consult the characteristic data plate applied to the product - Power supply voltage - Maximum power absorbed - Maximum current absorbed - Coolant power - Coolant gas - Protection rating of the containers - Max working pressure Dimensions (W x H x D) mm 902x506x229...
