Specifications And Options; Specifications; Options - Icom IC-M36 Instruction Manual

12

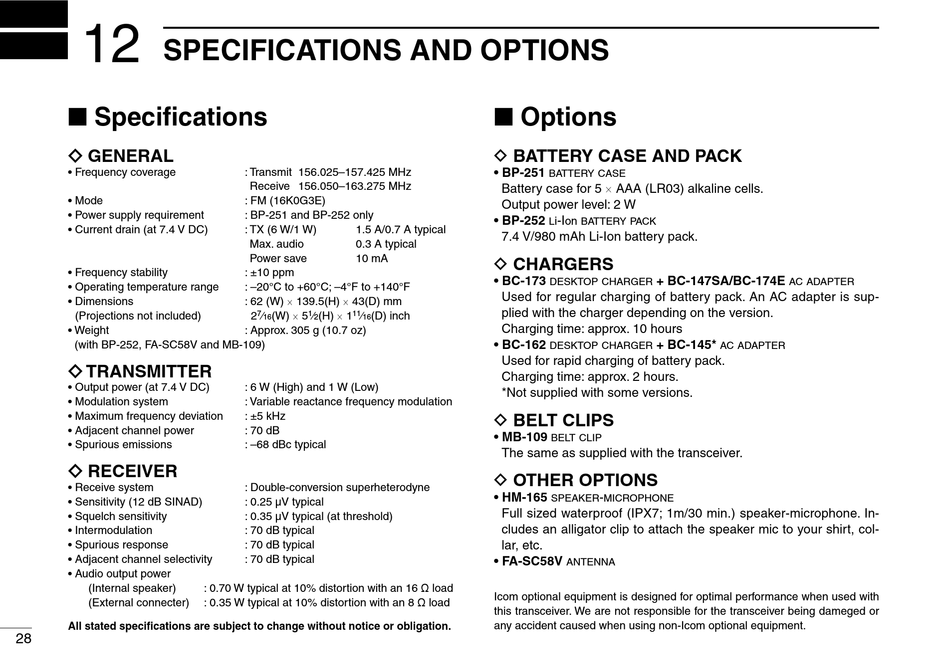

SPECIFICATIONS AND OPTIONS

■ Specifications

ï GENERAL
• Frequency coverage
• Mode
• Power supply requirement
• Current drain (at 7.4 V DC)
• Frequency stability
• Operating temperature range
• Dimensions
(Projections not included)
• Weight
(with BP-252, FA-SC58V and MB-109)
ï TRANSMITTER
• Output power (at 7.4 V DC)
• Modulation system
• Maximum frequency deviation
• Adjacent channel power
• Spurious emissions
ï RECEIVER
• Receive system
• Sensitivity (12 dB SINAD)
• Squelch sensitivity
• Intermodulation
• Spurious response
• Adjacent channel selectivity
• Audio output power
(Internal speaker)
(External connecter)
All stated specifications are subject to change without notice or obligation.
28
: Transmit 156.025–157.425 MHz
Receive 156.050–163.275 MHz
: FM (16K0G3E)
: BP-251 and BP-252 only
: TX (6 W/1 W) 1.5 A/0.7 A typical
Max. audio 0.3 A typical
Power save 10 mA
: ±10 ppm
: –20°C to +60°C; –4°F to +140°F
: 62 (W) × 139.5(H) × 43(D) mm
(W) × 5 (H) × 1
2 7 ⁄ 1 ⁄ 11 ⁄ (D) inch
16 2 16
: Approx. 305 g (10.7 oz)
: 6 W (High) and 1 W (Low)
: Variable reactance frequency modulation
: ±5 kHz
: 70 dB
: –68 dBc typical
: Double-conversion superheterodyne
: 0.25 µV typical
: 0.35 µV typical (at threshold)
: 70 dB typical
: 70 dB typical
: 70 dB typical
: 0.70 W typical at 10% distortion with an 16 Ω load
: 0.35 W typical at 10% distortion with an 8 Ω load

■ Options

D BATTERY CASE AND PACK
• BP-25.1
battery case
Battery case for 5 × AAA (LR03) alkaline cells.
Output power level: 2 W
• BP-25.2 -I
l i on battery pack
7.4 V/980 mAh Li-Ion battery pack.
D CHARGERS
• BC-173 + BC-147SA/BC-174E
desktop charger
Used for regular charging of battery pack. An AC adapter is sup-
plied with the charger depending on the version.
Charging time: approx. 10 hours
• BC-162 + BC-145.*
desktop charger
Used for rapid charging of battery pack.
Charging time: approx. 2 hours.
*Not supplied with some versions.
D BELT CLIPS
• MB-109
belt clip
The same as supplied with the transceiver.
D OTHER OPTIONS
• HM-165. -
speaker microphone
Full sized waterproof (IPX7; 1m/30 min.) speaker-microphone. In-
cludes an alligator clip to attach the speaker mic to your shirt, col-
lar, etc.
• FA-SC5.8V
antenna
Icom optional equipment is designed for optimal performance when used with
this transceiver. We are not responsible for the transceiver being dameged or
any accident caused when using non-Icom optional equipment.
