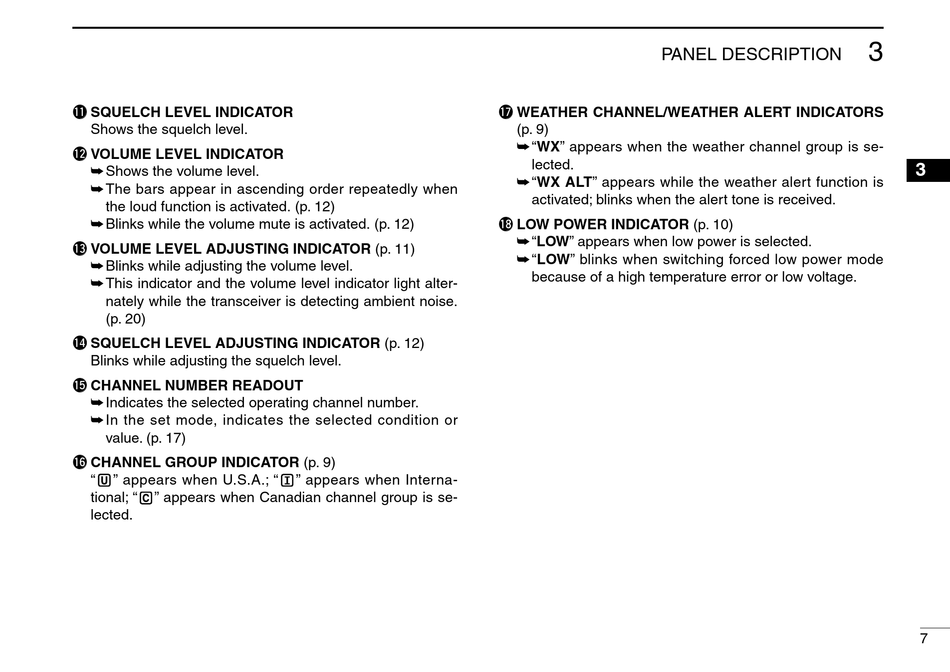

Icom IC-M36 Instruction Manual page 13

!1 SQUELCH LEVEL INDICATOR
Shows the squelch level.
!2 VOLUME LEVEL INDICATOR
➥ Shows the volume level.
➥ The bars appear in ascending order repeatedly when
the loud function is activated. (p. 12)
➥ Blinks while the volume mute is activated. (p. 12)
!3 VOLUME LEVEL ADJUSTING INDICATOR (p. 11)
➥ Blinks while adjusting the volume level.
➥ This indicator and the volume level indicator light alter-
nately while the transceiver is detecting ambient noise.
(p. 20)
!4 SQUELCH LEVEL ADJUSTING INDICATOR (p. 12)
Blinks while adjusting the squelch level.
!5 CHANNEL NUMBER READOUT
➥ Indicates the selected operating channel number.
➥ In the set mode, indicates the selected condition or
value. (p. 17)
!6 CHANNEL GROUP INDICATOR (p. 9)
" " appears when U.S.A.; "
tional; " " appears when Canadian channel group is se-
lected.
" appears when Interna-
PANEL DESCRIPTION
!7 W EATHER CHANNEL/WEATHER ALERT INDICATORS
(p. 9)
➥ "WX" appears when the weather channel group is se-
lected.
➥ "WX ALT" appears while the weather alert function is
activated; blinks when the alert tone is received.
!8 LOW POWER INDICATOR (p. 10)
➥ "LOW" appears when low power is selected.
➥ "LOW" blinks when switching forced low power mode
because of a high temperature error or low voltage.
