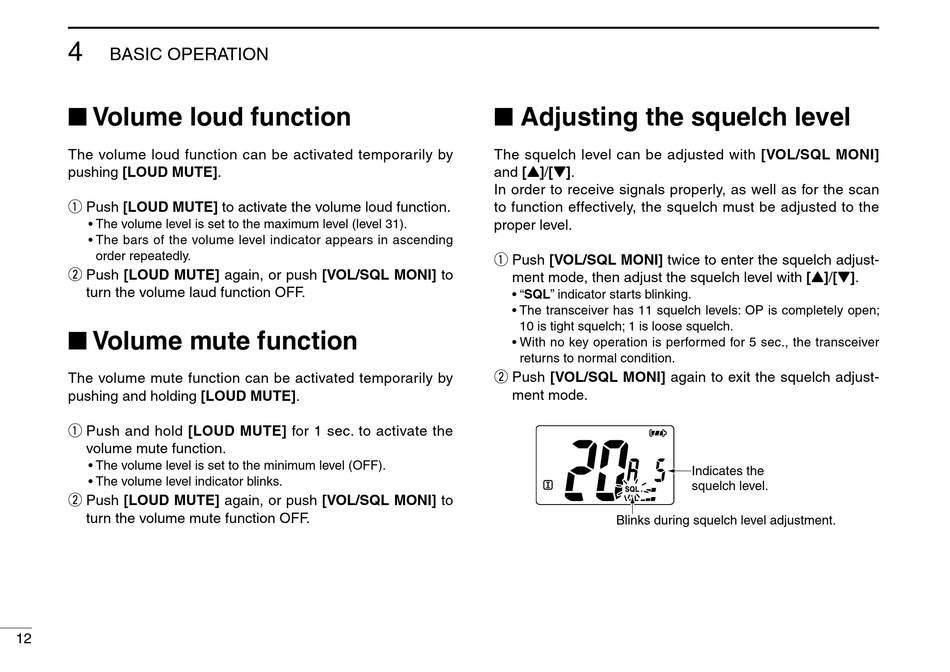

Volume Loud Function; Volume Mute Function; Adjusting The Squelch Level - Icom IC-M36 Instruction Manual

4
BASIC OPERATION

■ Volume loud function

The volume loud function can be activated temporarily by
pushing [LOUD MUTE].
q Push [LOUD MUTE] to activate the volume loud function.
• The volume level is set to the maximum level (level 31).
• The bars of the volume level indicator appears in ascending
order repeatedly.
w Push [LOUD MUTE] again, or push [VOL/SQL MONI] to
turn the volume laud function OFF.

■ Volume mute function

The volume mute function can be activated temporarily by
pushing and holding [LOUD MUTE].
q Push and hold [LOUD MUTE] for 1 sec. to activate the
volume mute function.
• The volume level is set to the minimum level (OFF).
• The volume level indicator blinks.
w Push [LOUD MUTE] again, or push [VOL/SQL MONI] to
turn the volume mute function OFF.
12

■ Adjusting the squelch level

The squelch level can be adjusted with [VOL/SQL MONI]
and [Y]/[Z].
In order to receive signals properly, as well as for the scan
to function effectively, the squelch must be adjusted to the
proper level.
q Push [VOL/SQL MONI] twice to enter the squelch adjust-
ment mode, then adjust the squelch level with [Y]/[Z].
• "SQL" indicator starts blinking.
• The transceiver has 11 squelch levels: OP is completely open;
10 is tight squelch; 1 is loose squelch.
• With no key operation is performed for 5 sec., the transceiver
returns to normal condition.
w Push [VOL/SQL MONI] again to exit the squelch adjust-
ment mode.
Blinks during squelch level adjustment.
Indicates the
squelch level.
