Security Labs SLD274 User Manual

Jpeg2000 4/8/16 channel triplex dvrs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

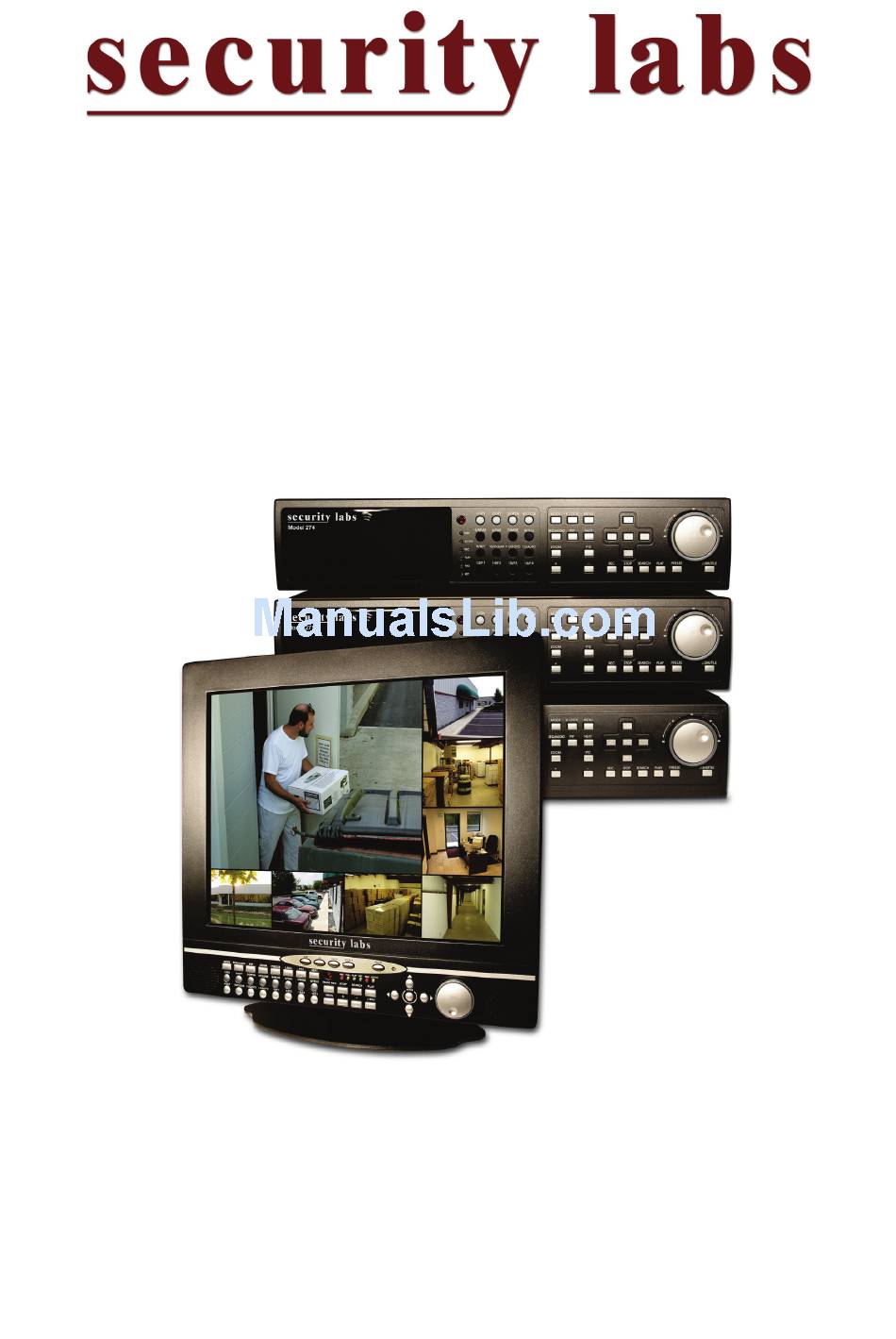

4/8/16 Channel Triplex DVRs
Models SLD274 (4 CH), SLD275 (8 CH), SLD276 (16 CH),
& SLD281 (8CH DVR w 17" MONITOR)
8 Channel Triplex DVR
17" LCD Monit
15540 Herriman Blvd. Noblesville, IN 46060 - Customer Support 1-800-774-0284
www.security-labs.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLD274 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Security Labs SLD274

Summary of Contents for Security Labs SLD274

  • Page 1 4/8/16 Channel Triplex DVRs Models SLD274 (4 CH), SLD275 (8 CH), SLD276 (16 CH), & SLD281 (8CH DVR w 17” MONITOR) 8 Channel Triplex DVR 17” LCD Monit 15540 Herriman Blvd. Noblesville, IN 46060 - Customer Support 1-800-774-0284 www.security-labs.com...

  • Page 2: Table Of Contents

    JPEG2000 DVR User Guide CONTENTS Date: 1/1/2007 VER: 1.60 Security Labs, Inc. COPYRIGHT 2007 DMS-MBR Caution ……………………………………………………………………. 3 Package Contents ……………………………………………………………………. 3 Specifications ……………………………………………………………………. 4 CHAP.1 Appearance 1-1 Stand alone DVR Front panel ……………………………………………………………………. 8 introduction 1-2 Stand alone DVR Back panel …………………………………………………………………….
  • Page 3 JPEG2000 DVR User Guide 4-6 External device …………………………………………………………………… 4-7 Factory default …………………………………………………………………… 4-8 Language …………………………………………………………………… CHAP.5 DVD+R/CDR Backup 5-1 Data backup …………………………………………………………………… 50 5-2 Player software installation …………………………………………………………………… 51 5-3 Player software interface …………………………………………………………………… 52 CHAP.6 PTZ camera control 6-1 PTZ camera installation ……………………………………………………………………...

  • Page 4: Caution

    JPEG2000 DVR User Guide Caution For your safety, unplug the power before moving the DVR, installing, or replacing any parts or hard drive.  Make sure all the power cables and wires are properly set up before using the DVR. Contact your distributor ...

  • Page 5: Specifications

    JPEG2000 DVR User Guide JPEG2000 Standalone DVR Specification Model Security Labs 4/8/16 CH JPEG2000 Stand alone DVRs 4/8/16CH VIDEO IN 1.0 VP-P，75OHM(BNC TYPE) Video Input Video I/O Video Output (BNC TYPE) X 2 VGA Output Support TFT LCD Monitor (on SLD274-6)
  • Page 6 JPEG2000 DVR User Guide Search Percentage/ Time & Date /Event Jog Shuttle Dual Knob Frame Advance Forward / Reverse Playback Fast Forward x2, x4, x8, x16, x32, x60(NTSC) Modes x2, x4, x8, x15, x25, x50(PAL) Fast Rewird Slow Forward/Rewind 1/2,1/4,1/8,1/16 Pause Available Protocol...
  • Page 7 JPEG2000 DVR User Guide JPEG2000 LCD DVR Specification Model Security Labs 8 CH JPEG2000 Series LCD DVR 8CH VIDEO IN 1.0 VP-P，75OHM(BNC TYPE) Video Input Video I/O Video Output (BNC TYPE) X 2 Audio Input 4 CH Audio Input (MONO)
  • Page 8 JPEG2000 DVR User Guide Search Percentage/ Time & Date /Event Jog Shuttle Dual Knob Frame Advance Forward / Reverse Playback Fast Forward x2, x4, x8, x16, x32, x60(NTSC) Modes x2, x4, x8, x15, x25, x50(PAL) Fast Rewind Slow Forward/Rewind 1/2,1/4,1/8,1/16 Pause Available Protocol...

  • Page 9: Chap.1 Appearance

    JPEG2000 DVR User Guide CHAP.1 Appearance 1-1 Standalone DVR Front panel introduction 1.[DVD+R] Built-in DVD+R / CDR for backup.  2.[USB Port] Connect PC for firmware upgrade.  HOST: Connect USB memory stick for backup.  3.[IR Receiver & LED Lamps] IR Remote Control Receiver.
  • Page 10 JPEG2000 DVR User Guide 10.[PTZ] Press [PTZ] to enter the PTZ control mode. Press the PTZ buttons to control the PTZ camera directly.  11.[+ / -] Adjust set-up value.  Adjust display order of channels.  12.[Control] SEQ/AUDIO- Press quickly for AUDIO, and press and hold for 3 seconds to enter SEQ mode. ...

  • Page 11: Standalone Dvr Back Panel Introduction

    JPEG2000 DVR User Guide 1-2 Standalone DVR Back panel introduction [4Channel] [8Channel] [16Channel] 1.[RS485, Relay Output, Sensor Input] RS485, for connection to PTZ cameras.  16 sensor inputs and 1 relay output.  2.[VGA Output] Connection to a VGA monitor or TFT LCD. ...

  • Page 12: Lcd Dvr Front Panel Introduction

    JPEG2000 DVR User Guide 1-3 LCD DVR Front panel introduction <Front> <Back> <Side> 1.[LCD monitor power switch] Powers Display Monitor ON/OFF. Please note the DVR is still runs even though the monitor is turned off.  2.[IR Receiver & LED Lamps] IR Remote Control Receiver.
  • Page 13 JPEG2000 DVR User Guide 3.[Control] MODE - Select full and split screen displays.  SEQ/AUDIO - Press quickly for AUDIO, or press and hold for 3 seconds to enter SEQ mode.  SEQ - Full screen sequencing or smaller screen sequencing in PIP mode. AUDIO - Press to play audio.

  • Page 14: Lcd Dvr Front Panel Introduction

    JPEG2000 DVR User Guide 1-4 LCD DVR Back panel introduction [8CH DVR] 1.[RS-232C] Connection to PC or other DVR control devices.  2.[RS485, Relay Output, Sensor Input] RS485, for connection to PTZ cameras.  16 sensor inputs and 1 relay output. ...

  • Page 15: Ir Remote Controller Introduction

    JPEG2000 DVR User Guide 1-5 IR remote controller introduction 1.[MENU] Enter menu or exit  2.[Split /OSD] 4S: 4 split  9S: 9 split  16S: 16 split  AUDIO: Press to play the audio.Press again to go to the next audio channel. ...

  • Page 16: Chap.2 Installation

    JPEG2000 DVR User Guide CHAP.2 Installation 2-1 Camera and monitor installation 2-1-1 Camera installation Connect camera(s) to camera in CH1~CH16 ※Please do not power up the DVR before the camera(s) are connected. 2-1-2 Monitor and SPOT installation Monitor: Connect the MONITOR port on the DVR back panel to the “video in” port on the monitor. SPOT- second monitor output.

  • Page 17: Sensor And Alarm Installation

    JPEG2000 DVR User Guide 2-2 Sensor and alarm installation 2-2-1 Input & Output [4Channel] [8Channel] [16Channel] 1.[D1~D16 Alarm Input/GND Locations] 16 Sensor inputs.  2.[Relay Output NO/NC/COM] Relay output is NO+COM and NC+COM  2-2-2 Sensor installation Alarm will be triggered once one (or more than one) alarm input (D1~D16) causes short circuit or open circuit ...

  • Page 18: Network And Serial Port Installation

    JPEG2000 DVR User Guide 2-2-3 Relay output installation Alarm output can be NO or NC.  NO-COM: the NO and COM terminals = open-circuit, closes when an alarm is triggered.  NC-COM: the NC and COM terminals = closed-circuit, opens when an alarm is triggered. ...

  • Page 19: Ptz Camera Installation

    JPEG2000 DVR User Guide connector description ASCII-CODE Func. CODE Func. CODE Func. CODE Func. CODE Func. CODE RIGHT MODE CH11 STOP NEXT CH12 PLAY ENTER 0X0D CH13 < J.SHU CH14 SEARCH MENU > KLOCK CH15 QPLAY CH16 DOWN ZOOM LEFT CH10 To connect your DVR to a PC, you must use an RS232 cable as illustrated below: ...

  • Page 20: Hdd Installation

    JPEG2000 DVR User Guide [Audio output] Connect an amplified speaker to the audio output. DVR can play  audio during live view and playback. 2-4 HDD installation [Steps] 1. Disassemble the bolts as illustrated. 2.Jumper setting Set up the HDD as MASTER or SLAVE. Please refer to the HDD manual of the jumper settings.

  • Page 21: Power Connection

    JPEG2000 DVR User Guide 2-5 Power plugging Insert the adapter to the rear power socket of DVR. Insert the power cable to the other side of adapter. Plug in the power cable and power on the DVR. Caution: Please only use the power supply that comes with your unit. -20-...

  • Page 22: Chap.3 Operation

    JPEG2000 DVR User Guide CHAP.3 Operation 3-1 Display configuration 1.[Time] Current system time or the recorded time in playback  2.[Date] Current system date or the recorded date in playback  3.[Camera title] Camera title of the displayed channel. Camera title can be modified in ...

  • Page 23: Screen Switch

    JPEG2000 DVR User Guide 3-2 Screen switch <Standalone DVR> <LCD DVR> Press the number button to switch to the corresponding channel for its full screen view  Mode: press to switch among different split modes: 4/6/8/9/13/16 splits.  +/-: button to adjust the order. 3-3 PIP view <Standalone DVR>...

  • Page 24: View In Sequence

    JPEG2000 DVR User Guide 3-4-2 Freeze in Full mode <LCD DVR> <Standalone DVR> In full screen mode, Press FREEZE to freeze the channel, and press FREEZE again to cancel.  3-5 View in sequence <LCD DVR> <Standalone DVR> Sequence is only functional in full screen. ...

  • Page 25: Zoom View

    JPEG2000 DVR User Guide 3-6 Zoom view <LCD DVR> <Standalone DVR> Go to the channel to be zoomed and press ZOOM to enlarge to 200%, use direction buttons to move the enlarged portion.  Use the direction buttons to choose an area and press ENTER to zoom. Press ZOOM again to cancel ...

  • Page 26: Record

    JPEG2000 DVR User Guide 3-9 Record Emergency / Panic Record (Red): press REC to start emgergency record at continuous record mode and at   the best resolution and quality. Schedule record (Green): record per the setup schedule record mode, resolution, and quality. ...

  • Page 27: Playback

    JPEG2000 DVR User Guide 3-10 Playback 3-10-1 Play/Stop <Standalone DVR> <LCD DVR> Press the PLAY key on front panel to begin playback starting from the last  playback time. Press“ PLAY ”during playback to choose to play forward or backward. ...
  • Page 28 JPEG2000 DVR User Guide 3-10-3 Search mode <Standalone DVR> <LCD DVR>  Press SEARCH key to open the search dialog window. There are 3 modes for search: SEARCH BAR, TIME/DATE, EVENT LIST. 1.[SEARCH BAR] Search by entering a recording percentage. Use the Jog Shuttle as a quick and convenient way to search. ...
  • Page 29 JPEG2000 DVR User Guide 3-10-5 TIME/DATE 1.[START] The start time and date of recording Shows the earliest time and date recorded on the HDD.  2.[END] The end time and date of recording Shows the latest time and date recorded on the HDD. ...
  • Page 30 JPEG2000 DVR User Guide 3-10-8 Adjust Playback speed by JOG-SHUTTLE During playback, press the J.SHUTTLE key to adjust the playback speed.  1.[High speed playback/Low speed playback/Forward Playback/Rewind Playback] Use the outer circle of Jog Shuttle to adjust fast playback speed. Turn clockwise for Forward direction, and turn ...

  • Page 31: Chap.4 Set Up

    JPEG2000 DVR User Guide CHAP.4 Set Up 4-1 Log-In 4-1-1 DVR LOG-IN Press MENU to login DVR system.  Use CH. SELECTORS 1~0 to key in the password.  Then press ENTER to confirm and enter the system.  Erase the wrong password with PIP key. ...

  • Page 32: Display Setup

    JPEG2000 DVR User Guide 4-2 Display setup 1.[SCREEN DISPLAY] Sets up which information to be displayed during the Live and Playback  modes. 2.[MONITOR SETUP] Adjusts the VGA display resolution and the monitor color.  4-2-1 Screen display < LIVE > <...

  • Page 33: Configuration

    JPEG2000 DVR User Guide 4-2-2 Monitor setup 1.[VGA SETUP] Adjusts the VGA resolution.  2.[COLOR BAR TEST] Generates color bars to help adjust your monitor.  VGA resolution setup:  1024*768/60HZ、800*600/60HZ、640*480/60HZ、 1024*768/75HZ、800*600/75HZ、640*480/75HZ Color bar display.  4-3 Configuration 1.[HDD MANAGEMENT] Includes HDD SETUP (HDD Clear), and HDD INFORMATION.
  • Page 34 JPEG2000 DVR User Guide 7.[BUZZER SETUP] Sets the Buzzer ON or OFF during various modes.  8.[PASSWORD SETUP] Generate your password.  9.[SYSTEM INFORMATION] Shows the system information, such as the software and hardware versions of  the unit, and HDD model number. 4-3-1 HDD management 1.[HDD SETUP] BEGIN - Indicates the start Date/Time of recorded data on HDD (Master/Slave).

  • Page 35: Camera Title

    JPEG2000 DVR User Guide 4-3-2 Time/date setup The date and time set at the factory may be different from your time zone. It is  very important to set up the system date and time before the DVR starts recording. Set the date and time by using direction buttons and [-][+] buttons or the Jog Shuttle.

  • Page 36: Motion Setup

    JPEG2000 DVR User Guide [CAMERA COLOR SETUP] Adjusts the image color: Use [UP] and [DOWN] to select an item and use [-]  and [+] or Jog Shuttle to adjust the values. CHANNEL: Select the camera to be modified.  BRIGHTNESS: Adjust image brightness (-32~31).
  • Page 37 JPEG2000 DVR User Guide [MOTION SETUP] 1.[CHANNEL] Select a channel for the setup.  2.[SENSITIVITY GRADE] Adjusts motion detection sensitivity. 1 (LOW)~4 (VERY HIGH)  3.[MOTION DISPLAY TYPE] Sets the display type that marks the motion area.  BOX- shows block / CELL- shows green lattice ...

  • Page 38: Interval Setup

    JPEG2000 DVR User Guide 4-3-4 Interval setup 1.[SWITCH INTERVAL] FULL- Full Screen Sequence Interval setup. (Range: 1~99 SEC)  PIP- Picture in Picture, the sub-picture’s sequence interval setup. (Range: 1~99 SEC) 2.[EVENT RECORD] Event Update Time is to avoid the DVR from recording event logs from the ...

  • Page 39: Event Popup Setup

    JPEG2000 DVR User Guide 4-3-6 Event popup setup 1.[CHANNEL] Use [+] and [-] to select a channel.  2.[POPUP ON/OFF] Set up the POPUP function ON/OFF: Use [+] and [-] to select ON or OFF. When there is an event, the screen display will switch to a full screen of the corresponding channel.
  • Page 40 JPEG2000 DVR User Guide 4-3-8 Password setup The password consists of 1 to 8 digits. Press the number keys on the front panel to enter the password. You can use any combination of the numbers from 1 to 10. 1.[USER ID] Press ...

  • Page 41: Record Setup

    JPEG2000 DVR User Guide 4-4 Record setup 1.[RECORD CONFIGURATION] Set up overwrite, recording mode, picture quality, resolution, and recording  speed. 2.[SCHEDULE SETUP] Program the recording schedule.  3.[HOLIDAY SETUP]  Set up holidays (max.100 days). 4-4-1 Record configuration Use [UP] and [DOWN] to select an item. Use [+] and [-] to change the value. 1.[OVERWRITE] ON: When the hard drive is full, the system will overwrite the earliest recorded ...
  • Page 42 JPEG2000 DVR User Guide 4.[RESOLUTION] By lowering the resolution, the DVR gains recording speed, but the recorded  pictures become smaller in size. Video system Full Mode Dual Mode Quad Mode NTSC 60IPS@720*240 120IPS@360*240 240IPS@360*120 50IPS@720*288 100IPS@360*288 200IPS@360*144 NTSC 120IPS@720*240 240IPS@360*240 480IPS@360*120 100IPS@720*288...

  • Page 43: Schedule Record

    JPEG2000 DVR User Guide 4-4-2 Schedule record Allows you to program a recording schedule throughout the year. Time Cell  MODE: Press MODE to select an editing mode. Use the direction keys move the cursor, and then press [+] and [-] to select a recording mode. The editing modes are as below: TIME CELL: Program the schedule at a two-hour interval.

  • Page 44: Backup

    JPEG2000 DVR User Guide 4-4-3 Holiday setup Set up the holidays through out the year. You can program up to 100 days as holidays. The recording schedule of holidays is the same as the settings for Sunday. Press MODE and set the editing mode as EDIT HOLIDAY. Use direction key ...

  • Page 45: External Device

    JPEG2000 DVR User Guide 4-5-2 USB BACKUP 1.[HDD] Indicates the start and the end recording date and time of the HDD(s).  2.[USB] Select a starting date and time for backup. Press ENTER and use arrows to move the cursor. Use [+] [-] or the ...

  • Page 46: Ddns Setup

    JPEG2000 DVR User Guide 4-6-1 TCP/IP setup [IP CONFIG SETUP] 1.[MAC ADDRESS] Displays the DVR’s MAC address. MAC address is not editable.  2.[IP ADDRESS] Set up the DVR’s IP address.  3.[IP PORT] Set up IP Port.  4.[GATEWAY] Set up GATEWAY.
  • Page 47 JPEG2000 DVR User Guide [CONNECTION SETUP] (( to select and [+] [-] or the Jog Shuttle to change the value. 1.[TIMEOUT] Set up the remote connection a response time. If the client does not  receive responses from the DVR for a certain duration, the client will disconnect the connection and try again.
  • Page 48 JPEG2000 DVR User Guide 4-6-3 Pantilt setup < COMMAND SETUP > < SPEED SETUP > [COMMAND SETUP] Press (( to select and [+] / [-] to change the value. 1.[CHANNEL] Select PTZ channel.  2.[MODEL] Select PTZ protocol.  3.[PTZ ID] Select PTZ ID.
  • Page 49 JPEG2000 DVR User Guide [SPEED SETUP] (( to select and [+] / [-] to change the value. Press 1.[PAN SPEED] Set the PAN speed (left to right).  2.[TILT SPEED] Set the TILT speed (up and down).  3.[ZOOM SPEED] Set the speed of ZOOM IN/OUT.

  • Page 50: Factory Default

    JPEG2000 DVR User Guide 4-7 Factory default (( to select and ENTER to turn ON and OFF the selection. Move the Press cursor to RUN and press ENTER to execute the Factory Default. 1.[ALL] Set all the settings back to factory default. ...

  • Page 51: Chap.5 Dvd+R/Cdr Backup

    JPEG2000 DVR User Guide CHAP.5 DVD+R / CD-R Back-up 5-1 Data backup ※After entering BACKUP, it takes 1 minute to load data, please wait. ※The DVR supports CDRW or DVDRW backup. It only reads CD-R, CD-RW, and DVD+R disc Note: DVD-R, DVD+RW and DVD-RW are not readable. 1.[HDD] Indicates the start and end recording date and time of the HDD(s).

  • Page 52: Player Software Installation

    JPEG2000 DVR User Guide 5-2 Backup Player software installation 1.Insert software CD. 2. Click [Install backup player] to start the installation.. 3. Select a Destination Folder 4. Copy files to the Destination Folder. System will install a new icon [CD BACKUP PLAYER] on the PC [DESKTOP].

  • Page 53: Player Software Interface

    JPEG2000 DVR User Guide 5-3 DVD / CD Player software interface 1.Display screen: To display the backup images. 2.Time display: To indicate the current time. 3.Information window: To indicate the disk start/end time and date, and the backup video quality (resolution). 4.Speed Adjustment: Speed: Select a playback speed (2X, 4X, 8X,16X, 32X, 64X) and press...
  • Page 54 JPEG2000 DVR User Guide Open AJP file  1. Select (OPEN) and the window below will show on your PC screen. 2. Select the file and click [OPEN] to open the AJP file. Save JPG file  1. During playback and under FULL SCREEN MODE, when you see the picture you want to save, click EDIT. 2.

  • Page 55: Chap.6 Ptz Camera Control

    JPEG2000 DVR User Guide CHAP.6 PTZ camera control 6-1 PTZ camera Installation 6-1-1 Connection Setup Connect the PTZ’s D+ to the DVR’s D+, and D- to D-.  6-1-2 PTZ setup Each PTZ manufacturer may have a different transmission baud rate. Please refer to their PTZ manuals for detailed information.

  • Page 56: Ptz Camera Operation

    JPEG2000 DVR User Guide 6-2 PTZ camera operation Use MENU and NEXT key to select a PTZ command, and [+] [-] to select the channel. Then, press PTZ key to enter the PTZ control mode.  Indicate the channel connected with a PTZ camera. ...

  • Page 57: Chap.7 Network & Remote Software 7-1 Network Configuration

    JPEG2000 DVR User Guide CHAP.7 Network and client software 7-1 Network Introduction You need to identify what kind of internet access you have before setting up your DVR’s network parameters.  DSL and cable modem are the most popular broadband technologies. ADSL- Asymmetric Digital Subscriber Line ...
  • Page 58 JPEG2000 DVR User Guide 7-2-2 Via ADSL First, identify if you have Static IP or Dynamic IP service. If you do not know, ask your ISP (Internet Service Provider). A Static IP will never change, even when you reboot your modem. [Via ADSL with Static IP address] Connect the Network cable of Cable Modem output to DVR ...
  • Page 59 JPEG2000 DVR User Guide [Via ADSL with Dynamic IP] If you have ADSL with Dynamic IP address, the network administrator assigns  If you are using ADSL service with Dynamic IP, you must add a Router in the  network system, unless your DSL MODEM has a built-in Router. ...

  • Page 60: Router Setup

    JPEG2000 DVR User Guide 7-3 Router setup  There is a wide selection of routers in the market, and they may be different in terms of configuration and operation. Following is an example of how to set up a router. For details, please read your router’s manual. ...
  • Page 61 JPEG2000 DVR User Guide 2. [Virtual server setup] Enter Virtual Server setup. Enter DVR’s IP (192.168.1.53) and port number (8000). Enable the port and check both protocols of TCP and UDP. Save the settings before leaving this page.  Once the routing table is setup, when the client software connects to 211.20.82.39 with PORT 8000, the router will forward the packets to its matching destination, 192.168.1.53, and thus connect the client to the DVR.

  • Page 62: Client Software

    JPEG2000 DVR User Guide 7-4 Client software 7-4-1 Install and setup  Insert the Install CD into CD-ROM, and the computer will auto-run the Install program. We suggest installing the software only on Windows XP or Windows 2000. 1.[Install Client software] Click [Install Client software].

  • Page 63: Software Operation

    JPEG2000 DVR User Guide 7-4-3 Software operation [Remote viewer interface] 1.[Live Display] Remote DVR video feed.  2.[Current Status ] Video Information  3.[PTZ Camera Control ] To control PTZ Camera  Zoom/Focus/Direction ※ Remote Control of PTZ: 1) Set up PTZ at DVR 2) Set up PTZ from the Client Software 4.[Screen Split ] To select Full/4/9/16 split screen display...
  • Page 64 JPEG2000 DVR User Guide 7-4-4 Client software setup [IP/PORT] 1. [DVR NAME] ( Enter the DVR’s location or name 2.[IP LIST] Show the list of saved DVR IP addresses. If you are  connecting to a DVR in this list, you can simply click it from the list, enter the DVR Admin password, and press SAVE and then OK.
  • Page 65 JPEG2000 DVR User Guide [DDNS] 1.[Group] Enter Group name registered on DDNS Server. Please  refer to 7-5 DDNS setup and operation for details. 2.[DVR Name] Enter DVR name registered on DDNS Server. If the DVR  name is entered and saved before, click LOAD to browse the list.
  • Page 66 JPEG2000 DVR User Guide [PTZ/SAVE] 1.[Circular Monitoring Interval] Set up a sequential switch interval.  2.[Scan Rate] Select a Fast forward (FF) speed for remote Playback.  3.[PTZ Type] Select the protocol used by your PTZ camera.  4.[PTZ Baud Rate] Select a PTZ camera baud rate.
  • Page 67 JPEG2000 DVR User Guide 7-4-6 Remote playback When the DVR is connected via your network, click [PLAYBACK] to enter  the Playback interface. [Remote Playback Interface] 1.[Playback Picture] To show the playback video  2.[Time/Date Selection] To select time/date of playback ...
  • Page 68 JPEG2000 DVR User Guide [Search button] 1. Fast Rewind (RW) 2. Fast Forward (FF) 3. RW (Speed 1X) 4. Stop / Pause 5. Playback (Speed 1X) 6. Go to the beginning of recording 7. Jump to the previous hour 8. Jump to the next hour 9.
  • Page 69 JPEG2000 DVR User Guide 7-4-7 Back up via Client software Save the recorded data as single JPEG picture or AVI format.  [SAVE SNAPSHOT] Press “STOP” where you want to save, then press “SAVE”..  The picture will be saved to the assigned path which you set up in ...

  • Page 70: Ddns Setup And Operation

    JPEG2000 DVR User Guide 7-5 DDNS setup and operation 7-5-1 DDNS SERVER setup 1. Connect to DDNS SERVER(http://www.j2kdvr.com or http://59.124.143.151) by IE browser Select [REGISTER] to register a new account  2. Add a new account Group: Add a new user name ...
  • Page 71 JPEG2000 DVR User Guide 4. Select “ADD DVR” to add DVR information 5. Add DVR information: DVR NAME: Entert a DVR name  MAC ADDRESS: Enter the DVR’s MAC address. DVR’s MAC address can be found in DVR’s [SYSTEM MENU]  [EXTERNAL DEVICE][TCP/IP SETUP][IP CONFIG SETUP] IP: Enter the DVR’s current IP address PORT: Enter the DVR’s port number ※It is required to enter DVR NAME and MAC ADDRESS.
  • Page 72 JPEG2000 DVR User Guide 7-5-2 DVR setup 1. DVR setup is a one time effort. First, make sure your DVR can be accessed over the Internet. Please refer to: 7-2 Network installation and setup for details. 2. Go to [SYSTEM MENU][ [EXTERNAL DEVICE][TCP/IP SETUP] [DDNS SETUP] DDNS ON/OFF: Press ENTER to turn ON the DDNS feature.
  • Page 73 JPEG2000 DVR User Guide 2. Select DDNS in [IP/PORT] setup 3.Go to DDNS setup [DDNS INFO] GROUP: Enter Group name registered on DDNS Server.  DVR NAME: Enter DVR name registered on DDNS  Server. If the DVR name was entered and saved before, click LOAD to browse the list.
  • Page 74 JPEG2000 DVR User Guide 7-5-4 Configuration of DDNS connection     1. DVR connects to DDNS server automatically and updates the IP address by itself. 2. The client accesses the DDNS server and requests the IP address from the DDNS server. 3.
  • Page 75 JPEG2000 DVR User Guide Users can also access the DVR with Internet Explorer for remote viewing, remote backup, and playing the backup file. Log on to DDNS server and go to the DVR List: 7-5-5 Remote Live View via IE Browser Click WEB to link to your DVR ...

  • Page 76: Web Network Backup

    JPEG2000 DVR User Guide PTZ: Select control protocol BAUDRATE: Select the baud rate to be used CH: Select the ID of PTZ camera ZOOM: Zoom in/out FOCUS: Focus near/far IRIS: IRIS open/close 7-5-6 Web Network Backup Click “Backup” to open the web page “Web Network Backup” ...
  • Page 77 JPEG2000 DVR User Guide 2. Function setup: Connect Test: To test the connection status.  Unlock: To get the record start/end time of the DVR Set Backup Time: Set the start/end time, size, and path of the backup file. Start Backup: Activates the backup function. 3.
  • Page 78 JPEG2000 DVR User Guide 7-5-8 Web backup player Click [Backup Player] to open the web page of “Backup Player”  1. Displays the backup images. 2. Indicates the present time of monitoring. 3. Indicates the start/end time of backup file. 4.
  • Page 79 JPEG2000 DVR User Guide 8. Function keys: OPEN: Opens the backup file.  EDIT: Edit the backup image. AVI SAVE: To save as an AVI file. EXIT: Log out of the program. 9. Audio options: ON: Starts the audio function ...

  • Page 80: Appendix.1 Record Time Table

    JPEG2000 DVR User Guide Appendix.1 Record time table [4ch DVR] ※The numbers are for reference only. ※The recording duration is caculated under the continuous recording mode (Record speed :1/1X , no audio) -79-...

  • Page 81: Firmware Upgrade

    JPEG2000 DVR User Guide [8/16ch DVR] ※The numbers are for reference only. ※The recording duration is caculated under the continuous recording mode (Record speed :1/1X , No audio) Appendix.2 Firmware upgrade  Install USB driver -80-...
  • Page 82 JPEG2000 DVR User Guide 1. Connect the USB port between your PC and DVR. 2. Press and hold Search and Play keys on front panel and power on the DVR. 3. The DVR beeps for a moment. 4. Windows detects a new device, please select [Install from a list or specific location] 5.
  • Page 83 JPEG2000 DVR User Guide 7. Copies the needed driver to the Windows system. 8. After installation, the USB device [BulkUsb.Sys Usb Bulk I/O Driver] can be found in the [Device Manager].. Install USB upgrade program  -82-...

  • Page 84: Upgrade Firmware

    JPEG2000 DVR User Guide  Insert the Install CD 1. Please select :[Install USB upgrade program (All update) Set up Directory (default Directory ※ "C:\Program Files\J2000\Allupdate\") After installation, there will be a shortcut on your desktop. Click on it. Upgrade firmware ...
  • Page 85 JPEG2000 DVR User Guide Start to update Start Update Boot Step 1 update BOOT Step 2 update F/W Update F/W Finish Finish the update procedures Step 1 Update BOOT  1. With the DVR power OFF, connect the USB port between the DVR and your PC.
  • Page 86 JPEG2000 DVR User Guide 1. Select ALLUPDATE then choose the file: _ALLUPDATE_4J_NTIC_noboot_V1.3.bin 2. Press and hold SEARCH and PLAY and power on the DVR 3. When the DVR is turned on, you will hear very short beeps. Keep holding the “SEARCH” and “PLAY” buttons. When the beeps slow down and the “Send”...

  • Page 87: Play Only Mode

    JPEG2000 DVR User Guide Appendix.3 Play only mode  Introduction PLAY ONLY MODE can be used in the following situations: When you need to playback a hard drive from another DVR  When you need to playback the video which you deleted by running HDD CLEAR ...
  • Page 88 Prior to shipment, a RETURN AUTHORIZATION must be obtained from SECURITY LABS; this will assist us in more efficient service on your unit, and possibly avoid shipment if the adjustment can be made over the phone. If shipment is made, the cost for postage, insurance and shipping of the product is the responsibility of the owner.
