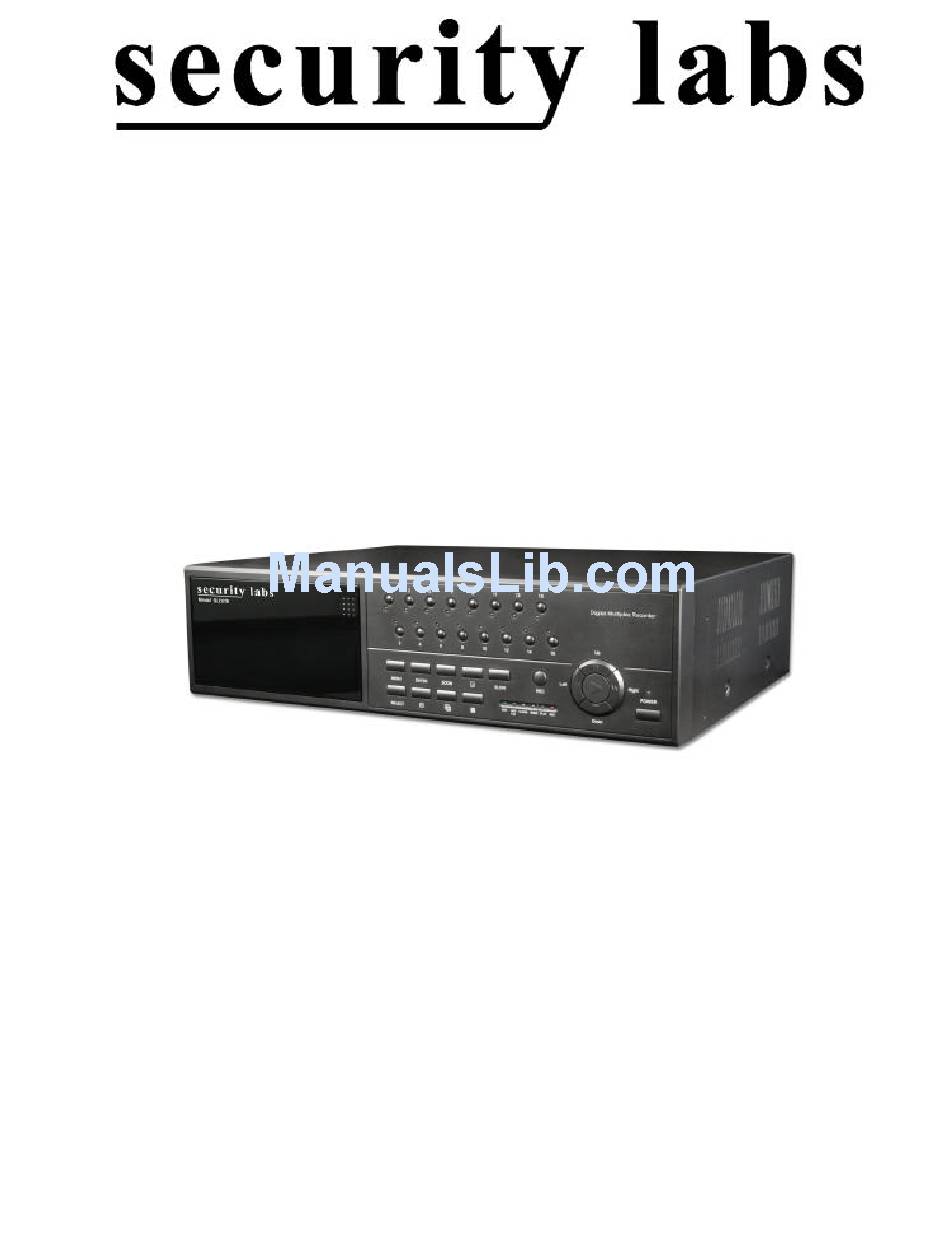

  • Page 1 16 Channel Multiplexed DVR Model SLD260 Owner’s Manual 15540 Herriman Blvd. Noblesville, IN 46060 - Customer Support 1-800-774-0284 www.security-labs.com...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction 1-1 Safety Warning ………………………………………………………………………………… 1-2 Features …………………………………………………………………………………………. 1-3 Specifications ………………………………………………………………………………….. 2. Installation 2-1 Package contents ………………………………………………………………………………. 2-2 Connection ………………………………………………………………………………….…. 2-3 Rack mount installation …………………………………………………………….…………. 2-4 RS232 /RS485 Remote protocol …………………………………………………………….… 3. Configuration 3-1 Install HDD …………………………………………………………………………………….… 3-2 Front panel keypad …………………………………………………………………………….

  • Page 3: Introduction

    1. Introduction Thank you for choosing this high quality Digital Multiplex Recorder. The DMR converts analog NTSC or PAL video to digital images and records them to a removable hard disk drive. Digitally recorded video has many advantages compared to analog video recorded on tape. There is no need to adjust tracking.

  • Page 4: Features

    1.2 Features 1.2.1 Wavelet Compression Format replaces Time-Lapse VCR + Multiplexer 1.2.2 Four Audio inputs / Two Audio outputs 1.2.3 On Screen Display and RTC (Real time clock) Function 1.2.4 Multiplexing ?? Support from 4 channels up to 7, 9, 10, 13 and 16 channels. ?? 16 channels can record or display real-time recorded images.

  • Page 5: Specifications

    1.3 Specifications DMS-MBR 1.0 Video format NTSC/EIA or PAL/CCIR Hard disk storage IDE type, UTMA 66 above, 2 removable HDDs supported Record mode Manual / Alarm / Timer Camera Input Signal Composite video signal 1 Vp-p 75O BNC, 16 channels Camera Loop Back Composite video signal 1 Vp-p 75O BNC, 16 channels Main Monitor Output...

  • Page 6: Installation

    2. Installation Package contents The package contains the following items. ?? Digital Multiplex Recorder ?? HDD cartridge ?? Key for cartridge (Inside of HDD cartridge) ?? Power cord ?? User manual ?? Rack mounting kit (Optional) Connection 2.2.1 Connect with cameras Main Monitor Alarm Video Camera...

  • Page 7: Rack Mount Installation

    Rack mount installation Front Angle with Rack Mount Side View with Rack Mount...

  • Page 8: Configuration

    RS232 Remote Protocol You can use a PC keyboard to simulate a DMR keypad. DATA: REMOTE PROTOCOL using 8 bit data? 1 start bit? 1stop bit FUNCTION STOP (FFH) (7FH) FUNCTION CODE ASCII FUNCTION CODE ASCII KEY_MENU 0x4D KEY_CH1 0x31 KEY_SELECT 0x73 KEY_CH2...
  • Page 9 Installing the HDD 3.1.1 Installing Hard Drive into Cartridge 3.1.1.1. Please find the drawer Key in the extra tray. 3.1.1.2. Push the front cover of the HDD cartridge back and use the miniature key provided and insert into the keyhole, turning the key counter-clockwise. 3.1.1.3.
  • Page 10 3.1.4 Total recording time varies depending on Record Speed, Record Quality, and size of HDD selected. Please refer to following table. NTSC SYSTEM Best 48hr 96hr 180hr 360hr 720hr 1440hr Record High 60hr 120hr 226hr 450hr 900hr 1800hr Quality Normal 96hr 192hr 360hr...

  • Page 11: Install Hdd

    Front panel keypad Left Right MENU ENTER ZOOM SLOW POWER ALARM TIMER PLAY Down Full SELECT Please follow the instructions below for proper operation of this unit. 1. Install HDD This device comes equipped with a removable hard disk drive tray. Before turning on this device, you must install the hard disk drive (unless already included), and prepare it for operation.

  • Page 12: Back Panel Connection

    (3) ALARM: When Alarm is Enabled: Yes (when the alarm is triggered, the led flashes) (4) TIMER: When Timer is Enabled: Yes (5) PLAY: Play operation (6) REC: Recording operation 12. CAMERA (1-16): Press the Camera Select (1-16) to choose a camera. 13.
  • Page 13 MONITOR AUDIO AUDIO LOOP INPUT CALL RISK OF ELECTRIC SHOCK POWER EXTERNAL I/O DO NOT OPEN WARNING : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. 3.3.1 Power input Please use only the provided power adaptor.
  • Page 14 25 pin com port 9 pin com port PIN 1.
  • Page 15 GROUND PIN 2. ALARM INPUT 8 Connect a wire from ALARM INPUT 8 (PIN 2) to GND (PIN 1) connector, DMR will start recording and the buzzer will activate. Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”, the unit starts to record and the buzzer will activate.
  • Page 16 the unit starts to record and the buzzer will activate. PIN 7. ALARM INPUT 14 Connect a wire from ALARM INPUT 14 (PIN 7) to GND (PIN 1) connector, DMR will start recording and the buzzer will activate. . Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”, the unit starts to record and the buzzer will activate.
  • Page 17 PIN 15. ALARM INPUT 7 Connect a wire from ALARM INPUT 7 (PIN 15) to GND (PIN 1) connector, DMR will start recording and the buzzer will activate. . Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”, the unit starts to record and the buzzer will activate.

  • Page 18: Menu Setup

    PIN 20. ALARM INPUT 13 Connect a wire from ALARM INPUT 13 (PIN 20) to GND (PIN 1) connector, DMR will start recording and the buzzer will activate. . Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”, the unit starts to record and the buzzer will activate.

  • Page 19: System Setup

    Press ”MENU” to enter the main menu. You will need to enter a password to access the main menu. Press “Right” or “Left” to move digits. Then press “Up” or “Down” to select a number. Press the “ENTER” button to confirm the PASSWORD: 0000 password.
  • Page 20 Press ”Up” or “Down” to select SYSTEM setup SEARCH (Menu) SEARCH TIMER TIMER RECORD RECORD CAMERA CAMERA ? SYSTEM ? SYSTEM EVENT EVENT Press ”ENTER” to confirm SYSTEM setup, and the screen will display the following options. (SYSTEM) AUDIO INPUT: 1 INT AUDIBLE ALARM: ON EXT AUDIBLE ALARM: ON ALARM DURATION: 10 SEC...
  • Page 21 3.5.2 INT AUDIBLE ALARM setup: This feature allows the user to set the INTERNAL AUDIBLE ALARM. This alarm will be triggered by an event occurrence when the setting is ON. 3.5.2.1 Press “Up” or “Down” INT AUDIBLE ALARM to choose 3.5.2.2 Press the “ENTER”...
  • Page 22 each channel is sequentially shown on the monitor. 3.5.5.1 Press “Up” or “Down” DWELL TIME setup. to choose 3.5.5.2 Press “Enter” to confirm DWELL TIME setup. 3.5.5.3 Press “Up” or “Down” to choose DWELL TIME. Options: 01~10 SEC. 3.5.5.4 Press “MENU” to exit and confirm current operation. 3.5.5.5 Press “MENU”...
  • Page 23 3.5.8.4 Press “MENU” to exit and confirm current operation. 3.5.8.5 Press “MENU” again to exit SYSTEM setup mode. 3.5.9 TIME setup: This feature allows the user to set the time. 3.5.9.1 Press ”Up” or “Down” to choose date display. 3.5.9.2 Press ”ENTER” to confirm date display. 3.5.9.3 Press ”Up”...
  • Page 24 Press“ ? ” to clear HDD NO: Confirm not to clear HDD. 3.5.11.4 Press “MENU” to exit and confirm current operation. 3.5.11.5 Press “MENU” again to exit SYSTEM setup mode. 3.5.12 SYSTEM RESET setup This feature allows the user to reset the system. 3.5.12.1 Press “Up”...

  • Page 25: Search Setup

    3.5.15.1 Press “Up” or “Down” to choose ID setup. 3.5.14.2 Press “Enter” to confirm ID setup. 3.5.15.3 Press “Up” or “Down” to set the numerical value, from 000 ~ 255. 3.5.15.4 Press “MENU” to exit and confirm current operation. 3.5.15.5 Press “MENU” again to exit SYSTEM setup mode. SEARCH setup Press “MENU”...
  • Page 26 Press “Up” or “Down” to choose LAST RECORD. The screen on the right will be displayed. Press “ENTER” to confirm LAST RECORD. LAST RECORD FULL LIST ALARM LIST TIME SEARCH 3.6.2 FULL LIST for recorded video Press “Up” or “Down” to choose the Full List item.

  • Page 27: Timer Setup (Schedule Time-Lapse Record Mode Setup)

    Press “Up” or “Down” to choose ALARM LIST. The screen on the right will be displayed. LAST RECORD FULL LIST ALARM LIST TIME SEARCH Press “ENTER” to confirm ALARM LIST, the 2002-JAN-01 01:02:03 M-HDD screen on the right will be displayed. Press “Up”...
  • Page 28 Press “MENU” to enter the main menu. You will need to enter the password to access the main menu. Press “Left” or “Right” to move digits, then press “Up“ or “Down” to select a number. Press the “ENTER” button to confirm the PASSWORD: 0000 password.

  • Page 29: Record Setup

    JAN-01: Special Date OFF: Not activated 3.7.2.3 Press “Left” or “Right” move to START record time 00:00 (HH:MM) Press “Up” or “Down” to change START record time numerical digit 3.7.2.4 Press “Left” or “Right” move to END record time 00:00 (HH:MM) Press “Up”...
  • Page 30 After keying in the correct password, and confirming it by pressing the “ENTER” button. The screen on the right will be displayed: (MENU) SEARCH SEARCH ------- Find Recordings TIMER TIMER ------- Schedule Recording Times ? RECORD CAMERA RECORD------- Record Mode Setup SYSTEM CAMERA ------- Camera Channel Setup EVENT...

  • Page 31: Camera Setup

    3.8.4 RECORD QUALITY setup 3.8.4.1 Press “Enter” to confirm Record Quality setup. 3.8.4.2 Press ”Up” or “Down” to choose Record Quality level. BEST, HIGH, NORMAL, or BASIC 3.8.4.3 Press “MENU” to exit and confirm current operation. 3.8.4.4 Press “MENU” again to exit and close RECORD QUALITY setup mode. 3.8.5 ALARM REC IPS setup 3.8.5.1 Press “Enter”...
  • Page 32 After keying in the correct password, and confirming it by pressing the “ENTER” button. The screen on the right will be displayed: (MENU) SEARCH SEARCH ------- Find Recordings TIMER TIMER ------- Schedule Recording Times RECORD ? CAMERA RECORD------- Record Mode Setup SYSTEM CAMERA ------- Camera Channel Setup EVENT...

  • Page 33: Motion Detection Setup

    3.9.2.3 Press “ Left ” or “ Right ”: Select DWELL on the screen 3.9.2.4 Press “Up” or “Down”: Select ON/OFF on the screen 3.9.2.5 Press “MENU”: Confirm and exit the dwell setting 3.9.2.6 Press “MENU”: Exit the channel setup 3.9.3 (Brightness) / (Contrast) /...
  • Page 34 3.10.1 Press “MENU” to enter the menu set up, then “ Down” to CAMERA setup, Press “ENTER” twice to enter the Motion Detection Setup . 3.10.2 Each screen displays the current camera picture overlaid with the motion targets (as Figure 1). You can push the button “Left” or “Right”, “Up” or “Down” to adjust motion detection in ON or OFF.
  • Page 35 4.2 as Alarm Record. Alarm Record is defined as a MOTION DETECTION trigger or an external IO trigger (see ALARM INPUTS section 3.3 for hard wired alarm inputs) Figure 1 MOTION DETECTION SETUP Figure 1-1 MOTION DETECTION SETUP – 1~16 Figure 1-2 MOTION DETECTION SETUP –...

  • Page 36: Event

    Figure 1-3 MOTION DETECTION SETUP – 3.11 Event 3.11.1 Enter “Event“ list Press ”MENU” to enter the main menu. You will need to enter the password to access the main menu. Press “ Left ” or “ Right ” to move digit, and Press”Up” or “Down” to PASSWORD: 0000 select number.

  • Page 37: Operation

    Press “ENTER” to confirm Full List, the screen on the right will be displayed. M–HDD WARNING 2002-JAN-01 03:00:00 Press ” “Up” or “Down” to choose wanted M–HDD LOSS 2002-JAN-01 03:00:00 recorded event (Only 8 recorded events will be M–HDD ERROR 2002-JAN-01 03:00:00 S–HDD WARNING 2002-JAN-01 03:00:00...
  • Page 38 There are 3 record modes for this DMR: Alarm Record, Timer Record, and Manual Record. All record Modes are described below. 4.2.1 Alarm Record When DMR is triggered by alarm input, it will start to record immediately. Following screen will be displayed. : Alarm trigger OW : HDD Over Write 2002 –...

  • Page 39: Camera Select (1-16)

    Following screen will be displayed. 2002 – JAN –01 01:02:03 OW: HDD Over Write 032GB M?001GB 032GB (Shown at the OW location means) 32 GB HDD are left for video recording. (1 HDD installed) 001GB: (Shown at the OW location means) 032GB 32 GB left in slave HDD and 1 GB left in master HDD for video recording.

  • Page 40: Play

    4.6.4 Press “MENU” to exit. 4.7 Play Press “ PLAY ” the DMR will enter the Play mode; it will show the last recording. 4.7.1 Fast Forward (F.F.) & Fast Rewind (F.R.) 4.7.1.1 Press “ PLAY ” and press ” ? ? ” for fast forward search. Press” ? ? ” once for 2X speed, press “? ? ”...

  • Page 41: Trouble Shooting & Appendix

    5. Trouble shooting & Appendix Trouble shooting The table below describes some typical problems and their remedies. PROBLEM SOLUTION ?? Insert HDD HDD Not Found ?? Use the Key to lock the HDD Cartridge and press any key ?? Check power cord connections. No power ?? Confirm that there is power at the outlet.
  • Page 42 Maxtor DiamondMax Plus 9, Model#6Y120L 120GB 7200 rpm Seagate Barracuda ATA IV, ST340016A 40GB 7200 rpm Seagate Barracuda ATA V, ST3120023A 120GB 7200 rpm Seagate Barracuda ATA IV, ST380021A 80GB 7200rpm Western Digital Caviar WD400BB-00BSA0 40GB 7200 rpm Western Digital Caviar WD400EB-00CPF0 40GB 5400 rpm Western Digital Caviar WD1200BB-00CAA1...
  • Page 43 Prior to shipment, a RETURN AUTHORIZATION must be obtained from SECURITY LABS; this will assist us in more efficient service on your unit, and possibly avoid shipment if the adjustment can be made over the phone. If shipment is made, the cost for postage, insurance and shipping of the product is the responsibility of the owner.
