Page 1

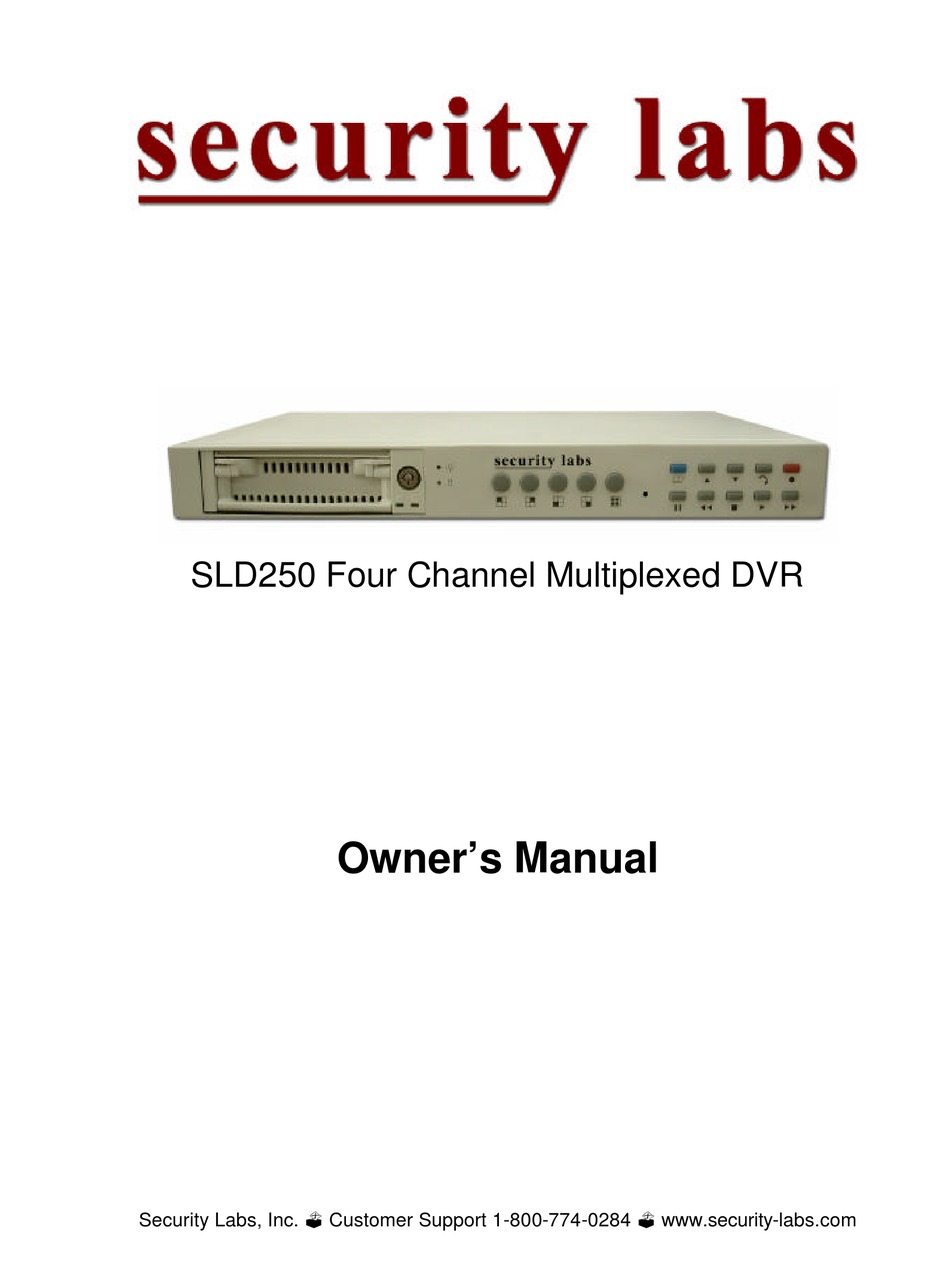

SLD250 Four Channel Multiplexed DVR Owner’s Manual Security Labs, Inc. ? Customer Support 1-800-774-0284 ? www.security-labs.com...
Page 2
OWNER’S MANUAL To obtain the best performance and ensure that the device functions correctly, please read this manual carefully and completely. FCC Compliance REGULATORY INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 3
Warnings and Cautions WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION: CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK).
Chapter 1 Features This device includes 4 camera inputs and offers the following features: Device can be used much like a VHS system with live display, playback and video recording. Supports various types of cameras with real, live-mode display. Multi-speed recording selection on normal recording mode or alarm recording mode; the highest speed of recording is 30/25 (NTSC/PAL) fields in both modes.
Chapter 3 Hardware Overview Back panel layout overview ALARM IN VIDEO VIDEO OUT DC12V IN (1) Video input : Camera 1-4 video input with BNC connector (2) Video output : Corresponding to monitor (3) Sensor I/O Pin Number Introduction Sensor Input of Camera #1 Sensor Input of Camera #2 Sensor Input of Camera #3 Sensor Input of Camera #4...
Page 8
1. This view button controls FULL SCREEN display from camera 1. 2. When entering/changing a password, corresponds to number “1”. 1. This view button controls FULL SCREEN display from camera 2. 2. When entering/changing a password, corresponds to number “2”. 1.
Chapter 4 Setup Procedures 1. Main Menu setup Press the MENU button to enter the main menu. SETUP MENU > SYSTEM SETUP Use the ? and ? button to select items. CAMERA SETUP RECORD SETUP SCHEDULE RECORD EVENT LIST Press the button to confirm the selection or increase HDD MANAGEMENT highlighted selection number.
2. System setup Press the MENU button to enter the main menu. SYSTEM SETUP > BUZZER DURATION 3SEC Use the ? and ? button to select items. ALARM VIDEO INTERRUPTION MOTION BUZZER HDD PASSWORD Press the button to confirm the selection or SET TIME/DATE increase highlighted selection number.
Contents: CAMERA SELECT CH1(CH1~CH4) button to select the camera from CAM 1 – CAM 4 to be adjusted. CAMERA RECORD ON(ON/OFF) button to select ON/OFF recording. MOTION DETECTION ON(ON/OFF) button to select ON/OFF motion detection. MOTION SENSITIVITY(1~10) button to adjust sensitivity of motion detection for selected camera. Sensitivity ranges from 1 to 10, default value is 5(STANDARD).
lowest. There are a total of nine speeds you can choose from. (FPS: Fields per second) Note: PAL: (1~4P/6P/8P/12P/25P) NTSC=15P, PAL=12P on default ALARM RECORD FPS 15P (1~5P/7P/10P/15P/30P) button to select alarm recording speed when external alarm or motion detection is triggered. Note: PAL: (1~4P/6P/8P/12P/25P) NTSC=15P, PAL=12P on default ALARM RECORD DWELL 5SEC (1-30) button to set the dwell time for alarm recording with an external trigger or...
A : represents “alarm record” Use the ? and ? button to select items Press button to select the O/ X / A (Fully / No / Alarm Record) 6. Event List Press key on “EVENT LIST” than windows will appear as below: EVENT LIST MASTER HARD DRIVE >...
be configured. MASTER HDD CAPACITY 76GB The HDD capacity will be indicated on the screen. This option can not be changed. MASTER HDD LEFT RATIO 73GB 97% The amount of unused space remaining on the HDD. MASTER HDD FORMAT button to enter the MASTER HDD FORMAT menu PASSWORD INPUT (4) : _ _ _ _ Use the view control button on the front panel to input the number is “1”...
Chapter 5 Operation 1. Getting started with your machine Understand the following instructions before you switch on the machine: Voltage check: Before power cable is connected, please check the voltage of this appliance against the supply. CAUTION – An incorrect power supply can damage this unit. Hard Disk connection: Make sure the hard drive is securely fastened in the drive bay and the bay is in the locked position.
3. Playback Press the ? PLAY button and select Time Search or Event List. The following message will be displayed on the screen: Press the MENU button to enter the main menu. TIME SEARCH MASTER HARD DRIVE Use the ? and ? button to select items. 2003/JUN/13 04:12:03 START TIME: (2003/MAY/13 04:12:03)
6. Alarm control There are three types of alarms that the system can be configured to handle. They are external alarm, video loss alarm, and an alarm for motion detection. When the above types of alarms are triggered, it changes recording speed to alarm recording speed. Video Loss alarm is enabled as a default and cannot be changed.
Chapter 7 HDD Drive installation procedures 1.Open HDD rack 2.Pull out the HDD rack 3.Adjust the lock of HDD rack 4.Connect HDD(Power & IDE) to HDD rack 5.Cover up the HDD rack 6.Push HDD rack back to DVR slot 7.Lock the HDD rack 8.Power up DVR system Attention: 1.
