Security Labs SLD284 Owner's Manual

4/8/16 channel dual codec triplex dvrs
Hide thumbs Also See for SLD284:
Table of Contents

Advertisement

Quick Links

Download this manual

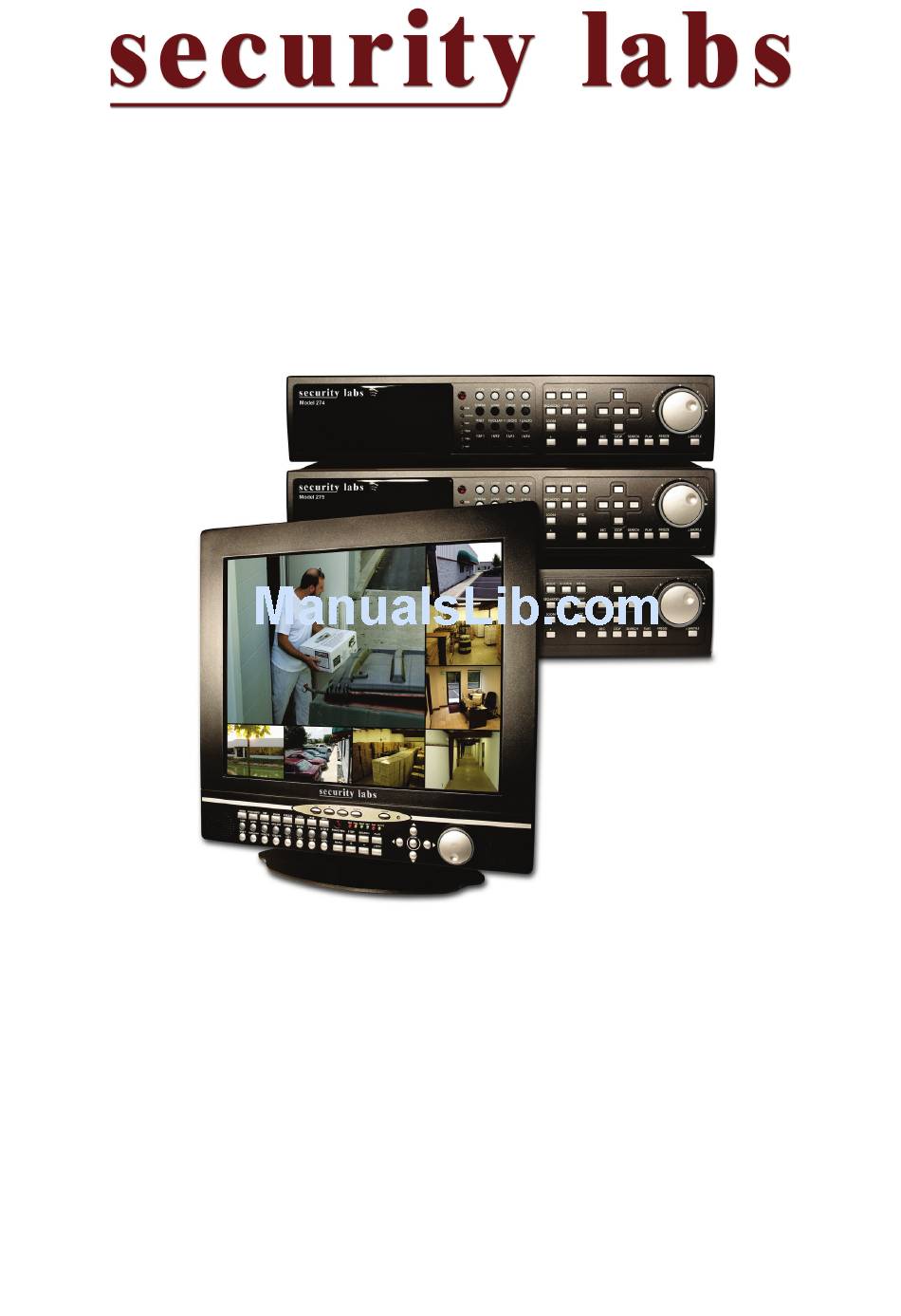

4/8/16 Channel Dual Codec Triplex DVRs
Models SLD284 (4 CH), SLD285 (8 CH), SLD286 (16 CH)
& SLD287 (8 CH DVR with 17" LCD monitor)
8 Channel Triplex DVR
17" LCD Monit
Owner's Manual
15540 Herriman Blvd. Noblesville, IN 46060 - Customer Support 1-800-774-0284
www.security-labs.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLD284 and is the answer not in the manual?

Questions and answers

Related Manuals for Security Labs SLD284

Summary of Contents for Security Labs SLD284

  • Page 1 4/8/16 Channel Dual Codec Triplex DVRs Models SLD284 (4 CH), SLD285 (8 CH), SLD286 (16 CH) & SLD287 (8 CH DVR with 17” LCD monitor) 8 Channel Triplex DVR 17” LCD Monit Owner’s Manual 15540 Herriman Blvd. Noblesville, IN 46060 - Customer Support 1-800-774-0284...

  • Page 2: Table Of Contents

    JPEG2000 Stand alone DVR User Guide CONTENTS Date: 2011/12/12 VER: 1.71 Caution ………………………………………………………... 4 Package ………………………………………………………... 4 Specifications ………………………………………………………... 5 CHAP.1 Appearance 1-1 Stand alone DVR Front/Back panel introduction ………………………………………………………... 9 1-2 LCD DVR front/Back panel introduction ………………………………………………………... 12 1-3 IR remote controller introduction ………………………………………………………...
  • Page 3 JPEG2000 Stand alone DVR User Guide CHAP.5 PTZ camera control 5-1 PTZ camera installation ………………………………………………………... 5-2 PTZ camera operation ………………………………………………………... CHAP.6 Software installation 6-1 Install Internet Remote Software ………………………………………………………... 6-2 IRS operation ………………………………………………………... 6-3 J2K Viewer operation ………………………………………………………... 6-4 J2K Backup process ………………………………………………………...

  • Page 4: Caution

    JPEG2000 Stand alone DVR User Guide Caution For your safety, unplug the power before moving the DVR, installing, or replacing any parts or hard drive.  Make sure all the power cables and wires are properly set up before using the DVR. Contact your distributor ...

  • Page 5: Specifications

    JPEG2000 Stand alone DVR User Guide Specifications Model Security Labs 4/8/16 CH JPEG2000 Stand Alone DVR 4/8/16CH VIDEO IN 1.0 VP-P，75OHM (BNC TYPE) Video Input Video I/O Video Output (BNC TYPE) X 2 VGA Output Supports TFT LCD Monitor (Optional)
  • Page 6 JPEG2000 Stand alone DVR User Guide Record Mode Real time/ motion /alarm /schedule Search Percentage/ Time & Date /Event Model 8 CH JPEG2000 LCD DVR Shuttle Jog For Easy Search Playback 4/8/16CH VIDEO IN 1.0 VP-P， 75 OHM (BNC TYPE) Video Input Fast Forward x2, x4, x16, x32, x60(NTSC)
  • Page 7 JPEG2000 Stand alone DVR User Guide - 7 -...
  • Page 8 JPEG2000 Stand alone DVR User Guide Record Mode Real time/ motion /alarm /schedule Search Percentage/ Time & Date /Event Shuttle Jog For Easy Search Playback Fast Forward x2, x4, x16, x32, x60(NTSC) Method x2, x4, x15, x25, x50(PAL) Fast Rewird Slow Forward/Reward 1/2,1/4,1/8,1/16 Picture by Picture Available...

  • Page 9: Chap.1 Appearance

    JPEG2000 Stand alone DVR User Guide CHAP.1 Appearance 1-1 Standalone DVR Front /Back panel introduction 1. [DVD+R] Built-in DVD+R for back-up.  2. [USB Port] DEVICE: Connect PC for firmware upgrade.  HOST: Connect USB memory stick for backup.  3.
  • Page 10 JPEG2000 Stand alone DVR User Guide 10. [PTZ] Press [PTZ] to enter the PTZ control mode. Press the PTZ buttons to control the PTZ camera directly.  11. [+ / -] Adjust set-up value.  Adjust display order of channels. ...
  • Page 11 JPEG2000 Stand alone DVR User Guide [4Channel] [8Channel] [16Channel] 1. [RS485, Relay Output, Sensor Input] RS485, for connection to PTZ cameras.  16 sensor inputs and 1 relay output.  2. [VGA Output] Connection to a VGA monitor or TFT LCD. ...

  • Page 12: Lcd Dvr Front/Back Panel Introduction

    JPEG2000 Stand alone DVR User Guide 1-2 LCD DVR Front /Back panel introduction <Front> <Back> <Side> 1. [LCD monitor power switch] Power on / Power off LCD monitor.  2. [IR Receiver & LED Lamps] IR Remote Controller Receiver.  DVR Status LED: ...
  • Page 13 JPEG2000 Stand alone DVR User Guide 3. [Control] MODE - Switch among full and split screen displays.  SEQ/AUDIO - Press quickly for AUDIO, and press and hold for 3 seconds to enter SEQ mode.  SEQ - Full screen sequencing or smaller screen sequencing in PIP mode. AUDIO - Press to play the audio, and press again to go to the next audio channel.
  • Page 14 JPEG2000 Stand alone DVR User Guide 1. [RS485, Relay Output, Sensor Input] RS485, for connection to PTZ cameras. 4 or 8 sensor inputs and 1 relay output.  2. [ETHERNET] Connection to Ethernet device.  3. [RS-232C] Connection to PC or other control Keyboard. ...

  • Page 15: Ir Remote Controller Introduction

    JPEG2000 Stand alone DVR User Guide 1-3 IR remote controller introduction 1.[MENU] Enter menu or exit  2.[Split /OSD] 4S: 4 split  9S: 9 split  16S: 16 split  AUDIO: Press to play the audio.Press again to go to the next audio channel. ...

  • Page 16: Chap.2 Installation

    JPEG2000 Stand alone DVR User Guide CHAP.2 Installation 2-1 Camera and monitor installation 2-1-1 Camera installation Connect cameras to DVR in CH1~CH16 ※Please do not start the DVR before the camera installation is complete. 2-1-2 Monitor and SPOT installation Monitor: Connect the MONTIOR port on the DVR back panel to the “video in” port on the monitor. SPOT- second monitor output.

  • Page 17: Sensor And Alarm Installation

    JPEG2000 Stand alone DVR User Guide 2-2 Sensor and alarm installation 2-2-1 Input & Output [4Channel] [8Channel] [16Channel] 1.[D1~D16 Alarm Input/GND for Location] 16 Sensor inputs, for sensor input installation.  2.[Relay Output NO/NC/COM] The application of relay output is NO+COM + NC+COM. ...

  • Page 18: Network And Serial Port Installation

    JPEG2000 Stand alone DVR User Guide 2-3 Network and serial port installation 2-3-1 Network setup Connect the network cable to “Ethernet” on back panel.  Ethernet Setup between ADSL and Cable is different.  2-3-2 Serial port setup You are able to connect the COM port of PC or other device to the DVR through RS232. ...

  • Page 19: Hdd Installation

    JPEG2000 Stand alone DVR User Guide 2-3-3 PTZ camera installation Please connect the PTZ’s D+ to the DVR’s D+ , and D- to D-.  After the connection and the related setup is done, you can control your PTZ camera via the front panel buttons. ...

  • Page 20: Mouse Installation

    JPEG2000 Stand alone DVR User Guide 2-5 Mouse installation PS/2 port is located on the back panel. 2-6 Power connections Insert the adapter to the rear power socket of DVR. Insert the power cable to the other side of adapter. Plug in the power cable and power on the DVR.

  • Page 21: Chap.3 Operation

    JPEG2000 Stand alone DVR User Guide CHAP.3 Operation 3-1 Display configuration 1. [Time] Current system time or the  recorded time in playback 2. [Date] Current system date or the  recorded date in playback 3. [Camera title] Camera title of the displayed channel. ...

  • Page 22: Channel Switch

    JPEG2000 Stand alone DVR User Guide 3-2 Channel selection <LCD DVR> <Standalone DVR> Press the number button to switch to the corresponding channel for its full screen view  Mode: press to switch among different split modes: 4/6/8/9/13/16 splits.  +/-: button to adjust the order.

  • Page 23: Freeze View

    JPEG2000 Stand alone DVR User Guide 3-4 Freeze view 3-4-1 Freeze in split mode In a split screen mode, press FREEZE and press a number button to select the corresponding channel to freeze.  Press the number again to cancel freeze. 3-4-2 Freeze in Full mode <LCD DVR>...

  • Page 24: Zoom View

    JPEG2000 Stand alone DVR User Guide Sequence order A ＞ B ＞ C ＞ D …＞A ＞ B …  Sequence time is adjustable in system setup. Please see [SYSTEM MENU] [CONFIGURATION]  [INTERVAL SETUP] for details. 3-6 Zoom in view <LCD DVR>...

  • Page 25: Audio

    JPEG2000 Stand alone DVR User Guide 3-8 Selection Audio Channel Press AUDIO you’ll see, . The number indicates the current audio output channel.  To go the next audio channel, press AUDIO again. Press Once to play channel 1; press twice to play channel 2; ...

  • Page 26: Record

    JPEG2000 Stand alone DVR User Guide 3-9 Record Emergency record (Red): press REC to start emgergency record at continuous record mode and at the best  resolution and quality. Schedule record (Green): record at the setup schedule, record mode, resolution and quality Stop record (White): the white dot shows up when the record schedule is set to “not record”...

  • Page 27: Playback

    JPEG2000 Stand alone DVR User Guide 3-10 Playback Play and search must inuput password. 3-10-1 Play/Stop Press PLAY key on front panel to start playback starting from the last playback  time. Press “PLAY” during playback to choose to play forward or backward. ...
  • Page 28 JPEG2000 Stand alone DVR User Guide 3-10-4 SEARCH BAR Using Jog-shuttle or +/- keys to select the recording percentage of the search bar. Press “ ENTER ”key to  confirm and start the playback. 3-10-5 TIME/DATE 1. [START] The start time and date of recording Shows that the start time and date of the video recording.
  • Page 29 JPEG2000 Stand alone DVR User Guide 3-10-7 Playback speed adjustments While playback, using the direction keys to adjust the playback speed.   Speed up the playback  Slow down the playback  Rewind  Play in forward direction The range of speed adjustment: 1/16X~1X, 1X~64X Press “...

  • Page 30: Mouse Operation

    JPEG2000 Stand alone DVR User Guide 3-11 Mouse operation [Basic operate] 1. [Mouse left button] Click: To execute a command.  Double click: Switch to full screen.  2. [Mouse right button] Double click: Display mouse control interface.  3. [Mouse wheel] Press for 2 seconds to hide mouse control interface.
  • Page 31 JPEG2000 Stand alone DVR User Guide [Working Status in PLAY MOUSE ICON] Click PLAY icon to switch to playback interface.  Click the "search" icon to switch to playback interface after playback starts.  For the corresponding function of the mouse buttons and wheel, please refer to the following chart: ...

  • Page 32: Chap.4 Set Up

    JPEG2000 Stand alone DVR User Guide CHAP.4 Set Up 4-1 Log-In 4-1-1 DVR LOG-IN Press MENU to login DVR system.  Use CH. SELECTORS 1~0 to key in the password.  Then press ENTER or click to confirm and enter the system. Click ...

  • Page 33: Display Setup

    JPEG2000 Stand alone DVR User Guide 4-2 Display setup 1. [SCREEN DISPLAY] Set up which information to be displayed at the Live and Playback mode.  2. [MONITOR SETUP] Adjust the VGA display resolution and the monitor color.  4-2-1 Screen display Use ...

  • Page 34: Configuration

    JPEG2000 Stand alone DVR User Guide 4-3 Configuration 4-3-1 HDD management 1. [HDD SETUP] BEGIN- Indicate the start Date/Time of recorded video on HDD (Master/Slave).  RECORD- Indicate the end Date/Time of recorded data on HDD (Master/Slave). PLAY- Indicate the previous playback Date/Time on HDD (Master/Slave). STATUS- Indicate the HDD status as empty/normal/overwrite ...

  • Page 35: Camera Setup

    JPEG2000 Stand alone DVR User Guide 1.We strongly suggest completing the following settings at the initial setup. (1) Set up the time/date, and RUN all factory defaults. (2) Go to HDD management and CLEAR HDD (3) “RUN” all factory defaults. 2.DO NOT change the date and time after the recording starts It may corrupt the DVR’s data archive and cause playback errors.

  • Page 36: Motion Setup

    JPEG2000 Stand alone DVR User Guide [CAMERA ACTIVE SETUP] Use the direction buttons to select an item and press [ENTER] to select ON  and OFF. If a channel is set to OFF at LIVE and ON at RECORD, the channel will be recorded, displayed during Playback, but will not be displayed at LIVE.

  • Page 37: Interval Setup

    JPEG2000 Stand alone DVR User Guide 4.BLOCK ON: Block an area to activate the motion detection in the desired area. Move the cursor to a corner cell of the desired area and press ENTER to mark the starting cell of the block. Then, move the cursor to the cell at the diagonal end of the desired area and press ENTER to finish marking the block.

  • Page 38: Event Popup Setup

    JPEG2000 Stand alone DVR User Guide 4-3-6 Event popup setup 1. [CHANNEL] Use [+] and [-] to select a channel.  2. [POPUP ON/OFF] Set up the POPUP function ON/OFF: Use [+] and [-] to select ON or OFF. When there is an event, the screen display will switch to a full screen of the corresponding channel.

  • Page 39: Record Setup

    JPEG2000 Stand alone DVR User Guide 4-3-8 Password setup The password consists of 1 to 8 digits. Press the number keys on the front panel to enter the password and you can use any combination of the numbers from 1 to 10 1.[USER ID] Press ...

  • Page 40: Record Configuration

    JPEG2000 Stand alone DVR User Guide 4-4-1 Record configuration Use [UP] and [DOWN] to select an item. Use [+] and [-] to change the value. 1.[OVERWRITE] ON: When the hard drive is full, the system will overwrite the earliest recorded ...

  • Page 41: Schedule Record

    JPEG2000 Stand alone DVR User Guide 1. Changing the RESOLUTION will NOT change the recording time on DVR. To change the DVR’s recording duration, please adjust the DVR’s recording speed in the following three settings. 5. [RECORD IN ALARM] Set the recording speed when an alarm is triggered. ...

  • Page 42: Holiday Setup

    JPEG2000 Stand alone DVR User Guide ALL: The DVR records at one recording mode, 24 hours a day, 7 days a week. CLEAR ALL: Clear all the schedule settings NEXT: Go to the next page. The first page is from 00-12, and the second ...

  • Page 43: Bak-Up

    JPEG2000 Stand alone DVR User Guide 4-5 Back-up 4-5-1 DVD+R / CD-R BACKUP ※After entering BACKUP, it takes 1 minute to load data, please wait. ※ The DVR supports DVD+R and CDR backup. It only reads DVD+R and CDR disc. 1.[HDD] Note: DVD-R, DVD+RW and Indicates the start and the end recording date and time of the HDD(s).

  • Page 44: External Device

    JPEG2000 Stand alone DVR User Guide 4-5-2 USB BACKUP Back-Up procedure is the same as CDR Back-Up.  1. User can back up the recorded video to USB Media using USB (HOST) port on front panel of DVR. Refer to [START] and [END] of data on HDD and set start and end time of data to USB Media ( Memory Stick or USB HDD ).

  • Page 45: Ddns Setup

    JPEG2000 Stand alone DVR User Guide 3.[IP PORT] Set up IP Port.  4.[GATEWAY] Set up GATEWAY.  5.[SUBNET MASK] Set up SUBNET MASK.  6.[DHCP SETUP] Inditcate the DHCP mode is set to Manual or Automatic. When DHCP is set to ...
  • Page 46 JPEG2000 Stand alone DVR User Guide 2.[RETRY COUNT] Set up the times that the client tries to reconnect to the DVR. The client will quit  trying to reconnect to the DVR after all the attempts fail. The setup range is from 0 to 20 attempts.
  • Page 47 JPEG2000 Stand alone DVR User Guide 4.[RESOLUTION ] DATA RESOLUTION from NVS. Such as 160*120, 320*240, 640*480.  ※ In order to work NVS properly, above value should be adjusted according to the Network Conditions. 4-6-2 RS232C setup Through the RS232 port, users can connect the DVR to a PC or other control devices to control the DVR.
  • Page 48 JPEG2000 Stand alone DVR User Guide [SPEED SETUP] Press  to select and [+] / [-] to change the value. 1.[PAN SPEED] Set the PAN speed (right and left).  2.[TILT SPEED] Set the TILT speed (up and down).  3.[ZOOM SPEED] Set the speed of ZOOM IN/OUT.

  • Page 49: Factory Default

    JPEG2000 Stand alone DVR User Guide 4-6-6 Audio volume setup 1.[INPUT VOLUME] Adjust the VOLUME of Recorded AUDIO  2.[LIVE VOLUME1~4] Adjust the VOLUME of LIVE per channel.  3.[PLAY VOLUME1~4] Adjust the VOLUME of PLAY per channel.  4-6-7 Remote controller setup 1.[REMOTE CONTROLLER SETUP] Select the type of remote to use: ...

  • Page 50: Chap.5 Ptz Camera Control

    JPEG2000 Stand alone DVR User Guide CHAP.5 PTZ camera control 5-1 PTZ camera Installation 5-1-1 Connection Setup Connect the PTZ’s D+ to the DVR’s D+, and D- to D-.  5-1-2 PTZ setup Each PTZ manufacturer may have different transmission buad rate. Please refer to the PTZ manuals for the detail information.

  • Page 51: Ptz Camera Operation

    JPEG2000 Stand alone DVR User Guide 5-2 PTZ camera operation Use MENU and NEXT key to select a PTZ command, and [+] [-] to select the channel. Then, press PTZ key to enter the PTZ control mode.  Indicate the channel connected with a PTZ camera. ...

  • Page 52: Chap.6 Software Installation

    JPEG2000 Stand alone DVR User Guide CHAP.6 Software installation Install Internet Remote Software Insert the Install CD into CD-ROM, and the computer will  auto-run the Install program. Click[Install Internet Remote Software].   Select a Destination Folder. When finished, the software will create a shortcut on the ...
  • Page 53 JPEG2000 Stand alone DVR User Guide 6-2-1 IRS SETUP 1. [IP LIST] List the saved DVR IP addresses.  2. [REGSTERING SITE] To update the connection information.  3. [UPDATE] To delete the saved DVR site.  4. [DELETE] To delete the saved DVR site. ...

  • Page 54: J2K Viewer Operation

    JPEG2000 Stand alone DVR User Guide 6-2-2 DVR SETUP The functions listed below can be changed over network: CONFIGURATION，RECORD， EXTRNAL DEVICE.  6-3 J2K VIEWER operation 1.[IP / PORT / ID / PW] IP: Enter the IP address of DVR ...

  • Page 55: J2K Backup Process

    JPEG2000 Stand alone DVR User Guide 6-4 J2K BACKUP process 1. [Backup Information] IP Address: Enter the IP address of DVR.  Network Port: Enter the port of DVR. User ID: Enter “Admin”. User Password: Enter Admin’s password. Save File Path: Set a path to save the backup file (This function is active only when the connection is established) Start Backup Time: The start time of file backup (This function is only active under the connection is established) End Backup Time: The end time of file backup (This function is only active under the connection is established)

  • Page 56: J2K Player Operation

    JPEG2000 Stand alone DVR User Guide [Backup Procedure] 1. Select [Connect Test] to test the status to DVR connection  2. Select [Unlock] to get the record start/End time of DVR 3. Select [Set Backup Time] to setup the backup function ...
  • Page 57 JPEG2000 Stand alone DVR User Guide 6-5-1 Save AVI file 1. Click to open the backup file and select single channel. 2. Click to open the AVI SAVE function CHANNEL: Select a single channel FRAMERATE : Set the frame rate SIZE: Set the file size of AVI SAVE START: Start AVI SAVE STOP: Stop AVI SAVE...

  • Page 58: Transmitter

    JPEG2000 Stand alone DVR User Guide 6-6 H.264 LAN/WAN Video Transmission [IP / PORT / ID / PW] IP: Enter the IP address of DVR  PORT: Enter the PORT of DVR ID: Enter ID (default: ADMIN) PW: Enter the password 2.

  • Page 59: Client Software Operation

    JPEG2000 Stand alone DVR User Guide 6-7 Client software operation [Remote viewer interface] 1.[Status window] To show the current status.  2.[PTZ Camera Control] To control PTZ Camera Zoom/Focus/Direction.  3.[Screen Split] To select Full/4/9/16 split screen display.  4.[Channel Selection] To select CAM1~16 when full or split screen ...
  • Page 60 JPEG2000 Stand alone DVR User Guide If you are setting up a new DVR to connect, follow the steps: ※ Enter the DVR’s location or name. Enter the DVR’s IP address and port number. Eenter the user ID as “ADMIN” and DVR Admin’s password. Press SAVE and then OK.
  • Page 61 JPEG2000 Stand alone DVR User Guide [DDNS LIST] 1.[DDNS SETUP LIST] Show all saved DDNS setup.  2.[OK/Cancel] Choose a certain setup in the list then click OK or Cancel.  3.[Delete] Delete a selected item from the list.  [SAVE] 1.[Circular Monitoring Interval] Set up a sequential switch interval.
  • Page 62 JPEG2000 Stand alone DVR User Guide [Remote playback] When the DVR is connected, click [PLAYBACK] to enter Playback  interface. [Remote Playback Interface] 1.[Time/Date Selection] To select time/date of playback  2.[Record and Playback Status] START – To show the record START ...
  • Page 63 JPEG2000 Stand alone DVR User Guide [Search button] 1. Fast Reward (RW) 2. Fast Forward (FF) 3. RW (Speed 1X) 4. Stop / Pause 5. Playback (Speed 1X) 6. Go to the beginning of recording 7. Jump to the previous hour 8.
  • Page 64 JPEG2000 Stand alone DVR User Guide 6-7-2 Back up via Client software [Save the recorded video as single JPEG picture] Press “STOP” right before where you want to save and  press “SAVE”. The picture will be saved to the assigned path which ...

  • Page 65: Cms

    JPEG2000 Stand alone DVR User Guide 6-8 CMS CMS log in 6-8-1 Default (ID): admin Default (Password): admin Execute CMS to see the log in window.  Enter the default p/w or the newly set one.  CMS interface 6-8-2 1.
  • Page 66 JPEG2000 Stand alone DVR User Guide 6-8-3 CMS setup 1.[Split] 1/4/9/16/36 : this set up would the default split for the CMS.  MultiLayer : to set up the corresponding transmission rate. 2.[Auto Change] to set up the time (sec) for sequence. ...
  • Page 67 JPEG2000 Stand alone DVR User Guide 6-8-5 Text Type Setup 1. Check to display test on the screen. 2. Select a font and color. 3. To select the font size of OSD on camera being displayed. 4. To select the font size of OSD on camera in remote playback.
  • Page 68 JPEG2000 Stand alone DVR User Guide [Connect toDVR] Select a DVR and click the right button of  the mouse. [Set up group array] Click the left mouse button and drag all the  cameras you want to view to the group array. [Save group array set up] 1.[Save Array] To save the set up value.
  • Page 69 JPEG2000 Stand alone DVR User Guide 6-8-7 Playback interface 1. [playback image] 2. [recorded video time ] To show the quantity of recorded time. 3. [select a date to playback] Before selecting a playback date, please stop  playback first. <<...
  • Page 70 JPEG2000 Stand alone DVR User Guide 6-8-9 DVR remote setup After DVR is connected, click “configuration” for the DVR remote setup.  The seup includes: CONFIGURATION-RECORD SETUP-EXTERNAL DEVICE.  6-8-10 EVENT SERVER Check the right button to see if event server is activated. ...
  • Page 71 JPEG2000 Stand alone DVR User Guide [EVENT SEARCH] Event search by time/ name / type.  Data search: Select a start and end time to search.  Name search:  MAC: list all the events of the appointed MAC address. NAME: list all the events of the appointed name Event Search: ...

  • Page 72: Ddns Setup And Operation

    JPEG2000 Stand alone DVR User Guide 6-9 DDNS setup and operation 6-9-1 DDNS SERVER setup Connect to DDNS SERVER (http://www.j2kdvr.com or http://59.124.143.151) by IE browser. Select [REGISTER] to register a new account.  This DDNS service is free. We constantly maintain the server and its data base. Please note that the server may be turned off without notice for maintainence.
  • Page 73 JPEG2000 Stand alone DVR User Guide 4. Select “ADD DVR” to add DVR information Select DVR model 5. Add DVR information: DVR NAME: Set a DVR name  MAC ADDRESS: Enter the DVR’s MAC address. DVR’s MAC address can be found in DVR’s [SYSTEM MENU] ...

  • Page 74: Record Time Table

    JPEG2000 Stand alone DVR User Guide Appendix.1 Record time table [4ch DVR] The numbers are for reference only. The recording duration is caculated under the continuous recording mode (Record speed :1/1X ,without record audio) - 74 -...
  • Page 75 JPEG2000 Stand alone DVR User Guide [8/16ch DVR] The numbers are for reference only. The recording duration is caculated under the continuous recording mode (Record speed :1/1X ,without record audio) - 75 -...

  • Page 76: System Configuration

    JPEG2000 Stand alone DVR User Guide Appendix.2 System configuration [CONFIGURATION OF DDNS CONNECTION]     1. DVR connect to DDNS server automatically and update the IP address. 2. The client accesses the DDNS server and requests the IP address from DDNS server. 3.

  • Page 77: Firmware Upgrade

    JPEG2000 Stand alone DVR User Guide Appendix.3 Firmware upgrade  Install USB driver 1. Connect USB port between PC and DVR 2. Press and hold Search and Play keys on front panel and power on DVR 3. The DVR beeps for a moment. 4.
  • Page 78 JPEG2000 Stand alone DVR User Guide 7. Copy the driver to the Windows system. 8. After installation, the USB device [BulkUsb.Sys Usb Bulk I/O Driver] can be found from [Device Manager]. - 78 -...

  • Page 79: Upgrade Firmware

    JPEG2000 Stand alone DVR User Guide Install USB upgrade program  Insert the Install CD  1.Please Select : Install USB upgrade program tool 2. Set up Directory (default Directory : "C:\Program Files\J2000\Allupdate\") After installation, there’ll be a shortcut on desktop.
  • Page 80 JPEG2000 Stand alone DVR User Guide Update F/W  1. Connect the USB port between DVR and PC. (Do not power on DVR in advance) 1. Select ALLUPDATE then choose the file: _ALLUPDATE_4J_NTIC_noboot_V1.3.bin 2. Press and hold SEARCH and PLAY and power on the DVR 3.

  • Page 81: Play Only Mode

    JPEG2000 Stand alone DVR User Guide Appendix.4 Play only mode  Introduction PLAY ONLY MODE can be used in the following situations: When you need to playback a hard drive from another DVR  When you need to playback the video which you deleted by running HDD CLEAR ...

  • Page 82: Router Setup

    JPEG2000 Stand alone DVR User Guide Appendix.5 Router setup Network installation and setup Network Introduction You need to identify what kind of internet access you have before setting up your DVR’s network parameters.  DSL and cable modem are the most popular broadband technologies. ADSL- Asymmetric Digital Subscriber Line ...
  • Page 83 JPEG2000 Stand alone DVR User Guide [Via ADSL with Static IP address] Connect the Network cable of Cable Modem output to DVR  Enter [SYSTEM MENU] [EXTERNAL DEVICE]  [TP/IP SETUP] [IP CONFIG SETUP]. Enter the IP  address, gateway, subnet mask provided by your ISP. Then, assign a port number to the DVR, or you can use the default one as well.

  • Page 84: Router Setup

    JPEG2000 Stand alone DVR User Guide Tip: If you have other computers connected to the router, you can find out the Subnet Mask and Gateway information from the computers. From the computer desktop’s Start Menu, choose Run. Type "cmd" to open a command prompt.
  • Page 85 JPEG2000 Stand alone DVR User Guide [WAN connection type] [Static IP setup] Select the mode in WAN connection Type  Enter the static IP Address, Subnet Mask, Gateway, DNS provided by your ISP.  Save the settings.  [PPPoE setup] Select PPPoE in WAN connection Type ...
  • Page 86 Prior to shipment, a RETURN AUTHORIZATION must be obtained from SECURITY LABS; this will assist us in more efficient service on your unit, and possibly avoid shipment if the adjustment can be made over the phone. If shipment is made, the cost for postage, insurance and shipping of the product is the responsibility of the owner.
