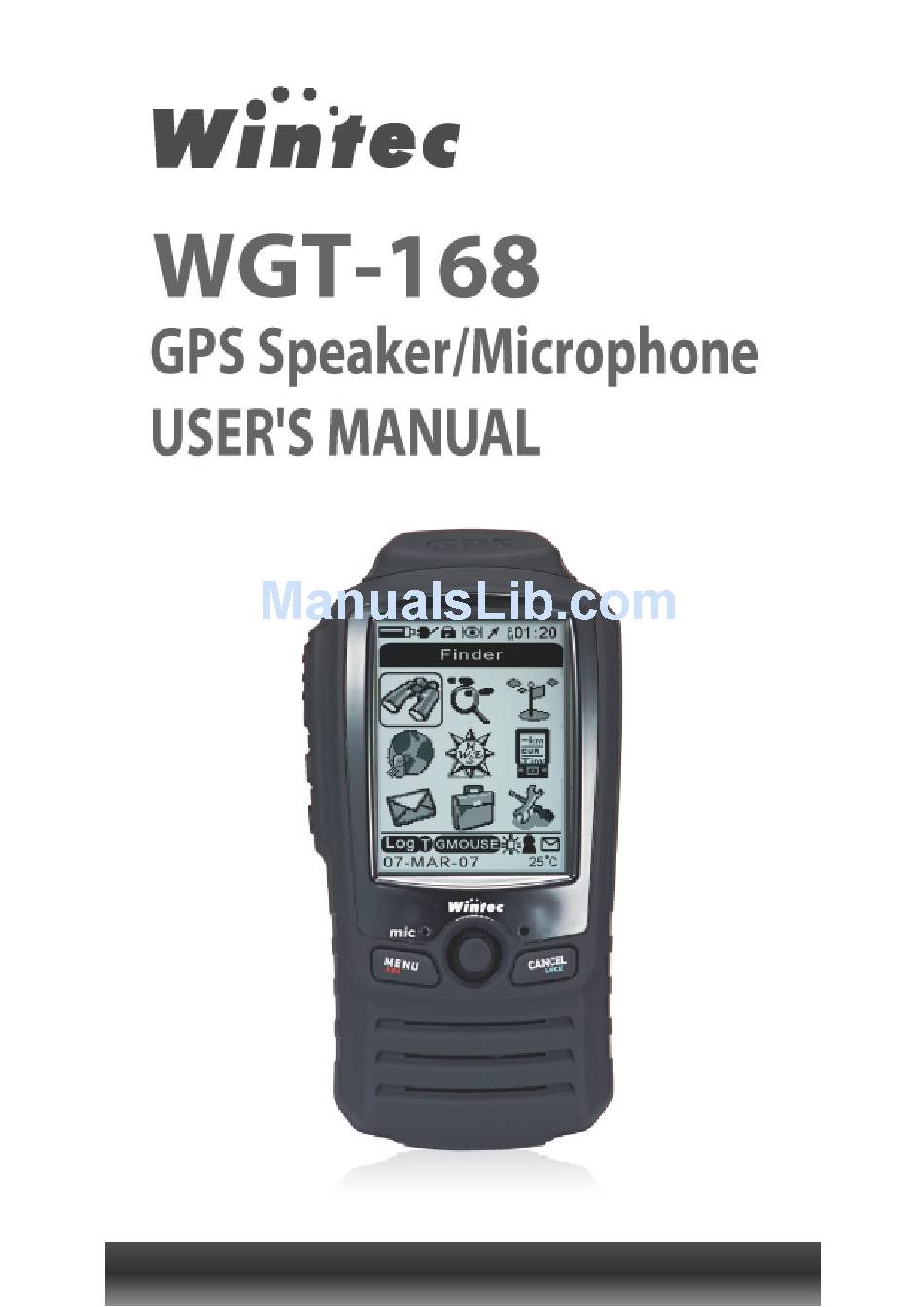

Wintec WGT-168 User Manual

Gps speaker/microphone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
-0-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WGT-168 and is the answer not in the manual?

Questions and answers

Related Manuals for Wintec WGT-168

Summary of Contents for Wintec WGT-168

  • Page 2: Table Of Contents

    WGT-168 GPS Speaker/Microphone User’s Manual Contents Introduction ………………………………p.1 Controls/Functions ………………………..p.3 Assembly/ Battery Charging ……………p.5 Icons guide ………………………………p.6 Menu Chart ………………………………p.8 Function List ………………………………p.10 Finder ………………………………p.10 Track ………………………………p.15 Waypoint ………………………………p.17 Satellite ………………………………p.20 Compass ………………………………p.21 Status ………………………………p.22 Messages ………………………………p.23 Setting ………………………………p.25 Extras...

  • Page 3: Introduction

    Introduction The breaking innovative microphone speaker integrates smart GPS features, transmits data through two-way communication. Wintec WGT-168 provides the best assistant in group communication for climbing teams, hunting activities, wildlife games, rescue teams, and fleet management, . .etc Features: ◎Support major brands of radio (ex.
  • Page 4 ◎Powered by USB cable with or w/o battery to be a G-mouse and PC-supported navigation. ◎WGT-168 Workbench is a free PC software available for uploading and managing the tracks, waypoints, as well as upgrading MCU firmware. The parameters setting is...

  • Page 5: Controls/Functions

    Controls/Functions (11) (10) GPS Antenna Speaker PTT; Push To Talk USB Port / Radio interface Function Key Five Position Switch Power On/Off push to enter button Cancel / Lock Microphone LCD Display Return / SOS GID...

  • Page 6: Button Function

    Button Function Push to talk over 0.8sec, release PTT will send geographic data automatically , the PTT function is always be used Press to cycle over function pages FUNC Press to enable backlight On/Off Press and hold to turn the unit On/Off Press to return MENU Press and hold to open SOS GID...
  • Page 7 Then rotate the screw of battery case tightly as in illus #2.. Charging For battery charging, the internal battery of WGT-168 can be powered by USB port, just plug in the USB cable from WGT-168 connected to any USB port for charging.

  • Page 8: Icons Guide

    Icons guide (2) (3) (4) (5) (11) (14) (10) (15) (16) (17) (12) (13)
  • Page 9 Battery power indication Battery power run out and unit will be automatically turn Off Full Battery Powered from USB Keypad lock GPS status 2D Fix 3D Fix No Fix GPS disables Data TX/RX Local time Function headline Function icon Log enable Track log mode Auto Time...

  • Page 10: Menu Chart

    Menu Chart MENU WATCH GROUP GROUP LIST GROUP ID Finder ADD TRACK TRACK LIST DELETE ALL Tracks ADD WAYPOINT Ｗaypoint WAYPOINT LIST DELTET ALL WAYPOINT INBOX Satellite Compass Status INBOX WRITE NEW Messages CALENDAR Extras USER NAME TIME/DATE Setting CONTRAST UNITS SYSTEM...
  • Page 11 Setting TIME ZONE USER NAME TIME FORMAT DATE FORMAT TIME/DATE CONTRAST POSITION FORMAT Dist/SPEED EVLEATION UNITS EVLEVATION TEMPERATURE SYSTEM EXIT GPS SET POWER MANAGER LANGUAGE OTHER SYSTEM INFO GPS POWER GPS SET GPS STARTUP BACKLIGTH POWER MANAGER POWER SAVING ENGLISH LANGUAGE CHINESE POWERUP LOG...

  • Page 12: Function List

    Function Lists Finder Function List Select function Enter the select function ENTER page MENU Return to main page 1-1.WATCH GROUP -10-...
  • Page 13 Grid north My location Display selected group members direction、 distance and geographic information Non-selected group member Waypoint Selected group member Real time tracking Every 30m one point proportional scale proportional scale range 20m ~ 200km proportional scale select Zoom in. Zoom out.
  • Page 14 1-1-1. GOTO GROUP MEMBER PAGE. E.T.A. (Estimated time of arrival) Line distance Member location CANCEL selection information . MENU Return Finder page -12-...
  • Page 15 1-2. Group Lists View communication record, and display member’s name、direction、distance and geographic information, The latest received member will be on top of the first number. received number list Group member SOS GID enable Group member name Group member direction Group member distance Selection Group member ENTER View Group member information...
  • Page 16 1-2-1. View Group member information Next / previous Group member information Up data the select ENTER member location MENU Return to Finder page 1-3.Group ID Group ID 01 ~ 99。 ENTER confirm MENU Return to Finder page -14-...

  • Page 17: Track

    Tracks Selected function Enter the select ENTER function page MENU Return 2-1.ADD TRACKS / STOP TRACK Select tracks LOG mode ENTER confirm MENU Return Log By Auto : Log automatically Log By Time : Log by time step setting (range 1~60 sec) Log By Range : Log by move distance setting (range 50m~500m) -15-...

  • Page 18: Delete All

    2-2. TRACKS LIST In user tracks Log log date for a track Move selection bar ENTER View tracks information Delete tracks CANCEL MENU Return to tracks page 2-2-1. TRACKS INFO select ENTER confirm MENU Return to tracks List 2-3. DELETE ALL Delete all tracks record。...

  • Page 19: Waypoint

    Select function ENTER Enter the select function page MENU Return Your could mark new waypoint and select the icon types and also can use WGT-168 Workbench to edit waypoint and download / upload waypoint to WGT-168 by USB cable. -17-...

  • Page 20: Waypoint List

    3-2.Waypoint List View the waypoint list。 Select waypoint CANCEL Delete waypoint ENTER view waypoint information MENU Return to Waypoint page 3-2-1.Waypoint information Select ENTER Enter the selected function MENU Return to last page Go to waypoint View waypoint Send waypoint to group or personal View waypoint information including waypoint name, icon, distance, location, elevation。...
  • Page 21 3-2-1-1. GO TO Function Flag Estimated time of arrival Distance Current position coordinate Press cancel button to switch over the CANCEL information bar below ENTER Press and hold into compass calibration mode MENU Return to last page Look and follow flag on top side to find Waypoint 3-3.DELETE ALL Delete all waypoint.

  • Page 22: Satellite

    Satellite 4-1. Satellite infomation Sky plot Location Info signal strength FUNC Press FUNC to switch function page ENTER Press ENTER to switch between page MENU Return to last page -20-...

  • Page 23: Compass

    Calibrating COMPASS : Making sure that the unit is level, press and hold ENTER in to the calibrating mode, rotate the WGT-168 slowly two rounds in the same direction. And press ENTER again to check the calibrating is done, if not Please try again.

  • Page 24: Status

    Status Real time SPEED、COURSE、TIME and Coordinate. Press ENTER to switch between pages PAGE(1) PAGE(2) PAGE(3) FUNC Press FUNC to switch function page ENTER Press ENTER to switch between page In the page 2, reset all the data about CANCEL speed, moved distance, time. -22-...

  • Page 25: Messages

    Message Select function ENTER Confirm. MENU Return the main page 7-1.Messages - In Box View the received messages。 Select messages. ENTER Enter to the messages. CANCEL Delete messages MENU Return to last page Roll up and down messages. Return to last page MENU -23-...
  • Page 26 7-2. Messages - Write New Edit and send text messages。 FUNC Change capital or other symbol. select text CANCEL Backspace ENTER Enter text MENU Return to Setting page Move bar in alphabet press FUNC change into Capital mode. Move bar in symbol area press FUNC to change to other symbols. -24-...

  • Page 27: Setting Mode

    Setting mode Select function ENTER In to the selection function Return to Setting page MENU 8-1.Setting – User Name Setting your name, this can be viewed in the group member FUNC Change capital or other symbol. select text CANCEL Backspace ENTER Enter MENU...
  • Page 28 8-2.Setting – Time/Date Setting Time zone, Time format, Date format. Select function Enter the selection ENTER function / confirm. MENU Return to Setting page Time Zone Setting Time zone. Time Format Setting Time format ext.12hrs or 24hrs mode. Date Format Setting Date format ext.
  • Page 29 8-4.SETTING - Unit Select function Enter the selection ENTER function / confirm. MENU Return to Setting page POSITION Setting position unit ext. ddd.ddddd MAP DATUM setting MAP datum (default value is WGS-84) ELEVATION setting elevation unit ext. metric / feet TMEPERATURE setting temperature unit ext.
  • Page 30 8-6-4. System-Other Select function ENTER confirm. MENU Return to Setting page POWER-UP LOG Enable automatically Log since power On. G-MOUSE GPS MOUSE mode enable/disables. RX MUTE close speaker if received geographic data function On/Off. SOS TX TIME Setting SOS transmitter time steps(2sec~99min) BAUD RATE Setting NMEA out put baud rate...

  • Page 31: System Info

    8-6-5.System Info Display system information MENU Return to System page Change page Page (1) SYSTEM INFOMATION: Power UP Times of power-on Temperatures Show the Temperatures information Battery Battery voltage Waypoint Waypoint used number Tracks Show the Track used numbers Log Used Memory capacity for tracks Page (2) SYSTEM INFOMATION: Firmware version...

  • Page 32: Extras

    Extras 9-1.Extras-Calendar Select months MENU Return to main page Display date and check date on the calendar, from 2000 year to 2099 year -30-...
  • Page 33 Specification Dimension 59(W) x 114(H) x 30(D)mm Weight Approx 108g (without battery and cable) 120 x 160 4 level gray LCD Microphone Capacitance microphone Speaker 1W / 8ohm Power DC 3.7V/1200mAH Li-Ion battery Battery operation time 18Hrs (backlight off) ℃ ℃...
  • Page 34 -32-...
