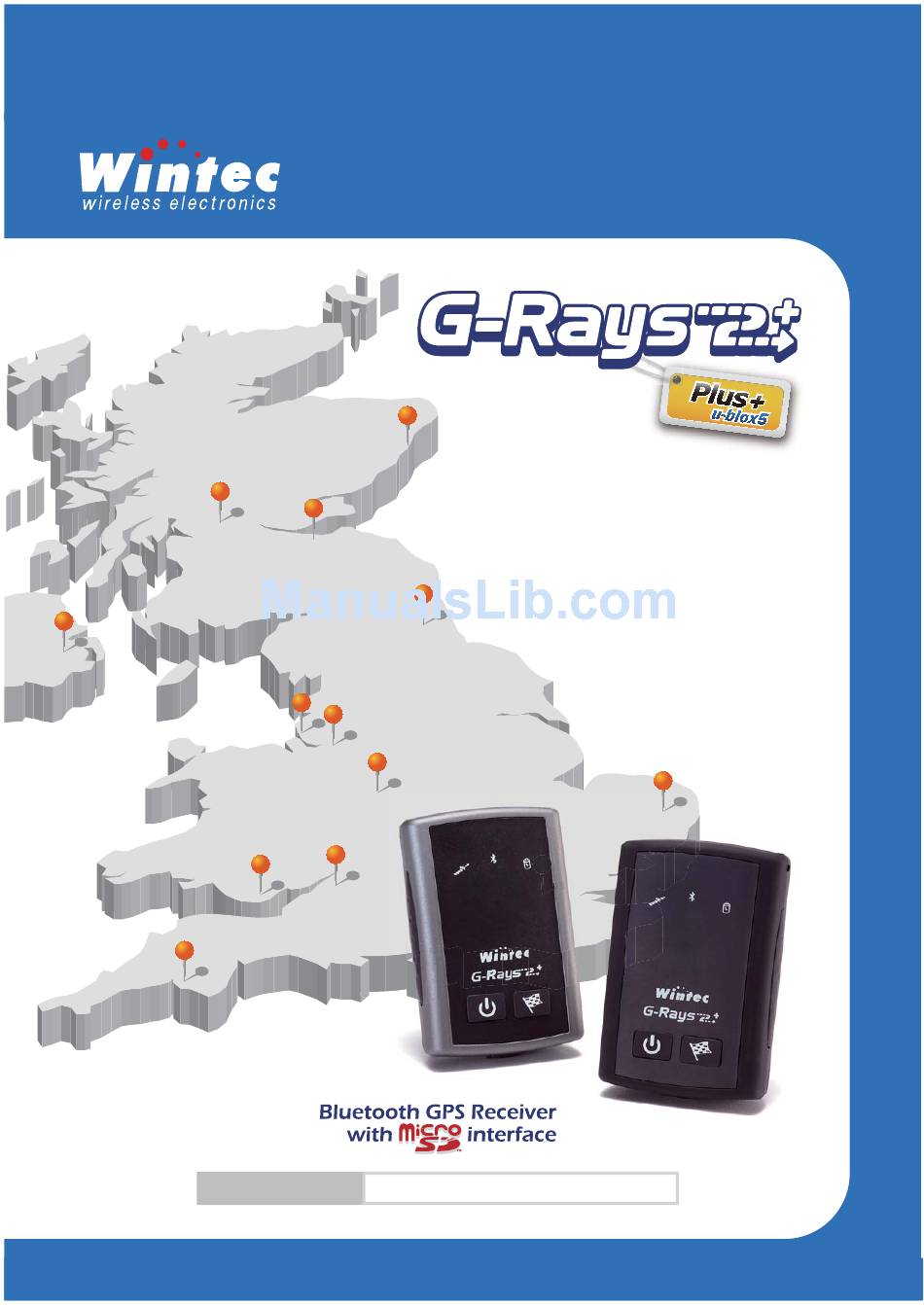

  • Page 1 WBT-202 English User’s Manual...

  • Page 2: Safety Notes

    Return to original dealer immediately if it emits strange smell or fume. Set the WBT-202 on the place where can receive GPS signal easily for 10 to 15 minutes if it is the fi rst time to be used. This procedure enables the device to gather some Almanac Data and ensures the quicker position fi...

  • Page 3: Table Of Contents

    WBT-202 Bluetooth GPS Receiver with Micro-SD interface CONTENTS FEATURES PRODUCT OVERVIEW LED INDICATOR CONTENTS BATTERY INSTALLATION BATTERY CHARGING MICRO-SD CARD INSTALLATION USING THE UNIT BLUETOOTH CONNECTION SHOWING TRACK ENTER THE MSD (MASS STORAGE DEVICE) MODE GOOGLE MAPS OVERVIEW USING WBT_Tool UTILITY...

  • Page 4: Features

    Google Maps with photos by integrated Geotagging function. That is to say, WBT-202 is a plug and play device, and you can use it and enjoy your track anywhere.
  • Page 5 Useful & user-friendly inbuilt software No need to install any extra software, the inbuilt one will pop up after connect WBT-202 to computer. No matter GPS parameter setting, format converting Geo-tagging…etc. can be done via the inbuilt software.

  • Page 6: Product Overview

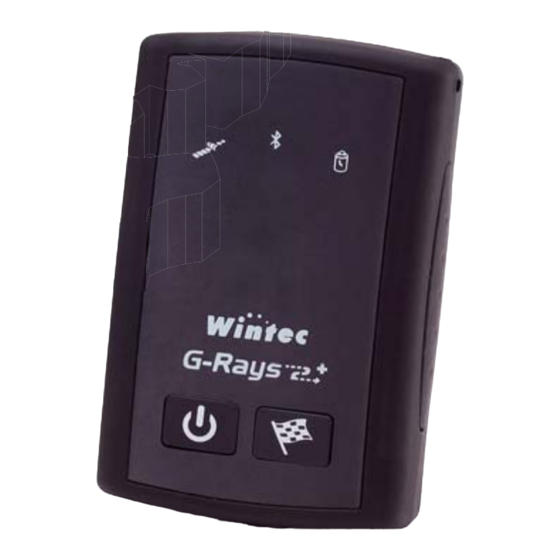

    PRODUCT OVERVIEW Bluetooth LED Micro-SD card LED GPS LED Power LED Power Button Flag Button USB Jack The mechanism for opening battery case. Carrying Strap Hole Battery Case...

  • Page 7: Led Indicator

    LED INDICATOR LED Status Light Description Blink GPS get acquisition Searching satellites & Not get acquisition Device off Record a Push To Log point or Create a new track Blink Bluetooth connected Bluetooth on & searching Bluetooth Bluetooth off Rapidly flash with Micro-SD card log a point on Micro-SD card.

  • Page 8: Contents

    CONTENTS 1 x WBT-202 / BT GPS Receiver with micro SD card 1 x Micro SD card 1 x Lithium-ION rechargeable battery 1 x Mini USB cable 1 x Quick installation guide Optional accessories 1 x Power adapter 1 x Car charger Before using the device, please make sure that all accessories are included in the package.

  • Page 9: Battery Installation

    Lock Please take off the battery if the device will NOTE not be operated more than 30 days. Be sure WBT-202 has been turned the power off before removing the battery. The abnormal process may cause damage of log data.

  • Page 10: Battery Charging

    BATTERY CHARGING Plug in the USB cable from WBT-202 connected to any USB port of computer for charging. For the fi rst time using WBT-202, please charge battery until it is fully charged. The unit can be charged no matter power on or off.

  • Page 11: Micro-Sd Card Installation

    MICRO-SD CARD INSTALLATION Before installing the Micro-SD card, please turn off the WBT-202, remove the battery and take off the USB cable if any. Install the Micro-SD card properly. Please refer to below illustration. OPEN LOCK Relocate the battery and start to use WBT-202.

  • Page 12: Using The Unit

    202 will re-start a new fi le for logging. Add a Push-To-Log point Press the (Flag) button to log a Push-To-Log point. Power Off Press and hold the (Power) button for 3 seconds to turn off the WBT-202. All LED will go out.

  • Page 13: Bluetooth Connection

    The baud rate is 4800~115200 bps, you can set it by yourself according to the demand. Turn on the WBT-202 fi rst, and use the other device to search it. Connecting WBT-202, and place it to a proper location to receive better satellites signal.

  • Page 14: Showing Track

    It switched to MSD mode now. At this moment, the orange (Micro-SD ) LED will light on. Under MSD mode, take off the USB cable or press the fl ag button, WBT-202 will exit MSD mode and turn the power off. CAUTION Don’t delete, rename or re-organize the exist fi...
  • Page 15 Can I use my own Micro-SD card? If you enter MSD mode with your own Micro-SD card, please follow below steps. Following screen will pop up. Double click the fi le of "DOWNLOAD.HTM", and enter the link of WBT_Tool. Double Click Decompress the rar fi...
  • Page 16 Copy those four fi les inside the compressed fi le to your Micro-SD card. Copy to Micro-SD card. Use new one Instead of old one if any.
  • Page 17 At the fi rst time, you have to enter WBT_Tool by double clicking its icon; however, when you enter MSD mode next time, the WBT_Tool will auto run and pop up. • The inbuilt access tool (WBT_Tool) will be executed automatically and pop up following dialogue, please choose WBT_Tool and press “OK”.
  • Page 18 Open “My Computer”. b) Double click the icon of WBT_Tool as following. • The WBT-202 will auto-connect to Google Maps. And the safety mechanism from IE as following will be shown up, please allow blocked content. Allow this page to access my computer •...

  • Page 19: Google Maps Overview

    Google Maps OVERVIEW Track Information: Basic information of the device and selected track. Selected Track: Only show the last track inside the WBT-202. Track Point Tour: Key in the digit which exact point you want to see and press “Go to”...

  • Page 20: Using Wbt_Tool Utility

    USING WBT_Tool UTILITY Version & Language WBT_Tool Version & WBT-202 Firmware Version. Language Page: Select a language here.
  • Page 21 Tab: LOG Data Manage Tab. LOG Data List: • All original log data saved in the Micro-SD card inside WBT-202 will be shown here. The fi le name of each track is the UTC time of its start point. NOTE •...
  • Page 22 • Use right key function to copy or delete one or more log fi les. If you want to clear log stored in the WBT-202 inbuilt memory not Micro-SD card, NOTE please do it via TimeMachineX. Clear All LOG Data: Press this button to clear all log data stored in the Micro-SD card.
  • Page 23 LOG Data Transfer Tab: LOG Data Transfer Tab. Reference Unit: Select Metric or Imperial measure shown on track records. Reference Zone: Adjust the time zone for the process of transferring log data format. A Geo-tagging process is based on the time zone here. NOTE LOG Data Source: Select a LOG data from the Micro-SD card to transfer the format.

  • Page 24: Device Setting

    When the shake mode on with no movement for 5 minutes (default, depend on the duration time you set), WBT-202 will auto turn off and turn on again when it feels vibration. If the WBT-202 is switched off manually under shake mode on, it won’t turn on NOTE again automatically even with movement.
  • Page 25 LOG Mode Tab: LOG Mode Tab. LOG Mode: Select a log mode and press “Set Log Mode” button to confi rm the setting. • User Defi ne: the detail can be set according to point 3. • Walk: Log a track point per 10 sec. or 20 m when the velocity is between 1~2000 km/h. •...
  • Page 26 Cold Start is suggested for quicker acquisition if one of below mentioned is confi rmed. a) The WBT-202 didn’t be operated for more than 3 months. b) The distance between your current location and the last time device turn off location is more than 800 km.
  • Page 27 GPS Parameters Tab: GPS Parameters Tab. GPS Mode: Select a GPS mode and press “Set GPS Parameter” button to confi rm it. Please be aware that the higher accuracy is selected, the longer acquisition time is NOTE needed, that is to say, the faster acquisition time is chosen, the lower accuracy is provided.
  • Page 28 Additional Tool Geotagging/Report: Press this button to enter Geotagging screen for further application. GIS Shapefi le Tool: Press this button to enter GIS Shapefi le screen for further operation.
  • Page 29 Gotagging/Report Before Geotagging process, please make sure that the time zone of device and digital camera should be the same as each other, otherwise photos won’t be correctly Geotagged. Combine photos with track Page: Photo Page. Selected LOG Section: Choose a track that you want to combine photos or create a report. Selected Track Information: Indicate how many points included in the selected track and the time of the fi...
  • Page 30 Right key functions are available, including Cancel Photo, Preview Photo Position, NOTE Add Photo Description, Manual Geotagging and Make Shapefi le. When the auto-Geotagging is not working or you want to modify the geographic coordinates, please use the function of manual Geotagging. •...
  • Page 31 Combine URL (web picture or video link) with track Page: URL page. Selected LOG Section: Choose a track that you want to combine URL link. Selected Track Information: Indicate how many points included in the selected track and the time of the fi rst and last point. Add URL: Press this button to add URL item to the [URL Link] area for Geotagging.
  • Page 32 The Geotagging for URL link can be done by Map or Coordinates. • By Map: Drag the “red sign” on the map to the correct position, and press the “Manual Geotag- ging” button (right key function) to complete Geotagging process. •...
  • Page 33 Create a track fi le including photos and URL link Max. Photo Show Size: Select a size of photo shown on your track. Map Type: Google Earth or Google Maps. When you choose Google Maps, the extra function of Google Maps API key as NOTE below will show up.
  • Page 34 Photo Map: Create a fi le only showing Geotagged photos on map (The initial fi le’s name will be “PGM”) Photo-Track Map: Create a fi le showing Geotagged photos and track on map (The initial fi le’s name will be “PTGM”) File Area: All fi...
  • Page 35 Create a report Page: Report page. Tab: Each tab stands for one analytic chart. Tick charts you want to include in your report. Description: Key in some detail you want to show in report. Create Report: Press this button to create a report with html format and open it by browser automatically.
  • Page 36 A Complete Report File...
  • Page 37 Track Map: A map with track. If you have created a Photo-Track Map (PTGM) file during previous process, the NOTE track presented on report will include photos. Instantaneous Basic Information: The basic information will be changed along with the dynamic track. Track Point Bar: Indicates the total track points and a moving one along with the dynamic track.
  • Page 38 Save a report Press the “Save Report” button to save it in the specifi c area you assigned. The complete report can be demonstrated anytime by double clicking the report fi le.
  • Page 39 Please be aware that all fi les including jpeg, html and xml fi les should exist in the NOTE same folder; otherwise the report fi le can not be shown normally.
  • Page 40 GIS Shapefi le Tool If there is any demand for GIS (Geographic Information System) application, please into GIS Shapefi le Tool to transfer the format. Selected LOG Section: Choose a track that you want to transfer to shapefi le format. Selected Track Information: Include the Time for the fi...
  • Page 41 Help Page: Help page. WBT_Tool User Manual: Link to a complete WBT-202 user manual. Download TimeMachineX: Link to Wintec’s website to download TimeMachineX software. MSCHART Register: Execute the MSCHART Register when the report function is not working. The computer which is login should be administrator or the one has the same NOTE authorities.
  • Page 42 WBT_Tool Update Process Right Click Decompress the update fi le downloaded from WBT_Tool. Switch the WBT-202 to MSD mode (please do not execute the WBT_Tool). In ”My Computer”, open WBT-202 via Explore.
  • Page 43 Copy ”WBT_Tool.exe”from decompressed update file and paste to the mass storage of WBT-202 instead of the existing one. Right Click...

  • Page 44: Track Editing Via Timemachinex

    TimeMachineX. its proper position, can be done via TimeMachineX. Also, the log data stored in the WBT-202’s inbuilt backup memory can be downloaded and Also, the log data stored in the WBT-202’s inbuilt backup memory can be downloaded and edited through TimeMachineX.
  • Page 45 The correct COM Port can be confi rmed with Device Manager. NOTE...
  • Page 46 Enter “Device Setting” Page of TimeMachineX, and see if the NMEA string running at the bottom of the page or not. If yes, that means the connection between WBT-202 and TimeMachineX is working well.
  • Page 47 Read Log • Enter “Read Log” tab and press “Read Log” button to download recorded data. • The “Read Log Succeed” dialogue shows up.
  • Page 48 TK1 format to TK2. A TK2 fi le stands for one track, so you can choose a TK2 fi le for track editing. Right Click For deleting record, please press “Delete record” button to erase all data inside the NOTE inbuilt memory of WBT-202. When the deleting process is completed, the dialogue of “Log deleted” shows up.
  • Page 49 For log data stored in Micro-SD card Connect the WBT-202 to PC, and enter MSD mode to execute the WBT_Tool. Select a track, and use WBT_Tool to convert it to TK2 format i.e. the format for TimeMachineX. Execute TimeMachineX and go to “Track Convert” page, the TK2 fi le transferred via WBT-...
  • Page 50 The step2 should be done before executing TimeMachineX; otherwise, the NOTE TK2 fi le won’t auto-show up in the TK2 list. You also can copy the TK2 fi le by hand if it doesn’t show up automatically. In WBT_Tool, use the right key function to copy the TK2 fi le to desk, and paste it in Track Convert page of TimeMachineX.
  • Page 51 Track Editing Enter “Track Editor” page, “Edit Track” tab, select a TK2 fi le, and double click it for editing.
  • Page 52 Save the TK2 fi le. If you want to combine photos or make report with edited track, please save the NOTE TK2 fi le editing by TimeMachineX back to the Micro-SD card inside the WBT-202, and then complete the after process via WBT_Tool.
  • Page 53 Regarding the further instruction of TimeMachineX, please refer to the user manual of TimeMachineX. If you have completed the installation process of TimeMachineX, the user manual NOTE is existed in the system, you can fi nd it according to the following picture.

  • Page 54: Installing The Usb Driver

    Press the (Flag) button to leave MSD mode. Turn on the WBT-202 again and connect to computer via USB cable. At this moment, the computer will auto-detect the new USB device and ask for the software installation. The Found New Hardware Wizard will pop up as below, please select item of “No, not this time”...
  • Page 55 Select “Install from a list or specifi c location (Advanced)” and press “next” button. Tick items as below picture and press “Browse” button.
  • Page 56 Choose the location of “… \ my document \ WBT202”, and press “OK” button. When back the Found New Hardware Wizard, please press “Next” button to confi rm the location.
  • Page 57 The searching of the USB driver is in progress. Click “Continue anyway”.
  • Page 58 Click “Finish” to complete it.
  • Page 59 Enter “Device Manager” to reconfi rm if the USB driver is installed successfully and which COM Port is the assigned one (The device should under connection). In the future, when you connect the WBT-202 to the same computer with the same USB Port, the assigned COM Port can be used directly.

  • Page 60: Connect To Pocket Pc

    CONNECT TO POCKET PC The WBT-202 can connect to Pocket PC via Bluetooth on condition that the Bluetooth on your pocket PC supports SPP(Serial Port Profi le) service. Connect WBT-202 to Pocket PC according to below steps. The exact connection process should refer to the user manual of your Pocket PC.
  • Page 61 “ F i n i s h ” t o c l o s e t h e create a shortcut. connection wizard. Press the icon of “WBT- Connection is success. 202: Bluetooth Serial Port” The icon will become green and select “Connect” item to one as above picture. connect WBT-202 to Pocket...

  • Page 62: Firmware Upgrade

    The latest fi rmware will be released on Wintec’s website. NOTE Please reconfi rm the USB driver is existed. Turn off the WBT-202, take off the battery and disconnect the USB cable if any. Press and hold the (Flag) button with providing the power to WBT-202 by USB cable simultaneously, and release the button when all LED lights are blinking.
  • Page 63 Decompress the fi rmware fi le and open the update tool “WBT-202_Firmware_Update_Tool. exe”. Click “Browser” button to select the fi rmware (*.wfw) for WBT-202.
  • Page 64 Select a COM Port. The Firmware Update Tool will assign the correct COM Port (COM**(USBSER***)] automatically, please press the “Connect” button to communicate with WBT-202. If the assigned COM Port is not correct, please go to “Device Manage” to reconfi rm NOTE the correct one.
  • Page 65 Click the “Update Firmware” button when it becomes visible. And the fi rmware update process is in progress. Click the “OK” button to complete the update process. If there is any error occurred during update process, please shut the Firm- NOTE ware Update Tool and rerun the update process again.

  • Page 66: Trouble Shooting

    TROUBLE SHOOTING If you run into any problem using WBT-202, use the following table to troubleshoot the problem. If the problem persists, contact your dealer for further service. The WBT-202 can not get acquisition. You may be in a location where the radio signals from GPS satellites can not be reached.
  • Page 67 I can not use my own Micro-SD card. Please make sure that the Micro-SD card is placed properly. WBT-202 doesn’t support the Micro-SD card with SDHC format. Please be aware that the capacity of Micro-SD card must no exceed a maximum of 2GB.
  • Page 68 Wintec Co., Ltd. www.wintec.com.tw...
