Bluetooth-GPS receiver
WBT-100
USER'S MANUAL
Ver 1.0 R2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WBT-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Wintec WBT-100

Summary of Contents for Wintec WBT-100

  • Page 1 Bluetooth-GPS receiver WBT-100 USER’S MANUAL Ver 1.0 R2...

  • Page 2: Table Of Contents

    Table of contens Contents Part 1 Product introduction Part 2 Features Part 3 Technical specifications Part 4 Safety notes Part 5 Quick user guide Part 6 Operation notes Part 7 USB driver installation guide Part 8 Software interface Part 9 Trouble shooting...

  • Page 3: Part 1 Product Introduction

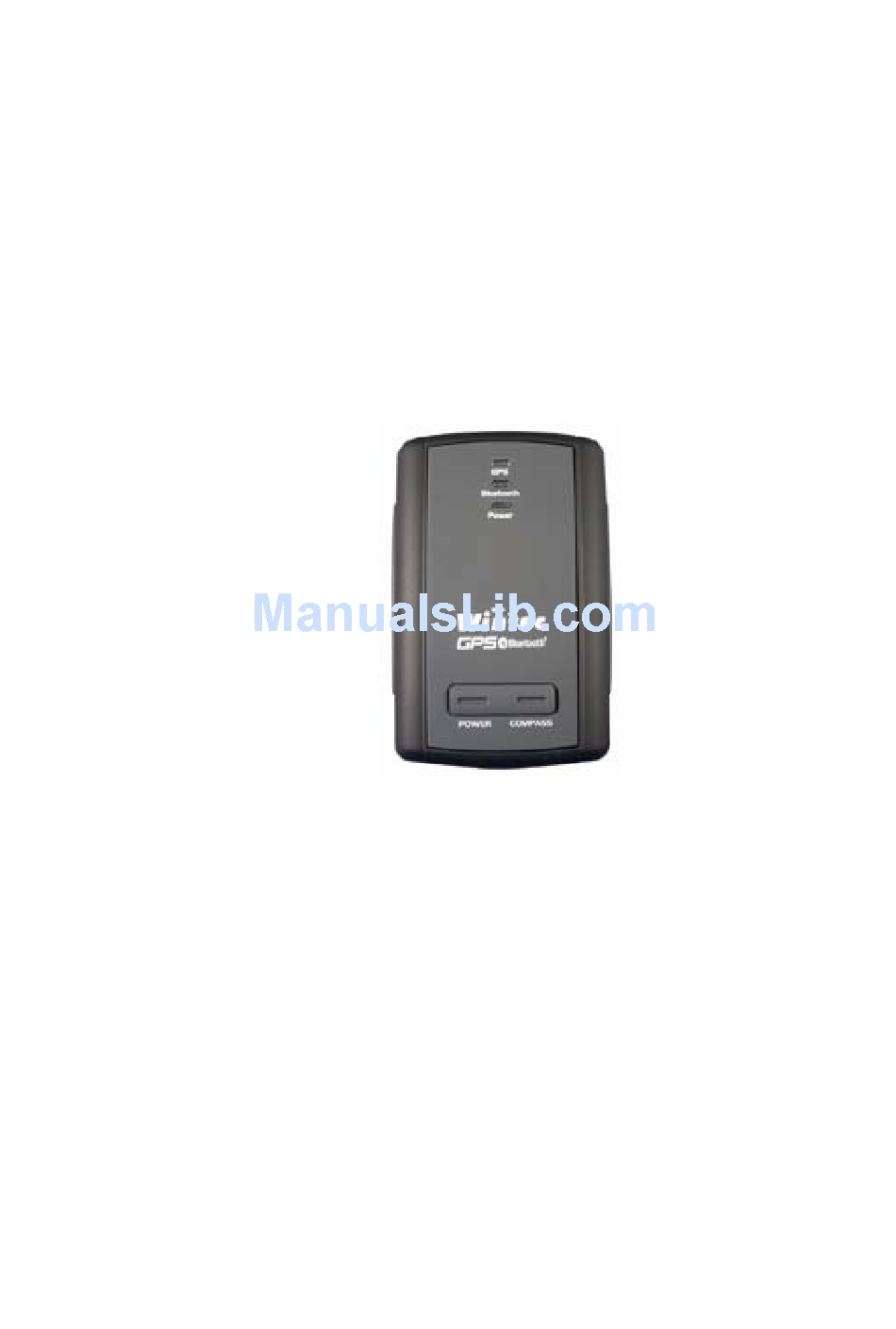

    Part 1 Product introduction Overview Red color: GPS mode: Solid light shows location fixing incomplete Blink light shows location fixing completed Light turns off when Blue tooth Green color: Compass mode: Solid light shows North connection is off direction (The slower LED blinks, the farther it turns from Blue light solid on when Blue tooth North.) connection initiates...

  • Page 4: Part 2 Features

    Part 2 Features WBT-100 is the GSP receiver with internal antenna. iTrax 03 used in its core is high-tech component and is integrated with electronic compass to the effect of providing more accurate GPS data(this innovative concept is patented by Wintec) especially during navigation when the vehicle is moving slowly.

  • Page 5: Part 3 Technical Specifications

    Part 3 Technical specifications General specs Chips:u-Nav + iTrax 3 generation of least power consumption with highest sensitivity Number of channels:Receivable of signal from 12 satellites simultaneously Receiving freq.:1575.42 MHZ。 Receiving code:L1, C/A code。 Sensitivity:-152dBm Positioning time (average) Re-acquisition time: 0.1 sec。 Quick Start: <...
  • Page 6 Environmental specs Working temp range:-10℃~70℃( internal temp)。 Storage temp range:-40℃~85 ℃。 Bluetooth interface Version: 1.1 Data output rate: Class 2 Data transmission range:5～10 meter(depends on environment) Freq range: 2402~2480MHz Receiving sensitivity:-80dBm Power consumption :< 45mA (depends on data transfer) Service: SPP SLAVE USB specs Interface type::Standard USB connector of computer Data transfer rate:9600bps。...

  • Page 7: Part 4 Safety Notes

    Part 4 Safety Notes GPS (Global Positioning System) is provided by the United States government. Its accuracy may varies depending on special conditions (area at war or if it is blocked). Any control by USA will affect this system and its accuracy. If installed on the transportation device, driver must not operate this while driving GPS performance is effected when satellite coverage is degraded as near a high-rise building, in the tunnel or under a cover...

  • Page 8: Part 5 Quick User Guide

    When the USB is used as interface:- USB driver must be installed first After connection to USB port of computer, place the WBT-100 suitable area where it can best receive GPS signal for acquisitioning Power it(or switch its power on)

  • Page 9: Part 6 Operation Notes

    If WBT-100 formatting the internal data is not correct, or if satellite data has been deleted, it takes longer time to position. But under the following conditions, it can take even longer time to do cold start.

  • Page 10: Part 7 Usb Driver Installation Guide

    Data can be read out thru USB or bluetooth Data includes latitude, longitude, time in year-month-date-min-sec After successful positioning, it wills automatically auto-log GPS data into its internal memory chip. Use G-tool to program log interval (1~ 3600 sec). The factory default is set at 5 sec interval for the auto-logging.
  • Page 11 Use USB cord to connect WBT-100 to the USB port of computer. Computer will automatically check it and seek driver software by itself. If PC asks for “ device manager” for adding the new USB device following USB device connection, take the procedure below .
  • Page 12 Installation completed Immediately afterwards, PC will ask again to install “Wintec GPS Receiver Virtual Com Port” driver. Click “ next’...
  • Page 13 Installation completed To check the installation status, go to the “device manager” As in the illustration, the USB device(marked in red circle) is correctly installed to PC.The illustration also shows USB being transfered to Com Port assigned as COM 3. In the...

  • Page 14: Part 8 Software Interface

    Under compass mode, north direction can easily be found. If used is a new surrounding, re-calibrate again for accuracy Bluetooth After Bluetooth connection is initiated but connection is not established in 5 min, WBT-100 will automatically turn off for the...
  • Page 15 power saving purpose. If Bluetooth reconnection is needed again , just momentarily press “power” button one time. Auto-log features Auto log interval at default 5sec Auto log interval 1~3600 Sec.(0 is diableLog) Maximum log data 12680 NMEA-0183 export data NMEA Explanation GPGGA (factory default) GPS Data GPGSA(factory default )
  • Page 16 Letter M. Difference between the WGS-84 reference ellipsoid surface and the mean-sea-level altitude. Letter M. NULL (not implemented) xxxx NULL (not implemented) Check sum <CR><LF> Ex:$GPGGA,084053.39,6016.3051,N,02458.3735,E,0,00,0.0,46.6,M,18.2,M,,*5D $GPGSA,a,b,xx,xx,xx,xx,xx,xx,xx,xx,xx,xx,xx,xx,p.p,h.h,v.v*hh<CR><LF> Mode: M = Manual, forced to operate in 2D or 3D mode. A = Automatic, allowed to automatically switch 2D/3D. Mode: 1 = Fix not available 2 = 2D, 3 = 3D,...
  • Page 17 $GPGSV,n,m,ss,xx,ee,aaa,cn,…………. ,xx,ee,aaa,cn*hh<CR><LF> Total number of messages, 1 to 3 Message number, 1 to 3 Total number of satellites in view Satellite ID (PRN) number Satellite elevation, degrees 90 max Satellite azimuth, degrees True, 000 to 359 Signal-to-noise rations (C/No) 00~60 dB-Hz. Value of zero means that the satellite is predicted to be on the visible sky but it isn't being tracked.
  • Page 18 <E/W> Character denothing either E = East or W = West. Speed in knots. Heading. ddmmyy UTC Date of the fix. dd = day of month mm = month yy = year Magnetic variation in degrees, i.e. difference between geometrical and magnetic north direction. <E|W>...
  • Page 19 Mode indicator A=autonomous N=data not valid Check sum <CR><LF> Ex:$GPGLL,6016.3073,N,02458.3817,E,090110.10,A,A*61 $GPVTG,h.h,T,m.m,M,s.s,N,s.s,K,M*hh<CR><LF> Heading in degrees. Letter 'T' denoting True heading in degrees. Magnetic heading in degrees. Letter 'M' denoting Magnetic heading in degrees. Speed in knots. Letter 'N' denoting speed in knots. Speed, km/h.

  • Page 20: Trouble Shooting

    No altitude information is available and therefore it cannot define vehicle’s positioin whether the is over or under the bridge. After successful positioning of WBT-100, if it is moved to another area of 500 km away it cannot be easily re-positioned. This is because the firstly recorded data(position, time and number of satellites acquisitioned) is different from the new area.
  • Page 21 GPS reception begins in a quick start mode and its position may take longer time. If USB cable will be used for the connection of WBT-100 and PC, install the USB driver first on the PC and make sure of right COM PORT.
