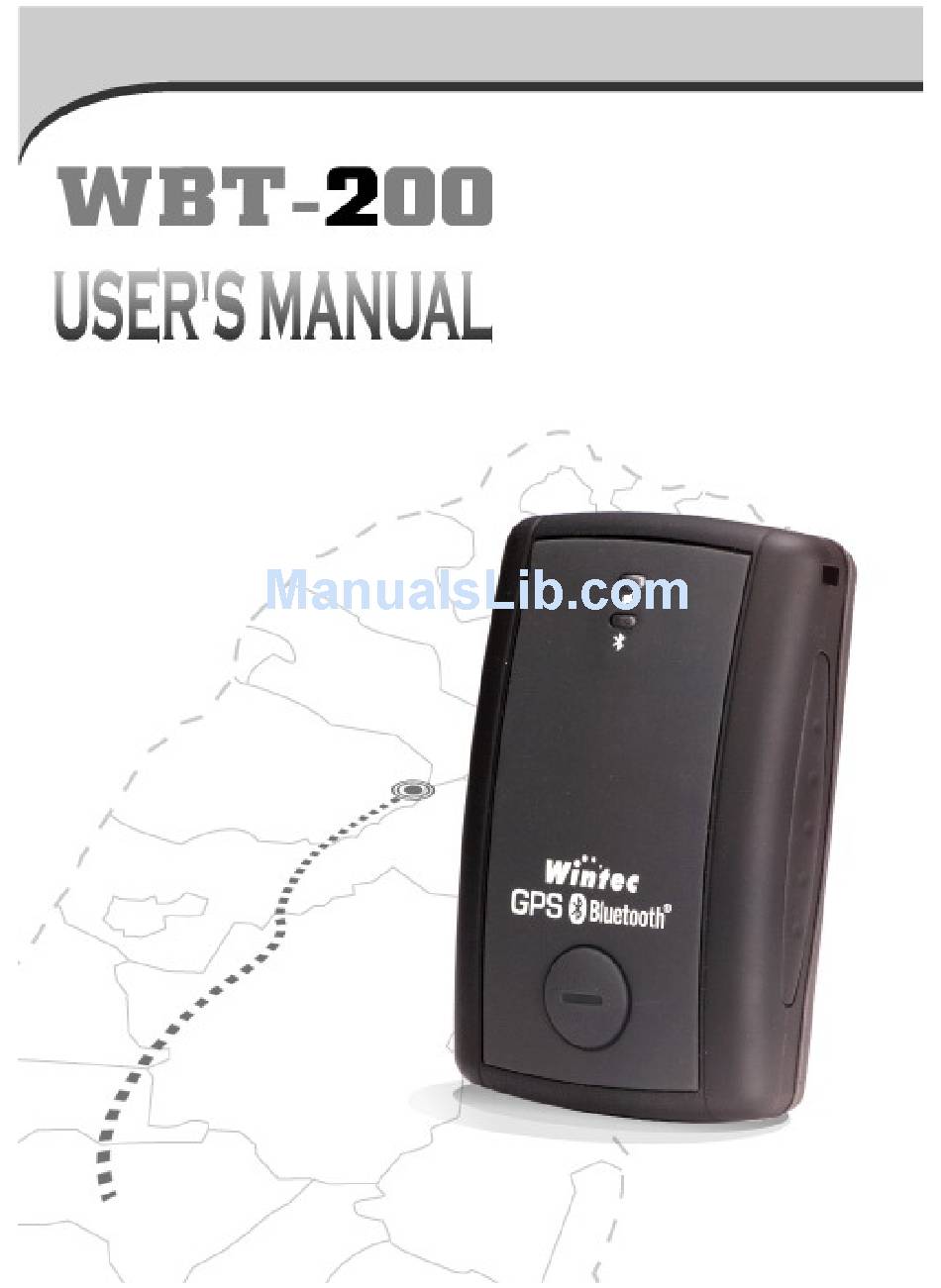

Wintec WBT-200 User Manual

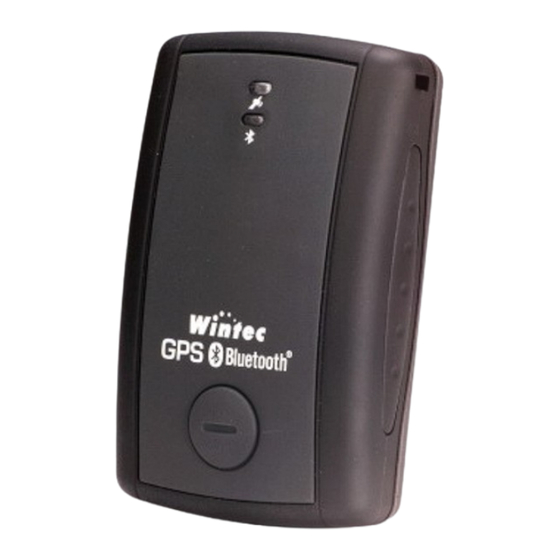

Gps receiver with internal antenna
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the WBT-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Wintec WBT-200

Summary of Contents for Wintec WBT-200

  • Page 2: Table Of Contents

    Table of contents Contents Part 1 Product introduction Part 2 Features Part 3 Safety notes Part 4 Quick user guide Part 5 Operation notes Part 6 USB driver installation guide Part 7 Using with PDA Part 8 Trouble shooting...

  • Page 3: Part 1 Product Introduction

    Part 1 Product introduction Overview GPS LED: (Green LED) Green LED Solid light shows location fixing incomplete .Blink light shows location fixing completed. Power LED: (Red LED) Red light blinks if battery power is low. Red light solid on while charging. After fully charged red light will snuff out.

  • Page 4: Part 2 Features

    Part 2 Features WBT-200 is the GSP receiver with internal antenna. u-Nav + iTrax 03 used in its core is high-tech component and included function of auto- log record of journey, which are useful in navigation, security tracking purpose, map making and other agricultural needs. USB connector or Bluetooth interface ensures easy linking with other electronic devices .The GPS acquisition status, the last record of time and...

  • Page 5: Part 3 Safety Notes

    Part 3 Safety notes GPS (Global Positioning System) is provided by the United States government. Its accuracy may varies depending on special conditions (area at war or if it is blocked). Any control by USA will affect this system and its accuracy. If installed on the transportation device, driver must not operate this while driving.

  • Page 6: Part 4 Quick User Guide

    .It snuff out red LED after it is fully charged. When the USB is used as interface: USB driver must be installed first. After connection to USB port of computer, place the WBT-200 at suitable area where it can best receive GPS signal for acquisitioning.
  • Page 7 Activate the software of paired device. WTB 200 starts to provide GPS data. Battery charging: Connect WBT-200 with USB cable and turn on power source. To charge it, power source can be supplied from USB host that from computer, power adapter, or car cigarette lighter adapter.

  • Page 8: Part 5 Operation Notes

    12.5 min) to receive or update Almanac. Refer to trouble shooting guide when signal is not received well. If WBT-200 formatting the internal data is not correct, or if satellite data has been deleted, it takes longer time to position. But under the following conditions, it can take even longer time to do cold start.
  • Page 9 After positioning, if auto-log function is activated, WBT-200 begins to auto-log the following way. Maximum data up to 25360 Points (or more than). Recording in a circular way. Auto-logging goes on without the need of any device. Log-data can be read out using the G-Tool software included.

  • Page 10: Part 6 Usb Driver Installation Guide

    Part 6 USB driver installation guide 1、 Execute installation and click “Install”.
  • Page 11 2、 Installation is done when this screen displays.
  • Page 12 3、 Use USB cord to connect WBT-200 to the USB port of computer. Computer will automatically check it and seek driver software by itself. If PC asks for “device manager” for adding the new USB device following USB device connection, take the procedure...
  • Page 13 4、 The screen will display as below. Click “continue anyway”.
  • Page 14 5、 Installation completed.
  • Page 15 6、 Immediately afterwards, PC will ask again to install “GPS Receiver Virtual Com Port” driver. Click “ next ”.
  • Page 16 7、 Installation completed. To check the installation status, go to the “device manager” .
  • Page 17 8、 As in the illustration, the USB device (marked in red circle) is correctly installed to PC. The illustration also shows USB being transferred to Com Port assigned as COM4. In the future, whenever the USB device is connected to USB port on the computer, the COM 4 acts as the interface for data communication.

  • Page 18: Part 7 Using With Pda

    Part 7 Using with PDA Use of this with PDA for location check. It is necessary to install GTOOL(PPC) first in your PDA. Follow the following steps. Step 1：Turn WBT-100 Bluetooth device Power on and then create Bluetooth connection with PDA. Step 2：Supported by GTOOL(PPC), location can be viewed on PDA .
  • Page 19 2、Tap the Bluetooth icon again and select the ”Bluetooth Manager”. 3、From Bluetooth Manager toolbar, tap ”New” to search for any other Bluetooth devices in its vicinity.
  • Page 20 4、Tap “Explore a Bluetooth device” to view Bluetooth devices services and create a shortcut to them. Click“Next” to continue. 5、Tap “BT-GPS” icon to view the device services.
  • Page 21 6、Select “SPP slave” services and tap “Next” to create a shortcut to it. 7、Tap “Finish” to complete procedure.
  • Page 22 8、From the “My Shortcuts” tab, tap the “BT-GPS: SPP slave” icon and select the “Connect” option to connect to it. 9、When a connection is successfully established, the shortcut icon turns green.
  • Page 23 Step 2：Using GTOOL(PPC) for locating . The GTOOL(PPC) enables you to view your position by latitude and longitude, speed, heading, and altitude. Make sure that the GTOOL(PPC) had been installed on your PDA as described in GPS CD. 1、Tap“Start” and select the“ File Explorer ”item from the start menu. OR click the “GTool”...
  • Page 24 2、At “My Device” tab, tap the “Program Files”, then select “GTool” case. 3、In the “GTool” case, tap the GTool icon to start it.
  • Page 25 4、At “Connect Setting” tab, select Bluetooth com port on your PDA at “Select GPS Port” item and click Connect ,than select BT-GPS icon. (Connect successfully) 5、In the “GPS Data” tab, location data is displayed as below.
  • Page 26 6、Feature in other tabs : “Log Mode Setting ”：Log mode setting. “Read Log”：Read or clean the Log data. LOG File (*.tks) default path save as “...\My Documents\*.tks”.
  • Page 27 “NMEA Setting”： Set the NMEA output. “Init. Mode”: Reboot, Factory Reset, Cold Start, and the firmware version. ( Note：If use these features, Bluetooth maybe need re-connect！)
  • Page 28 “Satellite”：View Satellite Information. “Sky Plot”：View Satellite Distribution in the sky.

  • Page 29: Part 8 Trouble Shooting

    After successful positioning of WBT-200, if it is moved to another area of 500 km away it cannot be easily re-positioned. This is because the firstly recorded data (position, time and number of satellites acquisitioned) is different from the new area.
  • Page 30 PDA will halt. Try to disconnect Bluetooth connection in a standard method. If the WBT-200 is found to work abnormally because of wrong procedure, reset it by taking off the battery. It will have factory default without effecting pre-set program. At the factory default, GPS reception begins in a quick start mode and its position may take longer time.
