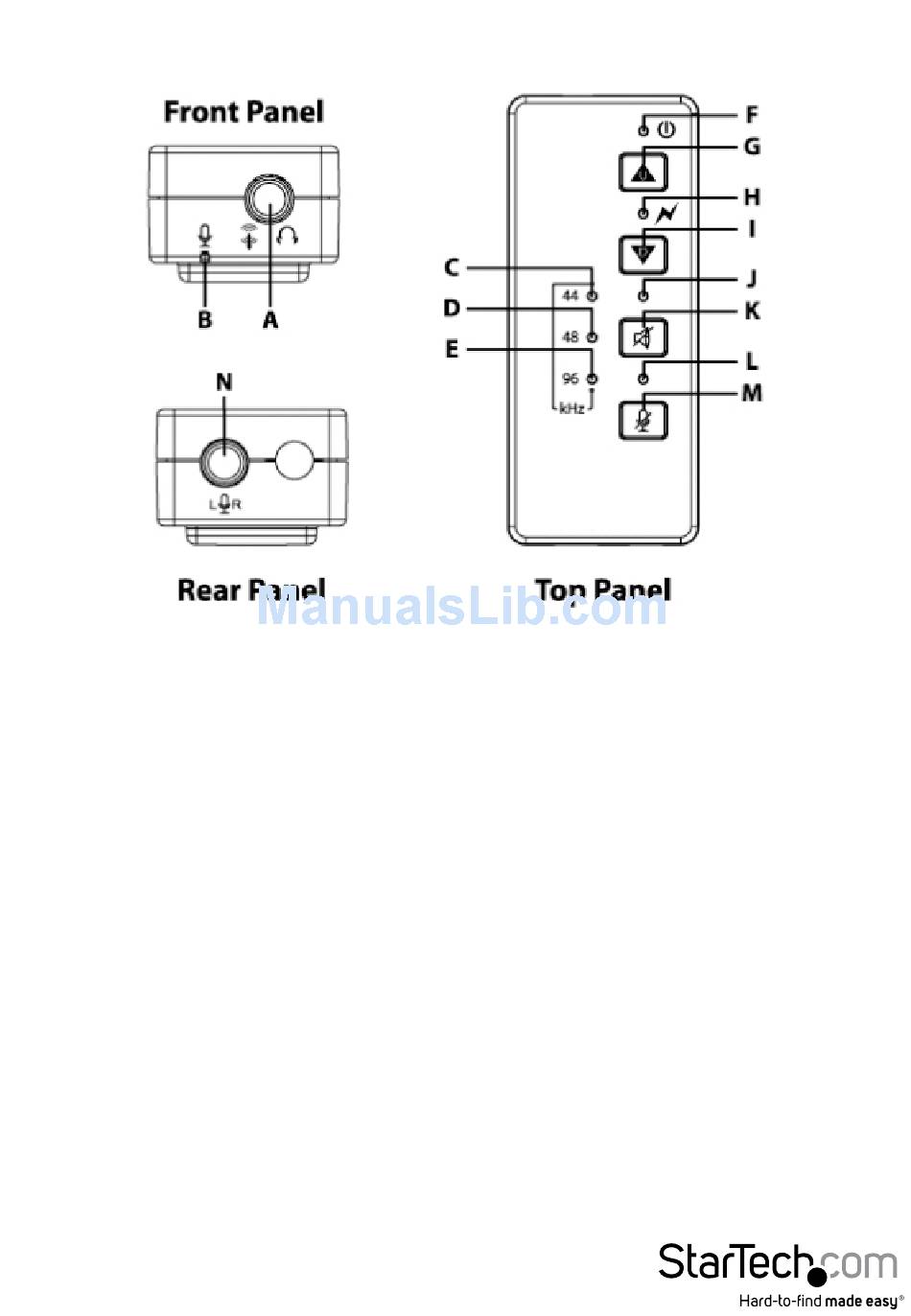

Product Overview
A. 3.5mm Stereo headphone & S/PDIF output combo jack
B. Built-in mono microphone
C. 44.1 KHz playback or recording sample rate indicator
D. 48 KHz playback or recording sample rate indicator
E. 96 KHz playback or recording sample rate indicator
F. Power and USB link indicator (Red LED – Power on; Green LED - USB link
established)
G. Volume up button
H. Stereo analog audio output level indicator (Blinks during playback)
I. Volume down button
J. Mute indicator
K. Mute button
L. Microphone mute indicator
M. Microphone mute button
N. Microphone input – for stereo microphone
