Campbell Hausfeld NB0064 Operating Instructions Manual

See Warranty on page 8 for important information about commercial use of this product.
Operating Instructions
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury, death and/or
property damage! Retain instructions for future reference.
BUILT TO LAST
Table of Contents
General Safety . . . . . . . . . . . . .1-3
Specifications . . . . . . . . . . . . . . .2
Operating The Nailer . . . . . . .3-5
Operational Mode . . . . . . . . . . .4
Troubleshooting . . . . . . . . . . . . .7
Warranty . . . . . . . . . . . . . . . . . . .8
Description
This nailer is designed for decorative
trim, molding, window casings, furni-
ture trim and picture frame assembly.
Features include: convenient rear load-
ing magazine which holds up to 100
nails, no-mar tip, adjustable exhaust,
single cycle trigger, quick clear nose,
and an adjustable depth of drive mech-
anism.
General Safety
Information
CALIFORNIA PROPOSITION 65
You
DANGER
!
can cre-
ate dust when you cut,
sand, drill or grind materi-
als such as wood, paint,
metal, concrete, cement, or other
masonry. This dust often contains
chemicals known to cause cancer, birth
defects, or other reproductive harm.
Wear protective gear.
This manual contains safety, opera-
tional and maintenance information.
Contact your Campbell Hausfeld repre-
sentative if you have any questions.
REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.
Campbell Hausfeld Nailers meet or exceed
Industries' Standards as set forth by the
American National Standard
Institute/International Staple, Nail and Tool
Association in ANSI/ISANTA SNT-101-2002.
© 2002 Campbell Hausfeld/Scott Fetzer
OPERATOR'S RESPONSIBILITY:
The tool operator is responsible for:
• Reading and understanding tool
labels and manual.
• Selecting an appropriate tool actua-
tion system, taking into considera-
tion the work application for which
the tool is used.
• The safe use of the tool.
• Ensuring that the
tool is used only
when the operator
and all other person-
nel in the work area
are wearing ANSI Z87 eye protec-
tion equipment, and when
required, other appropriate protec-
tion equipment such as head, hear-
ing and foot protection equipment.
Serious eye or permanent hearing
loss could result.
• Assuring that the tool is kept in safe
working order as described in this
manual.
EMPLOYER'S RESPONSIBILITY:
• Selecting an appropriate tool actua-
tion system, taking into considera-
tion the work application for which
the tool is used.
• Ensuring that this manual is avail-
able to operators and personnel
performing maintenance.
• The safe use of the tool.
• Enforcing that the
tool is used only
when the operator
and all other person-
nel in the work area
are wearing ANSI Z87 eye protec-
tion equipment, and when
required, other appropriate protec-
For parts, product & service information
visit www.chpower.com

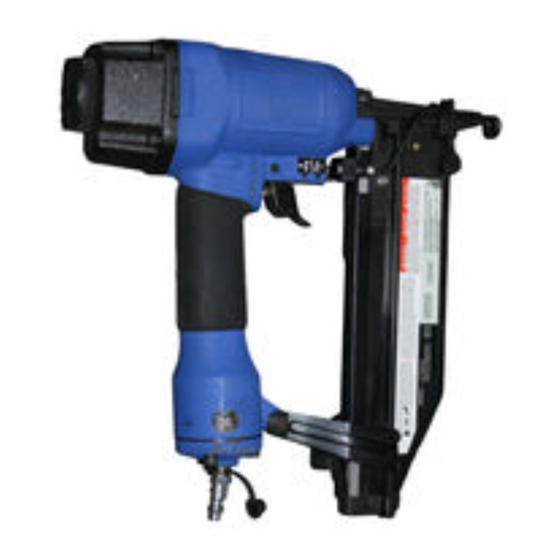

Model NB0064
Finishing
Nailer
Model NB0064
Locate model and vendor date code
on tool magazine and cap and record
below:
Model No. ________________________
Vendor Date Code ________________
Retain these numbers for
future reference.
tion equipment such as head, hear-
ing and foot protection equipment.
Serious eye or permanent hearing
loss could result.
• Assuring that the tool is kept in
safe working order as described in
this manual.
• Assuring the proper maintenance
of all tools in employer's possession.
• Ensuring that tools which require
repair are not further used before
repair. Tags and physical segrega-
tion are recommended means of
control.
Danger indicates
DANGER
!
an imminently
hazardous situation which, if not
avoided, WILL result in death or seri-
ous injury.
IN272000AV 12/02
