Setup Guide for the Polycom SoundStation IP 7000 Phone
Console Interconnect Cable
1 - 10
To connect microphones to a two-phone setup:
Connect the free end of a microphone cable to the available microphone
>>
connector on one of the phones. It does not matter which phone you attach
the microphone to.
If you want to attach two analog expansion microphones, connect the
other analog expansion microphone to the microphone connector on the
other phone.

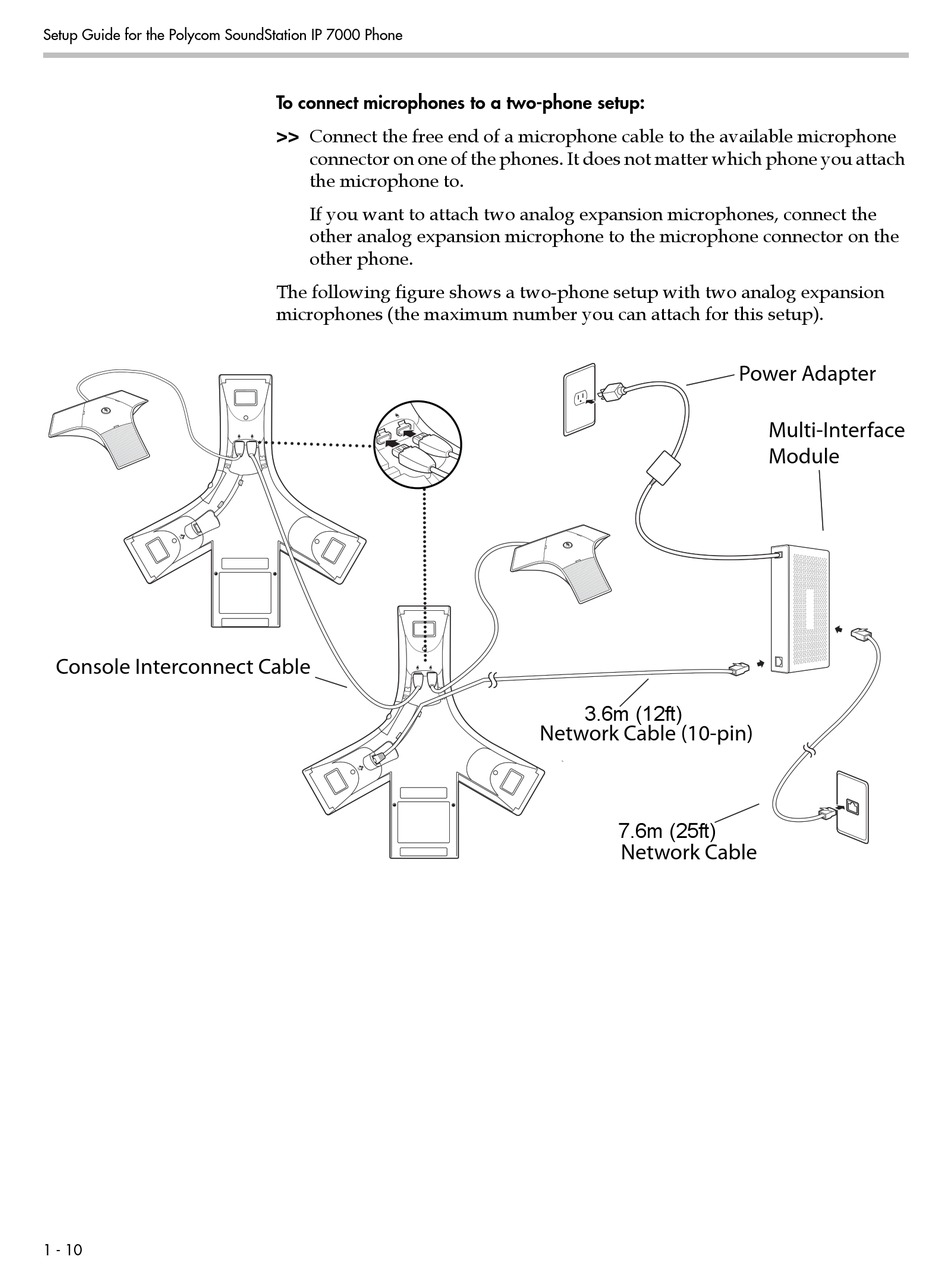

The following figure shows a two-phone setup with two analog expansion
microphones (the maximum number you can attach for this setup).
12-foot
3.6m (12ft)
Network Cable (10-pin)
25-foot
7.6m (25ft)
Network Cable
Power Adapter
Multi-Interface
Module
