Summary of Contents for Williams Sound PPA VP 37

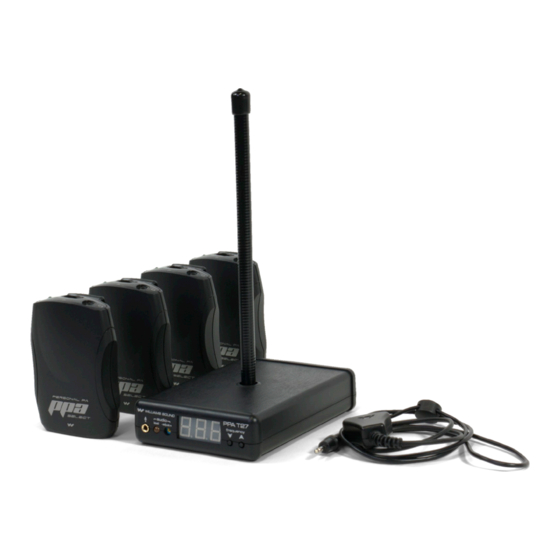

- Page 1 Model PPA VP 37 Wide-Band FM Wireless Listening System Manual and User Guide Transmitter Model PPA T27 Receiver Model PPA R37 Optional Receiver Model PPA R35-8 MAN 159D...
- Page 2 Model PPA VP 37 Wide-Band FM Wireless Listening System...
-
Page 3: Table Of Contents
Model PPA VP 37 Wide-Band FM Wireless Listening System Model PPA VP 37 PERSONAL PA Value Pack System ® Contents System Overview ..................4 Setting up the PPA VP 37...............5 Antenna Connection................5 Power Connection ................6 Selecting a Frequency ...............6 Connecting an Audio Source .............6 Adjusting the Audio Source ...............7... -
Page 4: System Overview
Sound. The PPA VP 37 System is a Wideband FM Listening System which operates in the 72-76 MHz frequency band. Designed for hearing assistance in places of public access, the PPA VP 37 is for those who need help overcoming background noise, reverberation, or distance from the sound source. -
Page 5: Setting Up The Ppa Vp 37
2. Install the Antenna. Gently thread the ANT 021 rubber duckie antenna onto the stud recessed in the hole on the top of the transmitter. FCC rules allow only the use of antennas provided by Williams Sound. To use a remote antenna supplied by Williams Sound, the antenna cap may be removed by turning it counter-clockwise with a pliers or wrench. -
Page 6: Power Connection
Model PPA VP 37 Wide-Band FM Wireless Listening System 3. Connect the Power. Locate the TFP 036 power supply cord equipped with the 5-pin DIN connector, then plug the connector into the “Power In” jack located in the back of the T27. Plug the power supply into the AC outlet. -
Page 7: Adjusting The Audio Source
Model PPA VP 37 Wide-Band FM Wireless Listening System 6. Adjusting the Audio Source. With the audio source playing, use a small screwdriver or tuning wand to rotate the “Adjust” control on the front of the T27:1) clockwise to increase the audio level; or 2) counterclockwise to decrease the audio level. -
Page 8: Safety Information
Model PPA VP 37 Wide-Band FM Wireless Listening System Receiver Safety Information HEARING SAFETY: CAUTION! The receiver is designed to amplify sounds to a high volume level which could potentially cause hearing damage if used improperly. To protect your hearing and the hearing of others: 1. -
Page 9: Recycling Instructions
Model PPA VP 37 Wide-Band FM Wireless Listening System Recycling Instructions Help Williams Sound protect the environment! Please take the time to dispose of your equipment properly. Product Recycling Please do NOT dispose of your Williams Sound equipment in the household trash. -
Page 10: Receiver Instructions
Model PPA VP 37 Wide-Band FM Wireless Listening System PPA R37 Receiver Instructions PPA R37 is a 17-channel receiver operating on the 72-76 MHz bandwidth. Features: seek-button channel selection, channel-lock capability, battery- saving sleep mode, on/off volume control, power/low battery indicator, stereo/mono earphone jack. - Page 11 Model PPA VP 37 Wide-Band FM Wireless Listening System 3. Turn receiver on by turning up the volume control. The green power LED will blink and then stay on continuously. 4. Set receiver frequency to match transmitter frequency. Press the Channel Seek button inside the battery compartment once to seek an active transmitter.
-
Page 12: Ppa R35-8 Receiver Instructions
Model PPA VP 37 Wide-Band FM Wireless Listening System Receiver Model PPA R35-8 (optional) The PPA R35-8 is an eight channel receiver, operating on 72-76 MHz bandwidth. It features a channel selection knob, on/off volume control, LED power and low battery indicator, and an earphone jack (See Figure 5). - Page 13 Plug the earphone into the “Headphone” jack on the top of the unit. Only monophonic earphones will operate properly. If stereo headphones are used, sound will be heard only in one side. Williams Sound evaluates each earphone and headphone used with the PPA PPA R35-8 receiver; we can only assure optimum performance when Williams Sound earphones and headphones are used.
-
Page 14: Receiver Belt Clip Instructions
Model PPA VP 37 Wide-Band FM Wireless Listening System Belt Clip Installation for PPA R37 and PPA R35-8 To Install: Position the belt clip on the rear of the PPA R37 or PPA R35-8 receiver as shown in Figure 6. Turn the belt clip 180º left or right as shown in Figure 6. -
Page 15: Using A Receiver With A Hearing Aid
Model PPA VP 37 Wide-Band FM Wireless Listening System Using A Receiver With A Hearing Aid Williams Sound PPA R37 and PPA R35-8 receivers can be used with hearing aids using three different methods: Neckloop Telecoil Coupler Neckloops are cords which hang around the neck and couple magnetically with T-Coil equipped hearing aids. -
Page 16: Battery Information
Replace the battery. The indicator light may still be on, even with a battery that is weak. Do not leave dead batteries in the receivers. Battery corrosion is not covered by the Williams Sound five-year warranty. Recommended Batteries For Receiver: •... -
Page 17: Troubleshooting Guide
• If you are not using an input signal from a sound system, make sure the Williams Sound microphone is plugged into the “Mic” jack on the front of the T27 transmitter. - Page 18 Model PPA VP 37 Wide-Band FM Wireless Listening System Sound through receivers is loud, but distorted. Noise (room noise or electronic noise) seems to grow after talking stops. Audio Indicator Light is continuously on. • Turn the screwdriver-adjust audio level control on the front of the T27 transmitter counter-clockwise to decrease the audio level.
-
Page 19: System Specifications
Model PPA VP 37 Wide-Band FM Wireless Listening System Personal PA Value Pack System Specifications PERSONAL PA Transmitter Model T27 Dimensions & Weight: 4.1” W x 6.1” L x 1.3” H (104.1 mm x 154.9 mm x 33 mm) 7.8 oz. (221 g) - Page 20 Model PPA VP 37 Wide-Band FM Wireless Listening System PPA Select™ Receiver (Model PPA R37) Dimensions: 4.1” H x 2.85 W x 1.38” D (104 mm x 72 mm x 35 mm) Weight: 4.6 oz (130 g) with batteries, 2.6 oz w/o batteries (73g)
- Page 21 Model PPA VP 37 Wide-Band FM Wireless Listening System Personal PA Receiver (Model PPA R35-8) Dimensions: 4.5” H x 2.85 W x 1.2” D (115 mm x 72 mm x 30 mm) Weight: 4.6 oz (130 g) Color: Black Battery Type: Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx.
- Page 22 Microphones, earphones, headphones, batteries, chargers, cables, carry cases, and most other accessory products carry a 90-day warranty. Williams Sound has no control over the conditions under which this product is used. Williams Sound, therefore, disclaims all warranties not set forth above, both express...
-
Page 23: Repair Services
Model PPA VP 37 Wide-Band FM Wireless Listening System Repair Services If you experience difficulty with your system, call Toll-Free for customer assistance: 1-800-843-3544 (U.S.A.) or 1-952-943-2252 (World) If it is necessary to return the system for service, your Customer Service Representative will give you a Return Authorization Number (RA) and shipping instruction. - Page 24 Model PPA VP 37 Wide-Band FM Wireless Listening System 10300 Valley View Rd • Eden Prairie, MN 55344 800-328-6190 / 952-943-2252 • FAX: 952-943-2174 www.williamssound.com ©2013 Williams Sound • All Rights Reserved MAN 159D...
