  • Page 1 ANUAL AND UIDE ® Personal PA Value Pack System Wide-Band FM Wireless Listening System Model PPA VP 37 Transmitter Model PPA T27 Receiver Model PPA R37 Optional Receiver Model PPA R35-8 MAN 159A © 2011 Williams Sound, LLC...

  • Page 3: Table Of Contents

    ® PERSONAL PA PPA VP 37) ALUE YSTEM ODEL & U NSTALLATION UIDE ANUAL ONTENTS System Overview ........4 T27 Transmitter Instructions .

  • Page 4: System Overview

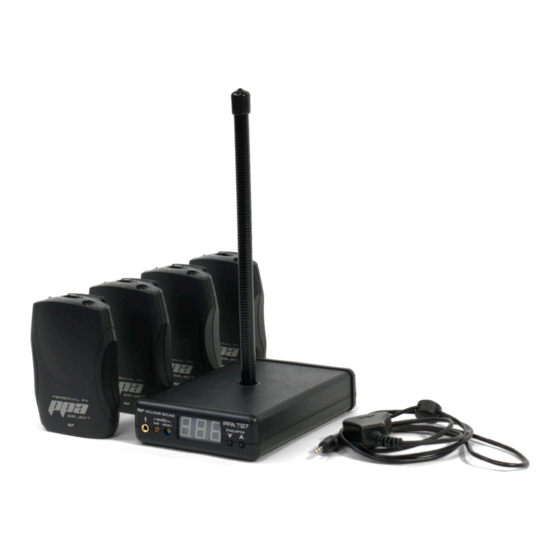

    Listening System which operates in the 72-76 MHz frequency band. Designed for hearing assistance in places of public access, the PPA VP 37 is for those who need help overcoming background noise, reverberation, or distance from the sound source. The versatile PPA VP 37 is easily integrated with your existing sound system or can be used with a microphone as a stand-alone system.

  • Page 5: T27 Transmitter Instructions

    NTENNA recessed in the hole on the top of the transmitter. FCC rules allow only the use of antennas provided by Williams Sound. To use a remote antenna supplied by Williams Sound, the antenna cap may be removed by turning it counter-clockwise with a pli-...

  • Page 6: Power Connection

    have any questions. Locate the TFP 036 power supply cord equipped with the 5-pin 3: C ONNECT THE OWER DIN connector, then plug the connector into the “Power In” jack located in the back of the T27. Plug the power supply into the AC outlet.

  • Page 7: Connecting An Audio Source

    On the front of the T27, a 3.5mm “Mic Input” jack is available to connect a Williams Sound electret microphone. Connect the desired audio source to the T27 transmitter and proceed to Step 6.

  • Page 8: Safety Information

    ECEIVER AFETY NFORMATION EARING AFETY CAUTION! The receiver is designed to amplify sounds to a high volume level which could potentially cause hearing damage if used improperly. To protect your hearing and the hearing of others: 1. Make sure the volume is turned down before putting on the earphone or headphone before adjusting the volume to a comfortable level.

  • Page 9: Recycling Instructions

    Help Williams Sound protect the environment! Please take the time to dispose of your equipment properly. Please do NOT dispose of your Williams Sound equipment in Product Recycling for Customers in the European Union: the household trash. Please take the equipment to an electron- ics recycling center;...

  • Page 10: Receiver Instructions

    "On" Indicator Jack PPA R37 Top PPA R37 Front 1. Insert two (2) AA batteries ensuring correct polarity. If PERATING THE ECEIVER rechargeable NiMH batteries are to be used with the receiver and a Williams Sound charger, make sure the Alkaline/NiMH...
  • Page 11 switch inside the battery compartment is set to NiMH before charging. See FIG 4. 2. Insert headphone, earphone or neck- loop into the stereo output jack. 3. Turn receiver on by turning up the volume control. The green power LED will turn on. FIG 4 4.

  • Page 12: Ppa R35-8 Receiver Use Instructions

    PPA R35-8 ( The PPA R35-8 is an eight channel receiver, operating on ECEIVER ODEL OPTIONAL 72-76 MHz bandwidth. It features a channel selection knob,on/off volume control, LED power and low battery indicator, and an ear- phone jack (See Figure 5A). .
  • Page 13 Sound evaluates each earphone and headphone used with the PPA PPA R35-8 receiver; we can only assure optimum performance when Williams Sound earphones and headphones are used. Turn the receiver on by rotating the Volume control knob. The ON PERATING THE ECEIVER indicator should illuminate RED.

  • Page 14: Ppa R37/Ppa R35-8 Belt Clip Instructions

    PPA R37 PPA R35-8 NSTALLATION FOR Position the belt clip on the rear of the PPA R37 or PPA R35-8 NSTALL receiver as shown in Figure 6A. Turn the belt clip 180º left or right as shown in Figure 6B. The belt clip is now installed and ready for use.

  • Page 15: Usinga Receiver Witha Hearing Aid

    Williams Sound PPA R37 and PPA R35-8 receivers can be used SING ECEIVER EARING with hearing aids using three different methods: Neckloops are cords which hang around the neck and couple mag- ECKLOOP ELECOIL OUPLER netically with T-Coil equipped hearing aids.

  • Page 16: Battery Information

    Replace the battery. The indicator light may still be on, even with a battery that is weak. Do not leave dead batteries in the receivers. Battery corrosion is not covered by the Williams Sound five-year warranty. !! WARNING !!

  • Page 17: Troubleshooting Guide

    If you are not using an input signal from a sound system, make sure the Williams Sound microphone is plugged into the “Mic” jack on the front of the T27 transmitter. Make sure the antenna is installed and connected properly. See page 5.
  • Page 18 Make sensitive equipment more immune to RFI/EMI. The manufacturers of your audio equipment may offer applica- tion notes for this purpose. Williams Sound offers a docu- ment giving suggestions for improving RF immunity in existing audio equipment. (Technical Bulletin: Buzz Or Hum...

  • Page 19: Warranty

    ARRANTY under carefully controlled conditions to provide you with many years of reliable service. Williams Sound warrants the Personal PA Value Pack System against defects in materials and workmanship for five (5) years. During the first five years from the purchase date, we will promptly repair or replace the Personal PA Value Pack System.
  • Page 20 If it is necessary to return the system for service, your Customer Service Representative will give you a Return Authorization Number (RA) and shipping instruction. Pack the system carefully and send it to: Williams Sound Attn: Repair Dept. 10300 Valley View Rd Eden Prairie, MN 55344 USA Your warranty becomes effective the date you purchase your sys- tem.

  • Page 21: System Specifications

    PA V ERSONAL ALUE YSTEM PECIFICATIONS Dimensions & Weight: 4.1" W x 6.1" L x 1.3" H PERSONAL PA T RANSMITTER ODEL (104.1 mm x 154.9 mm x 33 mm) 7.8 oz. (221 g) Color: Black Power (U.S./Canada): 105-130 VAC, 50-60 Hz, 3.2 W at 120 VAC Operating Frequencies: 17 Channels: 72.100 (CH A), 72.300 (CH B), 72.500 (CH C),...
  • Page 22 PPA SELECT™ R PPA R37) ECEIVER ODEL Dimensions: 4.1” H x 2.85 W x 1.1” T (104 mm x 72 mm x 28 Weight: 4.6 oz (130 g) with batteries, 2.6 oz w/o batteries (73g) Color: Black Battery Type: Two (2) AA non-rechargeable alkaline batteries (BAT 001), up to 50 hours battery life;...
  • Page 23 PERSONAL PA R PPA R35-8) ECEIVER ODEL Dimensions: 4.5” H x 2.85” Wx 1.1” T (114.3 mm x 72.4 mm x 28 mm) Weight: 4.6 oz (130 g) Color: Black Battery Type: Two (2) AA non-rechargeable alkaline batteries (BAT 001), up to 50 hrs. battery life; or Two (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, up to 32 hrs.
