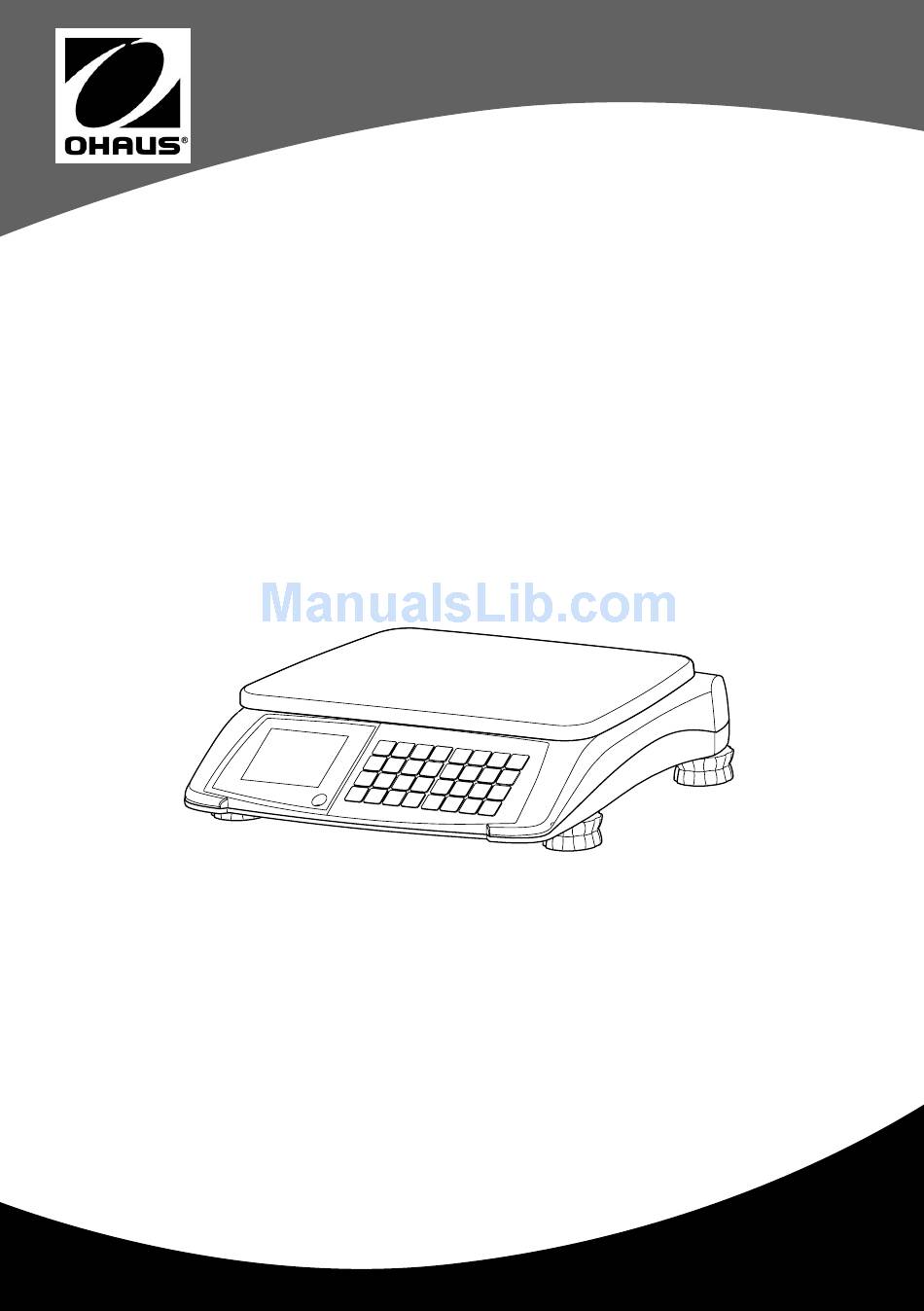

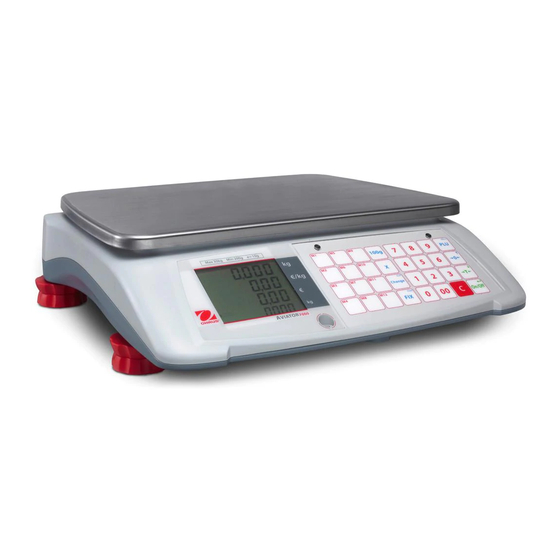

  • Page 1 This document hosted by: www.oldwillknottscales.com Operator Manual OHAUS Aviator 7000...
  • Page 2 Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...

  • Page 3: Table Of Contents

    Weighing with 100 g (1/2 lb / 1/4 lb) price unit ......22 3.11 Switching weighing unit between kg and lb ........23 3.12 Displaying the price to pay in EURO ..........23 3.13 Backlight function..............23 3.14 Ticket printing .................24 3.15 Printing reports ...............26 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...
  • Page 4 Accessories ................35 Compliance ................35 Important notice for verified weighing instruments used in Europe .36 Legal for Trade ................36 Annexe ..................37 Disposal in Europe ..............37 FCC Note ................37 ISO 9001 Registration .............38 Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...

  • Page 5: Your New Retail Scale

    PLU preset keys 2a Advanced function keys, Basic (rest of the world) 2b Advanced function keys, Europe 2c Advanced function keys, North America Numeric keypad Basic function keys 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...
  • Page 6 Total The displayed total price is added into the accumulation memory Battery is approx. full 2/3 battery power left 1/3 battery power left Battery power at a critical level Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...
  • Page 7 The following connections are located on the underside of the scale: Adjustable feet Tower mounting Grips Power supply connection Power supply storage box Calibration button Interface connection; RS232/USB, depending on cable Battery switch: NiMH (rechargeable) – D-cell (non-rechargeable) 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...

  • Page 8: Definition Of Signal Warnings And Symbols

    Attention For important information about the product Note For useful information about the product 1.3.2 Warning Symbols General hazard Electrical shock hazard Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...

  • Page 9: Safety Precautions

    Disconnect the equipment from the power supply when cleaning. f Do not operate the equipment in hazardous or unstable environ- ments. f Service should only be performed by authorized personnel. 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...

  • Page 10: Setting Up

    To level the scale, turn the scale’s adjustable feet until the air bubble in the level indicator is in the inner circle. Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...

  • Page 11: Inserting The Batteries

    4. Turn over the scale and ensure that the battery switch is set to the NiMH correct position: – for rechargeable D-cell batteries: "NiMH". – for non-rechargeable D-cell batteries: "Battery" Battery 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...

  • Page 12: Connecting To Mains Power

    If cleaning is required, use a soft cloth dampened with water and a mild detergent. Attention Do not use harsh chemicals to clean the balance, as the finish may be damaged. Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...

  • Page 13: Operation

    P appears in the weight display. 3. Enter the PLU number (between 1 and 9999). 0 ... 9 4. Wait until the scale beeps twice. The PLU is stored and all displays return to 0. 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...
  • Page 14 2. Enter the corresponding PLU number. 0 ... 9 The PLU is called up automatically. Unit price and price to pay are displayed. 3. Remove the item from the scale. All displays return to 0. Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...
  • Page 15 1. Place the item on the scale. 2. Press the corresponding preset key, e.g., M1. Unit price and price to pay are displayed. 3. Remove the item from the scale. All displays return to 0. 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...
  • Page 16 To call up the second PLU, press the corresponding preset key M1 M1 twice, e.g., M1, M1. Unit price and price to pay of the second PLU are displayed. 3. Remove the item from the scale. All displays return to 0. Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...

  • Page 17: Using Tare

    2. Place the item with container or wrapping material onto the scale. 3. Carry out pricing as described above. 4. Remove the item with container or wrapping material from the scale. All displays return to 0. 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...

  • Page 18: Zeroing

    3. Enter the number of items (1 ... 99). 0 ... 9 The price to pay is displayed. • The unit price is stored until by-count operation is ended. • Use the C key to leave by-count operation. Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...

  • Page 19: Accumulating

    7. To clear the total, press and hold the C key. The total is cleared. If a printer is connected, a printout can be generated by pressing the Enter (On/Off) key twice. After printing, the total is cleared automatically. 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...

  • Page 20: Change Function

    3. Enter the customer‘s payment and press the FIX key. 0...9 The amount of change is displayed. 4. Press the C key to finish the change function. 5. Clear total as described above. Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...

  • Page 21: Fix Unit Price And/Or Tare

    8. Press the FIX key again to clear the unit price and tare. • To fix the price only, just begin with step 2. • To fix the tare weight only, just leave out steps 2 and 3. 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...

  • Page 22: Hold Function

    3. Enter the unit price per 100 g (1/2 lb / 1/4 lb). The unit price per 100 g (1/2 lb / 1/4 lb) and the price to pay are displayed. 4. Remove the item from the scale. All displays return to 0. 100 g (1/2 lb / 1/4 lb) mode stays active until the 100 g (1/2 lb / 1/4 lb) key is pressed again. Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...

  • Page 23: Switching Weighing Unit Between Kg And Lb

    When the scale is not used for 15 seconds, the backlight automatically switches off. When a weight is placed on the scale or when a key is pressed, the backlight switches on again. 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...

  • Page 24: Ticket Printing

    2010-10-10 10:10 ----------------------------------------- PLU TEXT kg (pcs) €/kg(pcs) € ----------------------------------------- PLU 5 0.110 45.67 5.02 Preset 1 1.165 4.56 5.31 Non PLU 0.95 4.75 ----------------------------------------- Total 15.08 Cash 20.00 ----------------------------------------- Change 4.92 Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...
  • Page 25 The total price to pay and the number of items are displayed. 5. If desired, enter the amount of change as described above. 6. To initiate printing, press the Enter (On/Off) key twice. 7. Press the C key to cancel the transaction. 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...

  • Page 26: Printing Reports

    Report number 25 Start time 2010-10-10 20:53 To time 2010-10-16 21:02 Item kg/pcs/time € By Weight 35.378 323.79 By Count 691.56 PLU Sales 923.44 Non PLU 191.91 Sales Total 1115.35 127.89 Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...
  • Page 27 5.02 Preset 1 1.165 5.31 Non PLU 4.75 ----------------------------------------- Sale Log Ticket number 26 2010-10-10 10:13 Item kg/pcs/time € PLU 3 0.155 15.02 Non PLU 2.97 Preset 2 1.855 7.39 ----------------------------------------- 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...

  • Page 28: Operator Setup

    3. If you do not want to save, use the Enter (On/Off) key to toggle save abort between SAVE and ABORT. 4. Press the Menu (PLU) key a third time to return to the weighing 0.000 mode. Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...

  • Page 29: Operator Setup Overview

    30 minutes of non-use Sleep function after 15 minutes of non-use, no automatic power off Sleep function after 15 minutes of non-use, automatic power off after 30 minutes of non-use 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...
  • Page 30 EUR. You are asked to enter the conversion rate from EUR into the local currency. When pressing the EUR key, EUR is converted into the local currency. Only EUR is displayed. Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...
  • Page 31 7 data bits, parity even, 2 stop bits 7 data bits, parity odd, 2 stop bits 7 data bits, no parity, 2 stop bits 8 data bits, no parity, 2 stop bits 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...

  • Page 32: Setting Date And Time

    4. Use the Arrow down (Tare) key or Arrow up (Zero) key to change 2010 the year. 5. Repeat steps 3 and 4 to set month, day, hour, minute and second. month 6. End setup by pressing the Menu (PLU) key three times. 0.000 Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...

  • Page 33: What Do You Do If

    PLU No. too high f Enter PLU No. from 1 to 99 No PLU PLU not found f Store PLU nnnnnn Overload f Reduce load uuuuuu Load too small f Re-zero the scale 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...

  • Page 34: Technical Data And Accessories

    6 Alkaline or 6 NiMH D-cells Charging current 500 mA NiMH battery capacity 7000 mAh recommended Interface 1 connector on the under- RS232C or USB, depending on the side interface cable Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...

  • Page 35: Accessories

    Voltage Directive 2006/95/EC and the Non-automatic Weighing Instru- ments Directive 2009/23/EC. The complete Declaration of Conformity is available online at http://europe.ohaus.com/europe/en/home/support/compliance/ declaration-of-conformity.aspx. CAN/CSA C22.2 No. 61010-1-07, UL Std No. 61010-1 (2nd edition) 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...

  • Page 36: Important Notice For Verified Weighing Instruments Used In Europe

    To prevent access to calibration and metrological settings, the scale must be sealed using a paper seal or wire seal as shown below. Paper seal Wire seal Operator Manual Aviator 7000 Order number 72246392C 11/13 OHAUS...

  • Page 37: Annexe

    Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...

  • Page 38: Iso 9001 Registration

    ISO 9001 Registration In 1994, Ohaus Corporation, USA, was awarded a certificate of reg- istration to ISO 9001 by Bureau Veritus Quality International (BVQI), confirming that the Ohaus quality management system is compliant with the ISO 9001 standard's requirements. On May 21, 2009, Ohaus Corporation, USA;...
  • Page 39 11/13 Order number 72246392C Operator Manual Aviator 7000 OHAUS...
  • Page 40 Subject to technical changes © 2013 Ohaus Corporation Printed in Switzerland Order number 72246392C www.ohaus.com...
