Summary of Contents for OHAUS Courier 7000 i-C71M15R

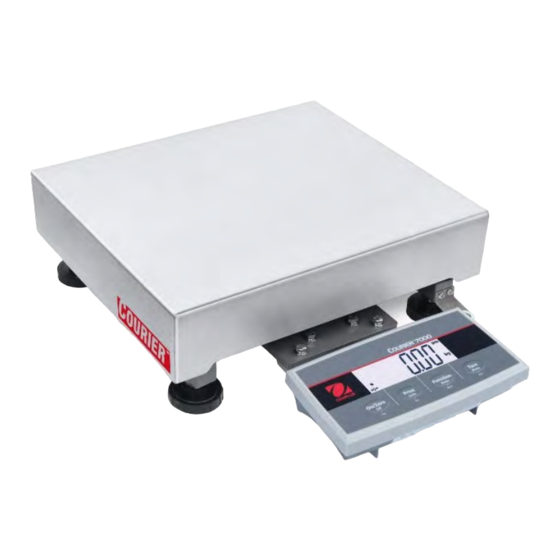

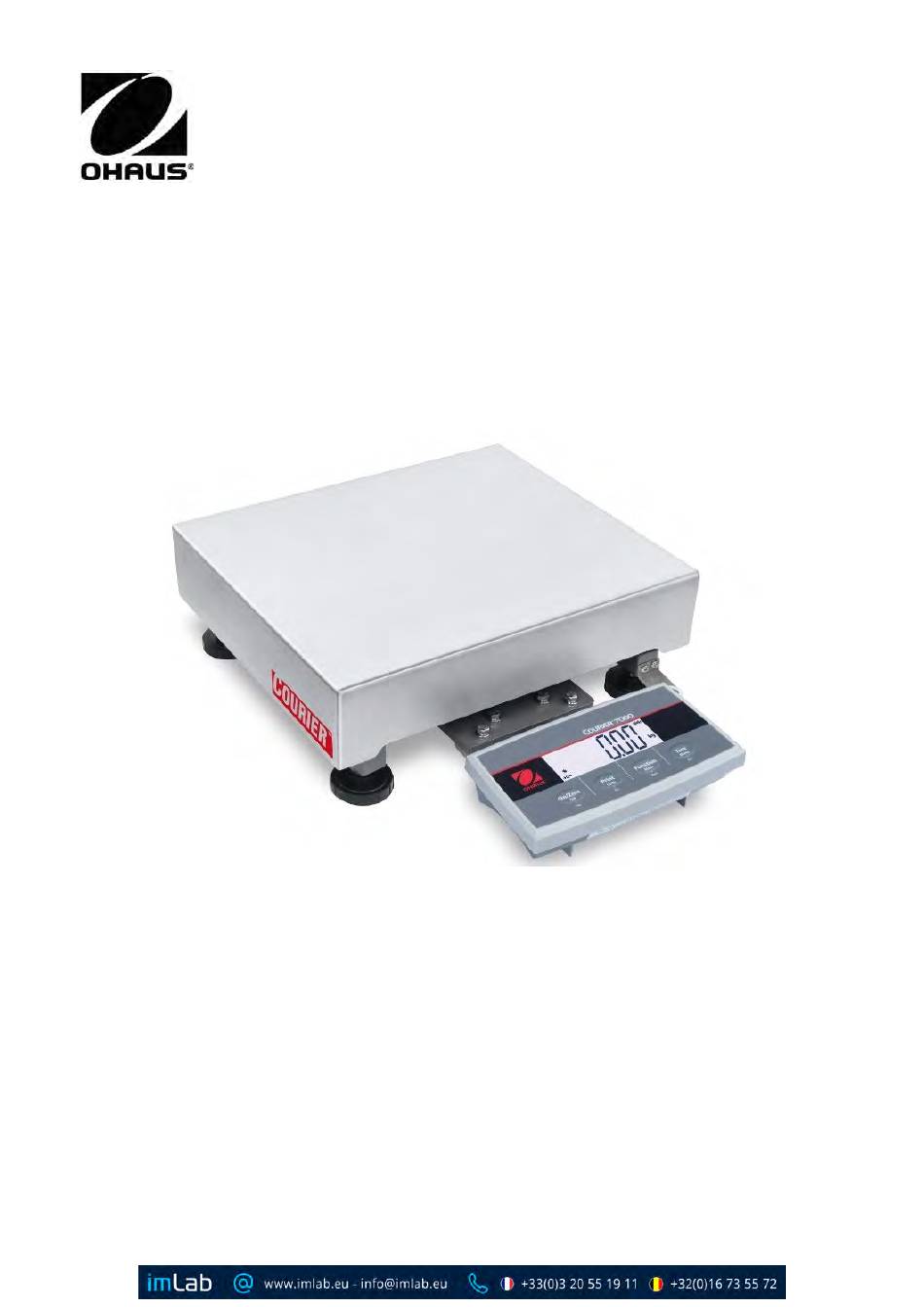

- Page 1 Courier 7000 Instruction Manual...
- Page 3 REVISION HISTORY Date Version Description March 30, 2023 Initial release July 7, 2023 Updated the company address in the back cover and FCC page August 22, 2023 Updated the battery life in specifications...
-
Page 5: Table Of Contents
Courier 7000 EN-1 TABLE OF CONTENTS INTRODUCTION ............................3 1.1. Safety Precautions ...........................3 1.2. Intended Use ............................3 1.3. Overview of Parts and Controls .......................4 1.4. Control Functions .............................4 INSTALLATION ............................6 Packing List ..............................6 Unpacking the Scale ..........................6 Setup ................................7 2.3.1 Power Supply Connection .........................7 2.3.2 PC Connection ..........................7 2.3.3... - Page 6 Table of GEO Code Values ........................49 COMPLIANCE ............................50 APPENDICES ............................52 11.1 MT Standard Continuous Output ......................52 11.2 MT-SICS Commands ..........................54 11.3 OHAUS Commands ..........................55 11.4 OH-Continuous Print ..........................56 11.5 Column Kit Installation........................... 57 LIMITED WARRANTY ............................58...
-
Page 7: Introduction
Any other type of use and operation beyond the limits of technical specifications, without written consent from OHAUS, is considered as not intended. This instrument complies with current industry standards and the recognized safety regulations;... -
Page 8: Overview Of Parts And Controls
EN-4 Courier 7000 1.3. Overview of Parts and Controls Figure 1-1 i- Courier 7000 Item Description Item Description Front Housing RS232 Connector Control Panel USB Type-C Connector Rear Housing Mini DIN Connector Screws (4) Load Cell Connector Battery Cover 1.4. Control Functions Figure 1-2 i- Courier 7000 Control Panel... - Page 9 Courier 7000 EN-5 Button Primary Function On/Zero Print Function Tare (Short Press) If the scale is off, If an interface is This key initiates Performs a tare short press to turn enabled, the current the specific operation. on the scale. display value can be function in transmitted to the...
-
Page 10: Installation
EN-6 Courier 7000 2. INSTALLATION Packing List Item Description Picture Quantity Courier 7000 scale USB cable AC adapter Unpacking the Scale Steps Take out the documents, cable and power adapter, then put them to the side. Remove the foam blocks. Foam block Take the Courier 7000 scale out of the box and put... -
Page 11: Setup
Courier 7000 EN-7 Setup 2.3.1 Power Supply Connection The Type-C cable and the AC adapter can supply power to the scale. USB Power Use the Type-A end of the USB cable to connect to the Mounting hole Use the other side of the USB cable to connect the Type A terminal through the mounting hole in the bracket. -
Page 12: Direct Wall Mounting
2.3.4 2nd Display Installation (available as option) OHAUS offers a remote 2nd Display as an option which can be either mounted to a wall or desk, or mounted on an optional column. Commonly this is used for displaying weight results to a customer in a retail application. - Page 13 Courier 7000 EN-9 Column Kit Display To install the 2nd display on the column kit: Use the male end of the 2 display to connect the Mini DIN of the terminal through the column kit. Column kit Male end Install the 2 display on the column kit.
-
Page 14: Leveling The Equipment
EN-10 Courier 7000 Leveling the Equipment To ensure accuracy, proper performance and safety, locate and operate the base on a stable, level surface. Avoid locations with rapid temperature changes or excessive dust, air currents, vibrations, electromagnetic fields or heat. Level the base by adjusting the four leveling feet until the bubble in the level indicator is centered. A wrench may be needed to loosen the locking nut above each leveling foot. -
Page 15: Operation
Courier 7000 EN-11 3. OPERATION Turning On/Off the Scale To turn on the scale, you can press the On button. The scale performs a display test, and momentarily displays the software version, the GEO value and then enters the last active weighing mode. LFt ON NOTE: If the hardware lock switch is enabled, will also be displayed briefly. -
Page 16: Totalization
EN-12 Courier 7000 3.5.2 Totalization This application is used to accumulate the multiple weights manually or automatically. Statistical data (the number of samples, the total weight, the average weight, the minimum weight, the maximum weight and the difference in weight) is stored in memory for review and printing. Application Settings There are three totalization options: Off (... -
Page 17: Dynamic Weighing
Courier 7000 EN-13 Printing Totalization Result and Format tABLE Refer to the steps below, you can enable the Table on ( ) option in the menu. mM.E.N.U Long press the Menu button until you see C.A.L Release the Menu button and . - Page 18 EN-14 Courier 7000 Entering the Dynamic Weighing Mode To enter the dynamic weighing mode, you can do the steps that follow. dyNamM Long press the button Function Mode until appears on the display. rEAdY Release the button Function Mode, and appears on the display.
-
Page 19: Weight Alert
Courier 7000 EN-15 3.5.4 Weight Alert This application is used to judge if the weight of the item is within the target limit. There are 2 limit values for setting, the limit 1 is normally open as default. Setting the Limit Values ALERt Long press the Mode button until appears on the display. -
Page 20: Menu Settings
EN-16 Courier 7000 4. MENU SETTINGS The User Menu allows the users to customize the scale settings. Note: Sub-menu for options (USB, Ethernet and Wireless in the table below) will be active when the specific board is installed. Refer to the accessory manuals, you can find the additional setting information. Menu Navigation 4.1.1 User Menu (In segments) C.A.L... -
Page 21: Button Navigation
Courier 7000 EN-17 Some modes/units may not be available in all models. When LEGAL FOR TRADE is turned ON (the security switch S1 is in the locked position), the menu settings will be affected as below: • Calibration function is disabled. Zero Range setting is locked at 2%. -
Page 22: Initial Calibration
EN-18 Courier 7000 4.2.1 Initial Calibration When the scale is operated for the first time, a zero and span calibration are recommended to ensure accurate weighing results. Before performing the calibration, be sure to have the appropriate calibration weights as listed in table 4-1. Ensure that the LFT switch/calibration lock is set to the unlocked position. -
Page 23: Linearity Calibration [Lin]
Courier 7000 EN-19 NOTE: CAL E • If the scale does not perform the calibration successfully, is displayed for 3 seconds and the previous calibration data is restored. CAL E • After waiting for 40 seconds, if the scale still fails to perform the calibration, is displayed for 3 seconds, and the previous calibration data is restored. -
Page 24: Calibration Test C.test
EN-20 Courier 7000 C.test 4.2.6 Calibration Test Calibration test procedures: mM.E.N.U Long press the Menu button until you see C.A.L Release the button and wait for the display to show . Press the Yes button. C.test Short press the No button several times to navigate until you see . -
Page 25: Readout Menu
Courier 7000 EN-21 Capacity Set the capacity of the scale or the first capacity of the scale. 1-999999 GrAd Grad Set the scale readability or the first readability of the scale. 0.0001~100 P.ZerO Power On Zero Zero the scale at Power On. = disabled. - Page 26 EN-22 Courier 7000 StAblE Stability Set the amount reading can vary before the stability symbol turns off. 0.5d = 0.5 of a scale division = 1 scale division = 2 scale divisions = 5 scale divisions [ZErO] Zero Set the percentage of scale capacity that can be zeroed. = zero range is within +/-2% 100% = zero range is within +/-100%...
-
Page 27: Unit Menu
Courier 7000 EN-23 Unit Menu U.N.I.t You can activate the desired units with the menu Reset Gram (g) Kilogram (kg) Pound (lb) Ounce (oz) Pound:Ounce (lb:oz) NOTE: • Available units vary by model. In addition, due to national laws, the terminal may not include some of the units listed. -
Page 28: Print Menu
EN-24 Courier 7000 StOP Stop bit Set the number of stop bits. 1 bIt = 1 stop bits = 2 stop bits [H.SHAKE Handshake Set the flow control method. Hardware handshaking is only available for COM1 menu. NONE = no handshaking ON-OFF = XON/XOFF software handshaking Alt.P... - Page 29 Courier 7000 EN-25 ASSIGN Assignment Demand = printing occurs when Print key is pressed. On Stable = printing occurs each time the stability criteria are met On Accept = printing occurs each time the display is within the Weight Alert accept range and stability criteria are met.
- Page 30 = the Tare weight is printed Header Set the status. = disabled = the Header is printed NOTE: Refer to 11.3 OHAUS Commands to lean how to enter the header text. Footer Set the status. = disabled = the Footer is printed NOTE: Refer to 11.3 OHAUS Commands to lean how to enter the footer text.
-
Page 31: Lock Button Configuration
OHAUS ScaleMate software on the PC. In OHAUS ScaleMate > Print, you can select the print contents (Result, Gross, Net, Tare, Header, Footer, Mode, Unit and Info). After you select the wanted content, please click the Write button to transmit the data to the scale. -
Page 32: Legal For Trade
EN-28 Courier 7000 5. LEGAL FOR TRADE When the scale is used in trade or a legally controlled application, it must be set up, verified and sealed in accordance with local weights and measures regulations. It is the responsibility of the purchaser to ensure that all pertinent legal requirements are met. -
Page 33: Sealing
Courier 7000 EN-29 Sealing The scale is verified and must be sealed to prevent undetected access to the legally controlled settings. Refer to the illustrations below for sealing methods. -- Paper sealing: affix the sealing paper on the countersunk screw shown as Figure 5-2. -- Wire Sealing: replace the countersunk screw by a cross-drilled screw that can be found in the packaging box. -
Page 34: Communication
UPS WorldShip / FedEx Software Compatibility 6.1.1 UPS WorldShip The OHAUS UPS WorldShip Update Tool allows the UPS World software to recognize the scale. You can download the tool via the OHAUS website. Download the OHAUS UPS WorldShip Update Tool and decompress the installation package. - Page 35 (kg, lb or oz) nor does it make a conversion from one weighing unit to another. Make sure the correct weighing unit is selected on the scale before weighing. OHAUS Courier 7000 NOTE: Before you connect the scale to the PC, please install the OHAUS UPS WorldShip Update Tool.
-
Page 36: Fedex
EN-32 Courier 7000 6.1.2 FedEx Shipping Software Scale to PC connection Protocol Settings Terminal Settings FedEx USB HID Install the FedEx Ship Manager software on the PC. Start the FedEx Ship Manager software and go to Utilities to select Configure Scale. A window called configure scale appears on the screen. - Page 37 Courier 7000 EN-33 Shipping Software Scale to PC connection Protocol Settings Terminal Settings Baud rate: 4800; Parity: Even; RS232 FedEx 3835 Data Bit: 7; Stop bit: 1 bit USB CDC FedEx Ship Manager provides access only to COM ports 1-9 when using RS-232 to USB converter, assign the USB COM port through Device Manager to reflect as COM port 1-9 in advanced settings.
-
Page 38: Scale To Device Port Connections
EN-34 Courier 7000 Scale to Device Port Connections The Courier 7000 scale has a standard RS232 port and a USB type C port. 6.2.1 USB (Type C) Port The USB allows two types of USB communication to be configured including HID and CDC (virtual serial connections). -
Page 39: Rs232 Port
Courier 7000 EN-35 Press the Yes button, and r.E.S.E.t appears on the display. Short press the No button once, and ASSIGN appears on the display. Short press the Yes button to enter the sub menu. Short press the No button several times until the wanted protocol (NCI/8213/3835/SCP01) appears on the display. -
Page 40: Other Options (2Nd Rs232 Or Ethernet Or Wifi / Bluetooth Or 2Nd Display)
EN-36 Courier 7000 6.2.3 Other Options (2nd RS232 or Ethernet or WiFi / Bluetooth or 2nd Display) The scale can be set up to print and communicate with the other device via the 2nd RS232 or Ethernet or WiFi / Bluetooth. -
Page 41: 8213 Interface Protocol
Courier 7000 EN-37 Request scale to tare Command: T<CR> (54h,0dh) simulate TARE key <LF> <H1> <H2> <CR> <ETX> Change units of measure Command: U<CR> (55h,0dh) simulate UNIT key <LF> <U> <U> <CR> <LF> <H1> <H2> <CR> <ETX> (Ib/kg) simulate UNIT key <LF>... - Page 42 EN-38 Courier 7000 in Ib/oz/kg/g <STX> <W> <W> <W> <W> <W> <U> <U> <CR> in Ib/oz/kg/g <STX> <W> <W> <W> <W> <W> <U> <U> <CR> in Ib/oz/kg/g <STX> <sp> <W> <W> <W> <W> <W> <U> <U> <CR> in Ib:oz <STX> <W>...
- Page 43 Courier 7000 EN-39 Confidence <C> always 0 always 0 always 0 0=RAM ok Bit Definition 1=RAM error 0=Flash ROM ok 1=Flash ROM error always 0 always 0 parity Unrecognized Command Command: others Response <STX> <S> <CR> Definition of the Symbols and the Bits <STX>...
-
Page 44: 3835 Protocol
EN-40 Courier 7000 6.3.3 3835 Protocol 3835 Protocol Request displayed weight Command: W <CR>(57h, 0dh) over capacity <LF> <U> <U> <CR> <H1> <H2> <ETX> (invalid data) under capacity <LF> <U> <U> <CR> <H1> <H2> <ETX> (-20d) in Ib/oz/kg/g <LF> <p> <W> <W>... -
Page 45: Nci-Scp01 Protocol
Courier 7000 EN-41 6.3.4 NCI-SCP01 Protocol Command: W<CR> (57h 0dh), request current reading Response <LF>^^^^^^^^U <CR><LF>H <CR><ETX>---over capacity <LF>_ _ _ _ _ _ _ _U <CR><LF>H <CR><ETX>---under capacity <LF>- - - - - - - - U <CR><LF> H <CR><ETX>---zero-point error Note: U is 1,2,3 or 5 bytes according to current unit: kg, lb, pcs, g, oz, Ib:oz... - Page 46 EN-42 Courier 7000 Transaction String The length of each item in a transition string. Reading data--6 bytes Data polarity---1 byte: “-“ for negative, and followed the first digit, “ ” for positive. Decimal point--1 byte: “.“ Measure unit---1-5 bytes: “Ib”, “kg”, “Ib:oz”, “pcs”, “%”. Units are always lower case, left aligned. ...
-
Page 47: Maintenance
If the troubleshooting section does not resolve your problem, you can contact an authorized OHAUS Service Agent. For Service assistance in the United States, call OHAUS toll-free between 8:00 AM and 5:00 PM Eastern Standard Time. An OHAUS Product Service Specialist will be available to assist you. Outside the... -
Page 48: Accessory
EN-44 Courier 7000 8. ACCESSORY Item Description Picture Platform i-C71 Balltop for R base Platform i-C71 Rollertop for R base Platform i-C71 Balltop for X base Platform i-C71 Balltop for L base Platform i-C71 Rollertop for L base Platform i-C71 Rollertop for X base... - Page 49 Courier 7000 EN-45 Column Kit i-C71 CS RS232 Interface Kit Wi-Fi / Bluetooth Kit i-C71 Ethernet Interface i-C71 Auxiliary display i-C71 SF40 Printer Cable RS232 IBM 9P Male-to-Female...
-
Page 50: Technical Data
EN-46 Courier 7000 9. TECHNICAL DATA Specifications Equipment Ratings: Indoor use only Altitude: 2,000m/6,562ft Operating temperature: -10°C to 40°C (14°F to 104°F) Humidity: Maximum relative humidity 80% for temperatures up to 31°C (87.8°F) decreasing linearly to 50% relative humidity at 40°C (104°F). Electrical supply: 5VDC, 1A. - Page 51 Courier 7000 EN-47 Table 9-1 AM Models Specification Model i-C71M15R i-C71M75R i-C71M50L i-C71M125L i-C71M125X 15 kg x 0.005 kg 75 kg x 0.02 kg 50 kg x 0.01 kg 125 kg x 0.02 kg 125 kg x 0.02 kg Capacity × 15,000 g x 5 g 75,000 g x 20 g 50,000 g x 10 g...
-
Page 52: Drawings And Dimensions
EN-48 Courier 7000 Table 9-2 Other Models Specification Model i-C71M15R i-C71M60R i-C71M60L i-C71M150L i-C71M150X Capacity × 15 kg x 0.002 kg 60 kg x 0.01 kg 60 kg x 0.01 kg 150 kg x 0.02 kg 150 kg x 0.02 kg Readability Non- 15,000 g x 2 g 60,000 g x 10 g... -
Page 53: Table Of Geo Code Values
Courier 7000 EN-49 Table of GEO Code Values Table 9-4 GEO Codes Elevation in meters 1300 1625 1950 2275 2600 2925 3250 1300 1625 1950 2275 2600 2925 3250 3575 Elevation in feet 1060 2130 3200 4260 5330 6400 7460 8530 9600 10660... -
Page 54: Compliance
This product complies with the applicable harmonized standards of EU Directives 2011/65/EU (RoHS), 2014/30/EU (EMC), 2014/35/EU (LVD) and 2014/31/EU (NAWI). The EU Declaration of Conformity is available online on the OHAUS website. This product complies with the applicable statutory standards of the Restriction of the Use of... -
Page 55: Appendices
Non-significant weight data and tare data digits are transmitted as spaces. The continuous output mode provides compatibility with OHAUS products that require real-time weight data. the standard continuous output. Table 11-1 shows the format for the standard continuous output. - Page 56 Courier 7000 EN-53 Table 11-4: Status Byte C Bit Definitions Bits 2, 1, and 0 Weight Description lb or kg, selected by Status Byte B, bit 4 grams (g) metric tons (t) ounces (oz) not used not used tons (ton) no units Print Request = 1 Bit 3...
- Page 57 EN-54 Courier 7000 11.2 MT-SICS Commands Command Function LEVEL 0 Reset the scale Inquiry of SICS level and SICS versions Inquiry of scale data Inquiry of scale software version Inquiry of serial number Send stable weight value Send weight value immediately Send weight value repeatedly Zero the scale Zero immediately...
-
Page 58: Mt-Sics Commands
Courier 7000 EN-55 11.3 OHAUS Commands Commands listed in the following table will be acknowledged by the scale. The scale will return “ES” for invalid commands. Please add \r\n after each command to send（\r refers to \return; \n refers to \newline) -
Page 59: Oh-Continuous Print
EN-56 Courier 7000 11.4 OH-Continuous Print Format 1: For the printout result including interval and continuous printing mode of Weight Alert application Weight Unit Stability Space Space Field (Right aligned) (Right aligned) Length T/N/G/PT Application Status Space Space Term. Field (Right aligned) (Right aligned) -
Page 60: Column Kit Installation
Courier 7000 EN-57 11.5 Column Kit Installation... -
Page 61: Limited Warranty
OHAUS products are warranted against defects in materials and workmanship from the date of delivery through the duration of the warranty period. During the warranty period OHAUS will repair, or, at its option, replace any component(s) that proves to be defective at no charge, provided that the product is returned, freight prepaid, to OHAUS.
