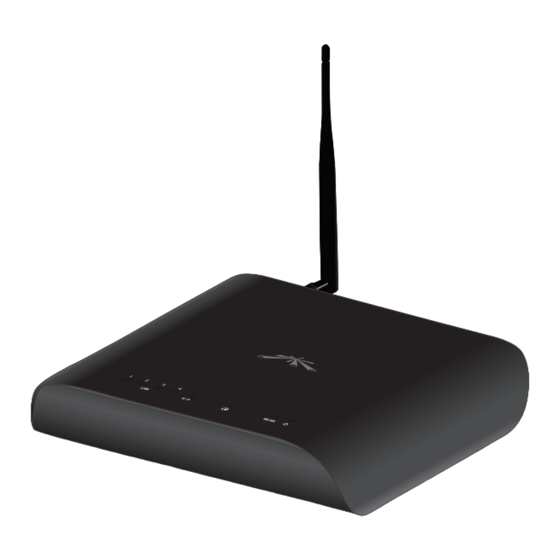

Ubiquiti airrouter hp 802.11n wireless router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the airRouter HP and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti airRouter HP

Summary of Contents for Ubiquiti airRouter HP

  • Page 3: Package Contents

    Package Contents Package Contents airRouter HP Antenna Ethernet Cable 24V PoE Adapter Quick Start Guide System Requirements • Microsoft Windows XP, Windows Vista, Windows 7, Linux, or Mac OS X • Java Runtime Environment 1.6 (or above) for the AirView utility • Web Browser: Mozilla Firefox, Apple Safari, or Microsoft Internet...

  • Page 4: Hardware Installation

    HP 802.11n Wireless Router ™ Hardware Installation To install the airRouter HP, perform the following steps: 1. Connect the antenna to the antenna connector on the airRouter HP by rotating it clockwise. 2. Raise the antenna to an upright position.
  • Page 5 4. Connect an Ethernet cable to the PoE Ethernet port on the PoE Adapter. 5. Connect the other end of the Ethernet cable to the (WAN) port on the airRouter HP. The Power LED will light up on the front of the airRouter HP.
  • Page 6 Adapter. Connect the other end of the Ethernet cable to your broadband modem. Broadband Modem 7. Connect another Ethernet cable from your computer to a LAN port (1, 2, 3, or 4) on the airRouter HP. LAN Port 1, 2, 3, or 4 WAN Port Ethernet Port...
  • Page 7 Hardware Installation 8. Launch your Web browser and type http://192.168.1.1 in the address field. Press enter (PC) or return (Mac). Note: Your computer needs to be on the 192.168.1.x subnet. If you have DHCP enabled on your Ethernet adapter, it should receive an address automatically.
  • Page 8 HP 802.11n Wireless Router ™ 11. Customize your wireless network and secure your network by entering the basic wireless network information: a. Enter a name for your wireless network in the SSID field. b. Select the type of security that you want to use for your wireless network from the Security drop-down.

  • Page 9: Connecting A Wireless Client To The Airrouter Hp

    Connecting a Wireless Client to the airRouter HP Connecting a Wireless Client to the airRouter HP Windows 1. Go to Connect to Network. Windows 7 Right-click the Network icon. Windows Vista Go to Start > Connect To. Windows XP Right-click the Wireless Network...

  • Page 10: General Warranty

    Buyer for breach of warranty and shall constitute fulfillment of all liabilities of UBIQUITI NETWORKS with respect to the quality and performance of the Products. UBIQUITI NETWORKS reserves the right to inspect all defective Products (which must be returned by Buyer to UBIQUITI NETWORKS factory freight prepaid).
  • Page 11 Returns Disclaimer: UBIQUITI NETWORKS does not warrant that the operation of the products is error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer’s selection of products for buyer’s application and/or...

  • Page 12: Industry Canada

    6 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. Model: airRouter HP antenna gain is 6 dBi. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

  • Page 13: Declaration Of Conformity

    UBIQUITI NETWORKS, device est conforme aux exigences [French] essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Par la présente, UBIQUITI NETWORKS déclare que ce UBIQUITI NETWORKS device, est conforme aux exigences essentielles et aux autres dispositions de la directive 1999/5/CE qui lui sont applicables.
  • Page 14 UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC.

  • Page 16: Ubiquiti Networks Support

    Email: support@ubnt.com Phone (9 a.m. - 5 p.m. PST): 408-942-1153 Online Resources Wiki Page: www.ubnt.com/wiki Support Forum: www.ubnt.com/forum Downloads: www.ubnt.com/support/downloads w w w . u b n t . c o m © 2011 Ubiquiti Networks, Inc. All rights reserved.
