Package Contents
System Requirements
Create PDF in your applications with the Pdfcrowd

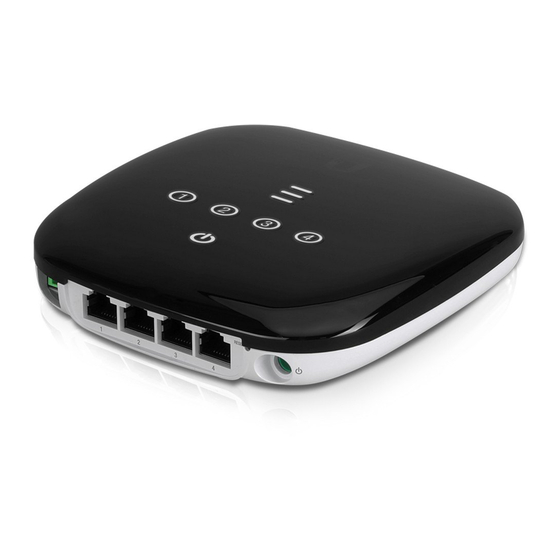

UFiber UF-WIFI
Power Adapter (24V, 0.5A)
Linux, Mac OS X, or Microsoft Windows 7/8/10
HTML to PDF API
Screws (Qty. 4)
Screw Anchors (Qty. 4)
PDFCROWD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UFiber UF-WIFI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ubiquiti UFiber UF-WIFI

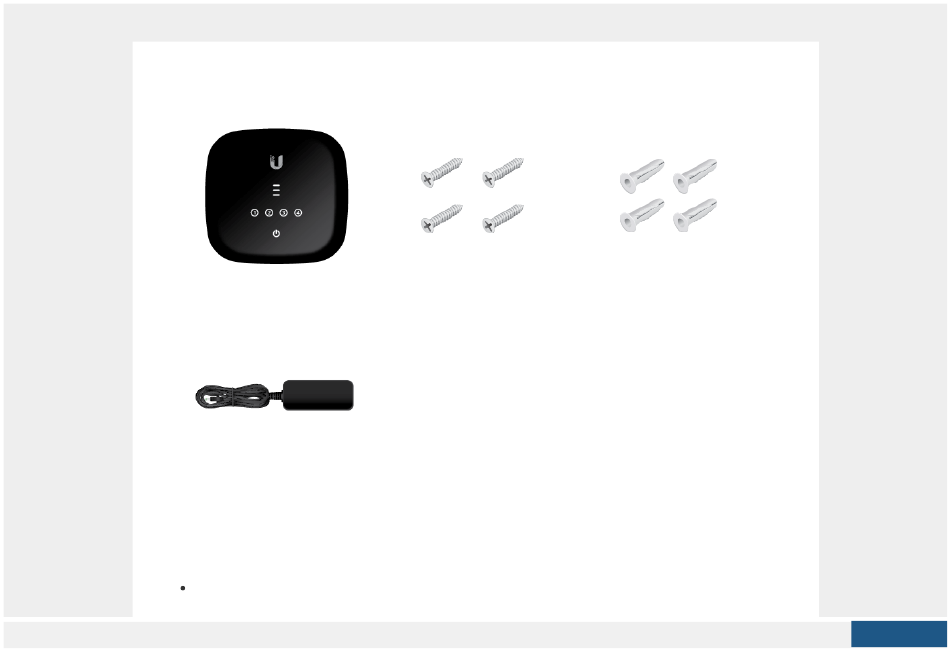

  • Page 1 Package Contents UFiber UF-WIFI Screws (Qty. 4) Screw Anchors (Qty. 4) Power Adapter (24V, 0.5A) System Requirements Linux, Mac OS X, or Microsoft Windows 7/8/10 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 2: Before You Begin

    Web Browser: Google Chrome (Other browsers may have limited functionality) Before You Begin Designing your first GPON deployment requires specific knowledge and planning. For information on GPON network design and installation, including important considerations and best practices, refer to: ubnt.link/UFiber-GPON-Getting-Started ubnt.link/Designing-a-GPON-Network For details on configuring UFiber devices for the first time to allow ONU LAN ports to provide connectivity, refer to:...
  • Page 3 PON Port SC/APC GPON port supports WAN connections of 2.488 Gbps downstream and 1.244 Gbps upstream. LAN (Ports 1 - 4) RJ45 Ethernet LAN ports support 10/100/1000 Mbps connections. Port 1 also supports 24V Passive PoE to power the device. Reset Button The Reset button serves two functions for the UF-WIFI: Restart...
  • Page 4 Restore to Factory Default Settings Press and hold the Reset button for more than five seconds. Power Port The Power Adapter connects to this port to provide power. White Ethernet connection up Signal LEDs Bootup Signal strength: low ≥ -28 dBm Signal strength: good ≥...
  • Page 5 Check the quality of the fiber connection, and calculate the total optical loss of the optical splitters. Signal strength: too strong ≥ -8 dBm Add an optical splitter, or add a 5 or 10 dB optical attenuator. No signal Check the fiber cables and connectors, and ensure that the OLT functions properly.
  • Page 6: Hardware Installation

    White Power on Hardware Installation Wall Mounting Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 7 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 8 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 9: Connecting Fiber

    Connecting Fiber WARNING: Never look directly into the ends of fiber or modules. The emitted light could cause damage to the eye. WARNING: Until ready for use, keep modules and fiber patch cables covered using the included protective caps to ensure the connections stay clean. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 10: Connecting Lan

    WARNING: Do NOT connect the device directly to a UFiber GPON module (UF- GP-B+ or UF-GP-C+). Doing so will damage the device optics. Ensure that the device’s received signal level never exceeds -8 dBm. Use a UFiber PLC Splitter to add attenuation as needed. Connecting LAN Create PDF in your applications with the Pdfcrowd HTML to PDF API...
  • Page 11: Connecting Power

    Connecting Power Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 12: Accessing The Configuration Interface

    Note: 24V Passive PoE is required to power the device. WARNING: The PoE switch must comply with the power specifications listed in the Specifications section of this Quick Start Guide. Accessing the Configuration Interface 1. Ensure that your computer (or other host system) is connected to the device. 2.
  • Page 13: Specifications

    4. Enter ubnt in the Username and Password fields. Click Login. Customize settings as needed. For more information, refer to the UFiber resources, which are available at: http://ubnt.link/UFiber-Support Specifications UF-WIFI Dimensions 126.34 x 126.09 x 31.65 mm (4.97 x 4.96 x 1.25") Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 14 UF-WIFI Weight 190 g (6.70 oz) Networking Interfaces (1) SC/APC, GPON WAN (4) Gigabit RJ45, Ethernet LAN (1) Wi-Fi, 802.11n Networking Interface Speeds GPON WAN, ITU G.984 2.4 Gbps Down, 1.2 Gbps Up 10/100/1000 Mbps Wi-Fi 300 Mbps Management Interface In-Band Ethernet Normal Optical Power Range TX (Class B+): 1.5 to 5 dBm...
  • Page 15: Safety Notices

    UF-WIFI Certifications CE, FCC, IC Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
  • Page 16: Limited Warranty

    Limited Warranty ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 17 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. This radio transmitter has been approved by ISED Canada. The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.
  • Page 18: Australia And New Zealand

    Déclaration sur l’exposition aux rayonnements Cet équipement est conforme aux limites prévues pour l’exposition aux rayonnements dans un environnement non contrôlé. Lors de l’installation et de la mise en fonctionnement de l’équipement, assurez-vous qu’il y ait une distance minimale de 20 cm entre l’élément rayonnant et vous. Cet émetteur ne doit être installé...
  • Page 19: Weee Compliance Statement

    Note: This device meets Max. TX power limit per ETSI regulations. The following apply to products that operate in the 5 GHz frequency range: Note: This device is restricted to indoor use only when operating in the 5150 - 5350 MHz frequency range within all member states.
  • Page 20 © 2020 Ubiquiti Inc. All rights reserved. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
