28/10/2019

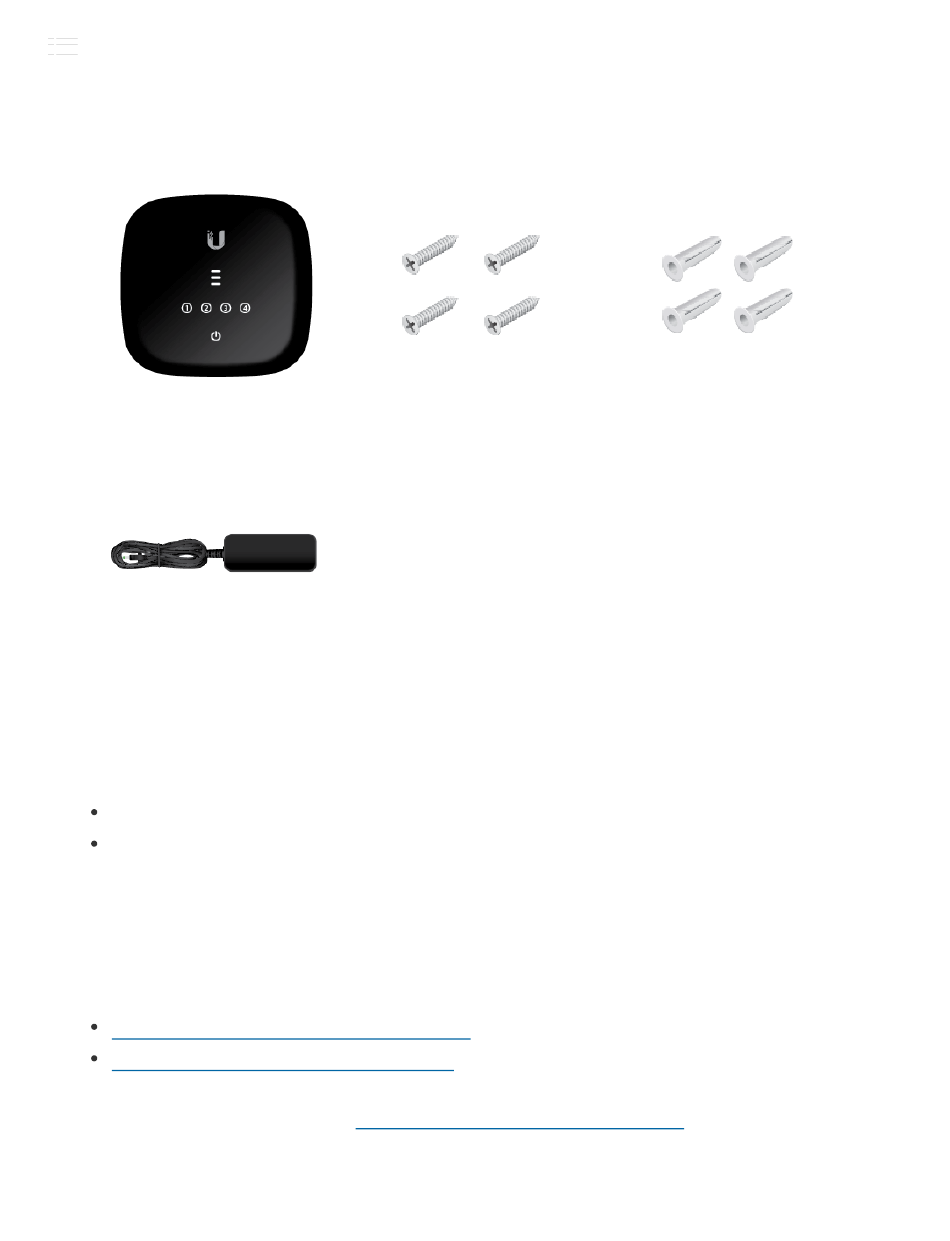

Package Contents

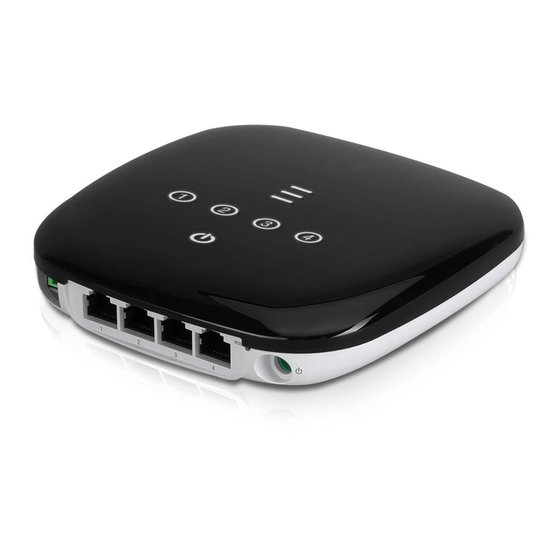

UFiber UF-WIFI
Power Adapter (24V, 0.5A)
System Requirements
Linux, Mac OS X, or Microsoft Windows 7/8/10
Web Browser: Google Chrome (Other browsers may have limited functionality)
Before You Begin
Designing your first GPON deployment requires specific knowledge and planning.
For information on GPON network design and installation, including important
considerations and best practices, refer to:
ubnt.link/UFiber-GPON-Getting-Started
ubnt.link/Designing-a-GPON-Network
For details on configuring UFiber devices for the first time to allow ONU LAN ports to
provide connectivity, refer to:
Hardware Overview
https://dl.ui.com/qsg/UF-WIFI/UF-WIFI_EN.html
UF-WIFI Quick Start Guide
UF-WIFI Quick Start Guide
Screws (Qty. 4)
ubnt.link/UFiber-Initial-Configuration
Screw Anchors (Qty. 4)
1/14
Advertisement
Table of Contents
Related Manuals for Ubiquiti UFiber UF-WIFI
Summary of Contents for Ubiquiti UFiber UF-WIFI
- Page 1 28/10/2019 UF-WIFI Quick Start Guide UF-WIFI Quick Start Guide Package Contents UFiber UF-WIFI Screws (Qty. 4) Screw Anchors (Qty. 4) Power Adapter (24V, 0.5A) System Requirements Linux, Mac OS X, or Microsoft Windows 7/8/10 Web Browser: Google Chrome (Other browsers may have limited functionality) Before You Begin Designing your first GPON deployment requires specific knowledge and planning.
- Page 2 28/10/2019 UF-WIFI Quick Start Guide UF-WIFI Quick Start Guide PON Port SC/APC GPON port supports WAN connections of 2.488 Gbps downstream and 1.244 Gbps upstream. LAN (Ports 1 - 4) RJ45 Ethernet LAN ports support 10/100/1000 Mbps connections. Port 1 also supports 24V Passive PoE to power the device.
- Page 3 28/10/2019 UF-WIFI Quick Start Guide UF-WIFI Quick Start Guide The Power Adapter connects to this port to provide power. White Ethernet connection up Signal LEDs Bootup Signal strength: low ≥ -28 dBm Signal strength: good ≥ -25 dBm Signal strength: strong ≥...
-
Page 4: Hardware Installation
28/10/2019 UF-WIFI Quick Start Guide UF-WIFI Quick Start Guide Ethernet LED Ethernet connection down Ethernet connection up White Flashing indicates activity Power LED Power off White Power on Hardware Installation Wall Mounting https://dl.ui.com/qsg/UF-WIFI/UF-WIFI_EN.html 4/14... - Page 5 28/10/2019 UF-WIFI Quick Start Guide UF-WIFI Quick Start Guide https://dl.ui.com/qsg/UF-WIFI/UF-WIFI_EN.html 5/14...
-
Page 6: Connecting Fiber
28/10/2019 UF-WIFI Quick Start Guide UF-WIFI Quick Start Guide Connecting Fiber WARNING: Never look directly into the ends of fiber or modules. The emitted light could cause damage to the eye. WARNING: Until ready for use, keep modules and fiber patch cables covered using the included protective caps to ensure the connections stay clean. - Page 7 28/10/2019 UF-WIFI Quick Start Guide UF-WIFI Quick Start Guide Connecting LAN Connecting Power https://dl.ui.com/qsg/UF-WIFI/UF-WIFI_EN.html 7/14...
-
Page 8: Accessing The Configuration Interface
28/10/2019 UF-WIFI Quick Start Guide UF-WIFI Quick Start Guide Note: 24V Passive PoE is required to power the device. WARNING: The PoE switch must comply with the power specifications listed in the Specifications section of this Quick Start Guide. Accessing the Configuration Interface 1. -
Page 9: Specifications
28/10/2019 UF-WIFI Quick Start Guide UF-WIFI Quick Start Guide 4. Enter ubnt in the Username and Password fields. Click Login. Customize settings as needed. For more information, refer to the UFiber resources, which are available at: http://ubnt.link/UFiber-Support Specifications UF-WIFI Dimensions 126.34 x 126.09 x 31.65 mm (4.97 x 4.96 x 1.25") Weight... -
Page 10: Safety Notices
28/10/2019 UF-WIFI Quick Start Guide UF-WIFI UF-WIFI Quick Start Guide Power Method DC Jack, 24VDC 24V Passive PoE (Pins 4, 5+; 7, 8-) Power Supply 100-240VAC / 50-60 Hz Universal AC/DC 24V / 0.5A Max. Power Consumption Supported Voltage Range 20 to 28V Processor Specs MIPS, 900 MHz... -
Page 11: Limited Warranty
28/10/2019 UF-WIFI Quick Start Guide Limited Warranty UF-WIFI Quick Start Guide ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 12: Important Note
28/10/2019 UF-WIFI Quick Start Guide 2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est UF-WIFI Quick Start Guide susceptible d’en compromettre le fonctionnement. Le présent émetteur radio a été approuvé par ISDE Canada. Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à... -
Page 13: Weee Compliance Statement
Operation in the 5.8 GHz frequency band is prohibited in BFWA member states. Other countries listed may use the 5.8 GHz frequency band. WEEE Compliance Statement Declaration of Conformity Online Resources © 2019 Ubiquiti Inc. All rights reserved. https://dl.ui.com/qsg/UF-WIFI/UF-WIFI_EN.html 13/14... - Page 14 28/10/2019 UF-WIFI Quick Start Guide https://dl.ui.com/qsg/UF-WIFI/UF-WIFI_EN.html 14/14...
