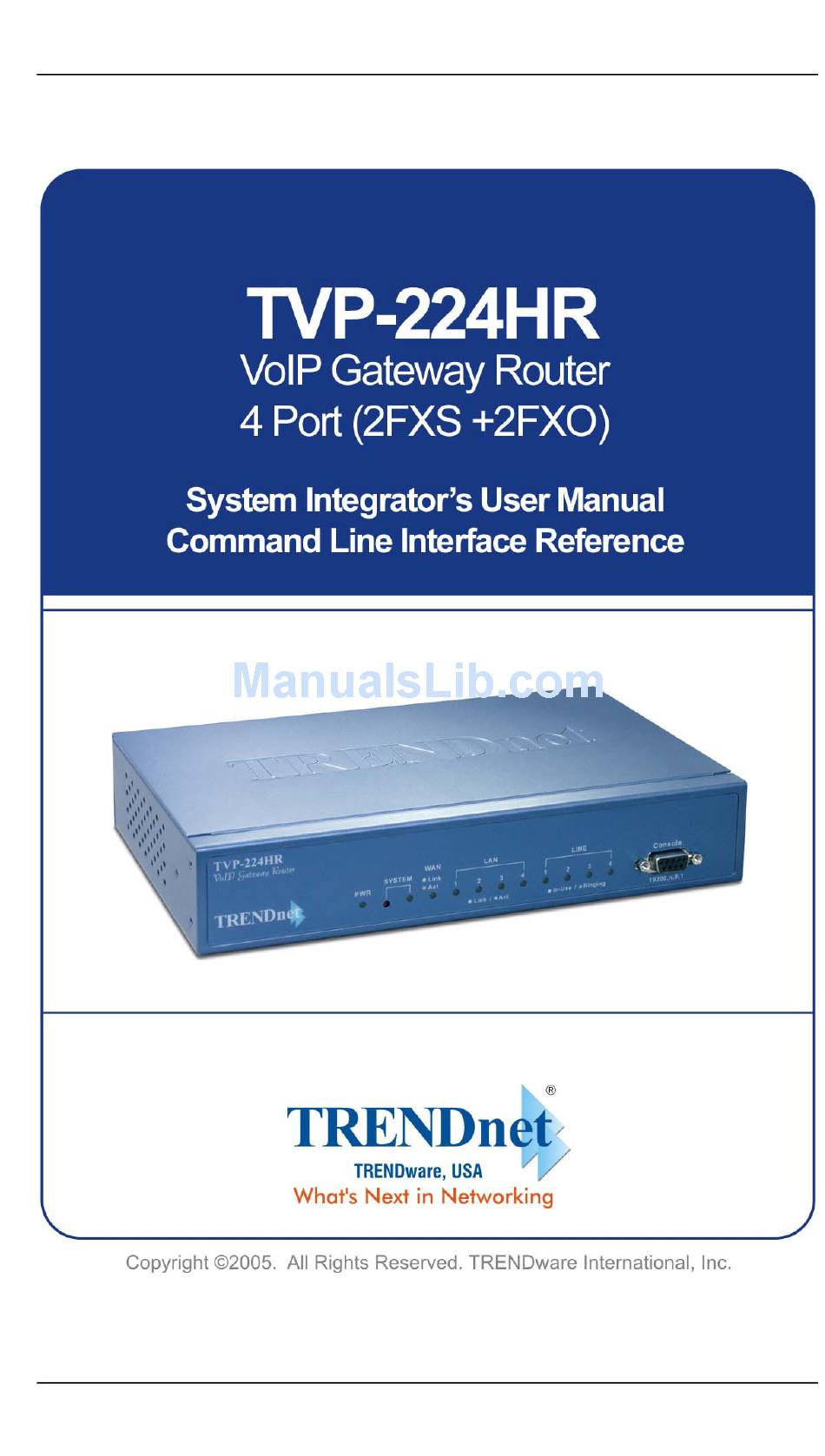

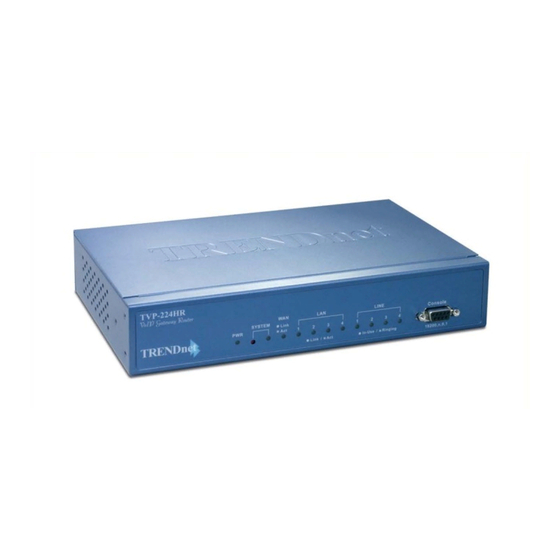

TRENDnet TVP-224HR System Integrator's User Manual

Voip gateway router 4 port 2fxs+2fxo
Hide thumbs Also See for TVP-224HR:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVP-224HR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TVP-224HR

Summary of Contents for TRENDnet TVP-224HR

  • Page 2: Fcc Notice

    FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 3: How To Use This Manual

    This chapter explains how to download new revision software and upgrade the TVP-224HR. Appendix A: Technical Specifications This appendix lists the TVP-224HR specifications and the assignment of pins of all the interface ports. Appendix B: CLI Commands This appendix provides a short description of each CLI command with a reference to the pages that contain detailed information on the command.

  • Page 4: Important Safety Instructions

    Important Safety Instructions Before you plug the TVP-224HR into an electrical outlet, carefully read all the installation instructions in Chapter 2. For your own safety and the safety of your equipment, always take the following precautions: • Follow instructions and warnings in the documentation.

  • Page 5: Documentation Abbreviations

    Internet Control Message Protocol ICMP International Multimedia Telecommunications IMTC Consortium Internet Protocol TVP-221H 4-port VoIP Gateway TVP-224HR 4-port VoIP Gateway Router Key Telephone System Local Area Network Non-Volatile Storage Light Emitting Diode Private Branch Exchange PSTN Public Switched Telephone Network...

  • Page 6: Notation Conventions

    Arguments for which you supply values are in italics. courier Messages that the TVP-224HR CLI displays are in plain courier font. Elements in square brackets are optional. { x | y | z } Alternative but required elements are grouped in braces ({ }) and separated by vertical bars ( | ).

  • Page 7: Table Of Contents

    Table of Contents How to Use This Manual ......................3 Important Safety Instructions....................4 Documentation Abbreviations ....................5 Notation Conventions........................ 6 CHAPTER 1 ..................10 OVERVIEW ................... 10 Features ........................10 Networking Protocols....................10 Package Contents ......................11 Front Panel........................11 LED Indicators ........................
  • Page 8 net reset ......................... 19 net set wan ip ip_addr ....................19 net set wan mask ip_mask ..................19 net set wan gateway ip_addr ..................19 net set wan ip_tos <p> <d> <t> <r>................20 net set wan dns <pri_server> <sec_server> .............. 20 net set wan speed <10 | 10f | 100 | 100f | 10/100 | 10/100f>...
  • Page 9 42 start ..........................42 Appendix A - Technical Specifications ......Error! Bookmark not defined. TVP-224HR Technical Specifications ........Error! Bookmark not defined. Console Port ................Error! Bookmark not defined. LAN Port................Error! Bookmark not defined. FXO Port Pin Assignments ............Error! Bookmark not defined.

  • Page 10: Chapter 1

    224HR) and a detailed description of its front panel and rear panel. Features The TVP-224HR is a cost-effective and highly reliable analog Voice over IP (VoIP) Gateway Router that offers toll quality voice and real-time fax data over IP networks.

  • Page 11: Package Contents

    The front panel of the TVP-224HR contains a push button and LED indicators. The following figure illustrates the front panel of the TVP-224HR. 4-port TVP-224HR Front Panel LED Indicators The LED indicators on the front panel display the current status of the TVP-224HR as described in the following table: Indicator Color Activity...

  • Page 12: Reset Button

    Rear Panel The rear panel of the TVP-224HR has four analog telephony ports, two FXO and two FXS ports offering flexible telephony interface usage. The FXS telephony interface ports may be connected to Subscriber Equipment, such as Telephones, Fax Machines, Cordless Phones, and Modems.

  • Page 13: Command Line Interface

    None To access the TVP-224HR through the RS-232 serial port, follow the steps below: 1. Insert one end of the serial cable that came with the TVP-224HR into the 9- pin RS-232 port (labeled User Console) on the front panel.
  • Page 14 MAC address located on the bottom of your TVP-224HR (00-50-2d-xx-xx-xx). At the Console prompt enter the super password without hyphens. The password is all lower case. After gaining access, at the console prompt type in net set manager password <new_password>...

  • Page 15: Connection Through Telnet

    (See User Guide for More Information). Alternatively, you can use Telnet to locally access the TVP-224HR and the TVP-224HR and your computer are in the same network segment. Up to two sessions through Telnet are possible. To...

  • Page 16: Command Help

    192.168.0.1 Designating Port Number Some commands require a telephony port number. The TVP-224HR designates the first port as port number 0, the 2 port as port number 1 and so on.

  • Page 17: Utility Commands

    Network Commands for setting or displaying network related parameters Configuration config Commands for configuring the TVP-224HR management show or displaying configuration Dial plan atpm Commands for setting or displaying dial plan management Telephony Commands for setting or displaying telephony related options...
  • Page 18 count (Optional) The number of packets to send timeout (Optional) Timeout value for the ping in millisecond...

  • Page 19: Network Commands

    Network Commands net reset Use the net reset command to reset the TVP-224HR. The CLI will prompt you to confirm the command before resetting the TVP-224HR. Syntax Description This command has no arguments or keywords net set wan ip ip_addr Use the net set wan ip command to assign an Static IP address to the TVP- 224HR Wan side.

  • Page 20: Net Set Wan Ip_Tos

    <p> <d> <t> <r> The TVP-224HR Wan side allows you to set the 3-bit IP precedence field in the IP header for all the voice packets it sends out. Use the net set wan ip_tos to set the IP precedence field.

  • Page 21: Net Set Lan Mask

    The subnet mask of your network. Note: The new setting will not take effect until the TVP-224HR is reset. net set lan speed <10 | 10f | 100 | 100f | 10/100 | 10/100f> The TVP-224HR Lan side allows you set the link speed for its Ethernet interface.

  • Page 22: Net Show Lan

    Syntax Description This command has no arguments or keywords Example The following example shows how to display network settings: Console> net show wan <Enter> WAN Parameters MAC address: 00-50-2d-00-f5-07 Ethernet speed: 10/100 Mbps full duplex Static IP configuration IP address: 211.75.40.98 Subnet mask: 255.255.255.240 Default gateway: 211.75.40.97...

  • Page 23: Net Show Hwstat

    Starting client addr: 192.168.0.10 Console> net show hwstat The net show hwstat command displays the hardware configuration of the TVP-224HR. Syntax Description This command has no arguments or keywords Example The following example shows how to display hardware configuration: Console>net show hwstat <Enter>...

  • Page 24: Config {Activate|Store|Erase

    Configuration data in the Active area is only available while the TVP-224HR remains in operation. If the TVP-224HR is reset, the Active area is reloaded from the data stored in NVS. Data in the Active area may be saved to NVS by entering the config store command.

  • Page 25: Show Version

    = 30000 h323 term_id Console> show version The show version command displays the version of various software components of the TVP-224HR. Syntax Description This command has no arguments or keywords set h323 alias {add | del} {alias|all} The set h323 endpoint_prefix command is used to create and delete aliases that are registered with the Gatekeeper.

  • Page 26: Set H323 Allow_Call_Wo_Gk {True|False

    {true|false} The set h323 allow_call_wo_gk command is used to inform the H.323 stack to allow incoming calls from a remote TVP-224HR which is not registered with a gatekeeper. Syntax Description Allow calls from TVP-224HR that is not true registered with a gatekeeper.

  • Page 27: Set H323 Gk_Addr Ip_Addr

    The set h323 allow_call_wo_gk command is used to control how many registration attempts will be made before the TVP-224HR considers itself to have failed registration. Once this number of unsuccessful attempts has been made, the TVP-224HR will only be able to place calls if allow_calls_wo_gk is true. Syntax Description...

  • Page 28: Set H323 H245_Term_Type Terminal Type

    IP address of the remote TVP-224HR Default The TVP-224HR sends DTMF digits in H.323 format, unless the call is destined for a remote VoIP device whose IP address has been set h323 imtc_dtmf added. set h323 in_fast_start {on|off} The set h323 in_fast_start command is used to select the H.323 Fast start mode on for calls initiated from remote TVP-224HRs.

  • Page 29: Set H323 Nat_Call {On|Off

    The default setting is off. set h323 nat_call {on|off} When the TVP-224HR is installed in a network that connects to WAN via a router with Network Address Translation (NAT) feature, the NAT might block calls. The set h323 nat_call command is used to enables the TVP- 224HR to connect to remote TVP-224HRs connecting to WAN via NAT capable router.

  • Page 30: Dial Plan Management Commands

    Among the command sets supported by the CLI, the dial plan management commands are the most sophisticated. Some of the dial plan management commands are only allowed when the TVP-224HR is in the atpm table update state. For ease of explaining, this command set is further categorized into several sub command sets.

  • Page 31: Atpm Erase

    This command has no arguments or keywords atpm erase The atpm erase command erases the dial plan database from the non- volatile memory. Syntax description This command has no arguments or keywords atpm purge {all|addr|dest|hunt} Use the atpm purge command to delete all entries from the atpm tables.

  • Page 32: Destination Table Management Commands

    [ip_port] The atpm dadd dest_id h323 command adds a h323 type remote destination entry into the atpm destination table. A remote destination entry is typically another TVP-224HR or H323 gateway. Syntax description dest_id Destination ID. For each destination, you need to assign it a unique identifier between 1 and 65536.

  • Page 33: Atpm Ddel Dest_Id

    The following example shows how to add a remote destination whole IP address is 192.168.0.3 to the destination table and assign an ID 200 to that destination. Console>atpm dadd 200 h323 192.168.0.3 <Enter> atpm ddel dest_id The atpm ddel command deletes an entry from the atpm destination table.

  • Page 34: Hunt Group Table Management Commands

    4 Local PORT = 3 11 H.323 Dest = 210.243.230.167/1720 TCP Console> Hunt Group Table Management Commands atpm hadd hunt_group_id {1|2} dest_id [desi_id2] … Use the atpm hadd command to add an entry into the atpm hunt group table. Syntax description Hunt group ID.

  • Page 35: Atpm Hlist

    atpm hlist The atpm hlist display all entries in the hunt group table. Syntax description This command has no arguments or keywords Example Console>atpm hlist Group id Type #Members Member ids ------------------------------------------------- 1 11 Console> Address Table Management Commands 53 atpm aadd tel# min_digits max_digits hunt_group_id prefix_strip_len [prefix#] Use the atpm aadd command to add an entry into the atpm address table.

  • Page 36: Atpm Afind Tel

    Syntax description tel# Number of a previously added entry to be deleted from the atpm address table. atpm afind tel# The atpm afind finds and display an entry in the address table. Syntax description tel# Number of a previously added entry in the atpm table to be displayed.

  • Page 37: Atpm Sys Dial_Time 1St_Digit_Wait Inter_Digit_Wait [Dial_Term_Digit]

    Console> atpm sys dial_time 1st_digit_wait inter_digit_wait [dial_term_digit] Use the atpm sys command to set the time constraints for collection of dial digits. Syntax description dial_time The maximum time, in millisecond, allowed for entry of the entire string of dial digits. At expiration, ATPM starts address lookup.

  • Page 38: Tel Show Ring_Freq

    Default: If the port number is not specified, the CLI displays hook state of all telephony ports. tel show ring_freq The tel show ring_freq command to displays the frequency of the ring signal that the TVP-224HR sends to FXS ports.. Syntax Description This command has no arguments or keywords tel set tel_id {1~10} The FXO ports might be connected to different transmission media e.g.(central office switch or PBX) via local loop which may have different line...

  • Page 40: Upgrading The Tvp-224Hr

    If you enter download mode from Telnet session. The Telnet session will be terminated too. You need to connect to the TVP-224HR from Telnet client again to be able to access the CLI commands. Refer to Section Connection through Telnet in Chapter 8 for detailed information on how to connect to TVP-224HR from Telnet client.

  • Page 41: Cli Commands In Download Mode

    Switching mode from Telnet session will terminate current active session. You’ll need to connect to TVP-224HR again to be able to access the CLI. 43 net set lan ip addr Use the lan set ip command to assign a lan IP address to the TVP-224HR. Syntax description addr The IP address of the TVP-224HR.

  • Page 42: Set Ip Ip_Addr

    44 net set wan ip addr Use the set ip command to assign a static IP address to the TVP-224HR. Syntax description addr The IP address of the TVP-224HR. Note The new IP address will not take effect until the TVP-224HR is reset.

  • Page 43: Appendix A - Technical Specifications

    Appendix A - Technical Specifications TVP-224HR Technical Specifications Telephony Interface Desktop with 4 Analog Ports Physical interface • Loop start 2 x FXO (RJ-11) • Loop start 2 x FXS (RJ-11) Programmable line Complex line impedance interfaces H.323v3 (Normal/fast-start mode)
  • Page 44 upgrade via network Metallic 9.5" Desktop Chassis Dimensions (L X W 241 x 135 x 45 mm (9.5 x 4.3 x 1.8 in.) X H) 1.9 kg (4.2 lb) Weight System: 2 PWR, CPU LED Indicators WAN: 1, LNK/ACT LAN: 4, LNK/ACT Voice: 4 In-Use/Ringing Microsoft NetMeeting*;...

  • Page 45: Console Port

    Console Port The console port uses a DB-9 RS-232 connector. The supplied straight through RS-232 cable connects the console port of the TVP-224HR to a console PC or terminal. Pin assignment for the port is described in the following table.

  • Page 46: Fxo Port Pin Assignments

    FXO Port Pin Assignments The FXO Telephony Interface Module has 2 RJ11C/W modular jacks. The following diagram and table show the assignments of the pin for the RJ11 port. RJ-11 pin Signal Not connected Ring Not connected FXS Port Pin Assignments The FXS Telephony Interface Module has 2 RJ11C/W modular jacks.
  • Page 47 Appendix B - Connecting through Console The console port uses a DB-9 RS-232 connector. The supplied straight through RS- 232 cable connects the console port of the TVP-224HR to a console PC or terminal. Task Prompt Type Connect RS-323 Cable to TVP-224HR RS-232...
  • Page 48 (See User Guide for More Information). Alternatively, you can use Telnet to locally access the TVP-224HR, if you are under a router or switch and the TVP-224HR and your computer are in the same network segment.
  • Page 49 IP Address. If you confirm that you do not have Internet Access, please refer to the trouble shooting section of the User Manual or consult your ISP to make sure your Internet Access Data is correct and accurately entered into the TVP-224HR.

  • Page 50: Appendix B - Cli Commands

    Appendix D - CLI Commands Normal Mode Commands Command Description atpm aadd Add an entry to the address table atpm adel Delete an entry from the address table atpm afind Find and display an entry in the address table atpm alist Display all entries in the address table atpm dadd Add an entry to the destination table...

  • Page 51: Download Mode Commands

    net set wan ip Set IP address net set ip_preced Set IP precedence bits net set wan mask Set IP subnet mask net set wan speed Select Ethernet link speed net set user_pw Set password net show Display IP parameters net show hwstat Display hardware status ping...

  • Page 52: Appendix C - Factory Default Settings

    Appendix E - Factory Default Settings The following table lists the settings of certain parameters before the TVP-224HR is shipped. Parameter Default Setting Network PPPoe disabled DYN DNS disabled DHCP Server enabled Configured IP address 192.168.0.1 Configured IP subnet mask 255.255.255.0...
  • Page 53 h323 out_fast_start h323 in_fast_start h323 h245_tunneling h323 cisco_t38 h323 callSignalPort 1720 h323 call_name None h323 local_alert h323 default_dtmf H323 V2 Signal h323 gk_mode h323 h245_timeout 30000 h323 term_id None Voice codec Preferred voice codec G.723 6.3kbps Telephony PCM codec receiver gain for FXO ports -1 dB...

  • Page 54: Appendix D - Worksheets

    Appendix F - Worksheets IP Parameters Consult your network manager to obtain a static IP address for the TVP-224HR, and the information about the IP subnet mask and the default gateway for your network. Fill out the following work sheet before configuring the TVP-224HR.
  • Page 55 Remote Destinations Each remote TVP-224HR to be reached must be assigned a unique destination ID. Obtain the IP addresses of the TVP-224HR at remote sites and fill out the worksheet for remote destinations by designating each atpm remote TVP-224HR a unique destination ID, then use the CLI command...

  • Page 56: Atpm Hunt Group Table

    ATPM Hunt Group Table When Several destinations may be grouped together to form a hunt group. incoming phone number matches the phone number of the hunt group, the TVP- 224HR attempts to terminate the call at each of the destinations in the hunt group one at a time until a call is successfully completed.

  • Page 57: Atpm Address Table

    ATPM Address Table Each phone number to be recognized by the TVP-224HR must have its first digits match an entry in the address table. Fill out the address table worksheet and use the CLI command atpm aadd tel# min_digits max_digits...

  • Page 58: Index

    Index Internet Telephony Gateway ..11 Address Table Management IP Parameters ......51 Commands......35 K & L ATPM.......5, 14, 51 KTS ........5, 11 LAN Port........45 LED........5, 12 Baud rate ........16 Command Line Interface....Network Commands....21 NVS..........5 See CLI CLI .......5, 16,41,47 clrscr...........18 CNG ...........11 PBX.........5,11 Command Help ......17...
