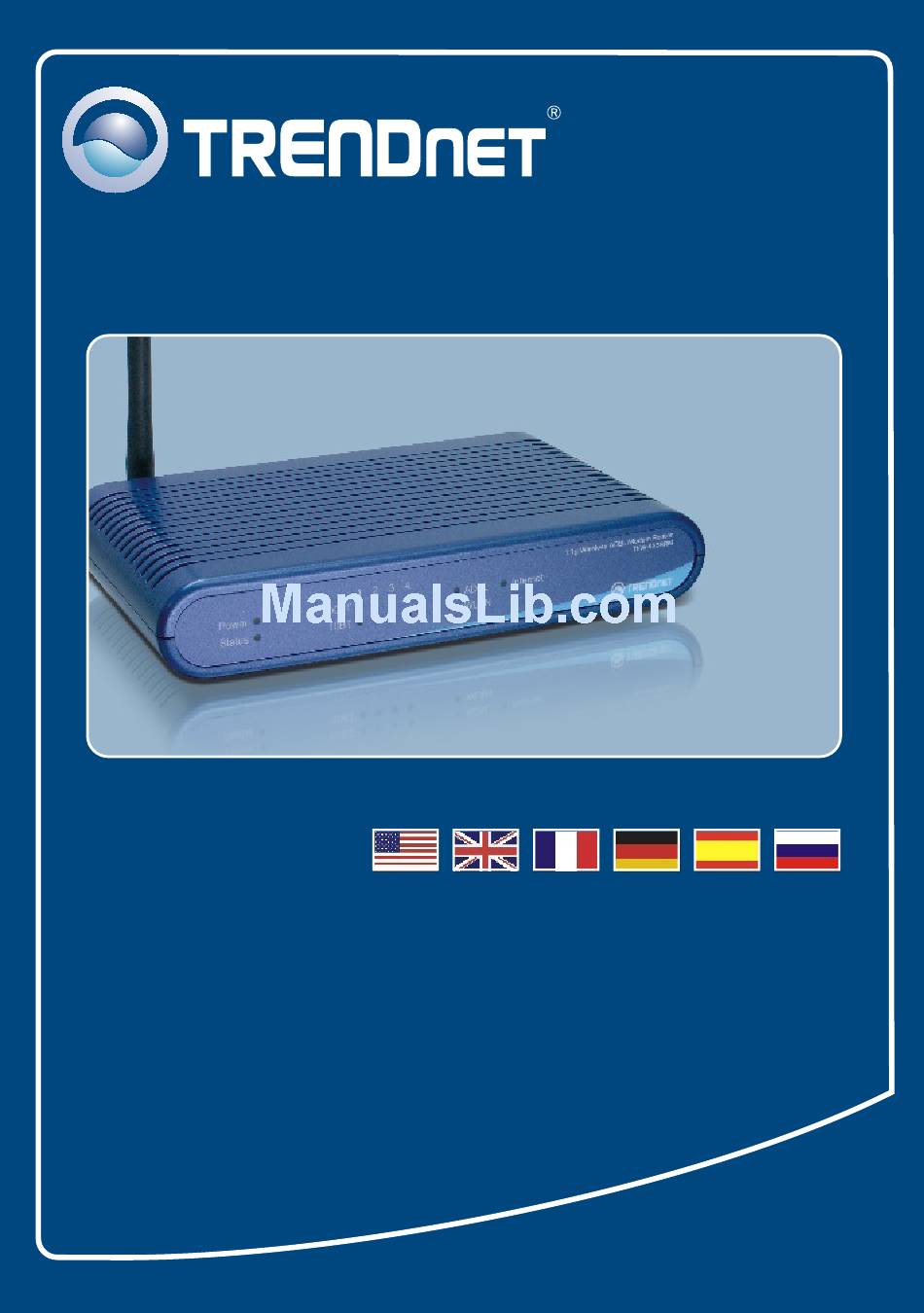

- Page 1 Quick Installation Guide TEW-435BRM...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ...................... 1. Before You Start ................. 2. Install Hardware ................. Configuration The Modem ..............Troubleshooting ..................Version 06.19.2006... -
Page 3: English
1. Before You Start Package Content TEW-435BRM Quick Installation Guide User's Guide CD-ROM 1 x 2dBi Detachable Antenna 1 x RJ-45 Ethernet Cable (Yellow) 1 x RJ-11 Telephone Cable (Gray) Mounting Stand Power Adapter Installation Requirements A working DSL Internet Connection A computer with a wired or wireless network adapter properly installed. - Page 4 Collect Internet Service Provider (ISP) Information During the installation of your Wireless ADSL Modem Router, the Setup Wizard will automatically detect your ISP connection type. If the router cannot detect your ISP connection type, you can manually specify the connection type. Please verify your DSL Internet broadband connection type with your ISP and ensure you have all the information for one of the following connection types: A.
-
Page 5: Install Hardware
2. Hardware Installation 1. Attach the mounting stand to the side of the unit. 2. Connect one end of the yellow RJ- 45 cable to one of the TEW-435BRM's LAN ports. Connect the other end of cable to the computer's Ethernet port. Then connect the 2dBi detachable antenna. -
Page 6: Configuration The Modem
3. Configure the Modem Note: It is recommended that you configure the Modem from a wired computer. 1. Open your web browser, type http://192.168.0.1 in the Address bar, and press Enter. 2. Enter User name and Password, and then click OK. By default, User name: admin Password: password 3. - Page 7 4. Click Next. Note: In the example, the DSL connection is PPPoE. 5. Select Auto-detect, and then click Next. 6. Wait for the Auto Detection process to complete. English...
- Page 8 9. Verify that the ADSL LED is lit and then click Close. Your installation is now complete. For detailed information regarding the TEW-435BRM's configuration and advanced settings, please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com. English...
-
Page 9: Troubleshooting
Troubleshooting I typed http://192.168.0.1 in my Internet Browser's Address Bar, but an error message says “The page cannot be displayed.” How can I get into the TEW-435BRM's web configuration page? First, check your hardware settings again by following the instructions in Section 2. - Page 10 SSID. The preset SSID of the Access Point is default. If you still encounter problems or have any questions regarding the TEW-435BRM, please contact TRENDnet's Technical Support Department. Certifications This equipment has been tested and found to comply with FCC and CE Rules.
- Page 11 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 3135 Kashiwa Street Torrance, CA 90505 Copyright ©2006. All Rights Reserved. TRENDnet.
