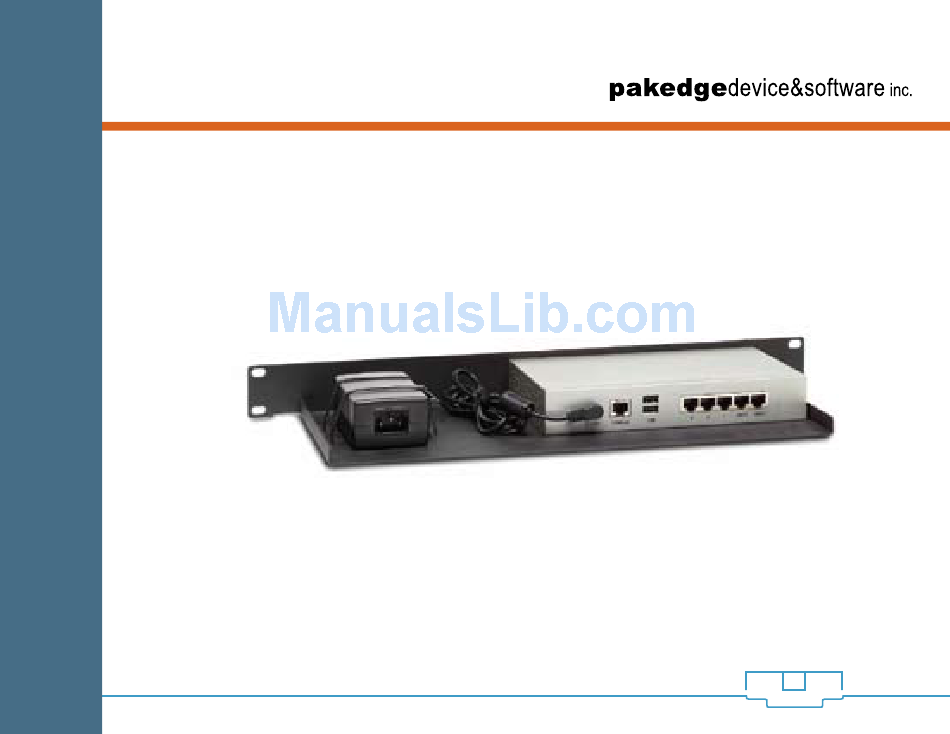

- Page 1 RB-KIT Preconfigured Enterprise-Class Router & Security Appliance Installation Manual – Version 2.0...
- Page 2 Pakedge Device & Software, 1163 Triton Dr., Foster City, CA, 94404, declares under sole responsibility that the RB-KIT complies with 47 CFR Parts 2 and 15 of the FCC Rules as a Class B digital device. This device complies with Part 15 of FCC Rules. Operation of the device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation.
- Page 3 • Keep the device away from excessive heat and humidity and keep the device free from vibration and dust. • Do not directly cover the device, or block the airflow to the device with insulation or any other objects. RB-KIT INSTALLATION MANUAL...
- Page 4 **** No Factory Reset - The RB-KIT was designed to be a very robust and exceptionally reliable product. Because of this, you will find the RT-50S does not have a hardware or software reset button. The product can either be remotely reset by Pakedge, if the router is connected to a working internet connection with remote access or at Pakedge’s facility.
-
Page 5: Table Of Contents
4.3 PPPoE Configuration ......................23 5 SUBSCRIPTION SERVICES .........................26 6 CHANGING DEFAULT PASSWORDS ....................28 APPENDIX A – TROUBLESHOOTING FAQ’S ..................30 APPENDIX B – SPECIFICATIONS ......................32 APPENDIX C – TECHNICAL SUPPORT ....................34 APPENDIX D – LIMITED WARRANTY .....................35 RB-KIT INSTALLATION MANUAL... -
Page 6: Introduction
Also, the Pakedge Router included in the kit is configured for a Guest Network. VLAN 6 is only to be used for the Guest Network because it is setup by policy to only have internet access- no other devices on the internal network will be accessible. -
Page 7: Package Content
Pakedge (for latest Advanced Manual, please visit http:// www.pakedge.com/userguides.php). Any additional configuration not listed in the Basic and Advanced manuals is NOT supported by Pakedge. Support, if needed, can be obtained from Fortinet. -
Page 8: Getting To Know The Rt-50S
Normal Operation. The correct cable is in use and the Green connected equipment has power. Link / Activity Flashing Green Network activity at this interface. No link established. 10/100 Green The interface is connected at 100 Mbps. RB-KIT INSTALLATION MANUAL... -
Page 9: Description For Ports
RJ-45 Redundant connections to the Internet. WAN 2 Optional connection to the CONSOLE RJ-45 9600 bps RS-232-C management computet. Provides access to the command line interface (CLI). Optional connection for FortiUSB key for firmware backup and installation. RB-KIT INSTALLATION MANUAL... - Page 10 Due to the nature of an enterprise gateway/security appliance, a standard reset to factory default button does not exist. Since the RT-50S is preconfigured, chances are a factory reset will not be required. However if for some reason this reset is needed, please contact Pakedge support for assistance. Power Plug To be compatible with electric service standards around the world, the switch is designed with a power supply in the range from 100 to 240VAC, 50/60Hz.
-
Page 11: Network Configuration/Setup Overview
DHCP VLAN6 – 192.168.6.110 to 192.168.6.210 Also, the Pakedge Router included in the kit is configured for a Guest Network. VLAN 6 is only to be used for a Guest Network because it is setup by policy to only have internet access no other devices on the internal network will be accessible. -
Page 12: Summary Of Setup
• Disable DHCP - this feature is useful if there is another DHCP server on the subnet/network. • Change LAN IP Address Values - this is useful is you wish to change the IP address from factory default of 192.168.1.X RB-KIT INSTALLATION MANUAL... - Page 13 IP address changes.. Each of these features is independent of each other and sequence of installation does not matter. Pakedge will add more features over time. Please visit our website for the latest Advanced Features User Manual: http://www.pakedge.com/ userguides.php.
-
Page 14: Hardware Installation
3.1.1 Securing RV-50S in RMB-FG Rack Mount Bracket Remove Rubber feet from RT-50S Guide RT-50S Router into Rackmount Bracket RMB-FG Position RT-50S snug against bracket so face can be seen through bracket opening. Flip over and align screw holes with those of router. RB-KIT INSTALLATION MANUAL... - Page 15 Use the supplied 4 x M3 screws to attach the RT-50S to the RMB-FG as shown Plug in AC/DC Power supply into Router . Place Velcro strips on Power supply and attach to rack. Plug in power cord to AV outlet RB-KIT INSTALLATION MANUAL...
-
Page 16: Broadband Software Configuration
Power down the internet provider supplied device and leave it powered down for one minute. Plug the Ethernet cable from the ISP device into the “WAN1” port on the RT-50S Router. Power up the internet provider supplied device, wait one minute then power on the Router. RB-KIT INSTALLATION MANUAL... -
Page 17: Static Ip
2) Connect an Ethernet cable from the RT-50S- Port 1, 2 or 3 to a PC’s Ethernet Port. 3) Open Internet Explorer on the PC and go to http://192.168.1.99. 4) At the login prompt type in the username: user and the password: user. RB-KIT INSTALLATION MANUAL... - Page 18 5) Click on Network under System on the left hand side of the screen. Click on Interface. 6) Double click on the wan1 row RB-KIT INSTALLATION MANUAL...
- Page 19 7) Click on the Manual radio button under the Addressing Mode heading. Enter the IP address and Subnet mask information provided by the ISP, then click OK. We are using 100.100.100.100/255.255.255.0 as an example only. RB-KIT INSTALLATION MANUAL...
- Page 20 8) You are now connected to the internet. However to ensure the optimal performance, we recommend replacing the default DNS settings with your ISP’s DNS settings. To add your ISP’s DNS information, log off user and login again using the adminstrator name - pakedge, and the password - pakedgef. RB-KIT INSTALLATION MANUAL...
- Page 21 9) Now, to add the DNS, Click on System | Network and click on the Options tab. RB-KIT INSTALLATION MANUAL...
- Page 22 10) Type in the DNS values that you received from your ISP and then click Apply. We are using 4.2.2.1 and 4.2.2.2 as an example only as seen below RB-KIT INSTALLATION MANUAL...
- Page 23 12) In the Gateway field, type in the default gateway provided by the ISP and then click OK. We are using 100.100.100.1 only as an example. Note- Make sure that the Device is set to wan1. 13) The Router is now configured and ready to be used. You can close the browser window. RB-KIT INSTALLATION MANUAL...
-
Page 24: Pppoe Configuration
2) Connect an Ethernet cable from the RT-50S- Port 1, 2 or 3 to a PC’s Ethernet Port. 3) Open Internet Explorer on the PC and go to http://192.168.1.99. 4) At the login prompt type in the username: user and the password: user. RB-KIT INSTALLATION MANUAL... - Page 25 5) Click on Network under System on the left hand side of the screen. 6) In the WAN1 row, Click on the Edit icon, it looks like a pencil and paper- see graphic below. RB-KIT INSTALLATION MANUAL...
- Page 26 7) Click on the PPPoE radio button under the Addressing Mode heading. Enter the username and password information provided by the ISP. Click on OK. 8) The Router is now configured to use a PPPoE connection and is ready to be used. You can close the browser window. RB-KIT INSTALLATION MANUAL...
-
Page 27: Subscription Services
Pakedge has created a custom profile that protects users from the most common types of threats. This further adds to the plug and play simplicity of the Pakedge preconfigured solution. - Page 28 1 year, 2 year, 3 year, 4 year, or 5 year Antispam, Intrusion Protection Bundle 24x7 Fortinet Comprehensive Support + RT-B247 1 year, 2 year, 3 year, 4 year, or 5 year Antivirus, Antispam, Intrusion Protection Bundle RB-KIT INSTALLATION MANUAL...
-
Page 29: Changing Default Passwords
There are two logons for this router: user for Basic Setup and pakedge for Advanced Setup. 1) Logon using the username and password you want to change, either:... - Page 30 3) Select the username currently logged into the system. In this example, select the checkbox next to user. Then, select change password from the top menu. 4) Type in the old password followed by the new password twice and then hit OK 5) Repeat steps 1-4 for the second username. In this example, pakedge RB-KIT INSTALLATION MANUAL...
-
Page 31: Appendix A - Troubleshooting Faq's
- The Pakedge preconfigured version of the Fortgate-50B comes with a separate GUI and logon from the full Fortinet version. The separate Pakedge logon is limited to a basic set of options to get the network up and running. This allows the powerful Fortigate router/security appliance to be installed in any home without formal training. - Page 32 Appendix A – Troubleshooting FAQ’s (continued) 4 - What is the RB-KIT and what are the advantages of purchasing the product this way? - The RB-KIT comprises of the RT-50S router/security application, and all necessary rack mount hardware to install the unit into an AV rack. The kit contains everything an installer needs to quickly configure a powerful Enterprise-Class Router/Security Appliance into any home.
-
Page 33: Appendix B Specifications
Power Supply: 4.5” x 2.5” x 1.5” L x W x H Firewall/VPN 3DES 50/48 Mbps Optional: Rackmount Bracket – Concurrent sessions 19” x 8” x 1.75” L x W x H New sessions/second Site-site IPSec VPN tunnels Antivirus throughput RB-KIT INSTALLATION MANUAL... - Page 34 Storage: – 40°C to 70°C ( – 40°F to 158°F) Anti-spam RBL/SURBL Humidity: 5% ~ 95% typical CERTIFICATIONS ICSA: Firewall, IPSec, SSL, Antivirus, IPS COMPLIANCE FCC Class A, Part 15, UL/CUL, C Tick, CE, VCCI POWER REQUIREMENTS 120/240 VAC 50/60 Hz RB-KIT INSTALLATION MANUAL...
-
Page 35: Appendix C - Technical Support
Appendix C – Technical Support Please visit our website for up-to-date support information: Website: www.pakedge.com Email: support@pakedge.com Phone- 1-650-385-8703 CONTACT INFORMATION: Pakedge Device & Software Inc. 1163 Triton Dr. Foster City, CA 94404 RB-KIT INSTALLATION MANUAL... -
Page 36: Appendix D - Limited Warranty
(1) year from the effective date of delivery to the end user. PARTS: Pakedge will provide new or rebuilt replacement parts for the parts that fail due to defects in materials or workmanship for a period of one (1) year from the effective date of delivery to the end user. - Page 37 9.3 Rights, Limits, and Exclusions Pakedge limits its obligation under any implied warranties under state laws to a period not to exceed the warranty period. There are no express warranties. Pakedge also excludes any obligation on its part for incidental or consequential damages related to the failure of this product to function properly.
- Page 38 9.5 Important: Warranty Registration Please register your product at www.pakedge.com. It is imperative that Pakedge knows how to reach you promptly if we should discover a safety problem or product update for which you must be notified. In addition, you may be eligible for discounts on future upgrades as new networking standards come about.
- Page 40 1163 Triton Dr. Foster City, CA 94404 Visit Us At: www.pakedge.com © Pakedge Device & Software Inc. 2010 – All Rights Reserved...
