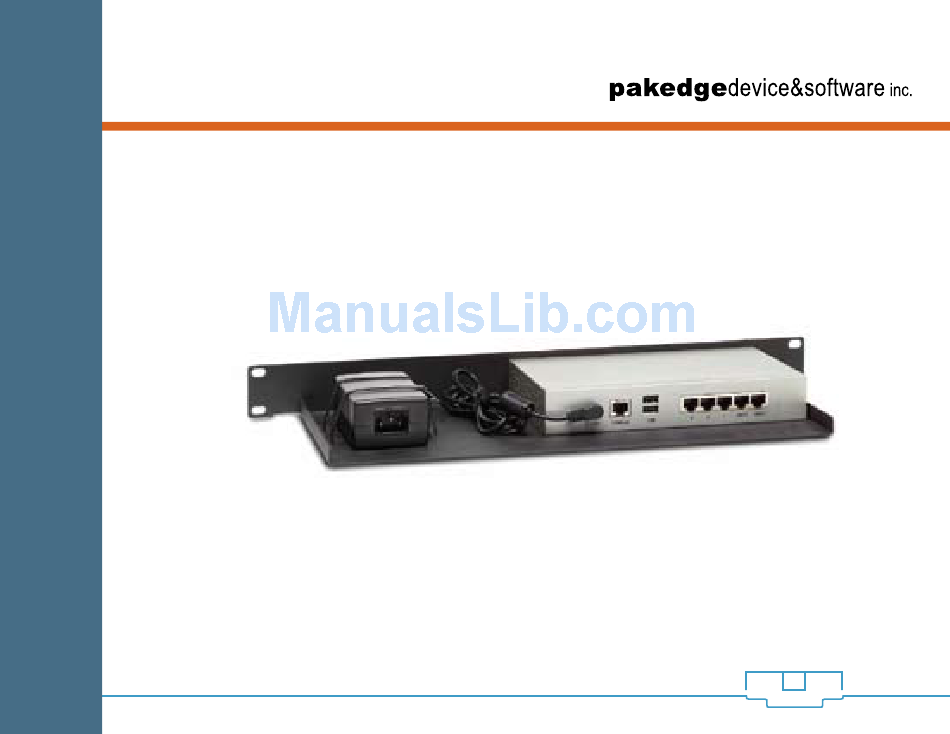

- Page 1 RB-KIT Preconfigured Enterprise-Class Router & Security Appliance Installation Manual – Version 2.0...
- Page 2 Pakedge Device & Software, 1163 Triton Dr., Foster City, CA, 94404, declares under sole responsibility that the RB-KIT complies with 47 CFR Parts 2 and 15 of the FCC Rules as a Class B digital device. This device complies with Part 15 of FCC Rules. Operation of the device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation.
- Page 3 • Keep the device away from excessive heat and humidity and keep the device free from vibration and dust. • Do not directly cover the device, or block the airflow to the device with insulation or any other objects. RB-KIT INSTALLATION MANUAL...
- Page 4 **** No Factory Reset - The RB-KIT was designed to be a very robust and exceptionally reliable product. Because of this, you will find the RT-50S does not have a hardware or software reset button. The product can only be reset by Pakedge either remotely, if the router is connected to a working internet connection with remote access or at Pakedge’s facility.
-
Page 5: Table Of Contents
4.3 PPPoE Configuration ......................23 5 SUBSCRIPTION SERVICES .........................26 6 CHANGING DEFAULT PASSWORDS ....................28 APPENDIX A – TROUBLESHOOTING FAQ’S ..................30 APPENDIX B – SPECIFICATIONS ......................32 APPENDIX C – TECHNICAL SUPPORT ....................34 APPENDIX D – LIMITED WARRANTY .....................35 RB-KIT INSTALLATION MANUAL... -
Page 6: Introduction
/ antimalware, intrusion prevention (IPS), web filtering, stateful firewall and traffic shaping, and IPSec/SSL VPN. The RB-KIT is preconfigured to allow custom installers to focus on quick, quality installations without enterprise configuration worries. Also, the Pakedge Router including in the kit is configured for a Guest Network. The Guest Network is called VLAN 6 is only used for a Guest Network because it is setup by policy to only have internet access- no other devices on the internal network will be accessible. -
Page 7: Package Content
• Power Cable (US, EUR, UK, AUS/NZ, IT or IN/SA) • Console Serial Cable (used for advanced features) • CAT5E Cable • Installation Manual - (Basic Only, Advanced Features Manual is Downloadable on www.pakedge.com/userguides.php ) • Hardware Accessories RB-KIT INSTALLATION MANUAL... -
Page 8: Getting To Know The Rt-50S
Normal Operation. The correct cable is in use and the Green connected equipment has power. Link / Activity Flashing Green Network activity at this interface. No link established. 10/100 Green The interface is connected at 100 Mbps. RB-KIT INSTALLATION MANUAL... -
Page 9: Description For Ports
RJ-45 Redundant connections to the Internet. WAN 2 Optional connection to the CONSOLE RJ-45 9600 bps RS-232-C management computet. Provides access to the command line interface (CLI). Optional connection for FortiUSB key for firmware backup and installation. RB-KIT INSTALLATION MANUAL... - Page 10 To power the switch, plug the female end of the power cord firmly into the receptacle of the switch and the other end into a power outlet. After the power cord is plugged in, the power LED should be a solid green to indicate normal power status. RB-KIT INSTALLATION MANUAL...
-
Page 11: Network Configuration/Setup Overview
2 Network Configuration/Setup Overview 2.1Summary of Settings & IP Address Configuration Pakedge Factory Default Settings for RB-Kit STATUS OPERATION Network Internal Interface 192.168.1.99 WAN1 Interface Dynamic IP Service WAN2 Interface Dynamic IP Service DHCP DHCP Server on Internal Interface 192.168.1.110 to 192.168.1.210 Guest Network DHCP VLAN6 –... -
Page 12: Summary Of Setup
• Disable DHCP - this feature is useful if there is another DHCP server on the subnet/network. • Change LAN IP Address Values - this is useful is you wish to change the IP address from it’s factory default of 192.168.1.X RB-KIT INSTALLATION MANUAL... - Page 13 Finally, additional features can be added by referring to the Fortinet Administrator Guide for the Fortigate- 50B http://www.pakedge.com/docs/fortigate_admin_4.pdf. Please note, Pakedge does not support anything outside of these features. If support is required, it can be purchased from Fortinet. Please contact Pakedge for details. RB-KIT INSTALLATION MANUAL...
-
Page 14: Hardware Installation
3.1.1 Securing RV-50S in RMB-FG Rack Mount Bracket Remove Rubber feet from RT-50S Guide RT-50S Router into Rackmount Bracket RMB-FG Position RT-50S snug against bracket so face can be seen through bracket opening. Flip over and align screw holes with those of router. RB-KIT INSTALLATION MANUAL... - Page 15 Use the supplied 4 x M3 screws to attach the RT-50S to the RMB-FG as shown Plug in AC/DC Power supply into Router . Place Velcro strips on Power supply and attack to rack. Plug in power cord to AV outlet RB-KIT INSTALLATION MANUAL...
-
Page 16: Broadband Software Configuration
Power down the internet provider supplied device and leave it powered down for one minute. Plug the Ethernet cable from the ISP device into the “WAN1” port on the RT-50S Router. Power up the internet provider supplied device, wait one minute then power on the Router. RB-KIT INSTALLATION MANUAL... -
Page 17: Static Ip
2) Connect an Ethernet cable from the RT-50S- Port 1, 2 or 3 to a PC’s Ethernet Port. 3) Open Internet Explorer on the PC and go to http://192.168.1.99. 4) At the login prompt type in the username: user and the password: user. RB-KIT INSTALLATION MANUAL... - Page 18 5) Click on Network under System on the left hand side of the screen. Click on Interface. 6) Double click on the wan1 row RB-KIT INSTALLATION MANUAL...
- Page 19 7) Click on the Manual radio button under the Addressing Mode heading. Enter the IP address and Subnet mask information provided by the ISP, then click OK. We are using 100.100.100.100/255.255.255.0 as an example only. RB-KIT INSTALLATION MANUAL...
- Page 20 8) You are now connected to the internet, however to ensure the optimal performance, we recommend replacing the default DNS settings with your ISP’s DNS settings. To add your ISP’s DNS information, log off user and login again using the adminstrator name - pakedge, and the password - pakedgef. RB-KIT INSTALLATION MANUAL...
- Page 21 9) Now, to add the DNS, Click on System | Network and click on the Options tab. RB-KIT INSTALLATION MANUAL...
- Page 22 10) Type in the DNS values that you received from your ISP and then click Apply. We are using 4.2.2.1 and 4.2.2.2 as an example only as seen below RB-KIT INSTALLATION MANUAL...
- Page 23 12) In the Gateway field, type in the default gateway provided by the ISP and then click OK. We are using 100.100.100.1 only as an example. Note- Make sure that the Device is set to wan1. 13) The Router is now configured and ready to be used. You can close the browser window. RB-KIT INSTALLATION MANUAL...
-
Page 24: Pppoe Configuration
2) Connect an Ethernet cable from the RT-50S- Port 1, 2 or 3 to a PC’s Ethernet Port. 3) Open Internet Explorer on the PC and go to http://192.168.1.99. 4) At the login prompt type in the username: user and the password: user. RB-KIT INSTALLATION MANUAL... - Page 25 5) Click on Network under System on the left hand side of the screen. 6) In the WAN1 row, Click on the Edit icon, it looks like a pencil and paper- see graphic below. RB-KIT INSTALLATION MANUAL...
- Page 26 7) Click on the PPPoE radio button under the Addressing Mode heading. Enter the username and password information provided by the ISP. Click on OK. 8) The Router is now configured to use a PPPoE connection and is ready to be used. You can close the browser window. RB-KIT INSTALLATION MANUAL...
-
Page 27: Subscription Services
Furthermore, friendly reminders will be sent to you to indicate upcoming renewals. All subscriptions come with 8x5 or 24x7 Fortinet support. Support contracts can also be purchased individually as needed. RB-KIT INSTALLATION MANUAL... - Page 28 1 year, 2 year, 3 year, 4 year, or 5 year Antispam, Intrusion Protection Bundle 24x7 Fortinet Comprehensive Support + RT-B247 1 year, 2 year, 3 year, 4 year, or 5 year Antivirus, Antispam, Intrusion Protection Bundle RB-KIT INSTALLATION MANUAL...
-
Page 29: Changing Default Passwords
Basic Setup and pakedge for Advanced Setup. 1) Logon using the username and password you want to change, either: i) Username - user, Password - user ii) Username - pakedge, Password - pakedgef 2) Click on System | Admin. Click on Administrators RB-KIT INSTALLATION MANUAL... - Page 30 After that, select change password from the top menu. 4) Type in the old password followed by the new password twice and then hit OK 5) Repeat steps 1-4 for the second username. In this example, pakedge RB-KIT INSTALLATION MANUAL...
-
Page 31: Appendix A - Troubleshooting Faq's
As a result, configuration is not as intuitive as the low end routers and education is needed to understand and configure fully. The Pakedge preconfigured version is designed only to support set configurations to make configuring the router straight forward and simple. Fortinet is better equipped to support configurations beyond the basic residential application. RB-KIT INSTALLATION MANUAL... - Page 32 Appendix A – Troubleshooting FAQ’s (continued) 4 - What is the RB-KIT and what are the advantages of purchasing the product this way? - The RB-KIT comprises of the RT-50S router/security application, and all a rack mount hardware to install into a AV rack.
-
Page 33: Appendix B Specifications
Power Supply: 4.5” x 2.5” x 1.5” L x W x H Firewall/VPN 3DES 50/48 Mbps Optional: Rackmount Bracket – Concurrent sessions 19” x 8” x 1.75” L x W x H New sessions/second Site-site IPSec VPN tunnels Antivirus throughput RB-KIT INSTALLATION MANUAL... - Page 34 Storage: – 40°C to 70°C ( – 40°F to 158°F) Anti-spam RBL/SURBL Humidity: 5% ~ 95% typical CERTIFICATIONS ICSA: Firewall, IPSec, SSL, Antivirus, IPS COMPLIANCE FCC Class A, Part 15, UL/CUL, C Tick, CE, VCCI POWER REQUIREMENTS 120/240 VAC 50/60 Hz RB-KIT INSTALLATION MANUAL...
-
Page 35: Appendix C - Technical Support
Appendix C – Technical Support Please visit our website for up-to-date support information: Website: www.pakedge.com Email: support@pakedge.com Phone- 1-650-385-8703 CONTACT INFORMATION: Pakedge Device & Software Inc. 1163 Triton Dr. Foster City, CA 94404 RB-KIT INSTALLATION MANUAL... -
Page 36: Appendix D - Limited Warranty
God. RB-KIT INSTALLATION MANUAL... - Page 37 This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. 9.4 Effective Warranty Date This warranty begins on the effective date of delivery to the end user. For your convenience, keep the original bill of sale as evidence of the purchase date from your authorized dealer. RB-KIT INSTALLATION MANUAL...
- Page 38 Return shipping costs will be the responsibility of the owner. For additional information about this warranty, visit our website: Pakedge Device & Software Inc. 1163 Triton Dr. Foster City, CA 94404 Email- support@pakedge.com www.pakedge.com RB-KIT INSTALLATION MANUAL...
- Page 40 1163 Triton Dr. Foster City, CA 94404 Visit Us At: www.pakedge.com © Pakedge Device & Software Inc. 2010 – All Rights Reserved...
