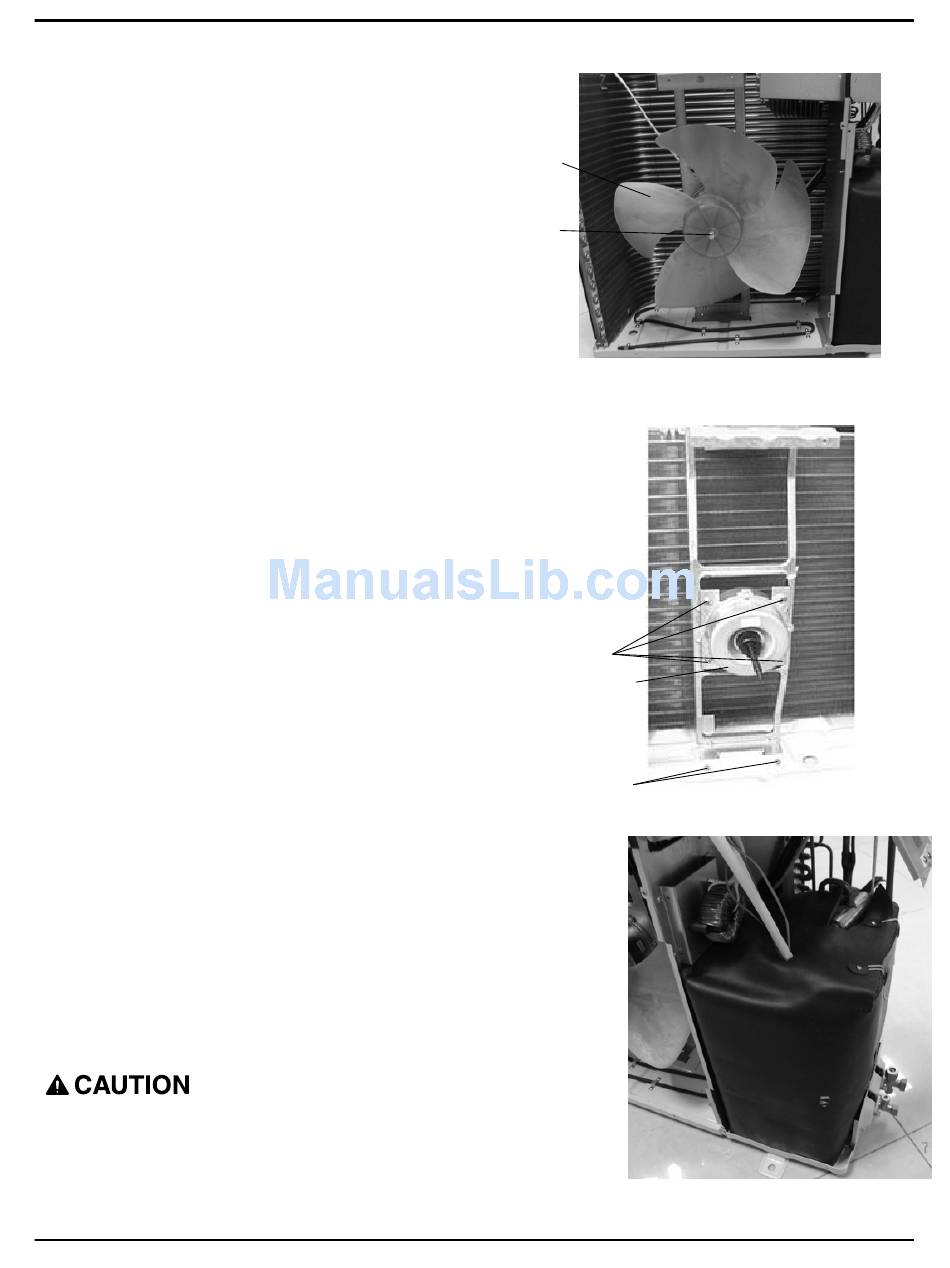

7. Disassemble the axial flow fan
•
Srew off the nut which fixing the axial flow fan
by the spanner, then take out the nut, spring
washer, flat washer in turn.
8.
Disassemble the motor and motor supporter
•
Screw off 4pcs screw which fixing the motor, then
take down the motor.
•
Screw off 2pcs screw which fixing the motor supporter,
then can take down the motor supporter.
8.
Disassemble the four-way valve
•
Screw off the nut which fixing the four-way valve
loop, take down the loop, then use the wet gauze
to wrap the four-way valve, and unsolder four pcs
soldered point on the four-way valve, then can disassemble it.
•
Before disassembly, please discharge the refrigerant,
the soldering procedure should be as quickly as possible,
and please keep the gauze wet all the time, do not burn
out the lead wire of compressor by the flame.
Axial flow fan
Nut
Screws
Motor
Screws
Disassembly
