6. Remove the rollers (6) from the support (7).

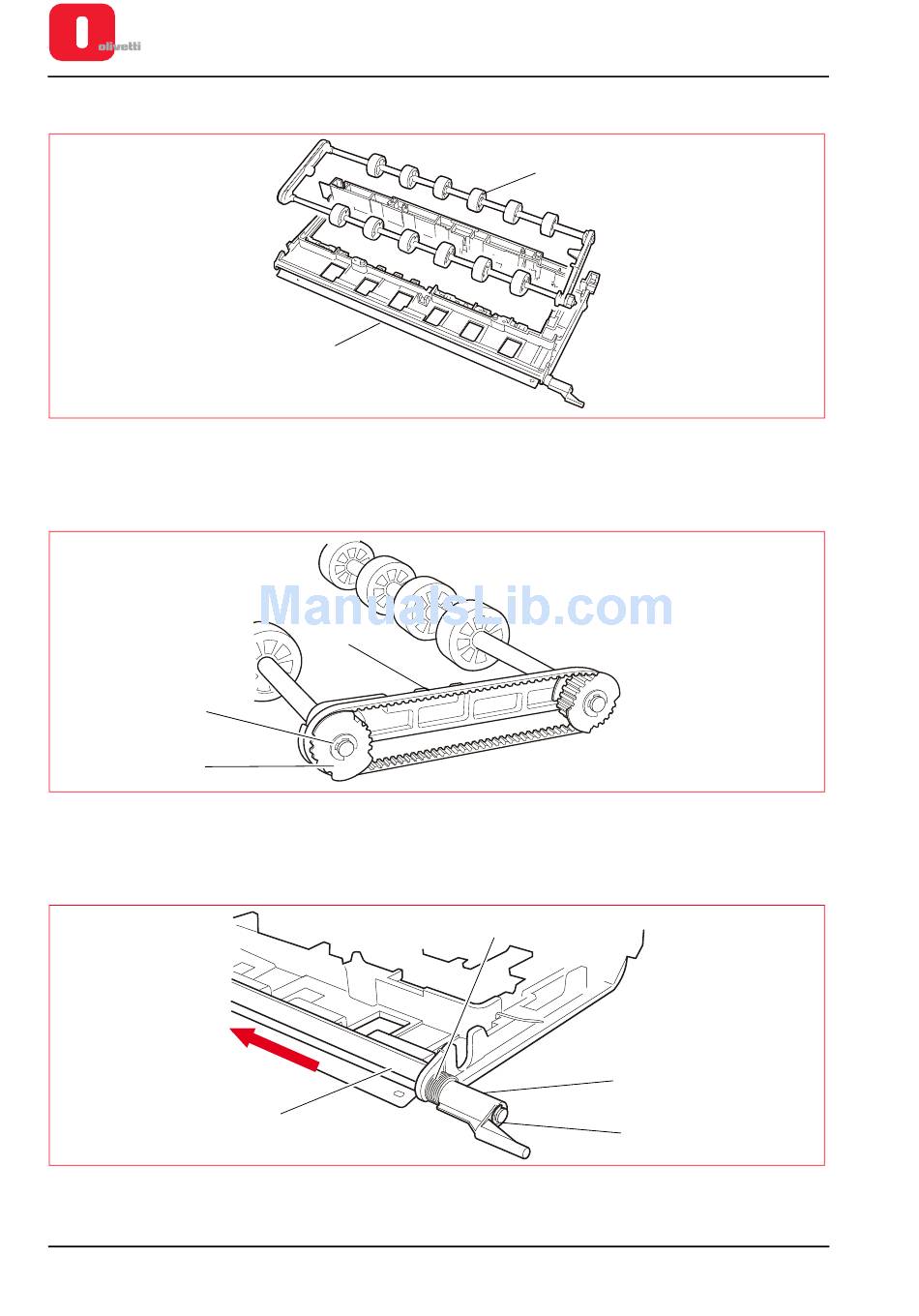

Figure 7 - 44 Removing the rollers
7. Remove the snap ring (8) and related gear (9).
8. Remove the drive belt (10).
8
9
Removing the transmission belt
Figure 7 - 45
9. Remove the snap ring (11), the cam (12) and the spring (13).
10. Slide out and remove the shaft (14).
Figure 7 - 46
Removing the scanner shaft
7-32
7
10
14
Service Manual
6
13
12
11
XZAC4219-05
