Horizontal magnetic/MICR printhead assy disassembly/reassembly
1. Remove the horizontal magnetic/MICR assy. See the section
"Horizontal magnetic/MICR disassembly/
reassembly" on page 7 -
28.
2. Loosen the screw (1) and free the signals cable.
3. Loosen the screws (2) and extract the MICR printhead (3).
2
3
2
1

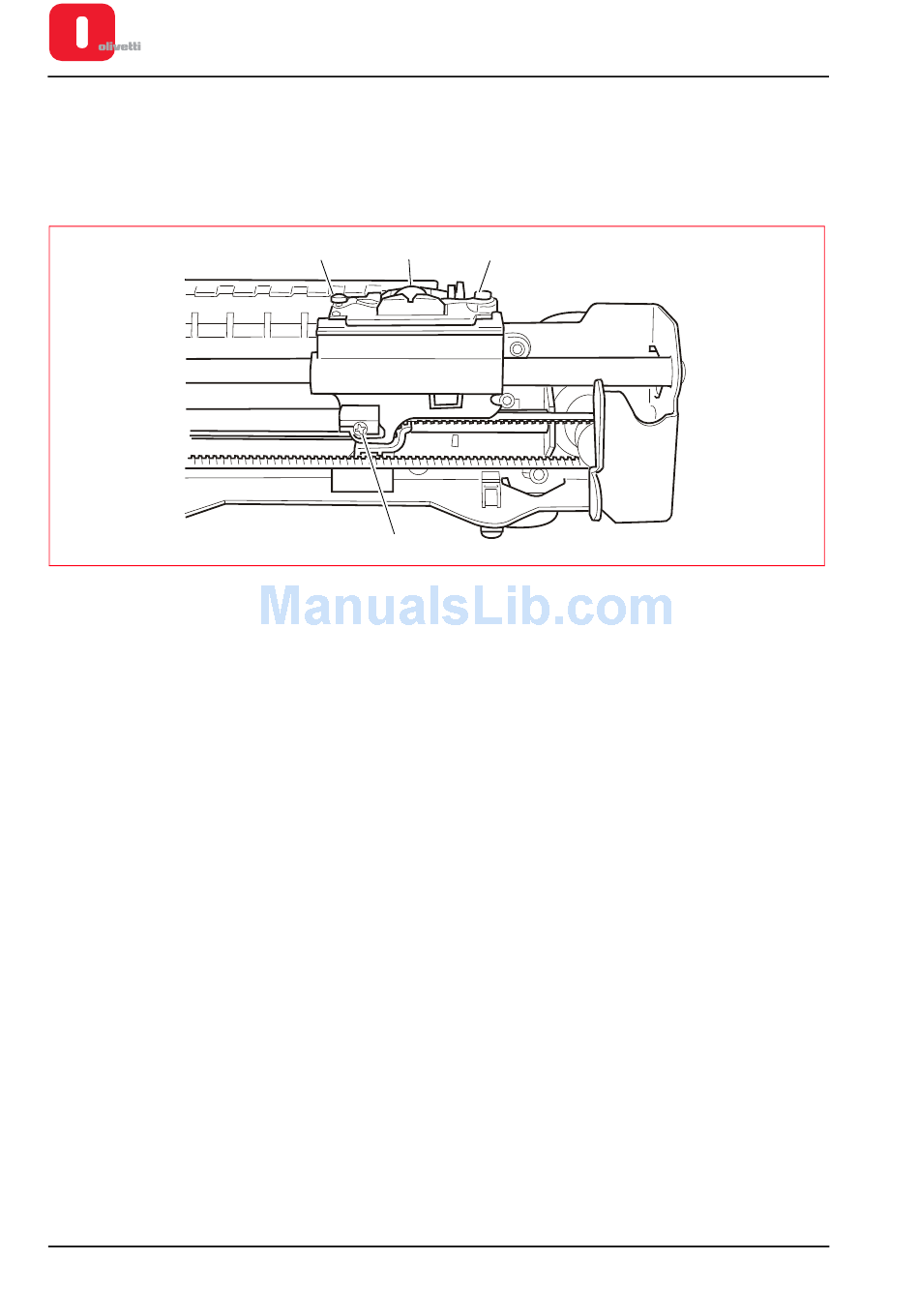

Figure 7 - 41 Horizontal magnetic/MICR printhead assy
XZAC4219-05
7-30
Service Manual
