Roller assy (upper scanner) disassembly/reassembly

1. Remove the casing. See the section
2. Remove the upper mechanical assy. See the section
page 7 - 11.
3. Back off the four lock-screws (2) of the roller assy (1).
4. Remove the roller assy (1) lifting this as indicated in the figure and taking care not to mislay the transmission
shaft (3).
2

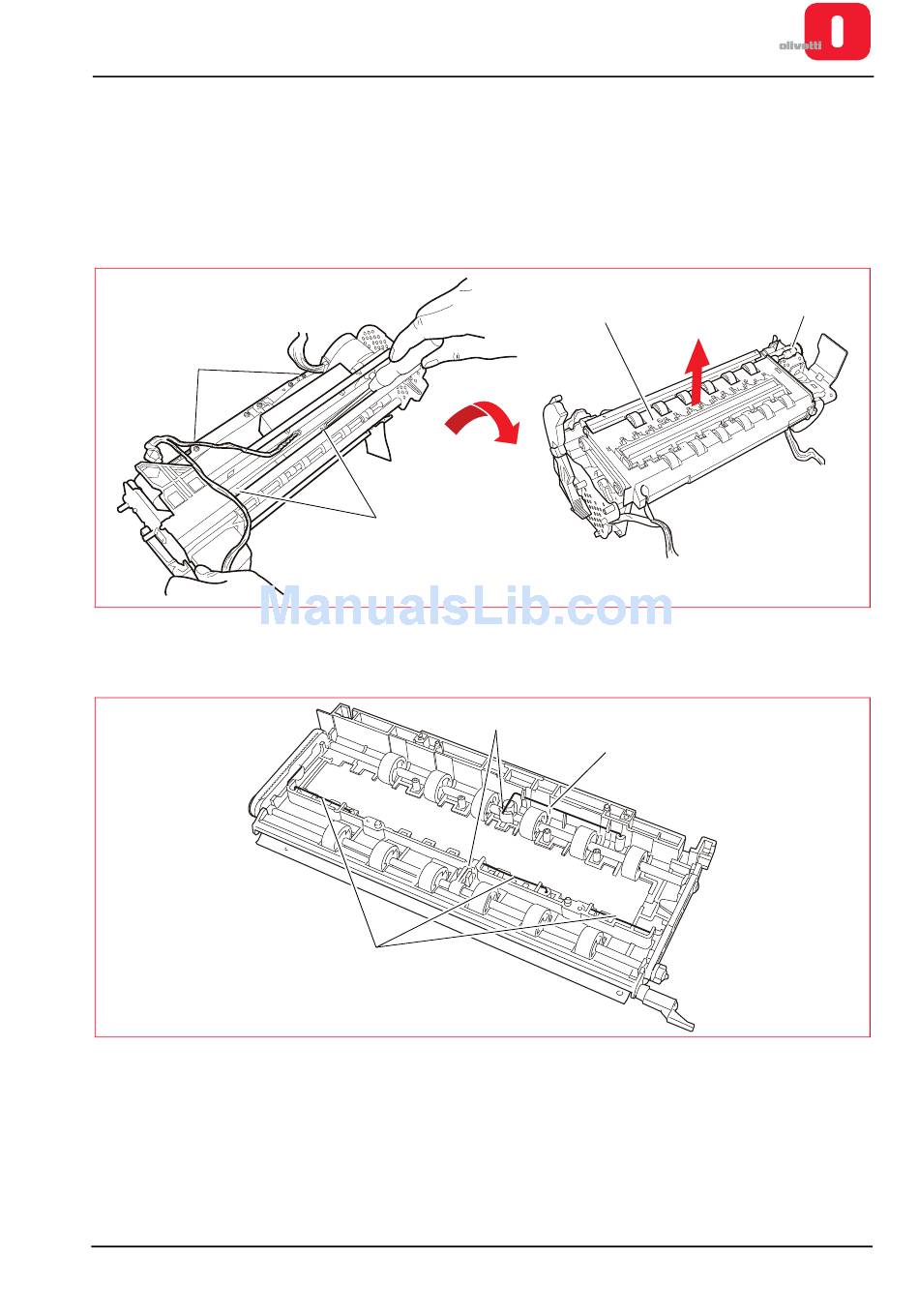

Figure 7 - 42 Disassembling the roller assy (upper scanner)
5. Remove the clamps (4) and recover the clips (5).
Figure 7 - 43 Clamps fastening roller unit
XZAC4219-05
"Casing disassembly/reassembly" on page 7 -
"Upper mechanical assy disassembly/reassembly" on
2
5
4
Service Manual
4.
1
4
3
7-31
