Service Manual
-IP
Voice over Internet Protocol
-M
Magnetic Hookswitch
-BK
Braille Keypad
-IVC
Internal Volume Control &
Background Noise Reduction
-ACH*
Handset Color _________________
(Red, Yellow or White)
331-005
WPP Weatherproof Enclosed
Housing
For
HOB-331-F
Communication Equipment
& Engineering Company
519 S.W. Park Street
Okeechobee, FL 33313
Phone: 863-357-0798
Fax:
863-357-0006
Email: info@ceeco.net
Web: www.ceeco.net
-ACH**
Handset cord length_________Inches
-CCH
Coiled cord length ___________Feet
5', 10', or 15'
-PBVC
Pushbutton volume control on
Handset
-C
Background noise reduction on
Handset
-BR
Braille emergency Plate
331-
Weather Resistant Open Housing
HOB
SSP-311-F -ISSUE 4.0
Advertisement
Table of Contents
Related Manuals for CEECO HOB-331-F
Summary of Contents for CEECO HOB-331-F
- Page 1 SSP-311-F -ISSUE 4.0 Service Manual HOB-331-F Voice over Internet Protocol -ACH** Handset cord length_________Inches Magnetic Hookswitch -CCH Coiled cord length ___________Feet 5’, 10’, or 15’ Braille Keypad -PBVC Pushbutton volume control on Handset -IVC Internal Volume Control & Background noise reduction on...
-
Page 2: Table Of Contents
SSP-311-F -ISSUE 4.0 Table of Contents Important Customer Information ................1.0 Introduction ....................... 2.0 General Description ....................3.0 Operation ........................4.0 Recommended Tools & Test Equipment ............5.0 Installation & Assembly ..................6.0 Testing .......................... 7.0 Troubleshooting ....................... 8.0 Specifications ......................9.0 Parts List ........................ -
Page 3: Important Customer Information
SSP-311-F -ISSUE 4.0 IMPORTANT INFORMATION CUSTOMER Please fill in before you continue. The following information is necessary when calling CEECO for assistance. HOB-331-F MODEL NUMBER SERIAL NUMBER DATE MANUFACTURED LOCATION INSTALLED For us to better serve you, please have this information available when calling for technical support. -
Page 4: Introduction

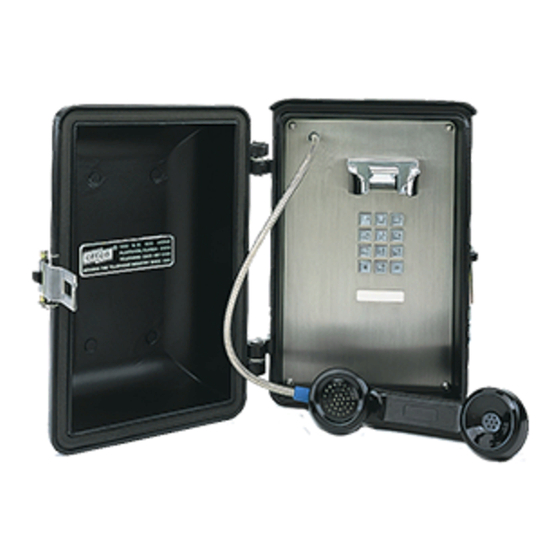

(863) 357-0798 PHONE (863) 357-0006 FAX GENERAL DESCRIPTION The CEECO model SSP 311-F is a Stainless Steel Panel Telephone equipped with a metal button chrome tone dial keypad. They are designed for special purpose applications where a telephone must be both sturdy and attractive. The WPP-331-F is a weatherproof housing with the stainless steel panel telephone. -
Page 5: Installation & Assembly
SSP-311-F -ISSUE 4.0 5.0 INSTALLATION NOTES & ASSEMBLY INSTRUCTIONS Run the inside station wire to the panel assembly and terminate on an RJ11C terminal block. The use of a gas tube station protector is recommended. The station ground should not exceed 50 ohms. Plug the modular line cord from the panel assembly into a RJ11C terminal block. -
Page 6: Testing
SSP-311-F -ISSUE 4.0 6.0 TESTING 6.1. Connect the phone to a phone line or a DTMF phone test set. 6.2. From the test set or another phone, place a call to the telephone. 6.3. Verify that the ringer is working. 6.4. -
Page 7: Troubleshooting
SSP-311-F -ISSUE 4.0 7.0 TROUBLESHOOTING GUIDE Always visually check the phone for loose or shorted wires, damaged terminals or damaged parts. PROBLEM: NO DIAL TONE POSSIBLE CAUSE: LINE CORD RJ11C CONNECTOR NETWORK (IF PROVIDED) HANDSET DIAL PCB PROBLEM: DIAL TONE IS DISTORTED POSSIBLE CAUSE: NETWORK HANDSET... -
Page 8: Specifications
11 1/4" H x 7 1/16" W x 4 1/4" D (Handset on hook) WPP-331-F (Weatherproof) Section 10.0 for Housing details HOB-331-F (Open Enclosure) Section 11.0 for Housing details MOUNTING: SSP - Vertical Surface Mount WPP or HOB - Wall/Surface Mount... -
Page 9: Parts List
SSP-311-F -ISSUE 4.0 9.0 PARTS LIST QUANTITY PART NO. DESCRIPTION 730-ANS Dial Keypad 301-004-32 32” Armored Cord Handset (SSP-311-F) 301-004-18 18” Armored Cord Handset (WPP-331-F) 401-009 Ringer 301-009 Network 301-528 Mechanical Hookswitch 301-592 Magnetic Hookswitch 301-018 Modular Cord 301-005 Ferrule 301-054-UL Modular Connector (RJ11C) 331-006... -
Page 10: Wpp Housing Specs
SSP-311-F -ISSUE 4.0 10.0 WPP HOUSING SPECS MECHANICAL DIMENSIONS ENCLOSURE: Cast Aluminum HOUSING: (including door) 12 5/8” H x 9 1/2” W x 8 ” D MOUNTING: 4 Holes spaced 8” x 5 7/8” WEIGHT: 11 lbs. HOUSING TYPE: BLACK Housing RED Housing YELLOW Housing GREY Housing... -
Page 11: Hob Housing Specs
SSP-311-F -ISSUE 4.0 11.0 HOB HOUSING SPECS MECHANICAL DIMENSIONS ENCLOSURE: 14 gauge Colored Housing - Painted Steel or Stainless Steel Housing - Brushed stainless steel HOUSING: 11.43” H x 7.23” W x 5” D (top) MOUNTING: 4 Holes spaced 8” x 5 7/8” 6 lbs. -
Page 12: Fcc Notice
SSP-311-F -ISSUE 4.0 12.0 FCC NOTICE 12.1 FCC REGISTRATION AND REPAIR INFORMATION Your new telephone has been registered with the Federal Communication Commission (FCC) in accordance with Part 68. The FCC requires that you be advised of certain requirements involving the use of this telephone. -
Page 13: Repair And Return
519 S.W. Park Street Okeechobee, FL. 34972 (863) 357-0798 13.3 NON-WARRANTY REPAIR CEECO will repair equipment out of warranty for a set charge plus parts. The customer must pay the shipping costs both directions. 13.4 RETURN FOR CREDIT Material may be returned for credit only with prior approval. -
Page 14: Warranty Policy
God or improper operation of equipment. CEECO will repair or replace any unit during this period if found to be defective for reasons other than abuse and improper use or improper installation. It is the buyer’s responsibility to return the defective unit to the factory. - Page 15 Whatever the application may require, CEECO is prepared to offer affordable solutions that are “Built to Last”, with customer support that lasts the life of the product! CEECO is proud to manufacture our telephones in the USA.
