ResMed VPAP Adapt Information Manual

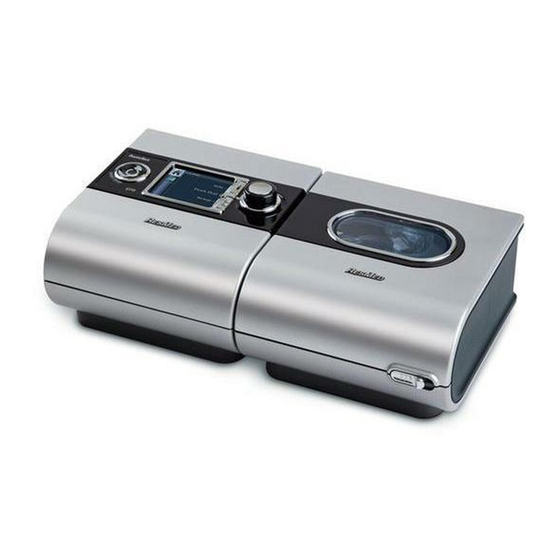

Positive airway pressure device heated humidifier air tubing
Hide thumbs Also See for VPAP Adapt:
Table of Contents

Advertisement

Quick Links

See also: Manual
VPAP
Adapt
™
POSITIVE AIRWAY PRESSURE DEVICE
H5i
™
HEATED HUMIDIFIER
ClimateLine
™
AIR TUBING
Information Guide
English
Please read the entire Information and Welcome Guides before using your device.
CAUTION
In the US, Federal law restricts this device to sale by or on the order of a physician.
VPAP Adapt indications for use
The VPAP Adapt is indicated for the treatment of patients weighing more than 66 lb (30 kg) with
obstructive sleep apnea (OSA), central and/or mixed apneas, or periodic breathing. The VPAP Adapt is
intended for home and hospital use.
VPAP Adapt contraindications
Positive airway pressure therapy may be contraindicated in some patients with the following pre-
existing conditions:
•
severe bullous lung disease
•
pneumothorax or pneumomediastinum
•
pathologically low blood pressure, particularly if associated with intravascular volume depletion
•
dehydration
•
cerebrospinal fluid leak, recent cranial surgery, or trauma.
/ ClimateLine
MAX™
/ SlimLine
/ Standard
™
English
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VPAP Adapt and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ResMed VPAP Adapt

Summary of Contents for ResMed VPAP Adapt

  • Page 1 In the US, Federal law restricts this device to sale by or on the order of a physician. VPAP Adapt indications for use The VPAP Adapt is indicated for the treatment of patients weighing more than 66 lb (30 kg) with obstructive sleep apnea (OSA), central and/or mixed apneas, or periodic breathing. The VPAP Adapt is intended for home and hospital use.

  • Page 2: Troubleshooting

    The H5i is contraindicated for use with patients whose upper (supraglottic) airway has been bypassed. Troubleshooting If there is a problem, try the following suggestions. If the problem cannot be solved, contact your equipment supplier or ResMed. Do not attempt to open the device or the H5i enclosure. Problem/Possible cause Solution No display Power is not connected.
  • Page 3 Problem/Possible cause Solution Insufficient air delivered from the device Ramp time is in use. Wait for air pressure to build up or change ramp time. Air filter is dirty. Replace air filter. Air tubing is not connected Check air tubing. properly.
  • Page 4 SmartStart/Stop is enabled but the device does not stop automatically when you remove your mask Incompatible mask system Only use equipment recommended by ResMed. being used. Incorrect mask setting being Check the selected mask type in the Setup menu. Change it if used.
  • Page 5 Turn the humidity level setting down and empty the water from high, resulting in accumulation the air tubing. of water in the air tubing. Check ResMed 30/90W Power Supply Unit and fully insert the connector Displays message: The DC plug is partially inserted Fully insert the DC plug.
  • Page 6 Problem/Possible cause Solution No tube, please check your tube is connected Displays message: Flow is high because air tubing Connect the air tubing firmly at both ends. is not connected properly. Note: The tube disconnection check may not operate when an antibacterial filter is used.
  • Page 7 Problem/Possible cause Solution You may have removed the Reinsert the SD card and wait for the Home screen or the "Settings updated successfully, press any key" SD card before settings were message to copied to the device. appear on the LCD. Note: This message only appears once.
  • Page 8 Information regarding the electromagnetic emissions and immunity of this ResMed device can be found on www.resmed.com, on the Products page under Service and Support. Click on the PDF file for your language. Class II (double insulation), Type BF, Ingress protection IP21...
  • Page 9 VPAP Adapt technical specifications Mode pressure CPAP mode ranges Set Pressure: 4–20 cm H ASV and ASVAuto mode EPAP: 4–15 cm H O; PS: 0–20 cm H Maximum single Maximum single fault steady state pressure: 30 cm H O—if pressure exceeded fault pressure for >...
  • Page 10 H5i technical specifications Temperature Maximum heater plate temperature: 150°F (65°C) Temperature cut-out: 165°F (74°C) Maximum gas temperature: ≤ 106°F (≤ 41°C) Dimensions (L x W x H): 6.0" x 5.7" x 3.4" (153 mm x 145 mm x 86 mm) Physical Weight (water tub): Docking station and unfilled water tub 1.5 lb (0.67 kg) Weight (cleanable water tub): Docking station and unfilled water tub 1.7 lb (0.77...

  • Page 11: Humidifier Performance

    • When using the SlimLine or ClimateLine above 20 cm H O, the device optimum performance may not be reached if used with an antibacterial filter. The device performance must be checked prior to prescribing the SlimLine for use with an antibacterial filter. •...
  • Page 12 Displayed values Value Range Display resolution Pressure sensor at air outlet Mask pressure 4–20 cm H O (CPAP); 4–25 cm 0.1 cm H O (ASV, ASVAuto) Flow derived values Leak 0–200 L/min 1 L/min Tidal volume 0–4000 mL 1 mL Respiratory rate 0–50 BPM 1 BPM...

  • Page 13: Flow (Maximum) At Set Pressures

    Flow (maximum) at set pressures The following are measured at the end of the specified air tubing: Pressure, cm H O VPAP Adapt and VPAP Adapt, H5i VPAP Adapt and VPAP Adapt, H5i Standard, L/min and Standard, SlimLine, L/min and ClimateLine,...

  • Page 14: Environmental Information

    ResMed. ResMed recommends that the VPAP Adapt and H5i be inspected and serviced by an authorized ResMed Service Center if there is any sign of wear or concern with device function. Otherwise, service and inspection of the devices generally should not be required during the five year design life of the device.
  • Page 15 Portable diagnostic/screening devices This warranty is only available to the initial consumer. It is not transferable. If the product fails under conditions of normal use, ResMed will repair or replace, at its option, the defective product or any of its components.
  • Page 16 If you notice any unexplained changes in the performance of the device, if it is making unusual or harsh sounds, if the device or the power supply are dropped or mishandled, if water is spilled into the enclosure, or if the enclosure is broken, discontinue use and contact your ResMed Service Center.
  • Page 17 • Only use the ResMed 90W or 30W power supply unit. Use the 90W power supply unit to power the system comprising the device, H5i, air tubing, DC/DC converter and battery pack. The 30W power supply unit is designed to power the device only and recommended for travelling.
  • Page 18 ResMed locations worldwide. For patent information, see www.resmed.com/ip. S9, H5i, ClimateLine, SlimLine, SmartStart and VPAP are trademarks of ResMed Ltd. S9, ClimateLine, SlimLine, SmartStart and VPAP are registered in U.S. Patent and Trademark Office. © 2012 ResMed Ltd. 368792/2 2012-05 www.resmed.com...
