- Page 1 CABINET PARTS REFRIGERATOR For Models: ABL2227FES12, ABR2227FES12 (Stainless Steel)(Stainless Steel) 9−08 Litho In U.S.A. (mat) (psw) Part No. W10207768 Rev.A...
-
Page 2: Cabinet Parts

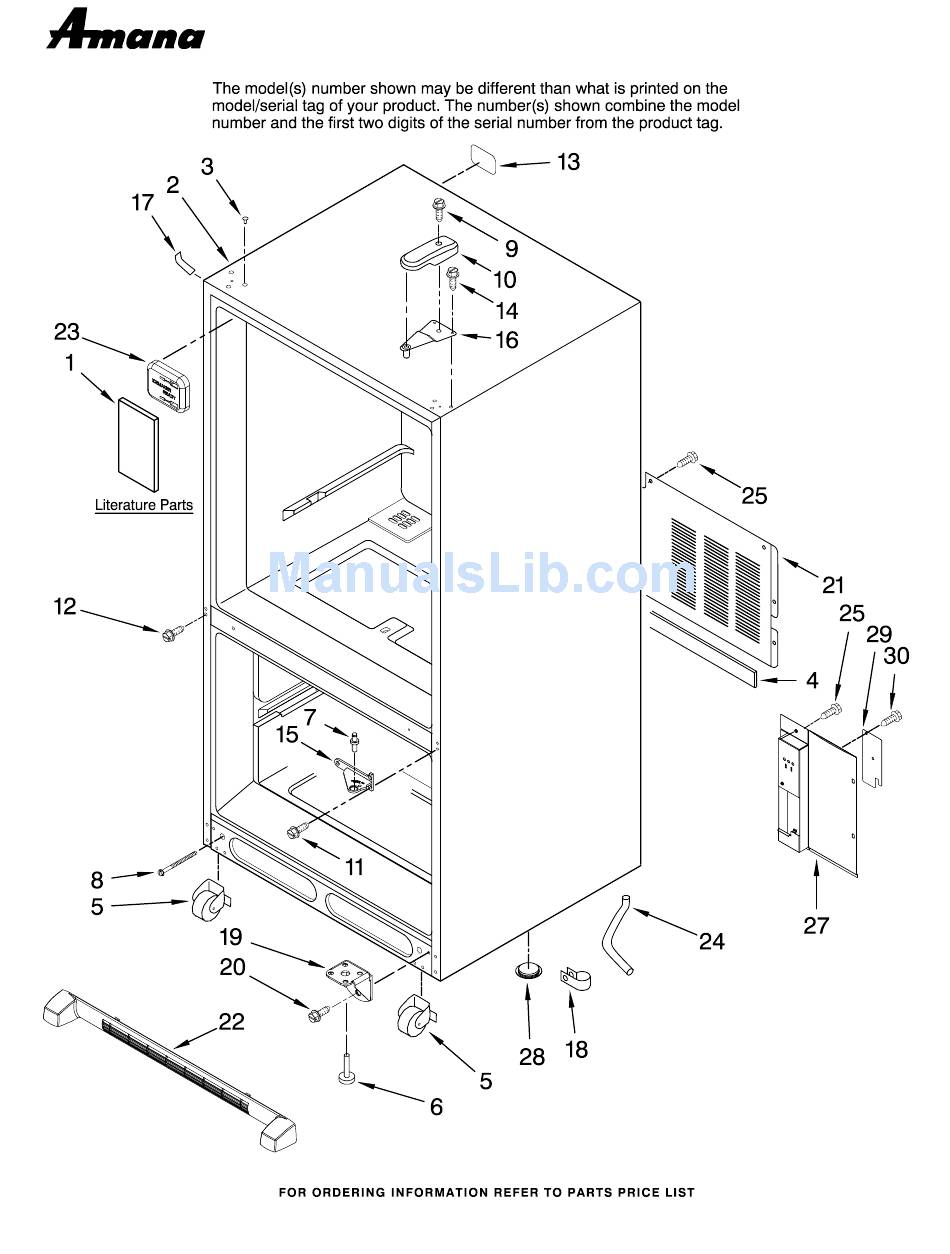

CABINET PARTS For Models: ABL2227FES12, ABR2227FES12 (Stainless Steel)(Stainless Steel) Illus. Part DESCRIPTION Literature Parts W10175445 Use & Care Guide W10183258 Energy Guide W10165418 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) M0310731 Black B5759649 Gasket 67006118 Roller Assembly... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: ABL2227FES12, ABR2227FES12 (Stainless Steel)(Stainless Steel) W10207768... - Page 4 FREEZER LINER PARTS For Models: ABL2227FES12, ABR2227FES12 (Stainless Steel)(Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 12002497 Gear (2) 67003905 Cover, Light 67004261 Shaft Y12570701 Socket, Light 67006530 Screw 67006473 Screw A0282812 Bulb, Light 67001035 Housing, Light...
-
Page 5: Freezer Door Parts
FREEZER DOOR PARTS For Models: ABL2227FES12, ABR2227FES12 (Stainless Steel)(Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Freezer Door Handle 67002935 Screw (w/ Insulation) W10136873 Stainless Plug, Button (2) 13092210SQ Stainless Steel Door Gasket, W10153326 Black Magnetic 67006113 Mount, Handle... -
Page 6: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: ABL2227FES12, ABR2227FES12 (Stainless Steel)(Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Liner (Not A 67003901 Housing, Light 12002355 Thermistor Serviceable Part) A0282812 Bulb, Light (2) 17 M0310731 Plug Button Y12570701 Socket, Light (2) -
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: ABL2227FES12, ABR2227FES12 (Stainless Steel)(Stainless Steel) W10207768... - Page 8 REFRIGERATOR DOOR PARTS For Models: ABL2227FES12, ABR2227FES12 (Stainless Steel)(Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (w/Liner) 13023840SQ Left 13023839SQ Right 67002935 Screw 67003819 Door, Dairy 67001279 Tray, Dairy 67003770 Bucket, Medium (4) 67006113 Mount, Handle Plug, Button W10153326 Black Door Gasket,...
-
Page 9: Unit Parts
UNIT PARTS For Models: ABL2227FES12, ABR2227FES12 (Stainless Steel)(Stainless Steel) W10207768... - Page 10 UNIT PARTS For Models: ABL2227FES12, ABR2227FES12 (Stainless Steel)(Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006433 Screw 67001080 Tray, Drip 2 W10162928 Blade, Fan 67006737 Screw Following Parts Not Illustrated 67005744 Basepan 67003719 Evaporator and Optional Parts Not Included...
-
Page 11: Shelf Parts
SHELF PARTS For Models: ABL2227FES12, ABR2227FES12 (Stainless Steel)(Stainless Steel) W10207768... - Page 12 SHELF PARTS For Models: ABL2227FES12, ABR2227FES12 (Stainless Steel)(Stainless Steel) Illus. Part DESCRIPTION 67001057 Rail, Center Crisper 67004420 Trim, Crisper 67005864 Slide, Humidity Control 67004986 Basket, Upper 5 W10143561 Basket, Freezer (Lower) 67006626 Screw 67006360 Screw 67004455 Shelf, Glide Out (2)
-
Page 13: Icemaker Parts
ICEMAKER PARTS For Models: ABL2227FES12, ABR2227FES12 (Stainless Steel)(Stainless Steel) W10207768... - Page 14 ICEMAKER PARTS For Models: ABL2227FES12, ABR2227FES12 (Stainless Steel)(Stainless Steel) Illus. Part DESCRIPTION Mold & Heater Assembly (Not Available Order D7824706Q) 67004028 Arm, Shutoff 628356 Cup, Fill 627843 Ejector 2182124 Ice Stripper 2195914 Support & Motor Assembly 2315522 Retainer, Thermostat Thermostat...
- Page 15 OPTIONAL PARTS (NOT INCLUDED) For Models: ABL2227FES12, ABR2227FES12 (Stainless Steel)(Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, TOUCH−UP (1/2oz.) TORX SCREW WRENCH PAINT, BULK (1 qt.) 1117510 Torx Key 72017 White 72032 Black 799344 White (Uncut)
