- Page 1 CABINET PARTS For Model: ABL1922FES12, ABR1922FES12 (Stainless Steel) (Stainless Steel) Part No. W10205146 Rev. B 05−08 Litho in U.S.A. (MAT) (eeb)
-
Page 2: Cabinet Parts

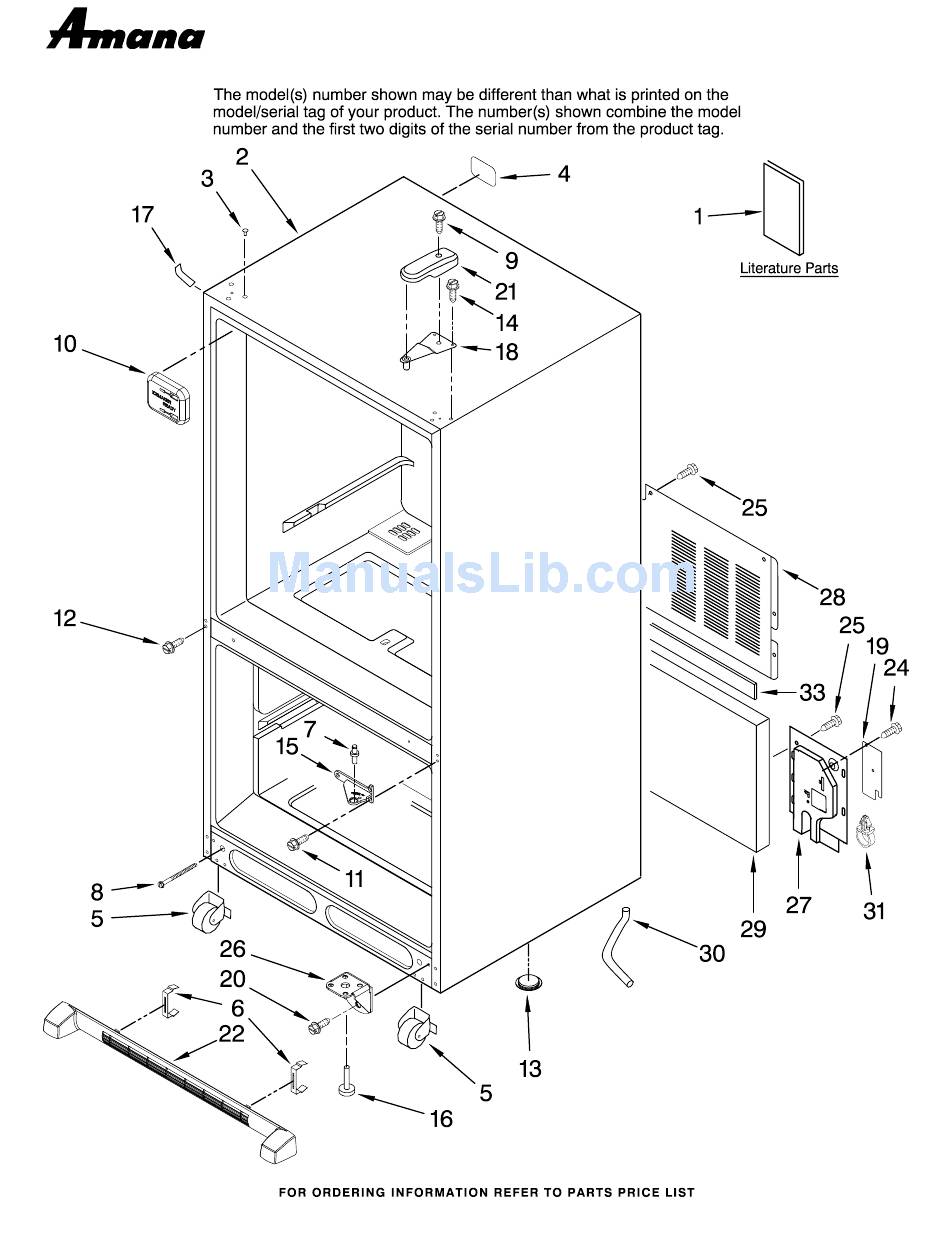

CABINET PARTS For Model: ABL1922FES12, ABR1922FES12 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION Literature Parts W10175445 Owners Manual W10183296 Energy Tag W10165418 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) 67001131 Black 67005064 Label, Fill Tube 67006118 Roller Assembly 12627302 Clip, Grille 67006642 Pin, Center Hinge 67006611 Bolt, Adjusting... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: ABL1922FES12, ABR1922FES12 (Stainless Steel) (Stainless Steel) W10205146... - Page 4 REFRIGERATOR LINER PARTS For Model: ABL1922FES12, ABR1922FES12 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) Y67003896 Bracket, Control and Lights 67004279 Overlay 4 W10185244 Housing, Electronic Control 5 W10165748 Board, Control C3680310 Switch, Light 67003897 Cover, Light 67003901 Housing, Light A0282812 Bulb, Light (2) Y12570701 Socket, Light (2)
-
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Model: ABL1922FES12, ABR1922FES12 (Stainless Steel) (Stainless Steel) W10205146... - Page 6 FREEZER LINER PARTS For Model: ABL1922FES12, ABR1922FES12 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam (2) 12002497 Gear (2) (Includes RH & LH) 67003905 Cover, Light 67004067 Shaft Y12570701 Socket, Light 67006473 Screw (8) A0282812 Bulb, Light 67001035 Housing, Frz.
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: ABL1922FES12, ABR1922FES12 (Stainless Steel) (Stainless Steel) W10205146... - Page 8 REFRIGERATOR DOOR PARTS For Model: ABL1922FES12, ABR1922FES12 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (w/ Insulation) Stainless Steel W10203482 Left W10182772 Right Plug, Vent 67004838 Black 67003819 Door, Compartment 67001279 Tray, Dairy 67001021 Bucket (2) (Medium) Y12528501 Nameplate Plug, Button (2) 67001131 Black Gasket, Door...
-
Page 9: Freezer Door Parts
FREEZER DOOR PARTS For Model: ABL1922FES12, ABR1922FES12 (Stainless Steel) (Stainless Steel) W10205146... - Page 10 FREEZER DOOR PARTS For Model: ABL1922FES12, ABR1922FES12 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (w/ Insulation) W10174587 Stainless Steel Handle, Door W10159105 Stainless Steel 67006113 Mount, Handle Gasket, Door W10153328 Black 67006682 Screw Plug, Vent (2) 67004838 Black W10205146...
-
Page 11: Shelf Parts
SHELF PARTS For Model: ABL1922FES12, ABR1922FES12 (Stainless Steel) (Stainless Steel) W10205146... - Page 12 SHELF PARTS For Model: ABL1922FES12, ABR1922FES12 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION 67002690 Ladder, Side 67006400 Screw (6) 67001073 Ladder, Center 67006360 Screw (2) 12204808 Glass, Shelf (4) 67006626 Screw (4) 67006877 Glass, Crisper 67001153 Frame, Crisper 10946012 Trim, Rear (4) 67005864 Knob, Control D7725402 Tray, Ice Cube 67001057 Rail, Center...
-
Page 13: Unit Parts
UNIT PARTS For Model: ABL1922FES12, ABR1922FES12 (Stainless Steel) (Stainless Steel) W10205146... - Page 14 UNIT PARTS For Model: ABL1922FES12, ABR1922FES12 (Stainless Steel) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12002051 Evaporator 67006433 Screw (3) 2 W10162928 Blade, Fan Following Parts Not Illustrated 67001084 Right Side 67006914 Basepan 67001083 Left Side and Optional Parts Not Included 67006425 Screw (2) 67004432 Motor, Fan...
-
Page 15: Icemaker Parts
ICEMAKER PARTS For Model: ABL1922FES12, ABR1922FES12 (Stainless Steel) (Stainless Steel) W10205146... - Page 16 ICEMAKER PARTS For Model: ABL1922FES12, ABR1922FES12 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION Mold & Heater Assembly (Not Available Order D7824706Q) 67004028 Arm, Shutoff 628356 Cup, Fill 627843 Ejector 2182124 Ice Stripper 2195914 Support & Motor Assembly 2315522 Retainer, Thermostat Thermostat (Not Available Order D7824706Q)
- Page 17 OPTIONAL PARTS (NOT INCLUDED) For Model: ABL1922FES12, ABR1922FES12 (Stainless Steel) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, TOUCH−UP (1/2oz.) TORX SCREW WRENCH PAINT, BULK (1 qt.) 1117510 Torx Key 72017 White 72032 Black 799344 White (Uncut) 799340 Black (Uncut) ACCESSORIES PAINT, PRESSURIZED SPRAY...
